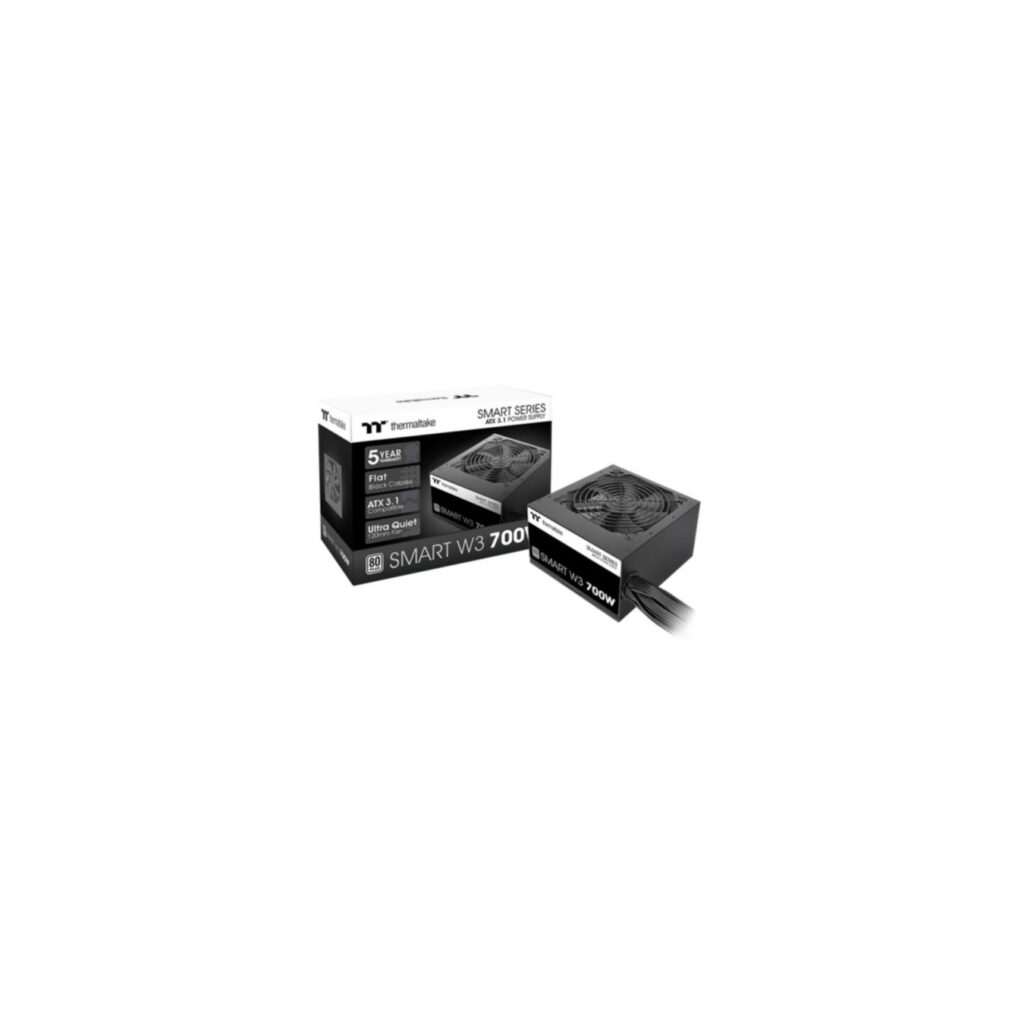

Thermaltake Smart W3 700W ATX 3.1 PSU Non-Modular Black 120mm FDB 80 PLUS
700W Thermaltake Smart W3 non-modular ATX 3.1 PSU. 80 PLUS certified, 120mm FDB fan, 1x 24-pin ATX, 1x EPS 4+4, 2x PCIe 6+2, 4x SATA, 4x Molex. Active PFC, full protections, 5-year warranty. Ideal budget PC builds.
Доступно через 4–6 рабочих дней : 9 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

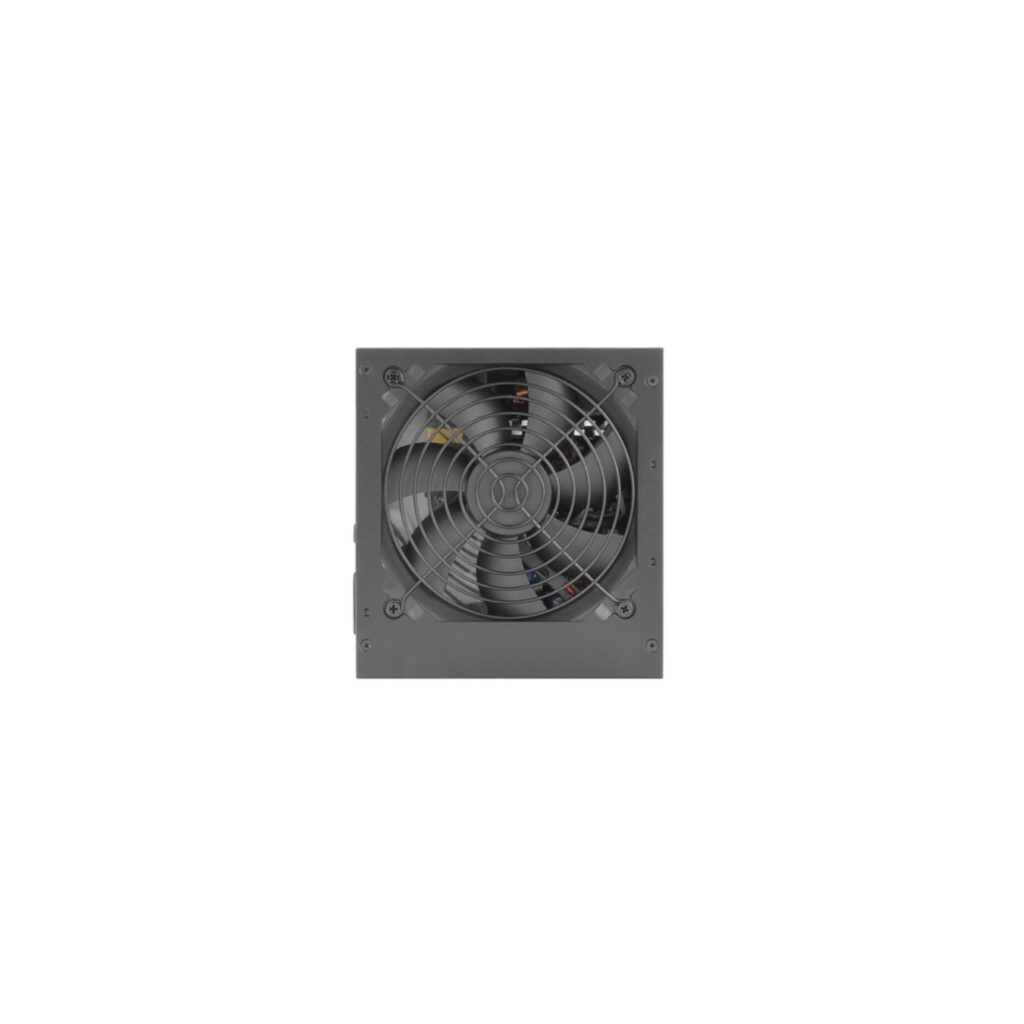

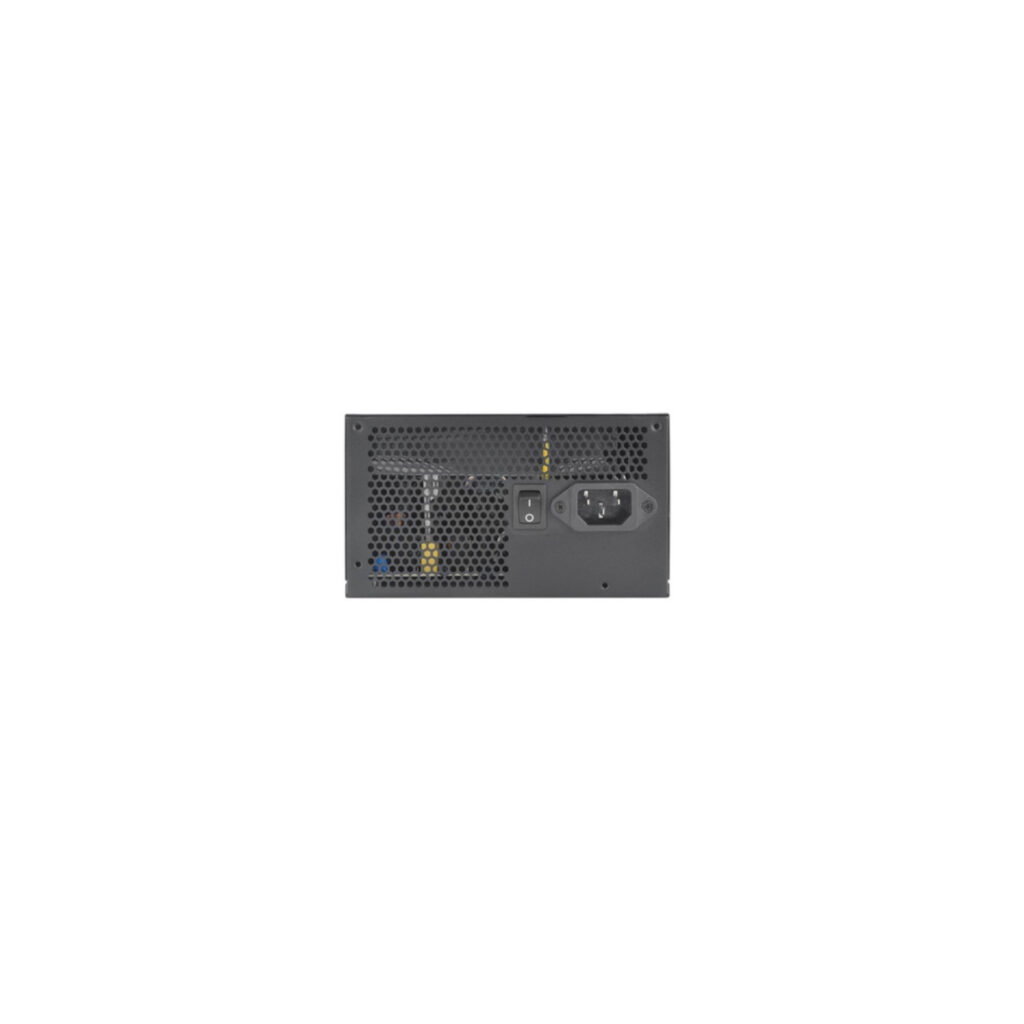

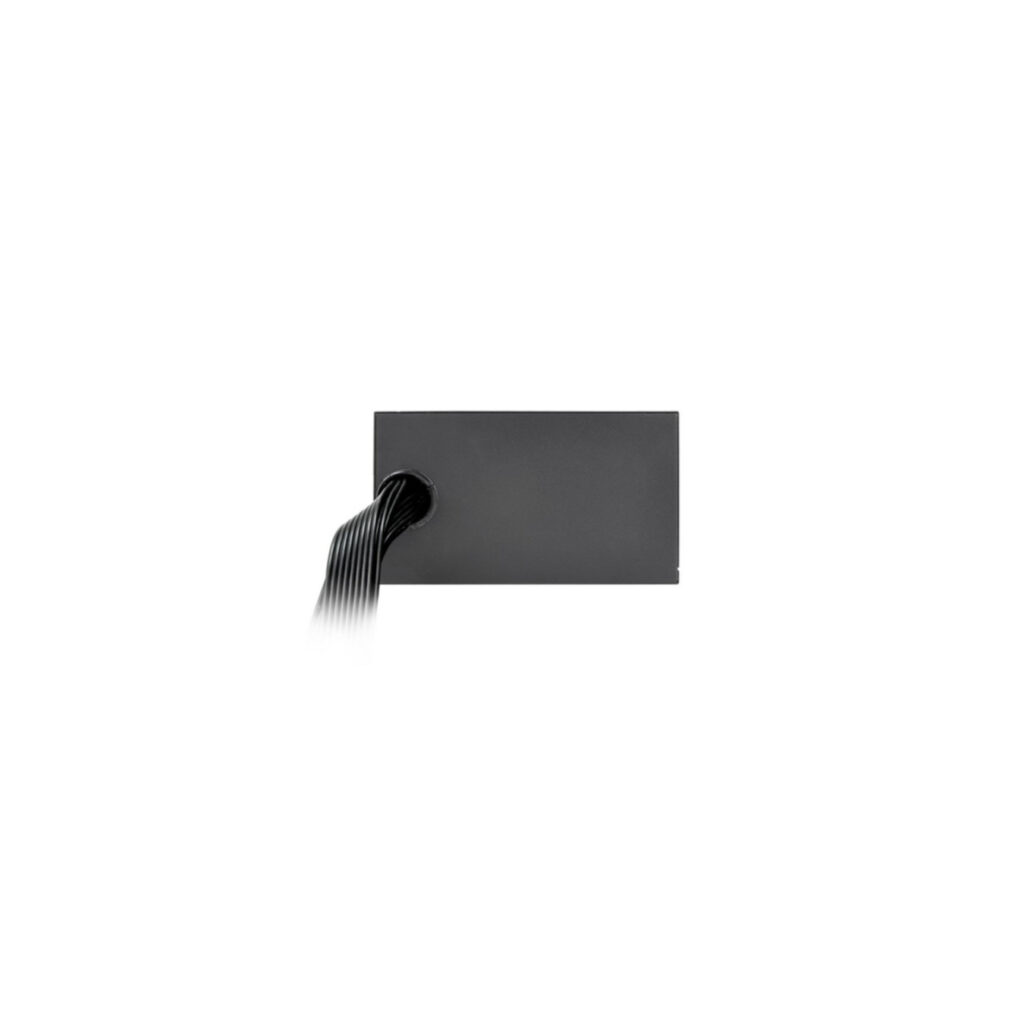

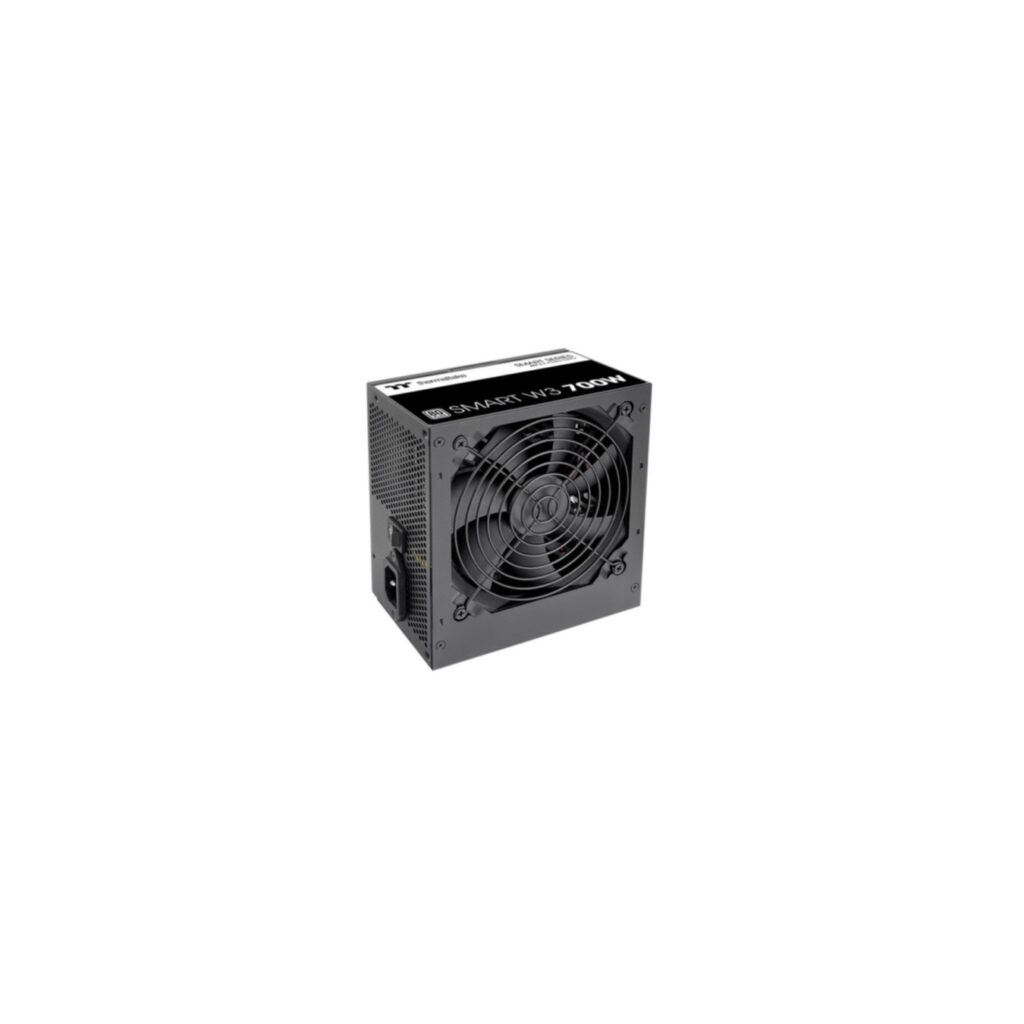

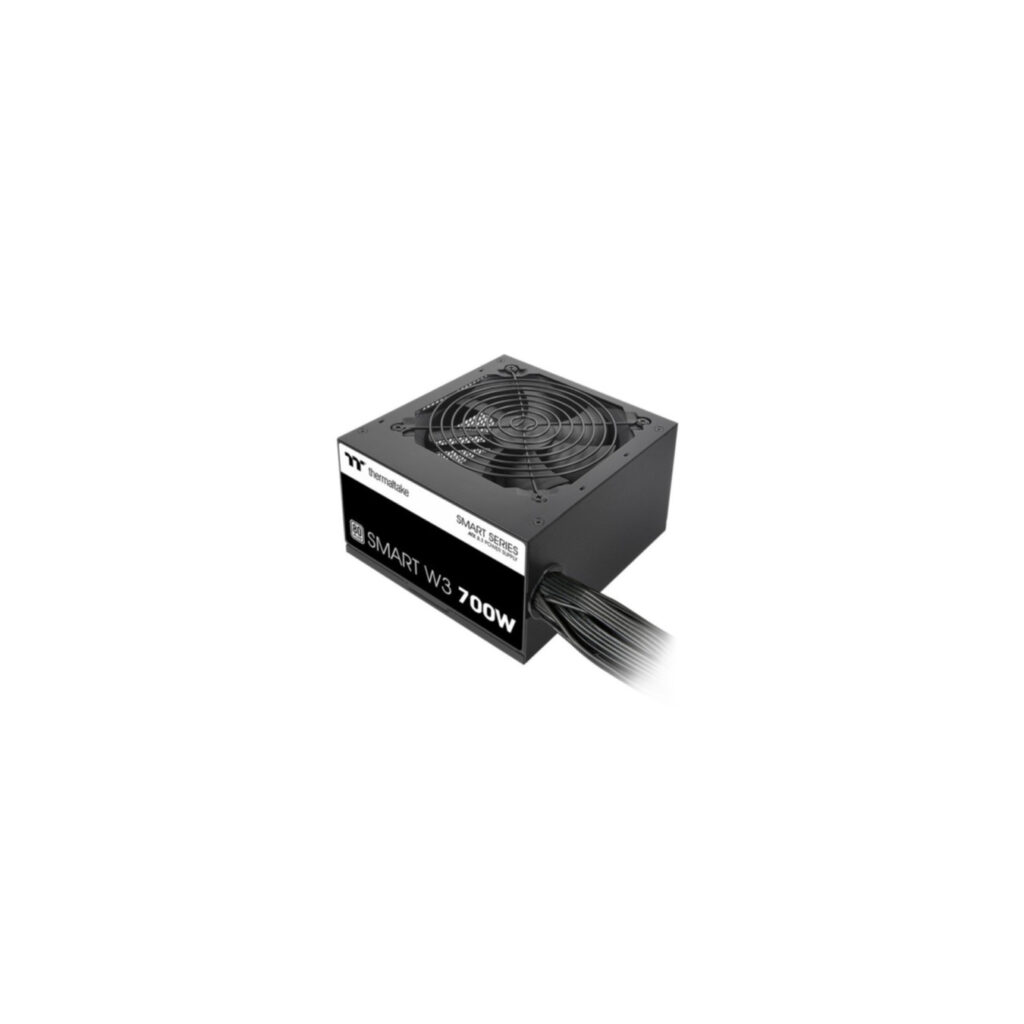

The Thermaltake Smart W3 700W is a reliable non-modular power supply designed for modern PC builds, fully compliant with ATX 3.1 standards for compatibility with the latest GPUs and components. Featuring a quiet 120mm Fluid Dynamic Bearing (FDB) fan, Active Power Factor Correction (PFC), and 80 PLUS certification for energy efficiency, it delivers stable power with a single +12V rail rated at 58.33A (700W total).
Key connectors include 1x 24-pin ATX (60cm), 1x EPS/ATX12V 4+4 pin, 2x PCIe 6+2 pin (65cm), 4x SATA, and 4x 4-pin Molex peripherals. Multiple protections guard against over-current, over-power, over-voltage, overheating, short-circuit, and under-voltage issues. Compact dimensions (150x86x140mm) fit most ATX cases, with a 5-year warranty for peace of mind. Perfect for mid-range gaming rigs or everyday systems.
- ATX 3.1 Compliant: Supports native 12VHPWR/12V-2×6 via adapters if needed (2x 6+2 provided).
- Efficiency & Cooling: 80 PLUS rated, 120mm FDB fan for low noise.
- Protections: OCP/OPP/OVP/SCP/OTP/UVP.
- Warranty: 5 years.
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 700 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 58.33 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 500, 650, 800, 950 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500, 650, 800, 950 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 65 cm |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CB/FCC/cTUVus/ICES |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Warranty | 5 years |
