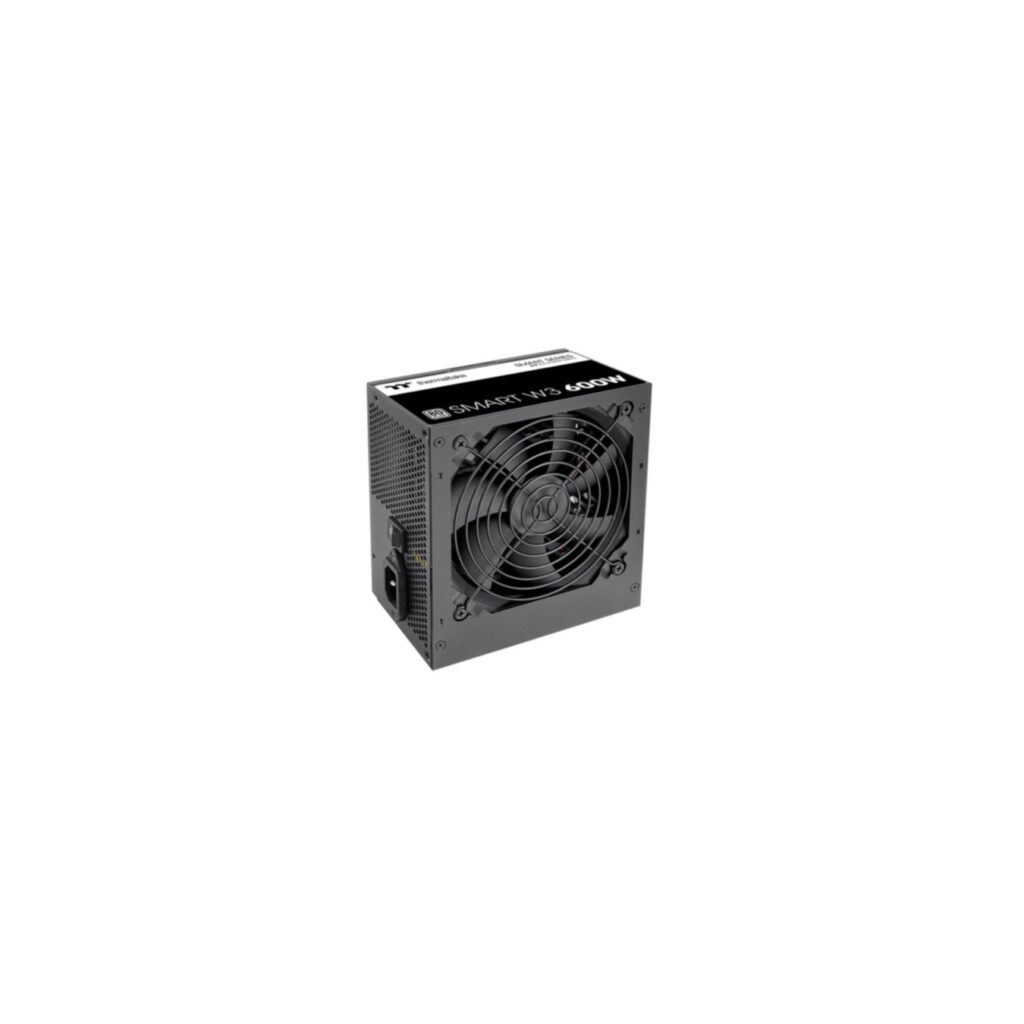

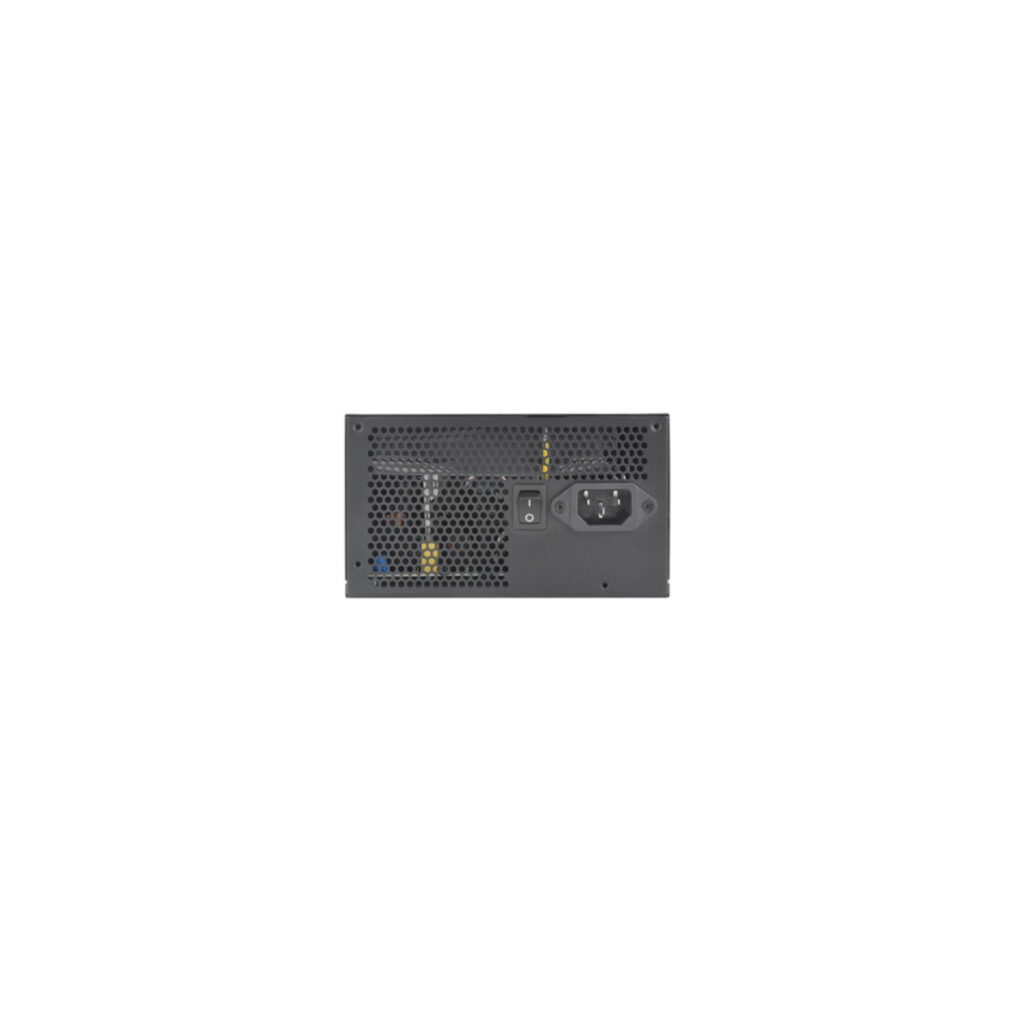

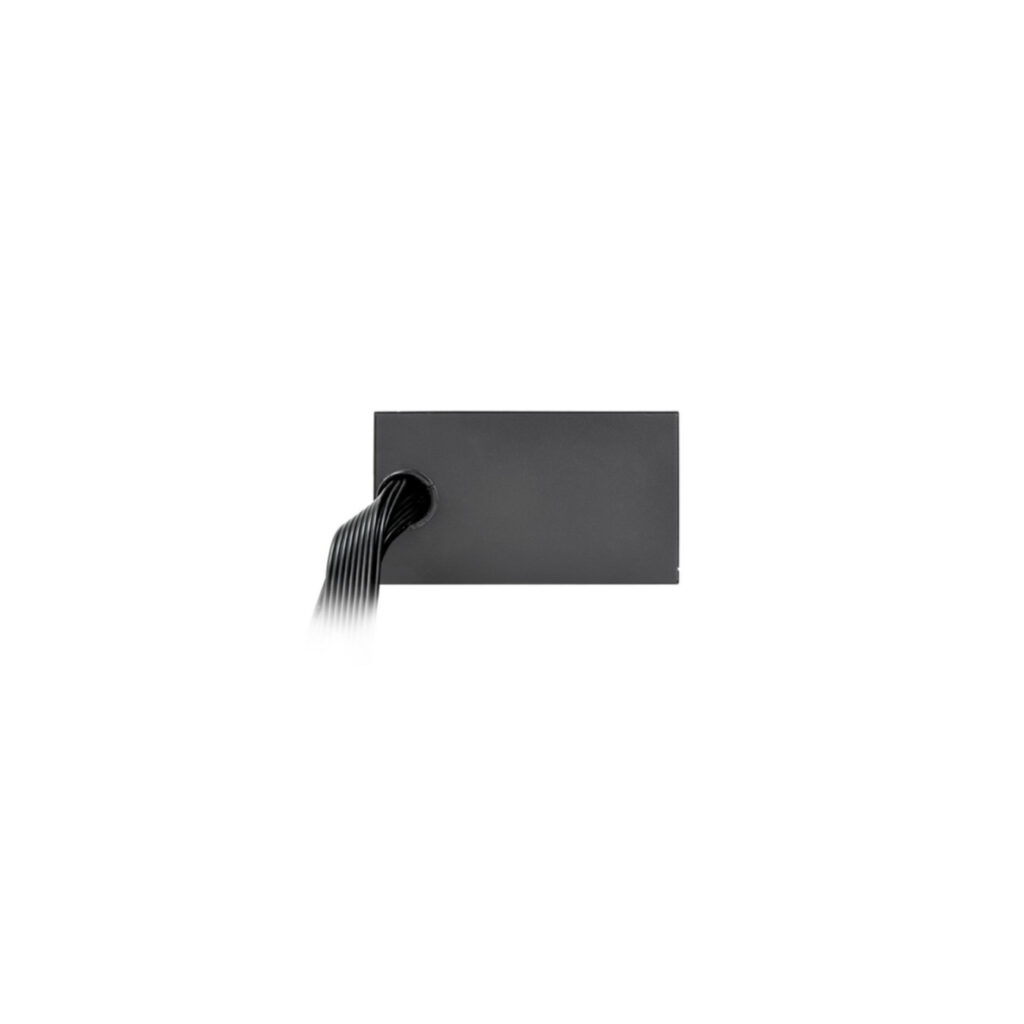

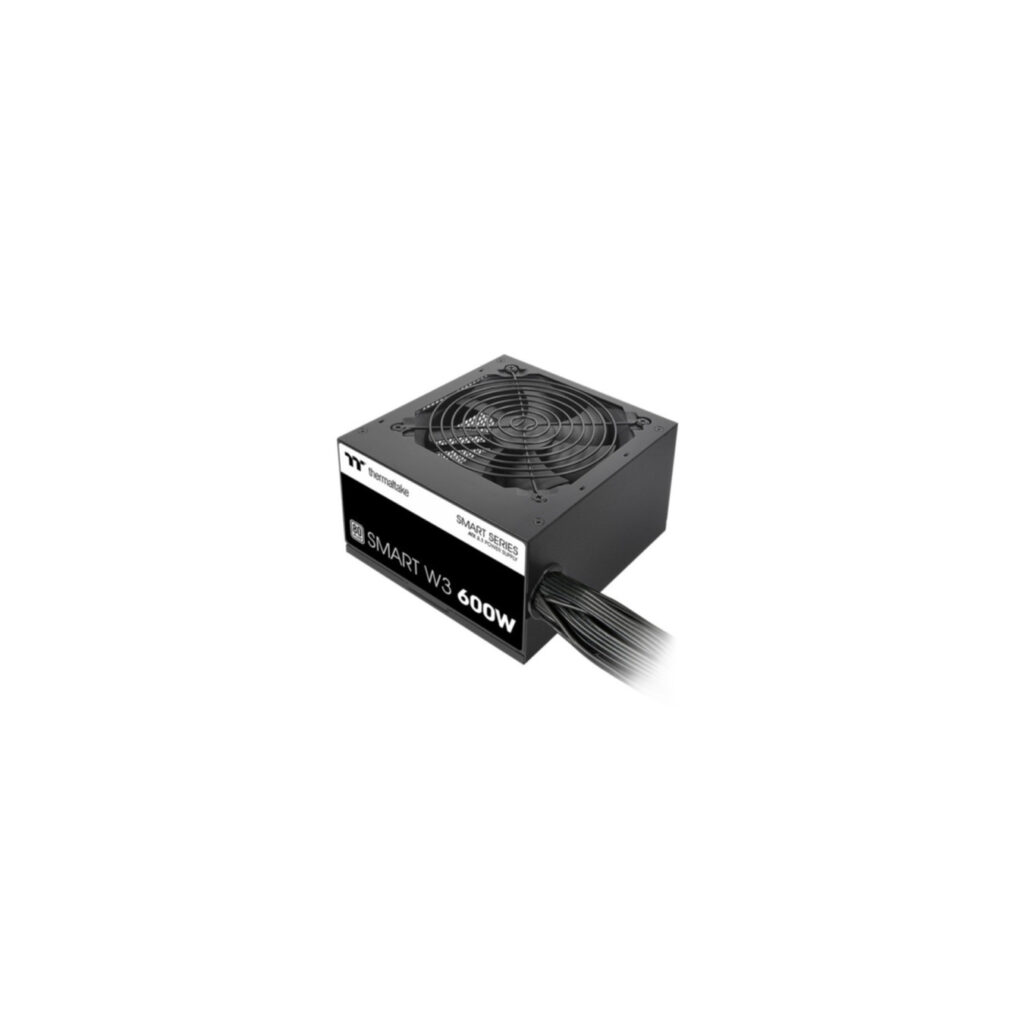

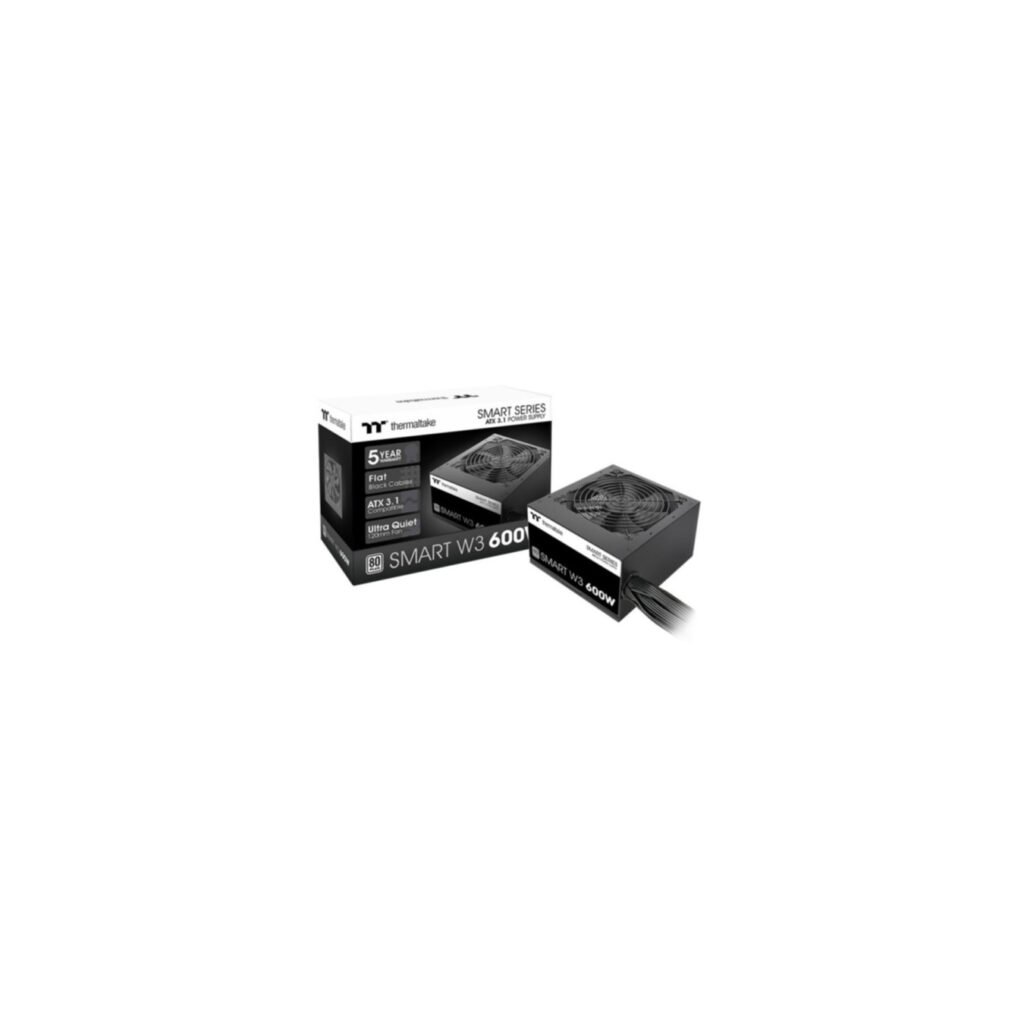

Thermaltake Smart W3 600W 80 PLUS ATX 3.1 Non-Modular PSU - Black
Thermaltake Smart W3 600W non-modular ATX 3.1 PSU with 80 PLUS certification, 120mm FDB fan, and 5-year warranty. Features 2x 6+2 PCIe, 1x 4+4 EPS, 4x SATA, 4x Molex connectors. Note: 12V rail limited to ~500W.
Доступно через 4–6 рабочих дней : 7 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Thermaltake Smart W3 600W is a budget-oriented, non-modular ATX power supply featuring 80 PLUS certification and ATX 3.1 compliance. It delivers 600W total capacity with a single 120mm FDB (Fluid Dynamic Bearing) fan for cooling. The unit includes active Power Factor Correction (PFC) and comprehensive protection features including overcurrent, overvoltage, overpower, overheating, short circuit, and undervoltage protection.
Important Performance Note: Professional testing reveals this unit delivers approximately 500W on the critical 12V rail rather than the full 600W rating, which may limit compatibility with high-power graphics cards and processors. Additionally, the overpower protection mechanism fails to reset after initial activation, requiring manual power cycling. The 80 PLUS certification indicates 80% efficiency, meaning 20% of input power is lost as heat.
This PSU is best suited for entry-level and mid-range builds with modest power requirements. The non-modular cable design means all cables are permanently attached, potentially complicating cable management in compact cases. A 5-year manufacturer warranty provides some peace of mind, though user reports indicate mixed reliability across production batches.
- 600W total output with ~500W 12V rail capacity
- Non-modular fixed cabling (24-pin ATX, 1x 4+4 EPS, 2x 6+2 PCIe, 4x SATA, 4x Molex)
- 80 PLUS certification (80% efficiency)

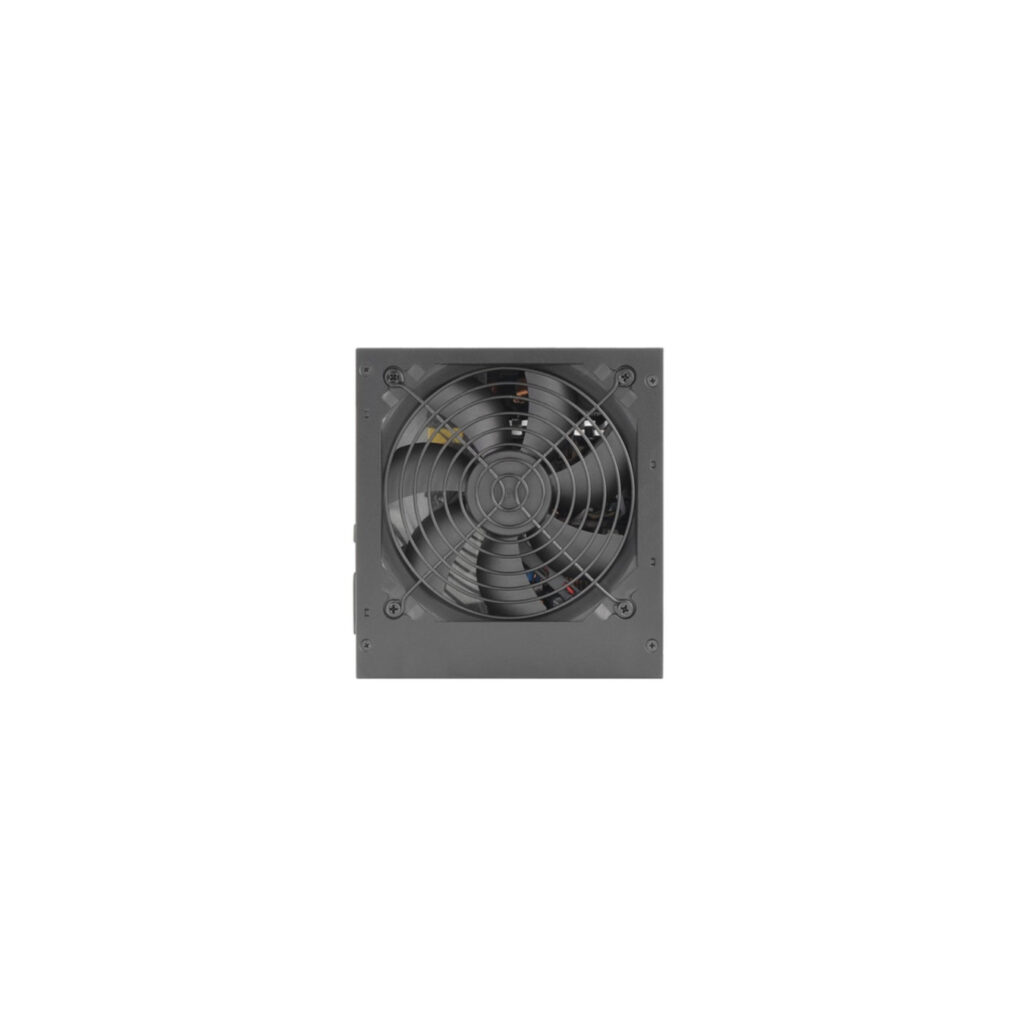

- Single 120mm FDB cooling fan
- Active PFC and comprehensive protection suite
- ATX 3.1 compliant form factor
- 5-year manufacturer warranty
- Operating temperature range: 5–40°C
| Total Power Output | 600 W |
| 12V Rail Power | ~500 W (actual delivery, not full 600W) |
| Efficiency Rating | 80 PLUS (80% efficiency) |
| Form Factor | ATX 3.1 |
| Modularity | Non-modular |
| Cooling | 1x 120mm FDB (Fluid Dynamic Bearing) fan |
| Power Factor Correction | Active PFC |
| Motherboard Connector | 24-pin ATX |
| CPU Power Connector | 1x 4+4 pin EPS/ATX12V |
| PCIe GPU Connectors | 2x 6+2 pin (8-pin equivalent) |
| SATA Power Connectors | 4x SATA |
| Molex (4-pin) Connectors | 4x Molex |
| Protection Features | Overcurrent, Overvoltage, Overpower, Overheating, Short Circuit, Undervoltage |
| Overpower Protection | Fails to reset after first activation (critical flaw) |
| Input Voltage | 100–240 V AC |
| Input Frequency | 50/60 Hz |
| Operating Temperature | 5–40°C |
| Storage Temperature | -40–55°C |
| MTBF (Mean Time Between Failures) | 100,000 hours |
| Warranty | 5 years |
| Certifications | CB, FCC, cTUVus, ICES |
| Unit Dimensions (PSU only) | 150 mm (W) × 140 mm (D) × 86 mm (H) |
| Color | Black |
| Model Number | PS-SPW-0600NNFAWU-1 |
