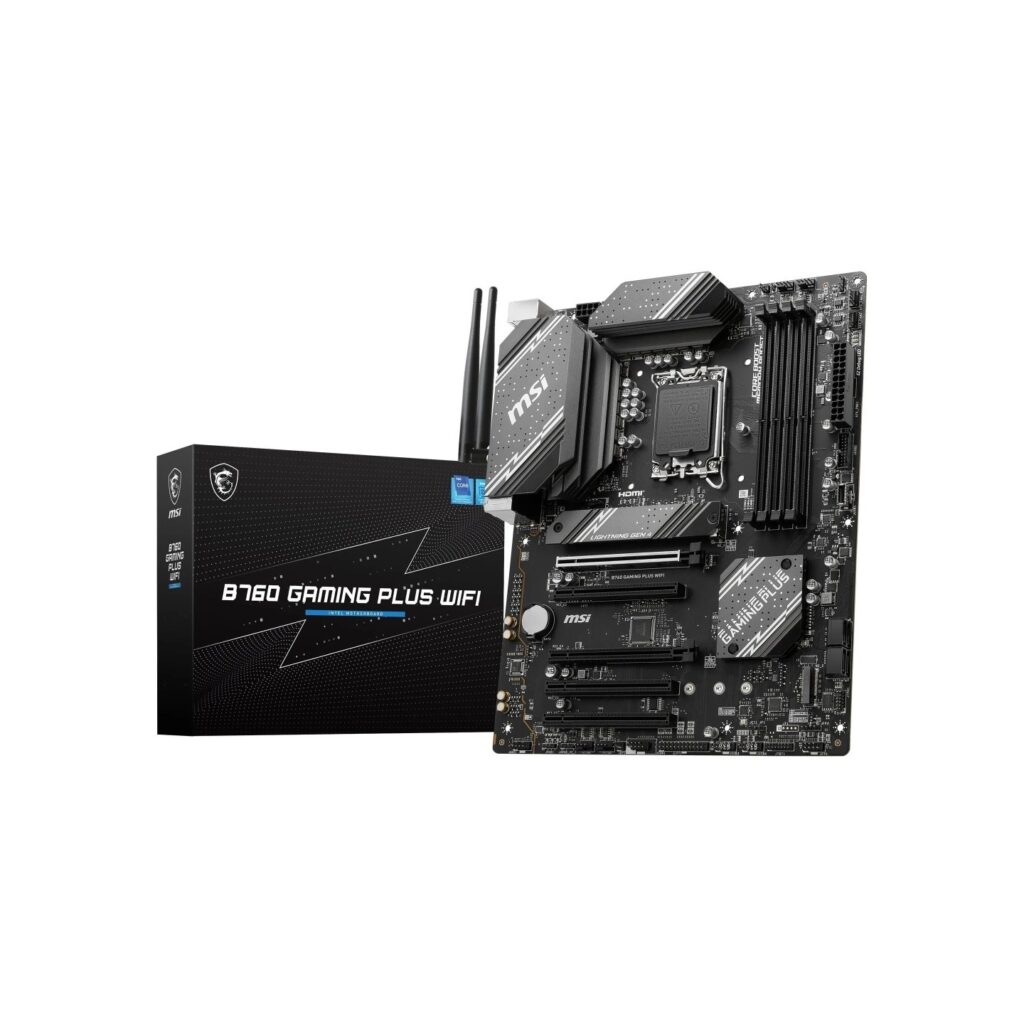

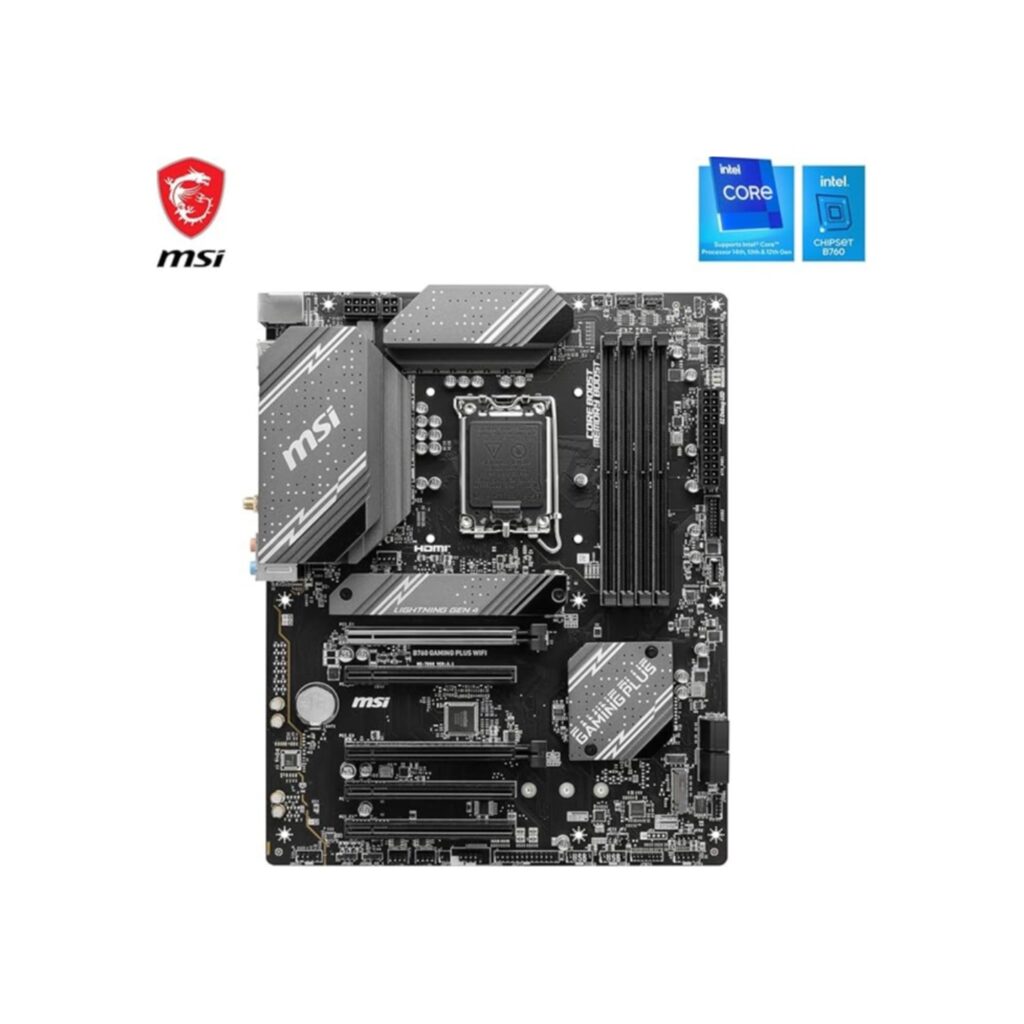

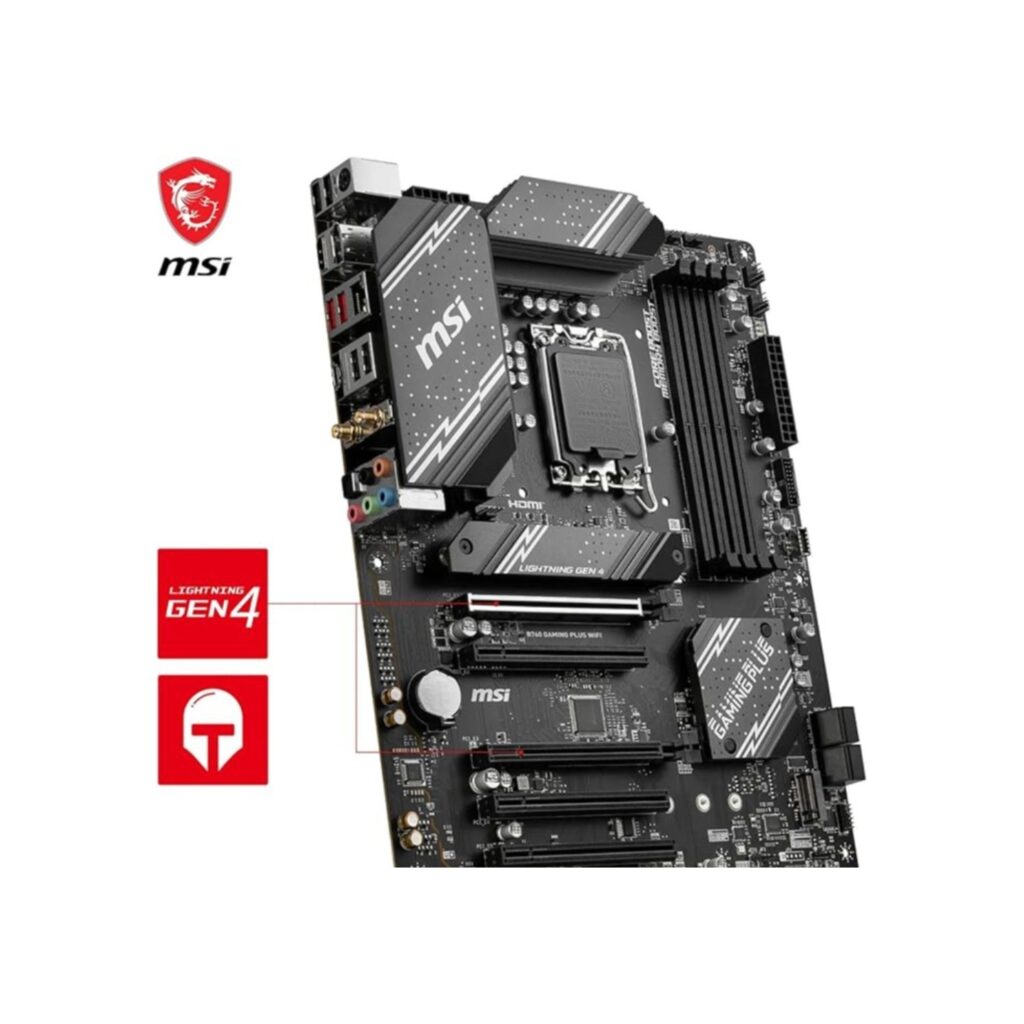

MSI B760 Gaming Plus WiFi LGA1700 ATX MB DDR5 192GB PCIe4.0 2.5G LAN WiFi
ATX Intel B760 LGA1700 motherboard: DDR5 up to 192GB (4xDIMM, XMP), PCIe 4.0 x16 GPU + 2x M.2, 4x SATA RAID 0/1/5/10, 2.5Gb LAN, Wi-Fi 6E BT5.3, USB-C, RGB headers, black.
Доступно через 4–6 рабочих дней : 24 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The MSI B760 Gaming Plus WiFi is a feature-packed ATX motherboard designed for Intel 12th/13th/14th Gen Core processors on LGA1700 socket. It supports DDR5 memory up to 192GB across 4 DIMM slots with XMP overclocking for high-performance gaming and productivity builds. Extended heatsinks, 12+1 Duet Rail VRM with 7W/mK pads, and M.2 Shield Frozr ensure stability under load.
Connectivity shines with PCIe 4.0 x16 slot for GPUs, 2x PCIe 4.0 M.2 slots (up to 22110), 4x SATA6Gb/s with RAID support, rear USB 3.2 Gen2 Type-C, front USB-C header, 2.5G Realtek LAN, Wi-Fi 6E, and Bluetooth 5.3. Audio is handled by Realtek ALC897 7.1-channel codec. Multiple RGB headers (ARGB/RGB) allow extensive lighting customization.
- Socket: LGA1700 (Intel Core i9/i7/i5/i3, Pentium, Celeron)
- Chipset: Intel B760
- Memory: 4x DDR5, max 192GB, Dual Channel
- Expansion: 1x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x4), 3x PCIe 3.0 x1
- Storage: 2x M.2 PCIe4.0 x4, 4x SATA RAID
- Network: 2.5GbE, Wi-Fi 6E, BT 5.3
- Video: 1x HDMI 2.1, 1x DP 1.4
- Form Factor: ATX (30.5×24.4 cm)
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Memory Profile Support | XMP |
| Supported storage drive interfaces | M.2, SATA |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 5, 10 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x16 slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 (primary) |
| PCI Express x1 slots | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| VRM Design | 12+1 Duet Rail Power System |
| RGB Headers | Yes (5V ARGB, 12V RGB) |
