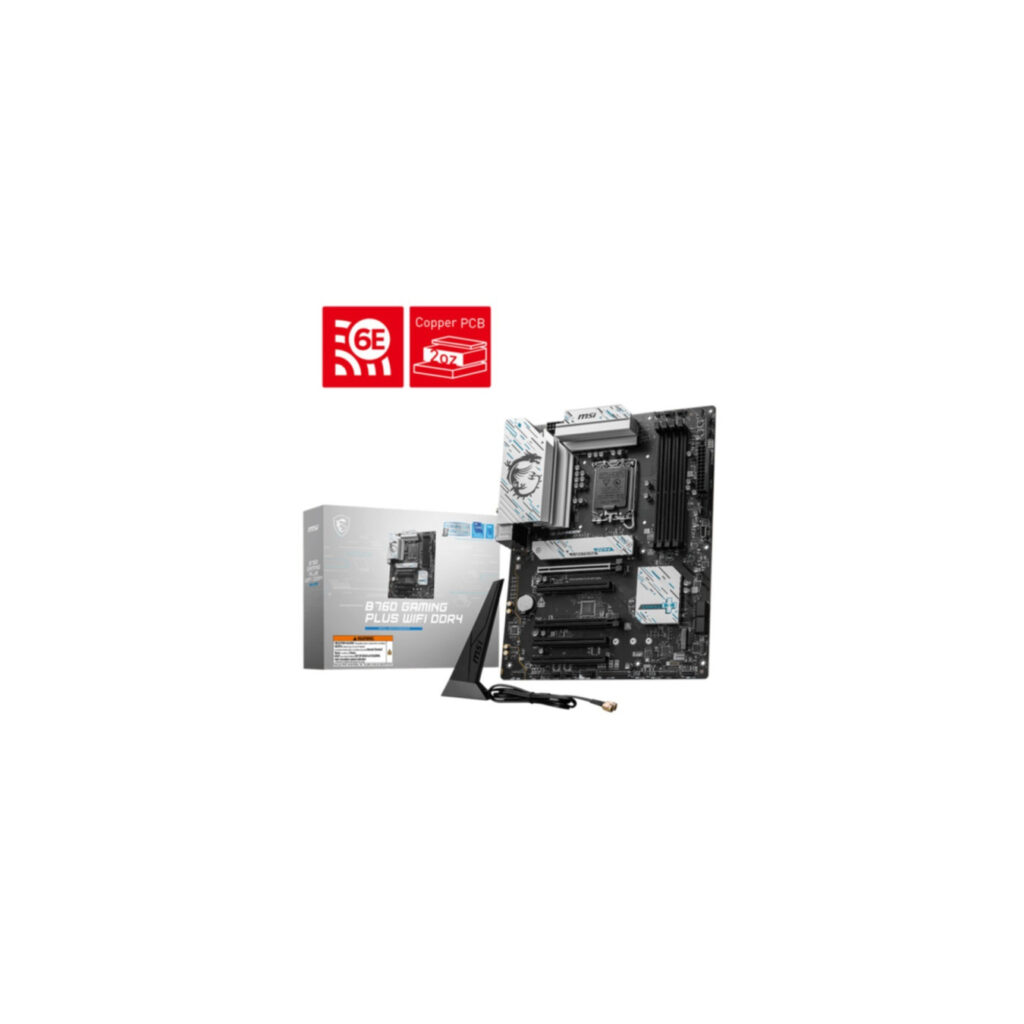

MSI B760 GAMING PLUS WIFI DDR4 ATX LGA1700 Motherboard
ATX LGA1700 motherboard for Intel 12/13/14th Gen Core CPUs. Supports DDR4 up to 128GB (5333+MHz OC), Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN, PCIe 4.0 x16, dual M.2 PCIe 4.0, 12+1+1 power design.
Доступно через 4–6 рабочих дней : 2 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
MSI B760 GAMING PLUS WIFI DDR4
The B760 GAMING PLUS WIFI DDR4 delivers robust performance for gamers and creators with Intel Core 14th/13th/12th Gen processors on LGA1700 socket. It features 4x DDR4 slots supporting up to 128GB at speeds up to 5333+ MHz (OC) with XMP, dual PCIe 4.0 M.2 slots with Shield Frozr cooling, 2.5G LAN via Dragon RTL8125BG, and Wi-Fi 6E with Bluetooth 5.3 for seamless connectivity.
Premium thermal solutions include extended heatsinks, 7W/mK MOSFET pads, heavy plated VRM heatsink, and additional choke pads for sustained high performance. The 12+1+1 Duet Rail Power System with 8+4 pin connectors and Core Boost handles demanding loads. Expansion includes PCIe 4.0 x16 (Steel Armor), PCIe 3.0 x1 slots, 4x SATA 6Gb/s, USB 3.2 Gen2 (10Gbps Type-C), and 7.1-channel Realtek ALC897 audio.
- ✅ Supports Intel 12th-14th Gen Core, Pentium Gold, Celeron (LGA1700)
- ✅ DDR4 up to 128GB, 5333+MHz OC, Dual Channel, XMP
- ✅ 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
- ✅ Wi-Fi 6E, BT 5.3, 2.5G LAN
- ✅ PCIe 4.0 x16 + x1 slots, USB 3.2 Gen2x2 Type-C
- ✅ 12+1+1 power phases, extended VRM/M.2 heatsinks
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core 12th/13th/14th Gen, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| Form factor | ATX |
| Memory type | DDR4-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133 to 5333+(OC) MHz |
| Memory channels | Dual-channel |
| Number of M.2 slots | 2 |
| M.2 specs | 2x PCIe 4.0 x4 (M2_1 CPU, M2_2 chipset) |
| Number of SATA III connectors | 4 |
| PCI Express x16 slots | 2 (1x PCIe 4.0 x16, 1x PCIe 4.0/3.0 x16) |
| PCI Express x1 slots | 3 (PCIe 3.0) |
| USB 3.2 Gen 2 Type-A ports | 2 |
| USB 3.2 Gen 2 Type-C ports | 1 (10Gbps) |
| Ethernet LAN | 2.5 Gigabit Ethernet (Dragon RTL8125BG) |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | 5.3 |
| Audio chip | Realtek ALC897 7.1-channel |
| Power design | 12+1+1 Duet Rail Power System |
| BIOS type | UEFI AMI |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| RAID levels | 0, 1, 5, 10 |
