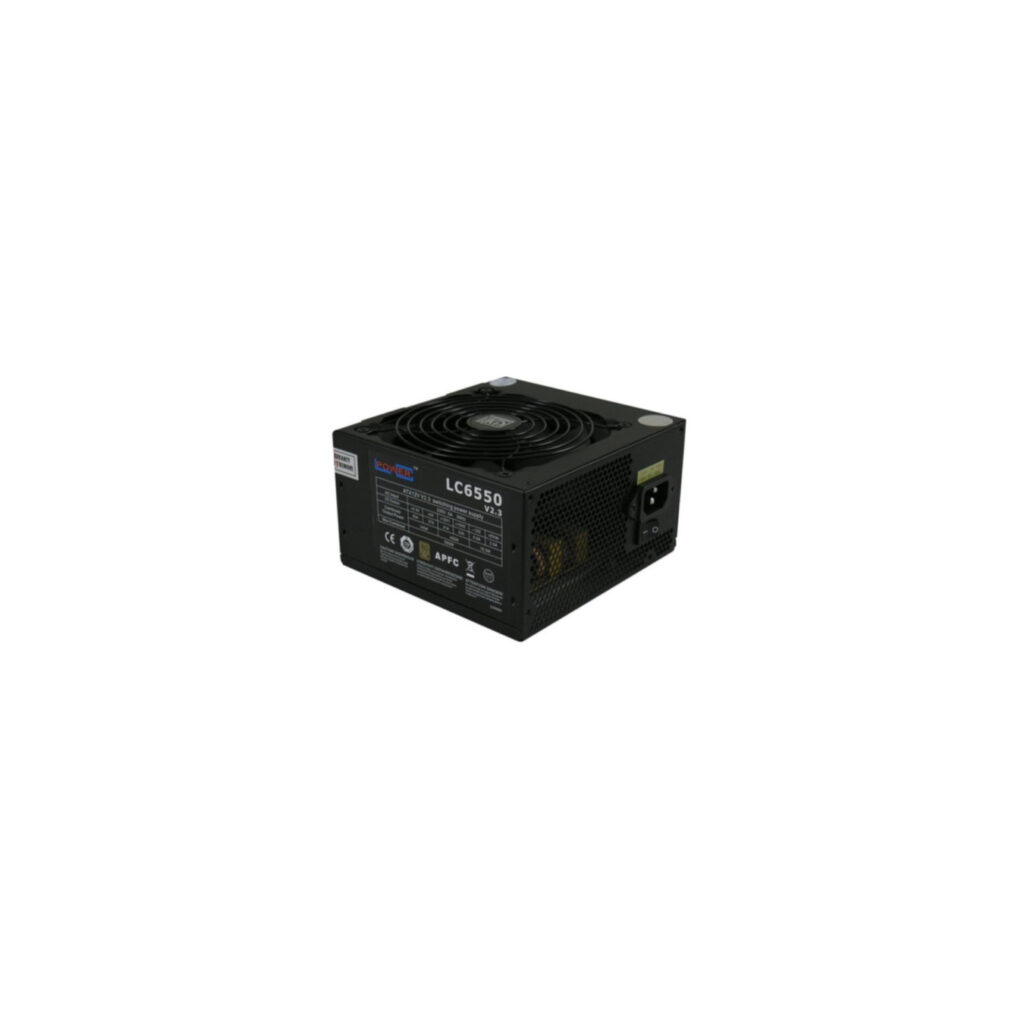

LC-Power Super Silent LC6550 V2.3 - 550W 80 PLUS Bronze ATX PSU, Non-Modular, 120mm Fan
78.50 €
550W ATX PSU, 80 PLUS Bronze certified, non-modular cables. 120mm fan, Active PFC, 20+4 ATX & 4+4 CPU, 1×6+2 PCIe, 4×SATA, 4×PATA. Protections: OCP/OPP/OVP/UVP/SCP.
Доступно через 6–10 рабочих дней : 30 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
— 80 PLUS BRONZE 230V EU certified
— 1x PCI-Express V2.0 6+2 pin connector
— 2x +12V rails
— 120mm fan
— Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
| Total power | 550 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 145 W |
| Combined power (+12V) | 450 W |
| Combined power (+5V) | 145 W |
| Combined power (-12V) | 18.5 W |
| Combined power (+5Vsb) | 18.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 21 A |
| Max output current (+12V2) | 23 A |
| Max output current (+5V) | 27 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 4 |
| Number of PATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| Floppy disk drive connector | No |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.75 kg |
| Harmonized System (HS) code | 84733020 |
