LC Power LC300SFX V3.21 SFX 250W (300W Peak) Silent PSU 80mm Fan
SFX PSU LC300SFX V3.21: 250W rated (300W peak), 80mm silent fan, >85% efficiency, active PFC. Connectors: 20+4 ATX, 4+4 CPU, 4x SATA, 2x PATA, 1x FDD, 1x 6-pin PCIe. Ideal for Mini-ITX/HTPC.
Доступно через 2–5 рабочих дней : 20 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

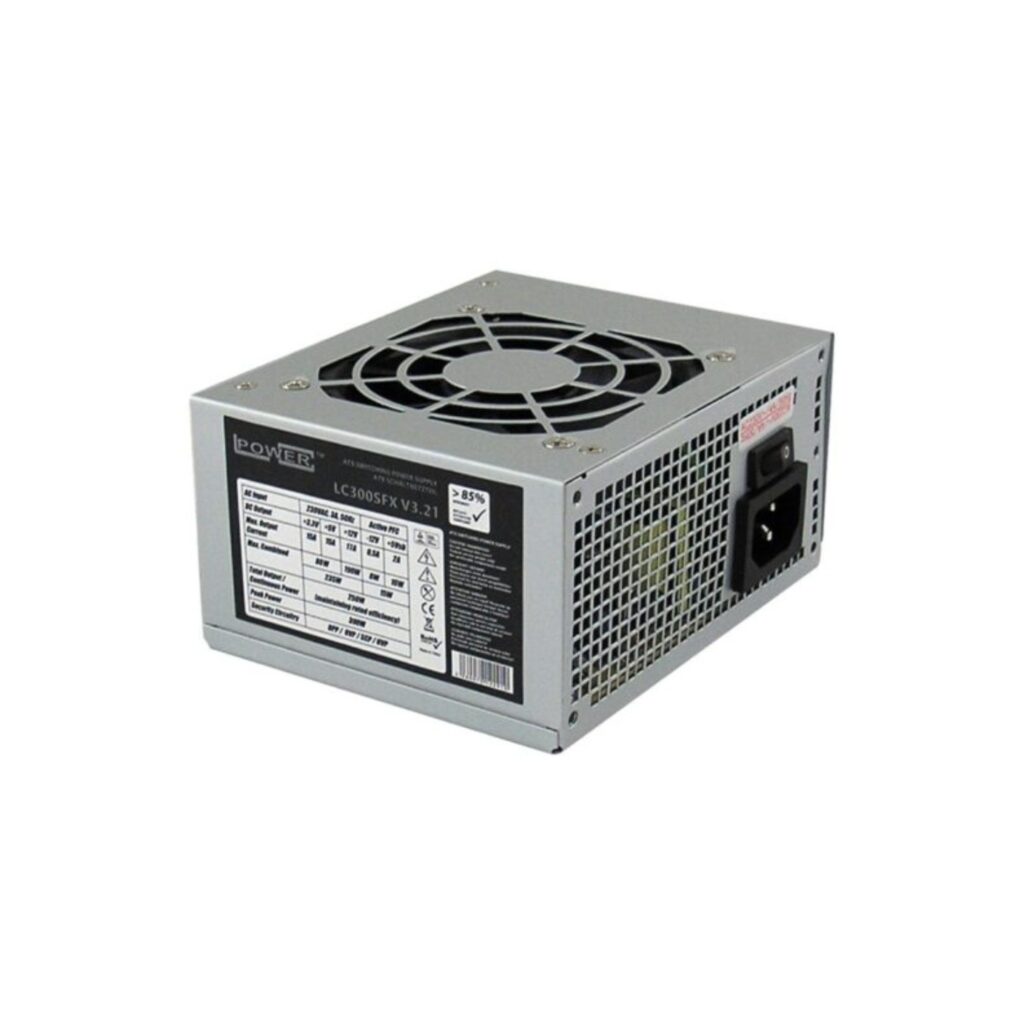

The LC-Power LC300SFX V3.21 is a compact SFX V3.21 power supply unit delivering 250W continuous power with a 300W peak capacity, perfect for Mini-ITX systems, HTPCs, and small form factor builds. Featuring an 80mm silent fan and rear ventilation grille, it ensures quiet operation with effective cooling even under load.
With >85% efficiency, active PFC for optimized power usage, and ultra-low standby consumption of 0.19W (ErP 2013 compliant), this grey non-modular PSU includes essential office connectors: 1x 20+4 pin ATX (35cm), 1x 4+4 pin CPU (35cm), 4x SATA (2×35/2x50cm), 2x PATA (65cm), 1x FDD (80cm), and 1x 6-pin PCIe (35cm). Multi-protections: OVP, OPP, SCP, OTP.
- Form Factor: SFX V3.21, 63 x 125 x 101 mm, 0.843 kg (retail)
- Rail Outputs: +3.3V/15A, +5V/15A (80W comb), +12V/17A (190W comb)
- Certifications: CE, Haswell compatible
- Cooling: 80mm fan, active
| Total power | 250 W |
| Peak power | 300 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+5V) | 15 A |
| Max output current (+12V) | 17 A |
| Combined +3.3V/+5V | 80 W |
| Combined +12V | 190 W |
| Power protection features | OVP/OPP/SCP/OTP |
| Motherboard power connector | 20+4 pin ATX 35cm |
| CPU power connector | 1x 4+4 pin ATX12V 35cm |
| Number of SATA power connectors | 4 (2x35cm / 2x50cm) |
| Number of PATA power connectors | 2x 65cm |
| Peripheral (Molex/FDD) power connectors | 1x 80cm |
| PCI Express power connectors (6-pin) | 1x 35cm |
| Power supply unit (PSU) form factor | SFX V3.21 |
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 80 mm |
| Number of fans | 1 |
| PFC | Active |
| Efficiency | >85% |
| Standby consumption | 0.19 W |
| Dimensions (HxWxD) | 63 x 125 x 101 mm |
| Weight (retail) | 0.843 kg |
