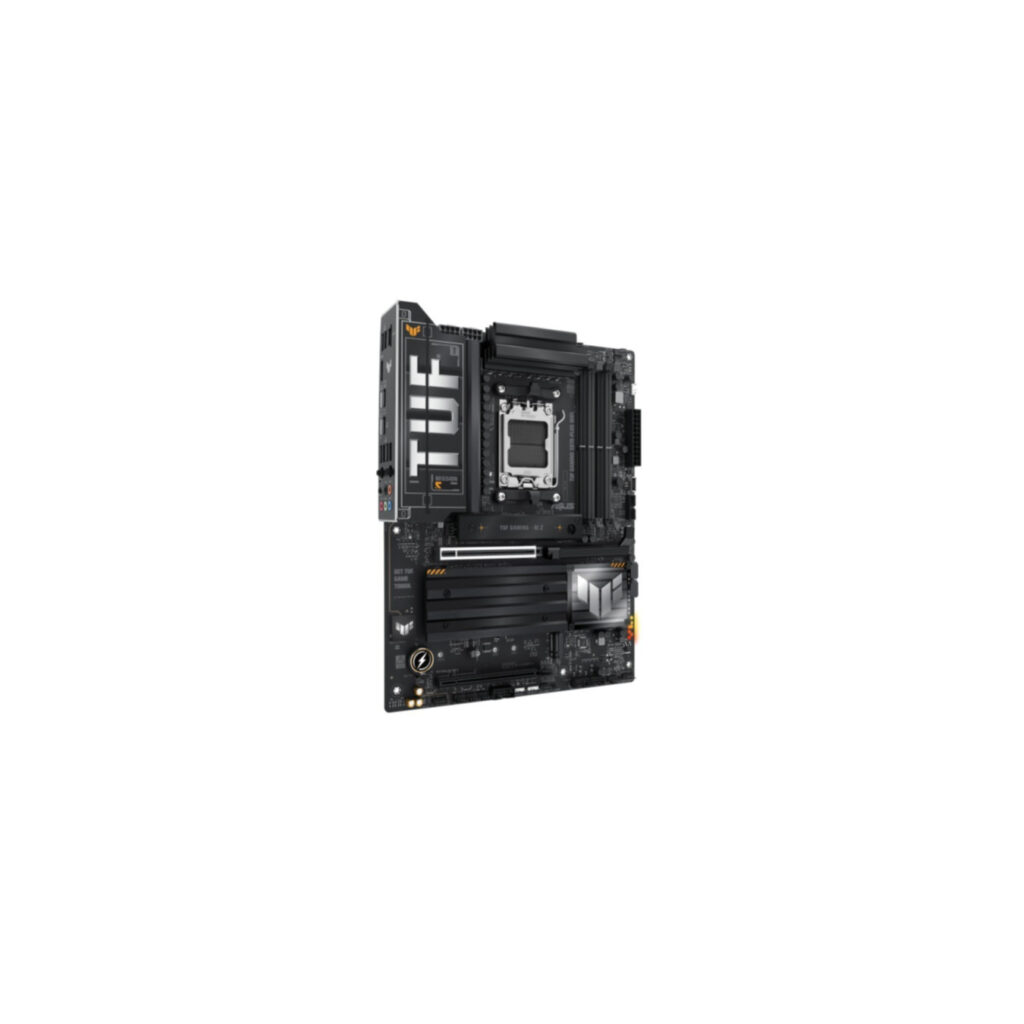

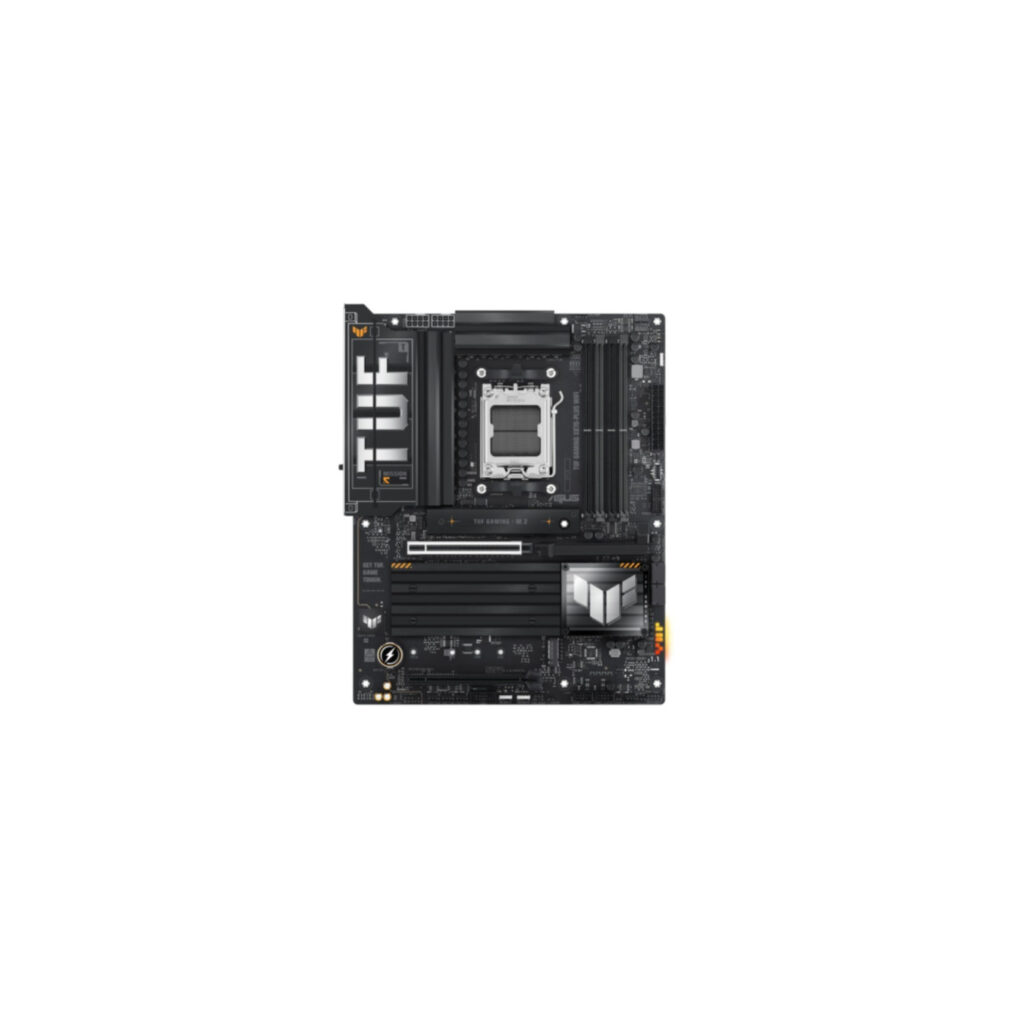

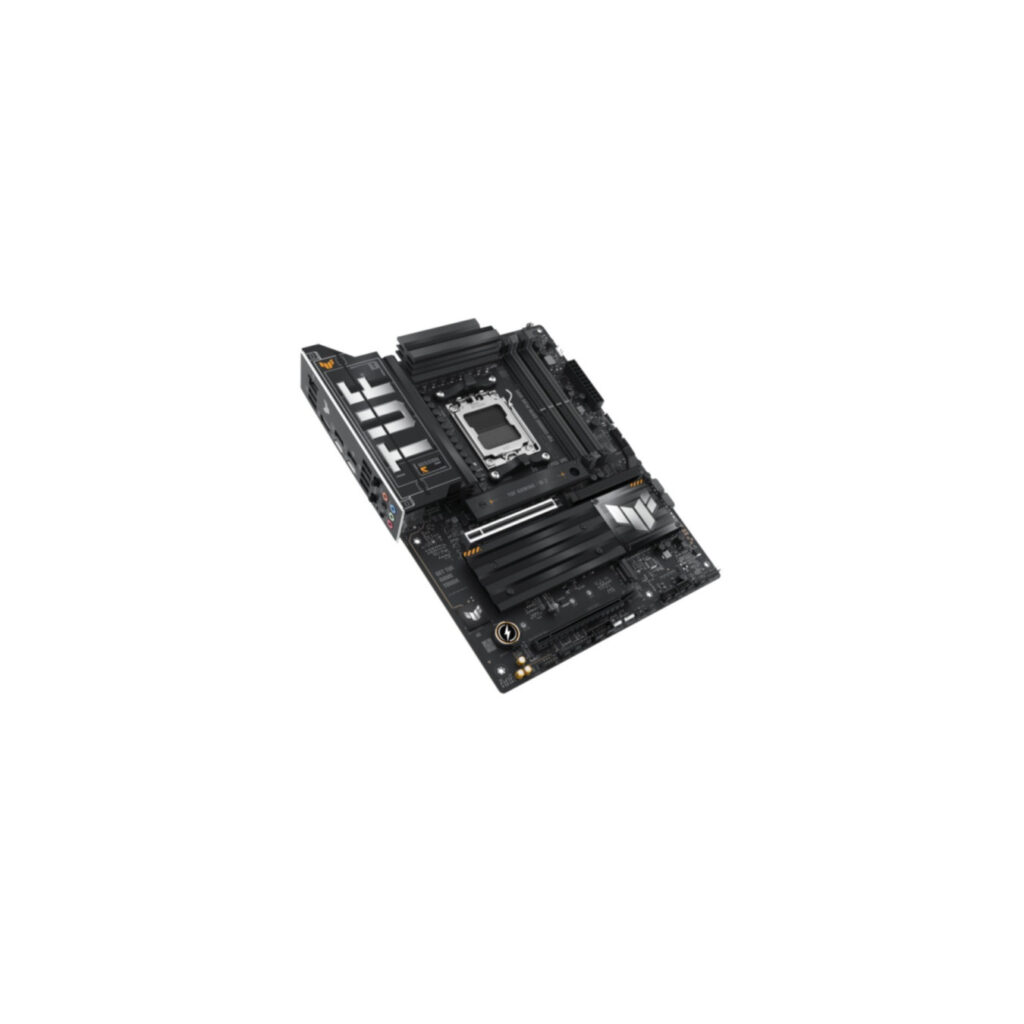

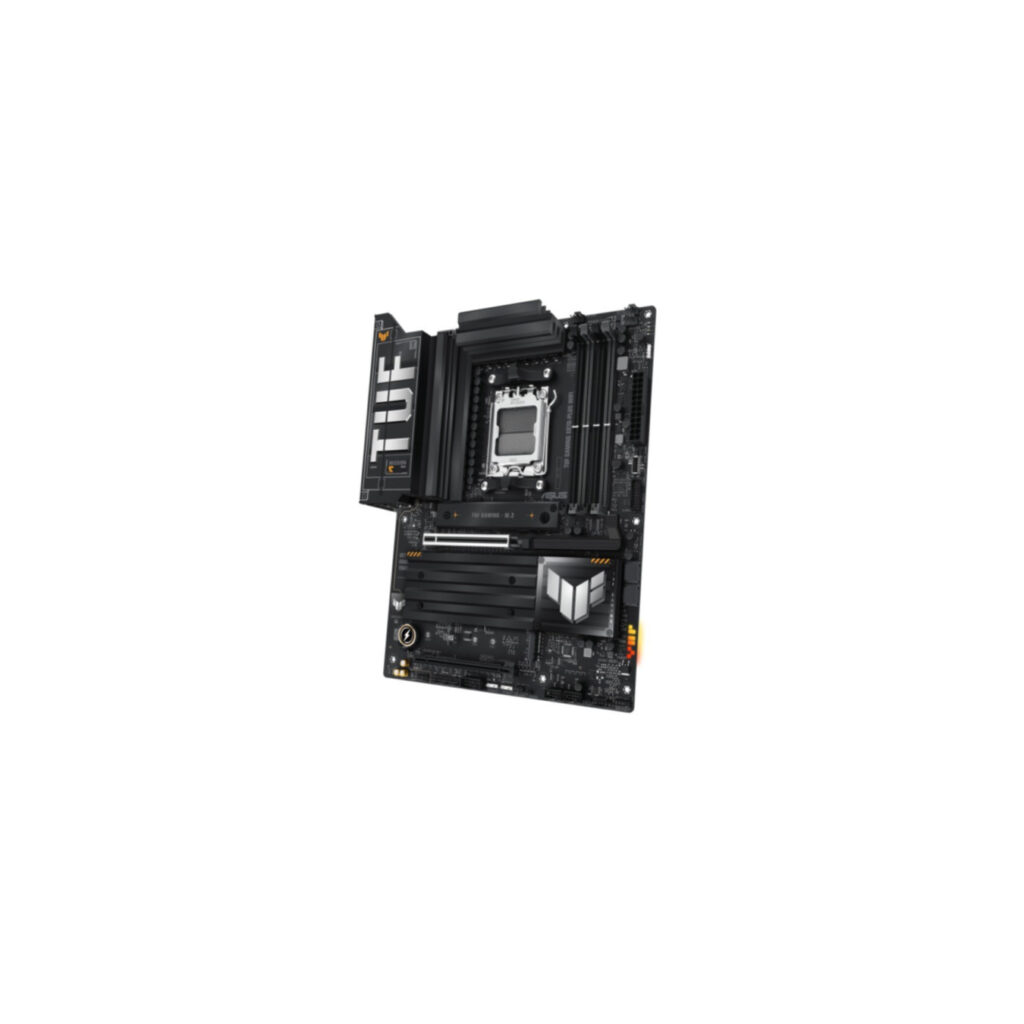

ASUS TUF X870-PLUS Gaming WiFi AM5 ATX MB DDR5 192GB WiFi7 4xM.2 PCIe5.0 BT5.4
AM5 ATX motherboard for Ryzen 7000/8000/9000. DDR5 up to 192GB (4xDIMMs, 8000MHz+ OC), 4x M.2 (2x PCIe5), WiFi7+BT5.4, 2x USB4, PCIe5 x16, 16+2+1 80A VRM, Realtek ALC1220P audio.
Доступно через 8–10 рабочих дней : 28 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The ASUS TUF Gaming X870-PLUS WiFi is a robust AM5 ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors. Featuring the AMD X870 chipset, it supports DDR5 memory up to 192GB across 4 DIMM slots at speeds up to 8000MHz+ (OC) with AMD EXPO and ASUS Enhanced Memory Profile support for easy overclocking.
It offers comprehensive storage with 4x M.2 slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4) and 2x SATA III ports, plus RAID 0/1/5/10. Connectivity includes Wi-Fi 7, Bluetooth 5.4, 2x USB4 (40Gbps), multiple USB 3.2 ports, and 2.5Gb Ethernet. The 16+2+1 80A power stages with robust VRM cooling handle high-end CPUs effortlessly.
- PCIe 5.0 x16 slot with Q-Release + PCIe 4.0 x16 (x8/x4 modes)
- Realtek ALC1220P 7.1-channel audio
- RGB headers: 3-pin ARGB + 4-pin RGB
- Comprehensive cooling: 4x fan headers, VRM/chipset heatsinks
- BIOS Flashback, AI Overclocking, UEFI AMI BIOS
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Maximum internal memory | 192 GB |
| Supported memory clock speed (max) | 8000 MHz (OC) |
| Memory Profile Support | AMD EXPO, ASUS Enhanced Memory Profile |
| Number of M.2 (M) slots | 4 (2x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| Number of SATA III connectors | 2 |
| RAID levels | 0, 1, 5, 10 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 (2.5 Gigabit) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| WiFi Chipset | MediaTek |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Power Stages | 16+2+1 (80A SPS) |
| BIOS type | UEFI AMI |
| RGB Headers | 1x 3-pin ARGB, 1x 4-pin RGB |
| Number of chassis fan connectors | 4 |
| Product colour | Black |
| Width | 305 mm |
| Depth | 244 mm |
