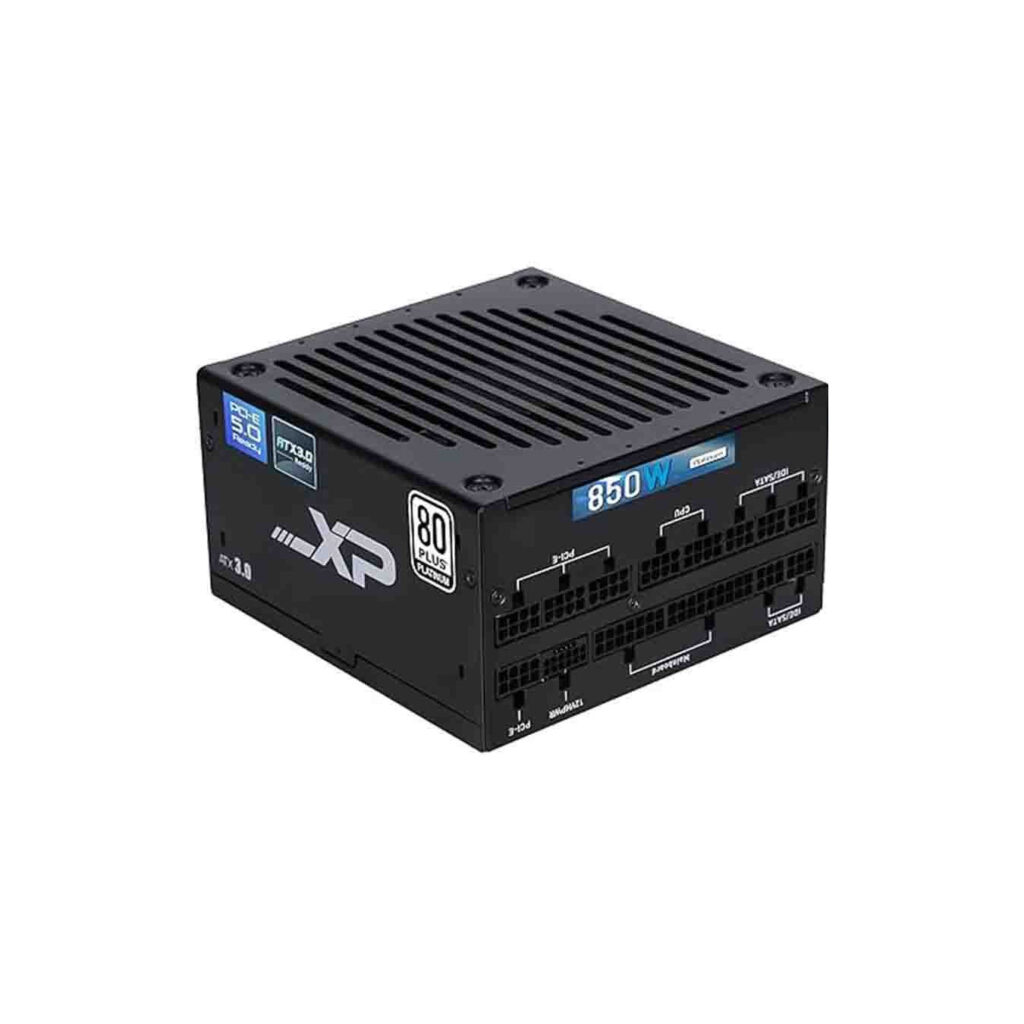

XPH-850W ATX 3.0 Platinum Power Supply SAMA
850W ATX 3.0 PSU with 80 PLUS Platinum efficiency. Features 70.8A on 12V rail, PCIe 5.0 12VHPWR connector, full protections (OPP/OCP/OVP/UVP/SCP/NLP). Universal input 100-240V, Active PFC >0.90.
Доступно через 2–5 рабочих дней : 97 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The XPH-850W ATX 3.0 Platinum Power Supply from SAMA delivers reliable 850W power for high-end gaming and workstation builds. Compliant with Intel ATX 3.0 standards, it supports modern GPUs via a dedicated PCIe 5.0 12VHPWR connector rated at 600W. 80 PLUS Platinum certified for superior efficiency, it includes CE, CB, TUV, cTUVus, FCC, and RoHS approvals.
Key electrical specs include +12V rail at 70.8A (849.6W), combined +3.3V/+5V at 100W, and full suite of protections: Over Power (OPP), Over Current (OCP), Over Voltage (OVP), Under Voltage (UVP), Short Circuit (SCP), and No Load (NLP). Universal input (100-240VAC, 50-60Hz) with Active PFC (>0.90 PF) ensures stable operation worldwide.
- Wattage: 850W
- Standards: ATX 3.0, 80 PLUS Platinum
- PCIe Connectors: 1x 12VHPWR (600W)
- Protections: OPP, OCP, OVP, UVP, SCP, NLP
- Input: 100-240V, Active PFC
| Wattage | 850 W |
| Standard | Intel ATX 3.0 |
| Certification | 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS |
| Input Voltage | 100–240 VAC |
| Input Frequency | 50–60 Hz |
| Input Current | 10 A @ 115 V, 8 A @ 230 V |
| Active PFC | Yes, PF > 0.90 |
| +3.3 V Rail | 20 A |
| +5 V Rail | 20 A |
| Combined +3.3 V and +5 V Output | 100 W |
| +12 V Rail | 70.8 A (849.6 W) |
| –12 V Rail | 0.4 A (4.8 W) |
| +5 VSB | 3 A (15 W) |
| PCIe 5.0 12VHPWR Connector | 1 × 600 W |
| Over Power Protection (OPP) | Yes |
| Over Current Protection (OCP) | Yes |
| Over Voltage Protection (OVP) | Yes |
| Under Voltage Protection (UVP) | Yes |
| Short Circuit Protection (SCP) | Yes |
| No Load Protection (NLP) | Yes |
