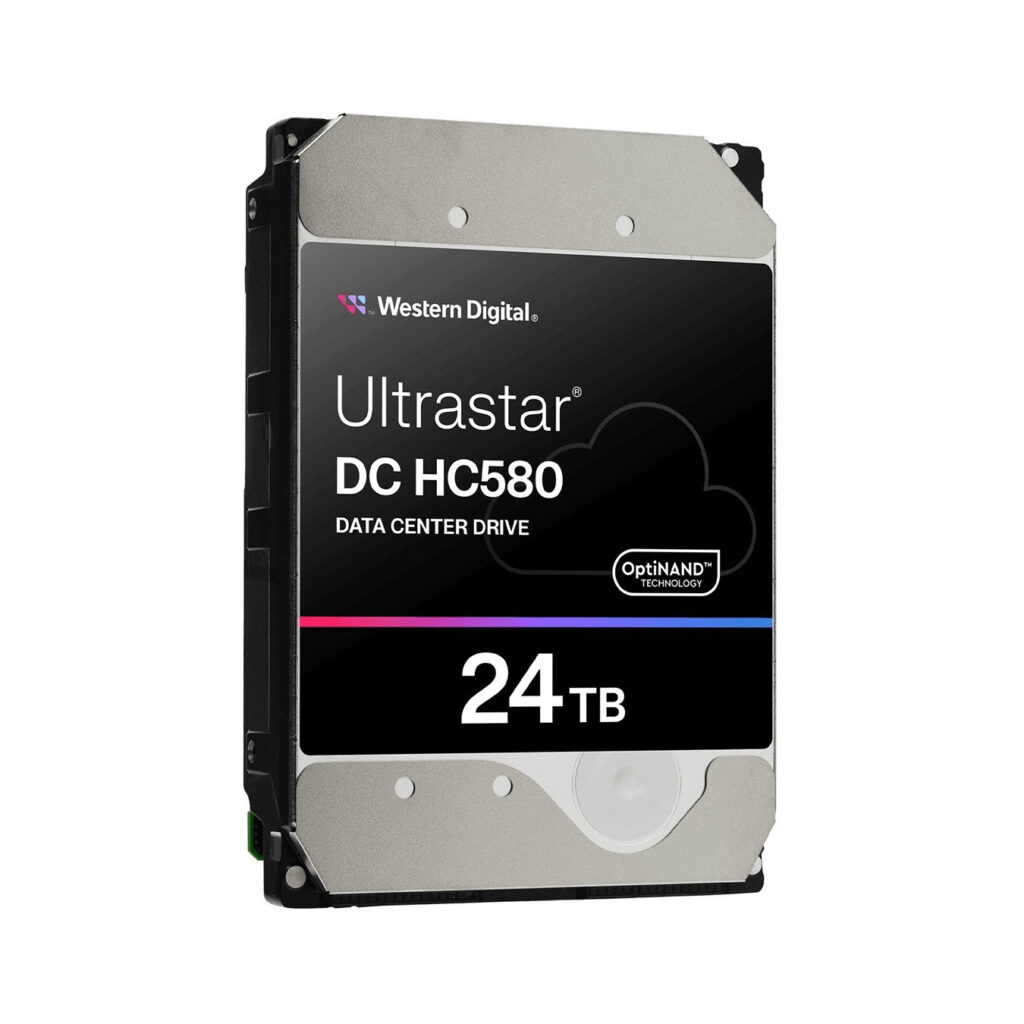

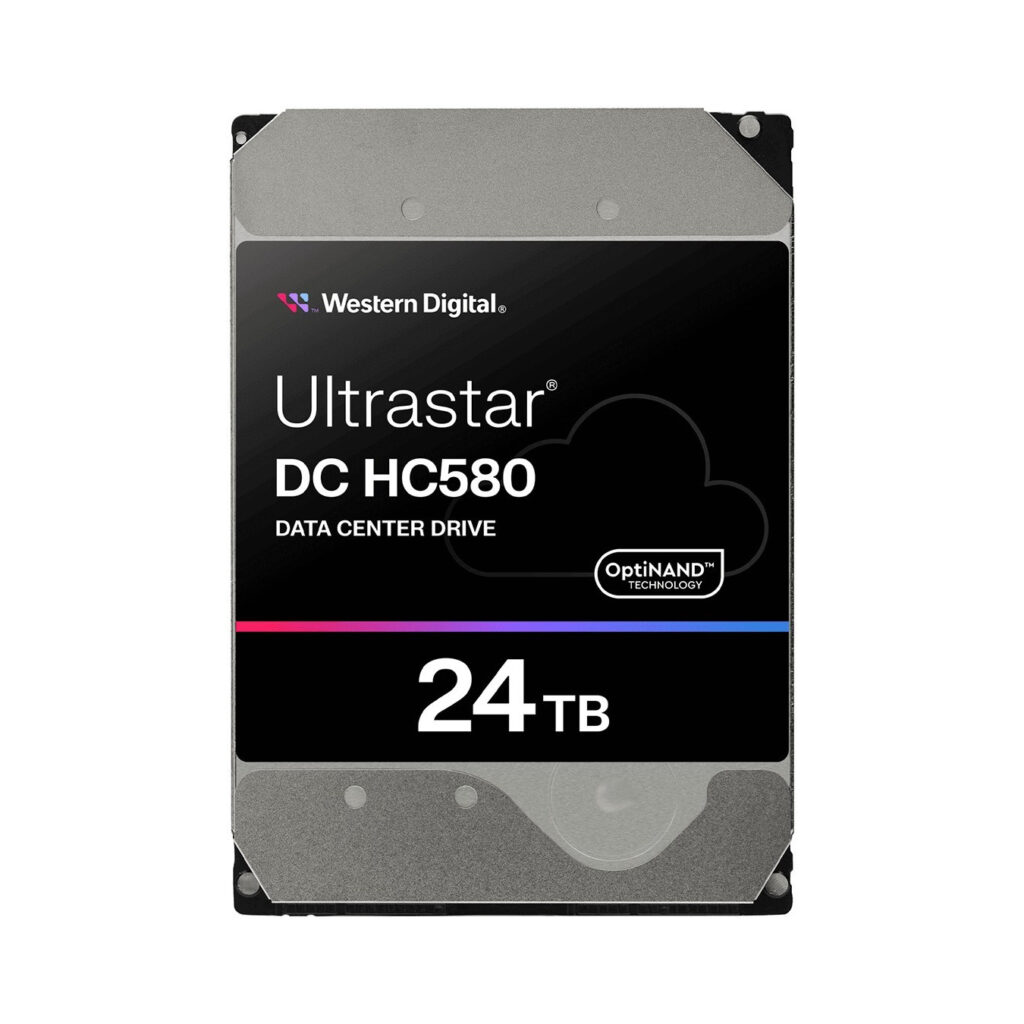

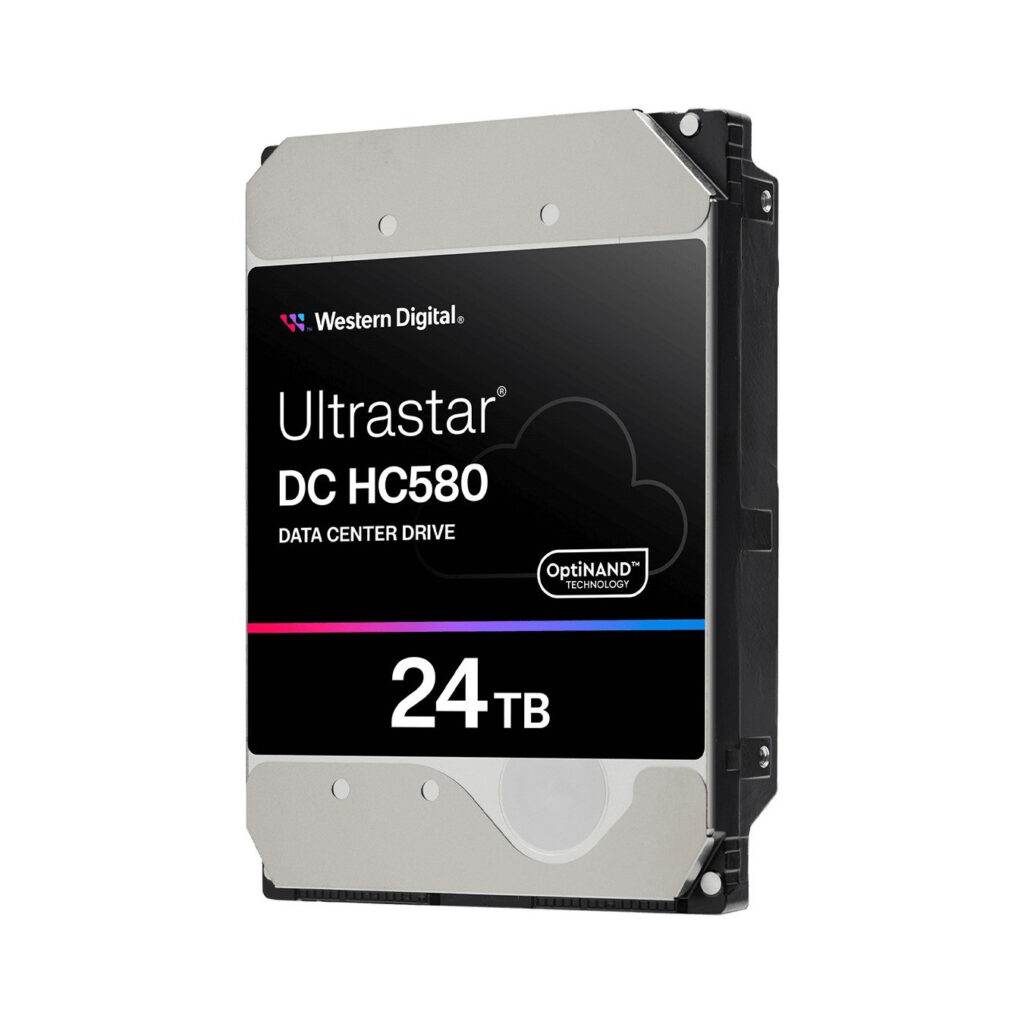

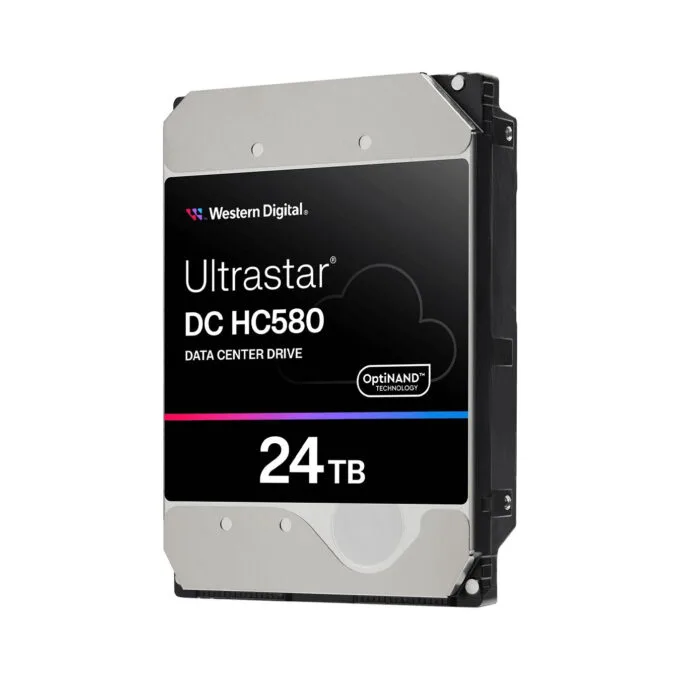

Western Digital Ultrastar DC HC580 24TB - 7200 RPM 512MB SATA III HDD - WUH722424ALE6L4
Western Digital Ultrastar DC HC580 (WUH722424ALE6L4) 24TB 3.5″ SATA III HDD: 7200 RPM, 512MB cache, 298 MB/s sustained. OptiNAND/CMR for data centers, 550TB/yr workload, 2.5M hr MTBF, 5-yr warranty. Helium-sealed enterprise drive.
Доступно через 6–10 рабочих дней : 30 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Western Digital Ultrastar DC HC580 WUH722424ALE6L4 is a high-capacity 24TB 3.5-inch SATA III HDD designed for demanding data center and enterprise environments. Featuring 7200 RPM spindle speed, 512MB cache, and sustained transfer rates up to 298 MB/s, it delivers reliable performance for 24×7 operations. Advanced technologies like OptiNAND, Energy-Assisted Magnetic Recording (EAMR), HelioSeal helium sealing, and Triple-Stage Actuator (TSA) enable massive storage in a power-efficient 10-disk CMR design.
Built for cloud/hyperscale storage, massive scale-out data centers, Big Data analytics, and hybrid cloud setups, this drive supports workloads up to 550 TB/year with an MTBF of 2.5 million hours and annualized failure rate of 0.35%. ArmorCache provides enterprise-grade power loss protection, ensuring data integrity even in write-cache enabled mode. Compatible with Windows, Windows Server, and Linux.
- ✅ 24TB capacity on 10-disk CMR platters
- ✅ SATA 6Gb/s interface, 512e/4Kn sector formats
- ✅ Low power: 8.5W read/write, 5.5W idle
- ✅ 5-year limited warranty
- ✅ Helium-sealed for reduced weight and power
| HDD capacity | 24 TB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 512 MB |
| HDD size | 3.5 |
| Interface | Serial ATA |
| Type | HDD |
| Component for | Server/workstation |
| HDD sustained transfer rate | 298 MiB/s |
| Average latency | 4.16 ms |
| Workload rate limit | 550 TB/year |
| Mean time between failures (MTBF) | 2500000 h |
| Power consumption (read) | 8.5 W |
| Power consumption (write) | 8.5 W |
| Power consumption (idle) | 5.5 W |
| Operating voltage | 5 / 12 V |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 0.7 G |
| Non-operating vibration | 1.04 G |
| Operating shock | 40 G |
| Non-operating shock | 200 G |
| Width | 101.6 mm |
| Height | 26.1 mm |
| Depth | 147 mm |
| Weight | 670 g |
| Quantity per pack | 1 pc(s) |
| Warranty period | 5 year(s) |
| Feature | Linux operating systems supported |
| Recording Technology | CMR |
| Areal density | 1210 Gbits/sq. in. |
| Sector Size | 512e / 4Kn |
