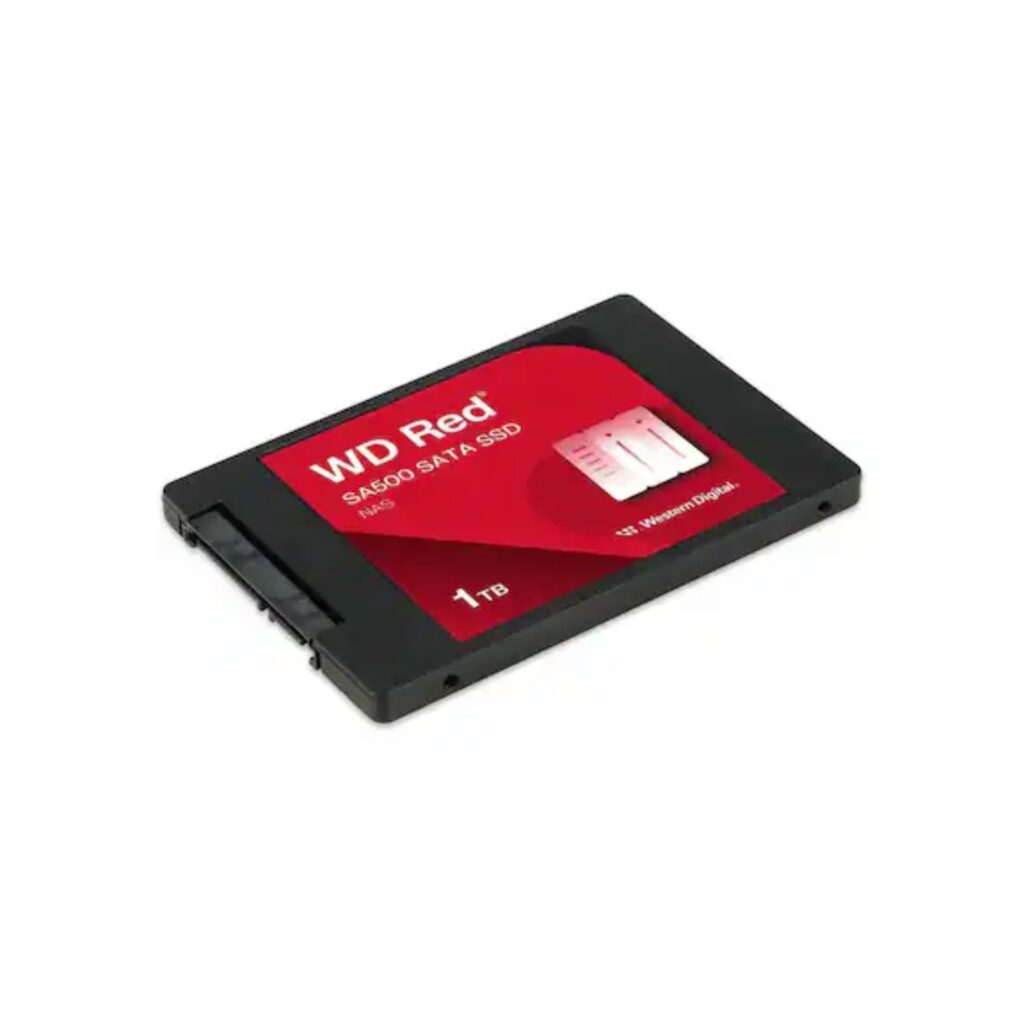

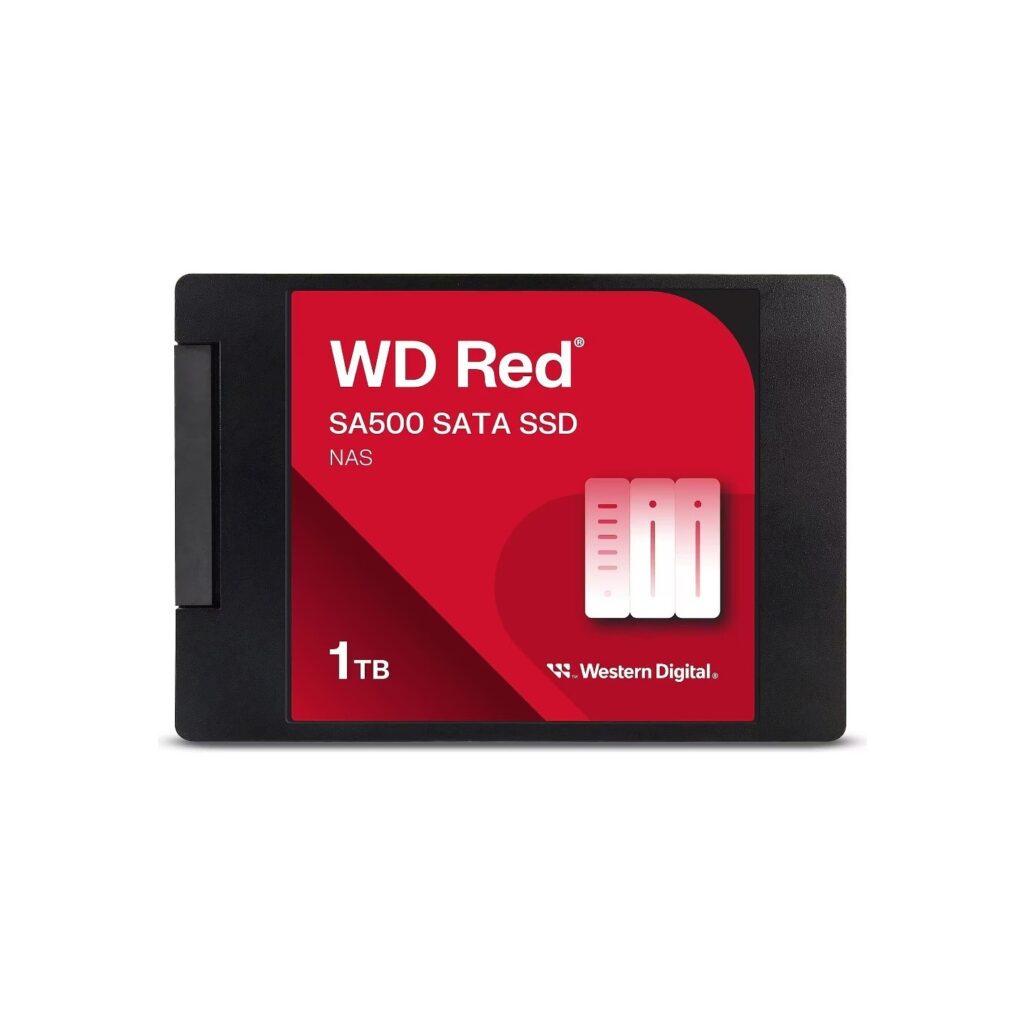

WD Red SA500 1TB SSD - WDS100T1R0A - 2.5in SATA III 6Gb/s, 3D NAND, NAS-Optimized
WD Red SA500 1TB 2.5in NAS SSD (WDS100T1R0A). SATA III 6Gb/s, 3D TLC NAND, 560/530MB/s seq, 95K/85K IOPS. 600TBW endurance, 1.75M hr MTBF, 5-yr warranty. Slim 7mm for PCs/NAS.
Доступно через 4–6 рабочих дней : 5 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The WD Red SA500 1TB SSD (WDS100T1R0A) is a NAS-optimized 2.5-inch SATA III drive designed for 24/7 operation in multi-bay NAS systems and PCs. Featuring WD 3D TLC NAND, it delivers sequential speeds up to 560 MB/s read and 530 MB/s write, with random performance of 95,000 IOPS read and 85,000 IOPS write. Its slim 7mm form factor fits most systems, and low power use (0.012W sleep) makes it ideal for always-on environments.
Built for reliability, this SSD offers 600 TBW endurance (0.3 DWPD), 1.75 million hours MTBF, and a 5-year warranty. It’s DRAM-less for cost-efficiency but includes NAS-specific firmware for vibration resistance and consistent performance in RAID arrays. Perfect upgrade from HDDs in Synology/QNAP NAS or desktop/laptop storage.
- NAS-optimized with 24/7 reliability
- SATA III 6Gb/s interface
- 3D NAND TLC flash memory
- Low power: 2.55W read, 3.75W write
- Shock/vibration resistant: 1500G/5G
- Certifications: FCC, UL, TUV
| SSD capacity | 1 TB |
| SSD form factor | 2.5 |
| Interface | Serial ATA III |
| Memory type | 3D NAND |
| Component for | PC/Laptop/NAS |
| Data transfer rate | 6 Gbit/s |
| Read speed | 530 MB/s |
| Write speed | 560 MB/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 85000 IOPS |
| Sequential Read (Max) | Up to 560 MB/s |
| Sequential Write (Max) | Up to 530 MB/s |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 1750000 h |
| TBW rating | 600 TBW |
| Endurance (DWPD) | 0.3 DWPD |
| Warranty | 5 years |
| DRAM Cache | None (DRAM-less) |
| Certification | FCC. UL. TUV. KC. BSMI. VCCI |
| Operating voltage | 5 V |
| Power consumption (read) | 2.55 W |
| Power consumption (write) | 3.75 W |
| Power consumption (sleep) | 0.012 W |
| Width | 69.8 mm |
| Depth | 100.2 mm |
| Height | 7 mm |
| Weight | 37.4 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -55 - 85 °C |
| Operating vibration | 5 G |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Harmonized System (HS) code | 84717070 |
| NAND Type | TLC |
