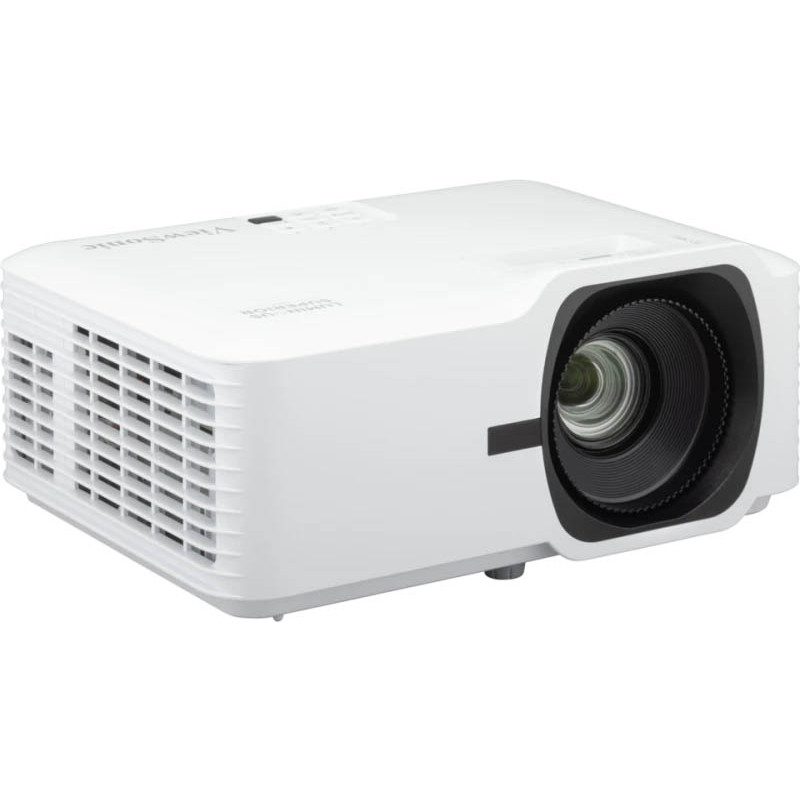

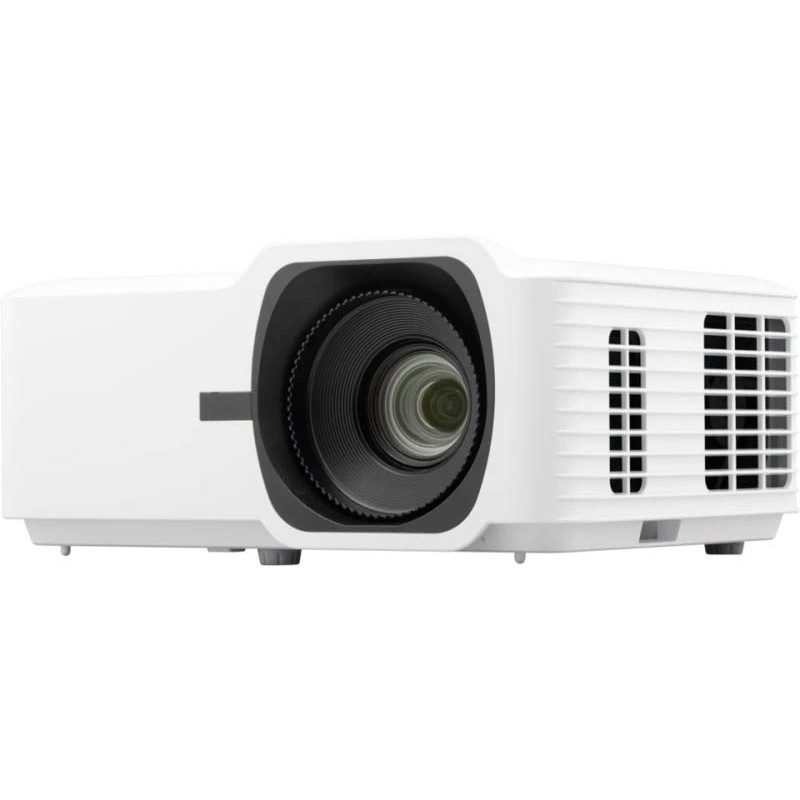

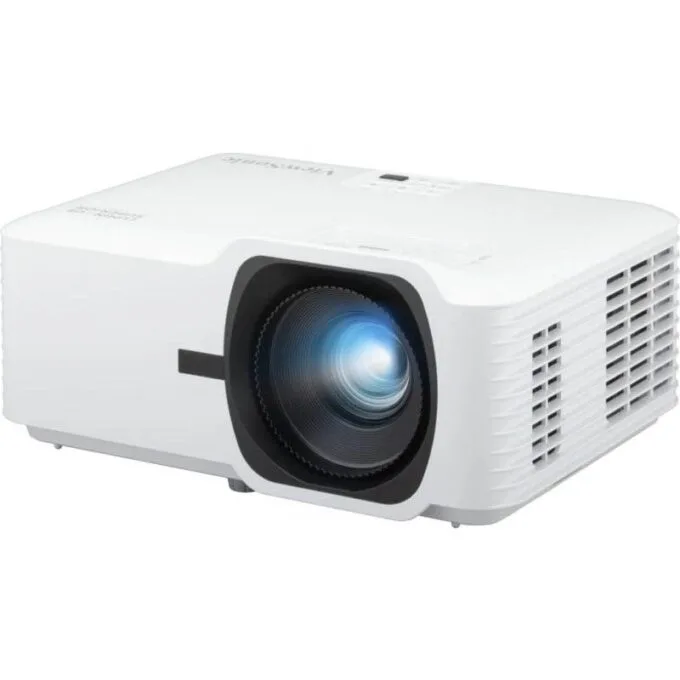

Viewsonic Projector 1080p Laser DLP 5500 Lumens LSD500HD

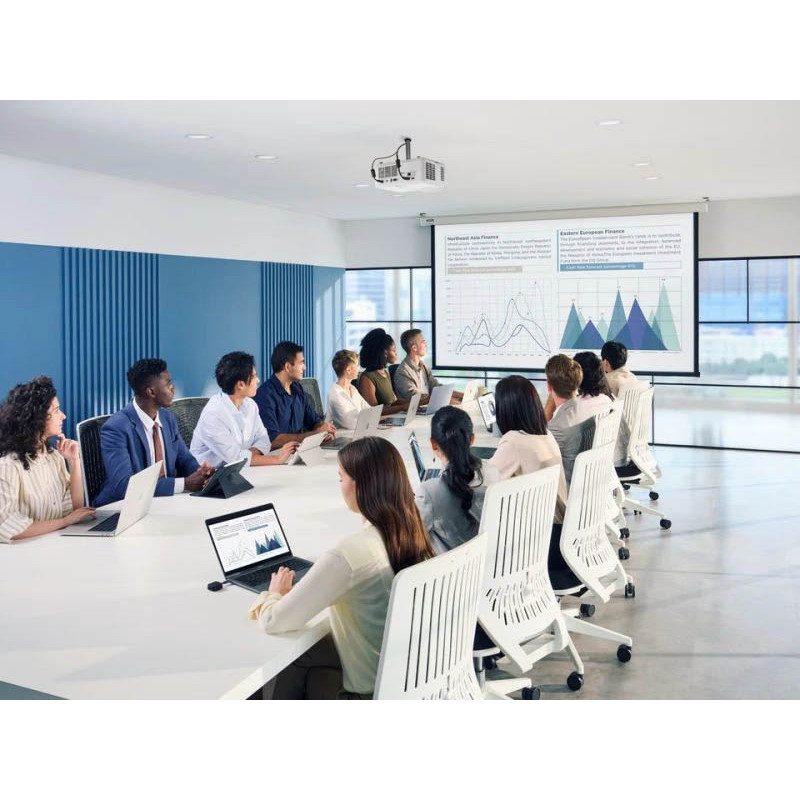

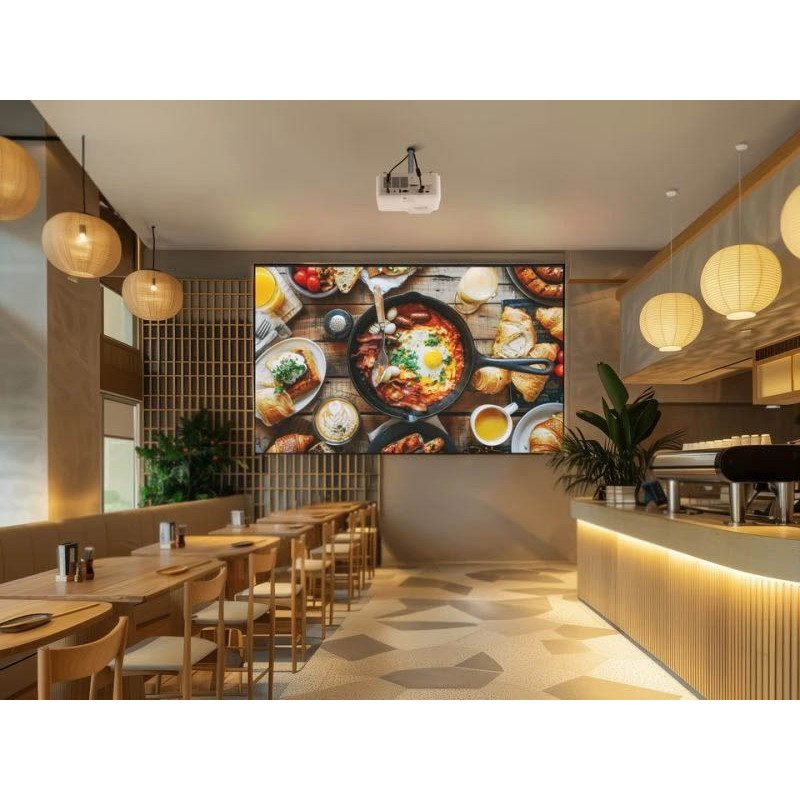

The LSD500HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for corporate and commercial environments. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,500 ANSI Lumens for up to 30,000 hours. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. Its comprehensive LAN control enables centralized management, making it ideal for boardrooms, public, and sports simulation spaces. Its lamp-free design offers an eco-friendly and cost-effective solution with less power consumption, while its lightweight and compact build reduces transportation costs. This projector offers flexible setup, equipped with features like a 1.3x optical zoom, H/V keystone, and 360° projection capabilities, possibilities.

• 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
• 5,500 ANSI Lumens offering bright images in any environment
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Centralized LAN control for efficient management

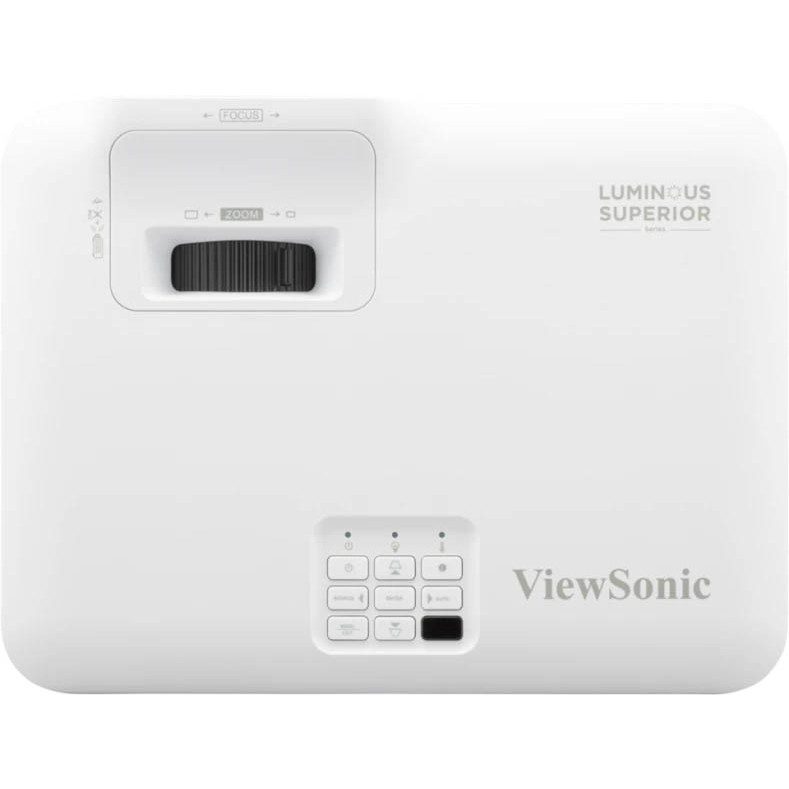

• Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

Projection System: 0.65" 1080P
Native Resolution: 1920×1080
Brightness: 5500 (ANSI Lumens)
Brightness (Center Lumens): 6000
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.43-2.78, f=16.90-21.61mm
Projection Offset: 132%+/-10%
Throw Ratio: 1.13-1.47
Optical Zoom: 1.3X
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.75-9.76m (100"@2.50m)
Keystone: H:+/-30° , V:+/-30°
Audible Noise (Normal): 32dB
Audible Noise (Eco): 27dB
Input Lag: 16.8ms
Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-135KHz
Vertical Scan Rate: 24-120Hz
HDMI: 2 (HDMI 2.0, HDCP 2.2)
Audio-out (3.5mm): 1
Speaker: 15W
USB Type A (Power): 1 (5V/1.5A)
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1 (share with USB A Output)
Power Supply Voltage: Power adaptor: Input: 100~240V, Output: 19.5VDC / 11.79A
Power Consumption: Normal: 165W, Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Gross Weight: 4.6kg
Packing Dimensions: 400x280x155mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
Dimensions: 286x216x129 mm
Net Weight: 2.9 kg
