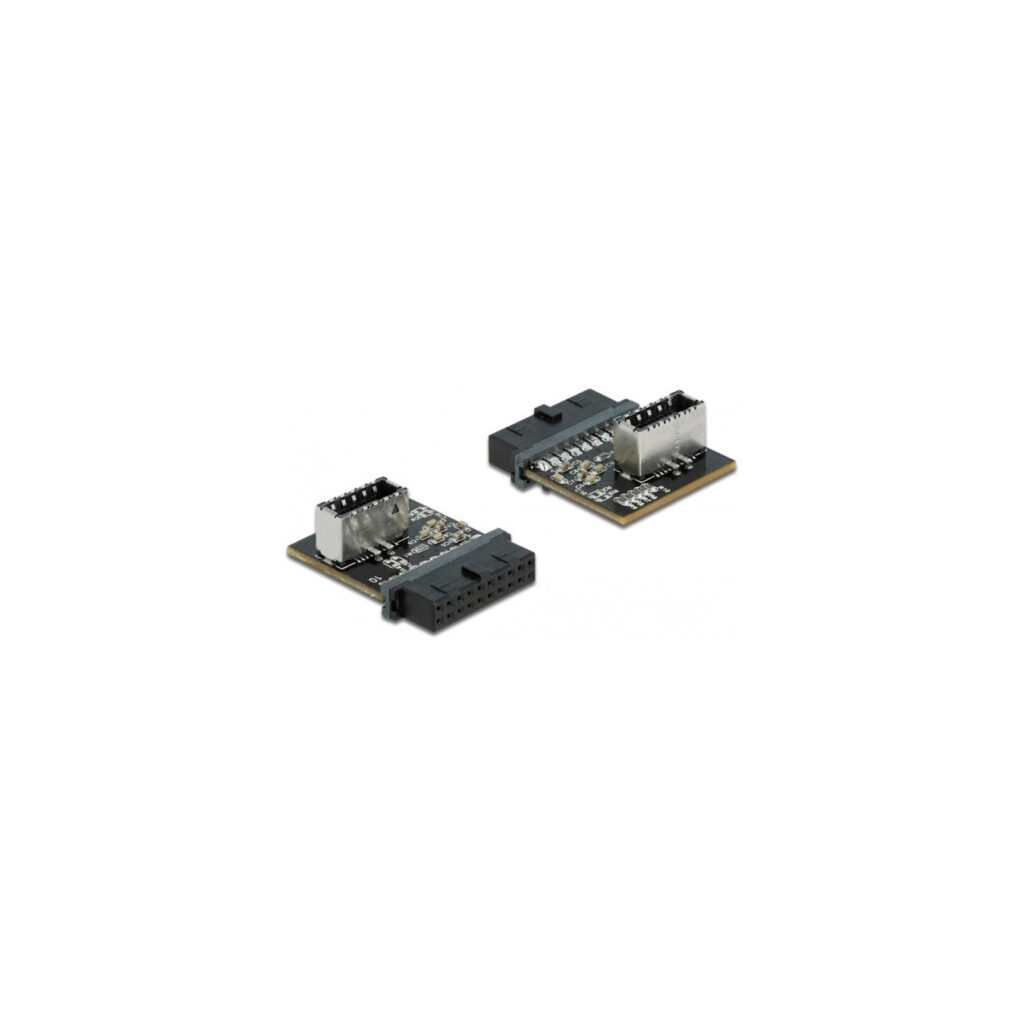

USB 3.2 Gen 1 adapter, 19-pin header socket to internal Key A socket
The adapter 66432 from DeLock converts the internal USB header plug into an internal SuperSpeed USB (USB 3.2 Gen 1) Key A 20 pin socket. Various cables can then be connected to the…
Доступно через 6–10 рабочих дней : 200 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The adapter 66432 from DeLock converts the internal USB header plug into an internal SuperSpeed USB (USB 3.2 Gen 1) Key A 20 pin socket. Various cables can then be connected to the adapter to provide either one USB Type-C or two USB Type-A ports. With the active adapter, USB Type-C functions such as channel configuration (CC1 and CC2) can also be used due to the built-in chipset.
| Typ | Adapter |
| EAN | 4043619664320 |
| Manufacturer no. | 66432 |
| Application example | For retrofitting an internal USB Key A socket |
| Area | Data transfer |
| Connection - from | 1x USB 3.2 pin header 19 pin (internal, socket) |
| Protocol | USB 3.2 Gen 1 (5 Gbit/s) |
| taps | 2 |
| Characteristics | intern |
| More information | Chipset: Etron EJ179V, electrical power max. 4.5 watts (5 V / 900 mA) |
| Notice | System requirements: Linux Kernel 4.9 or higher, Windows 8.1 / 8.1-64 / 10 / 10-64, mainboard with a free 19 pin USB 3.0 header connector |
| Dimensions | Width: 23mm x Height: 11mm x Depth/Length: 29mm |
