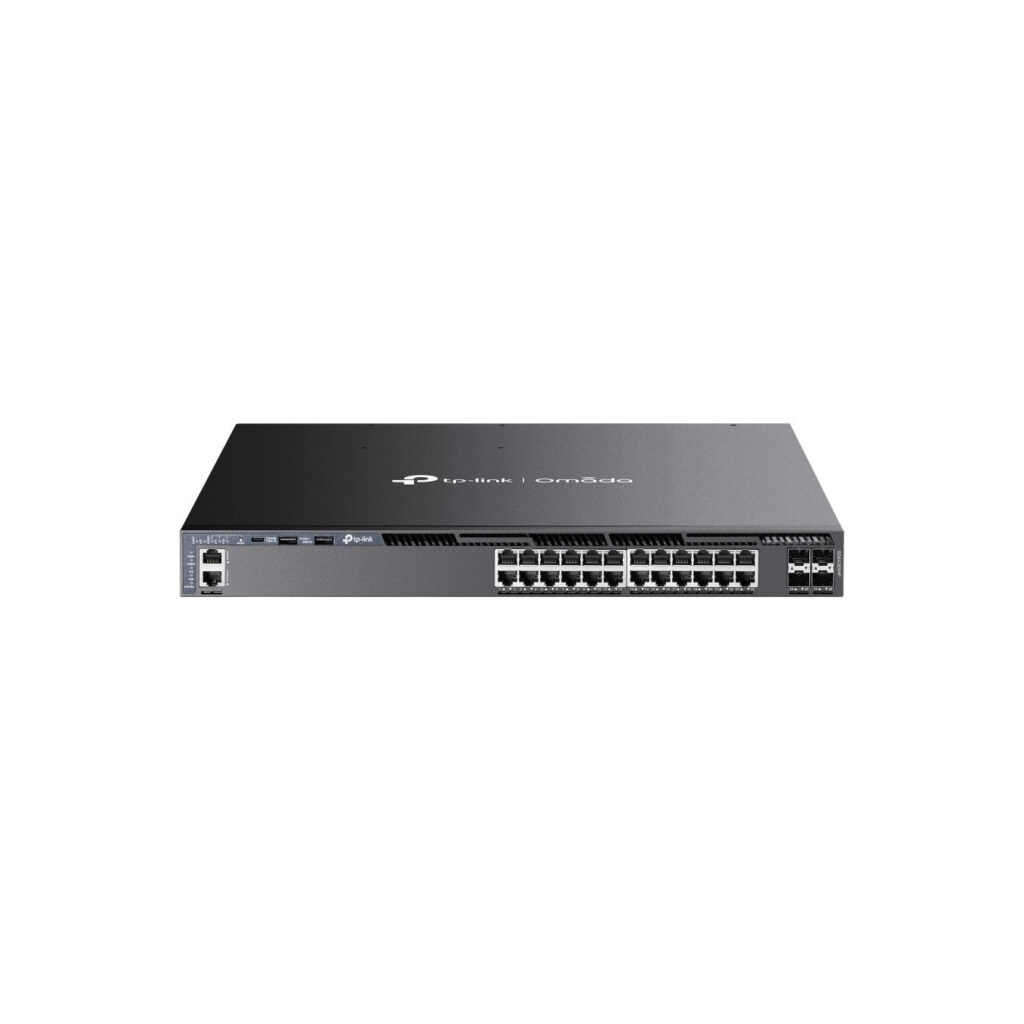

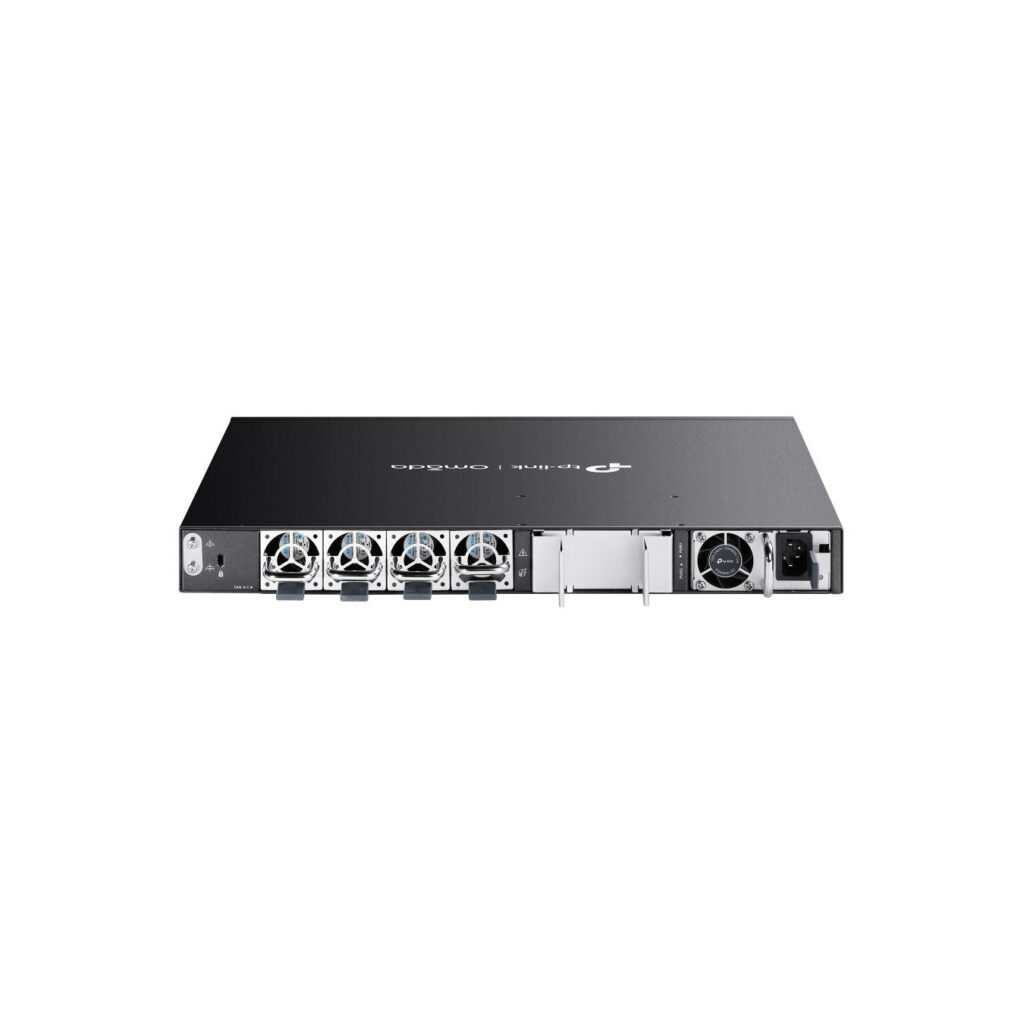

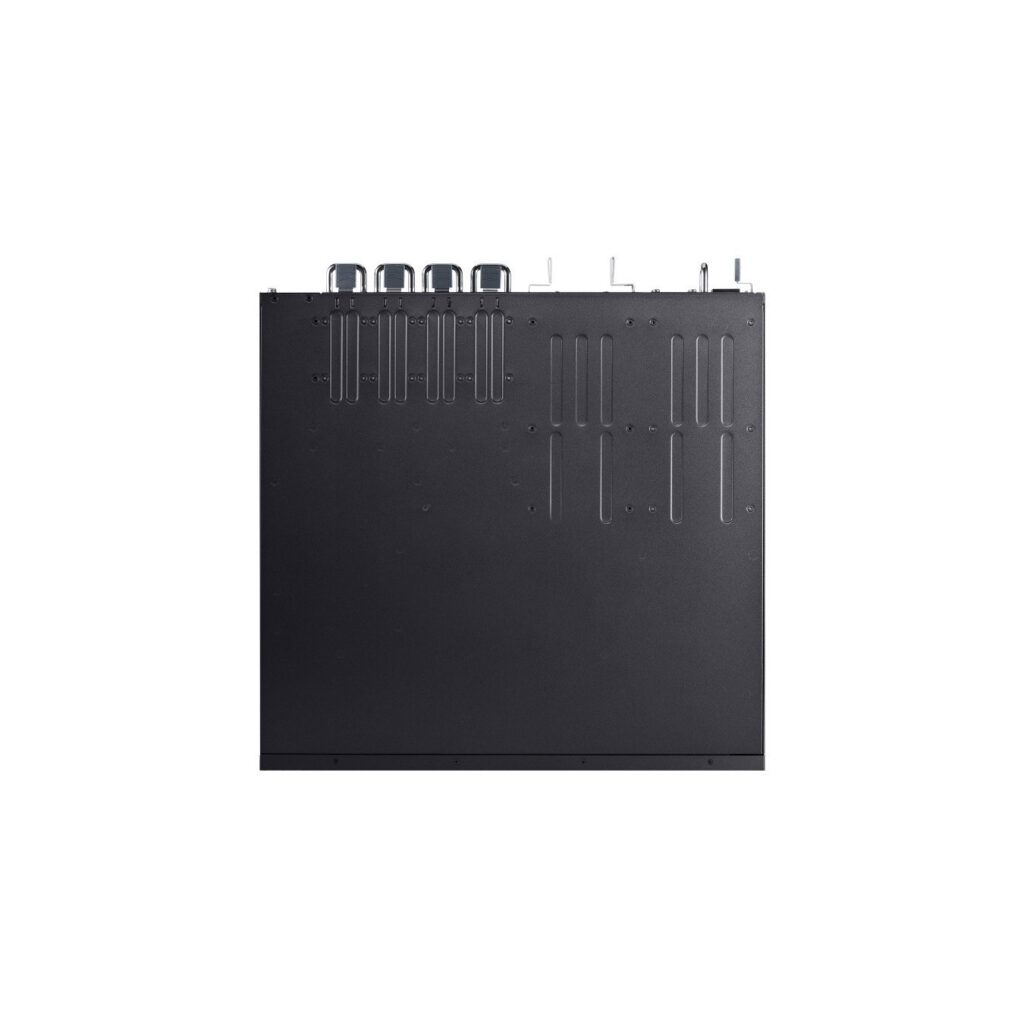

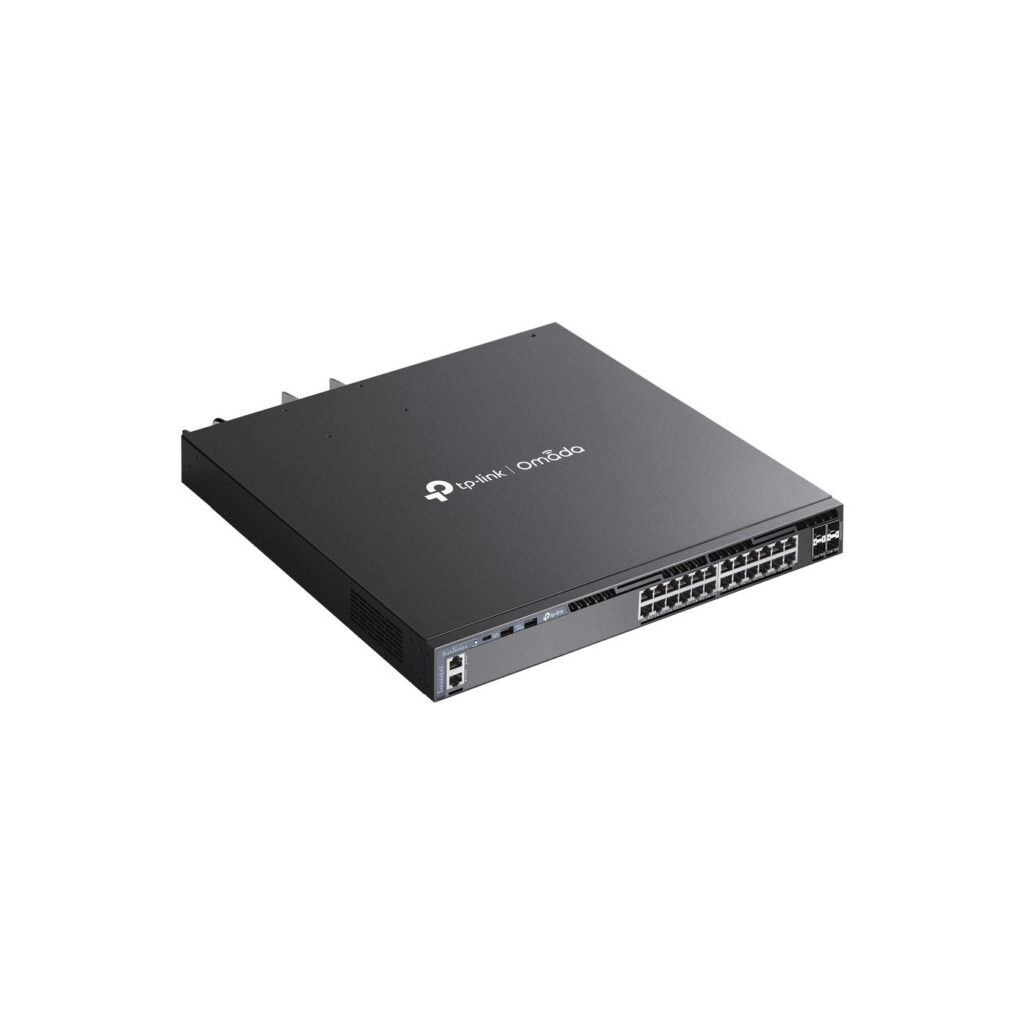

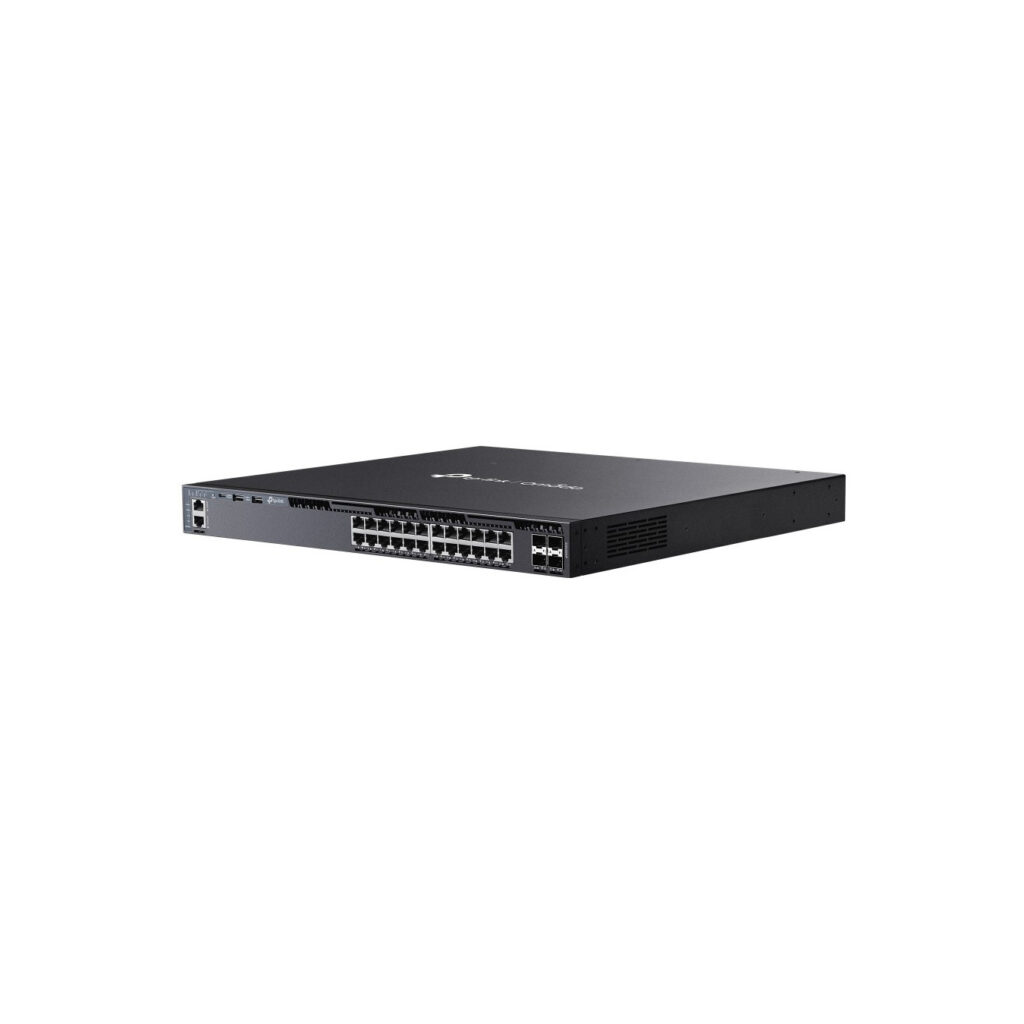

TP-Link Omada Switch - SG6428XHP - 24-Port Gigabit PoE+ with 4x10G SFP+, L3 Managed, 1U, Black
L3 managed 24-port Gigabit PoE+ switch (24x PoE+ 30W), 720W total budget, 4x10G SFP+ slots, stackable, 1U rackmount, AC powered, RJ45/USB-C console.
Доступно через 6–10 рабочих дней : 3 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. USB 2.0 ports quantity: 2. Console port: RJ-45/USB Type-C. MAC address table: 32000 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3x. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Manual |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/USB Type-C |
| USB 2.0 ports quantity | 2 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | MAC address-based VLAN. Multicast VLAN. Private VLAN. Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| DHCP features | DHCP relay. DHCP snooping. DHCPv6 snooping |
| IGMP entries | 2048 |
| Authentication | Auto VLAN. MAC-based authentication. Port-based authentication |
| Authentication type | RADIUS |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 916.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 3125.61 BTU/h |
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
| Cables included | AC. LAN (RJ-45) |
