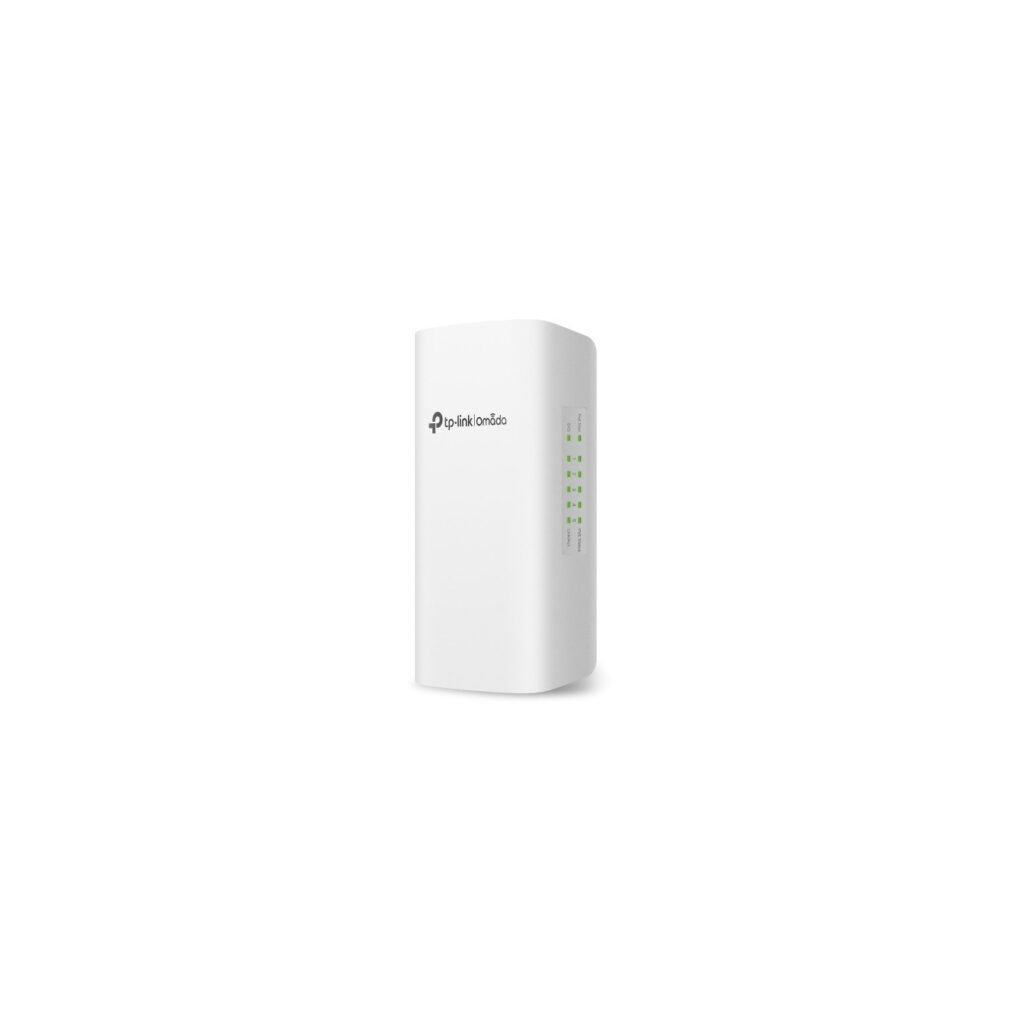

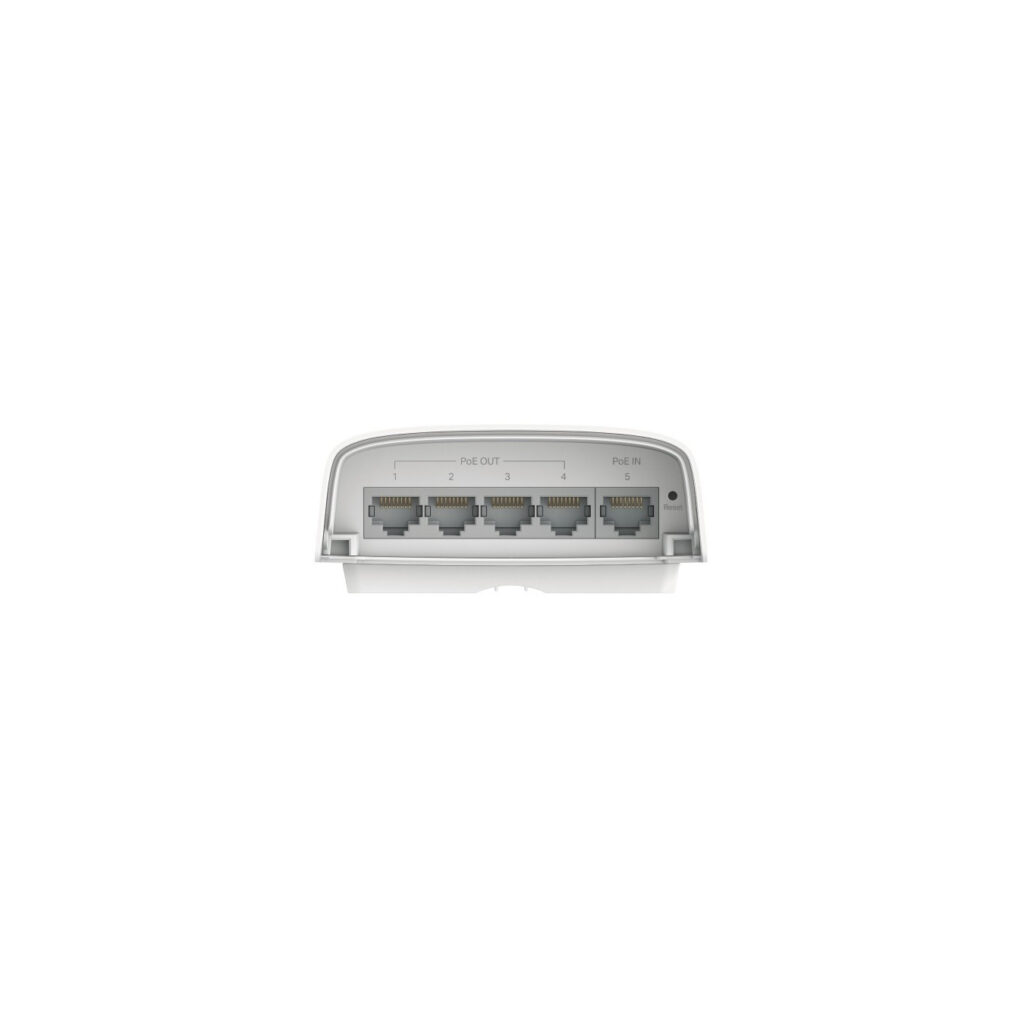

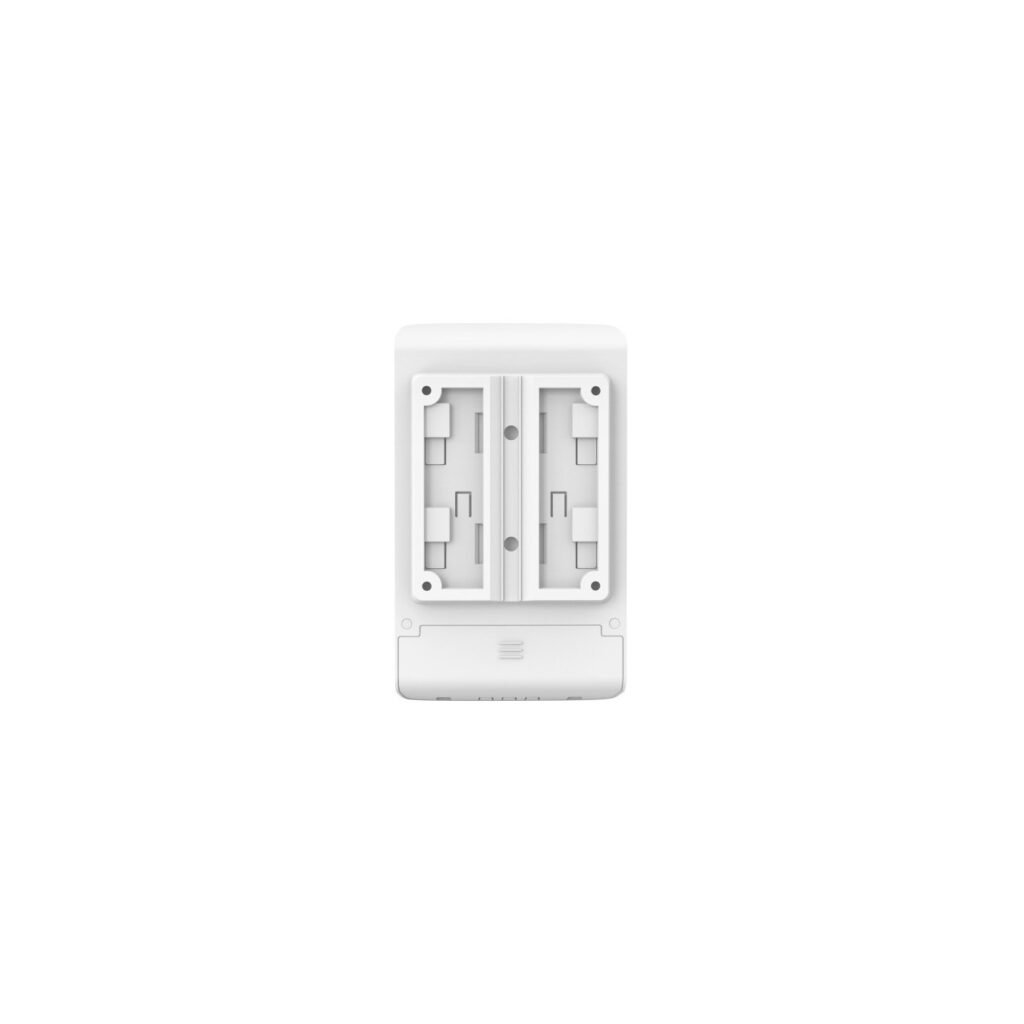

TP-Link Omada 5-Port Gigabit Smart Switch - SG2005P-PD - 4× PoE+ Out, 1× PoE++ In, L2 Managed, Desktop
5-port Gigabit L2 smart switch (SG2005P-PD) — 4× PoE+ outputs, 1× PoE++ input, L2/L2+ managed, 8000 MAC table, compact desktop form factor
Доступно через 6–10 рабочих дней : 36 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out. Switch type: Managed. Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.11d. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ab. IEEE…. Power over Ethernet (PoE). Form factor: Desktop
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 4 |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 100BASE-T |
| Cable types supported | Cat5. Cat5e |
| IPv4 routes | 32 |
| IPv6 routes | 32 |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 10 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames | 9 |
| Packet forwarding rate (1 Gbps) | 7440 pps |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP relay. DHCP server |
| Access Control List (ACL) IPv4 entries | 32 |
| Security algorithms | 802.1x RADIUS |
| Authentication | MAC-based authentication. Port-based authentication |
| Multicast MAC address table | 8000 entries |
| IPv4 multicast entries | 511 |
| IPv6 multicast entries | 511 |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6. IPv4/IPv6 access-control list (ACL). IPv6 tracert |
| Form factor | Desktop |
| Product colour | White |
| Power source | DC/PoE |
| Power consumption (typical) | 71.5 W |
| Power over Ethernet (PoE) power per port | 64 W |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 243.99 BTU/h |
| Width | 170 mm |
| Depth | 100 mm |
| Height | 38.5 mm |
| Compliance certificates | CE. RoHS |
