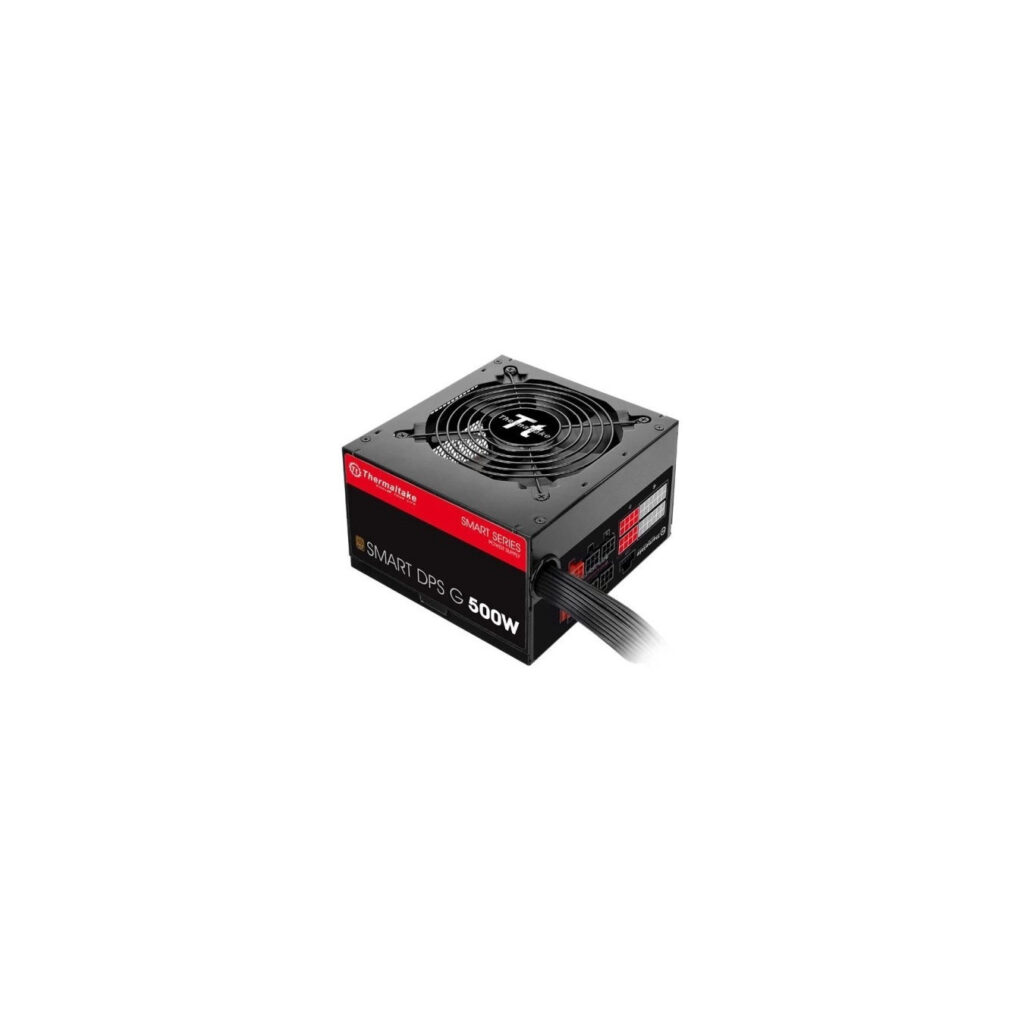

Thermaltake SMART DPS G 500W Digital PSU - 80 PLUS Bronze - Semi-Modular - Black
92.50 €
Thermaltake SMART DPS G 500W digital ATX power supply, 80 PLUS Bronze, semi-modular, 600W peak, 24-pin ATX, 120 mm fan, 100–240 VAC, active PFC.
Доступно через 6–10 рабочих дней : 88 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Thermaltake Smart DPS G. Total power: 500 W. AC input voltage: 100 — 240 V. Peak power: 600 W. Motherboard power connector: 24-pin ATX. Cabling type: Semi-Modular. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Bronze. Product colour: Black. Fan diameter: 12 cm. Number of fans: 1 fan(s). Certification: CE/FCC/UL/TUV/CB/EAC/BSMI
| Total power | 500 W |
| Peak power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 10 ms |
| Efficiency | 86% |
| Power Good signal delay range | 100 - 500 ms |

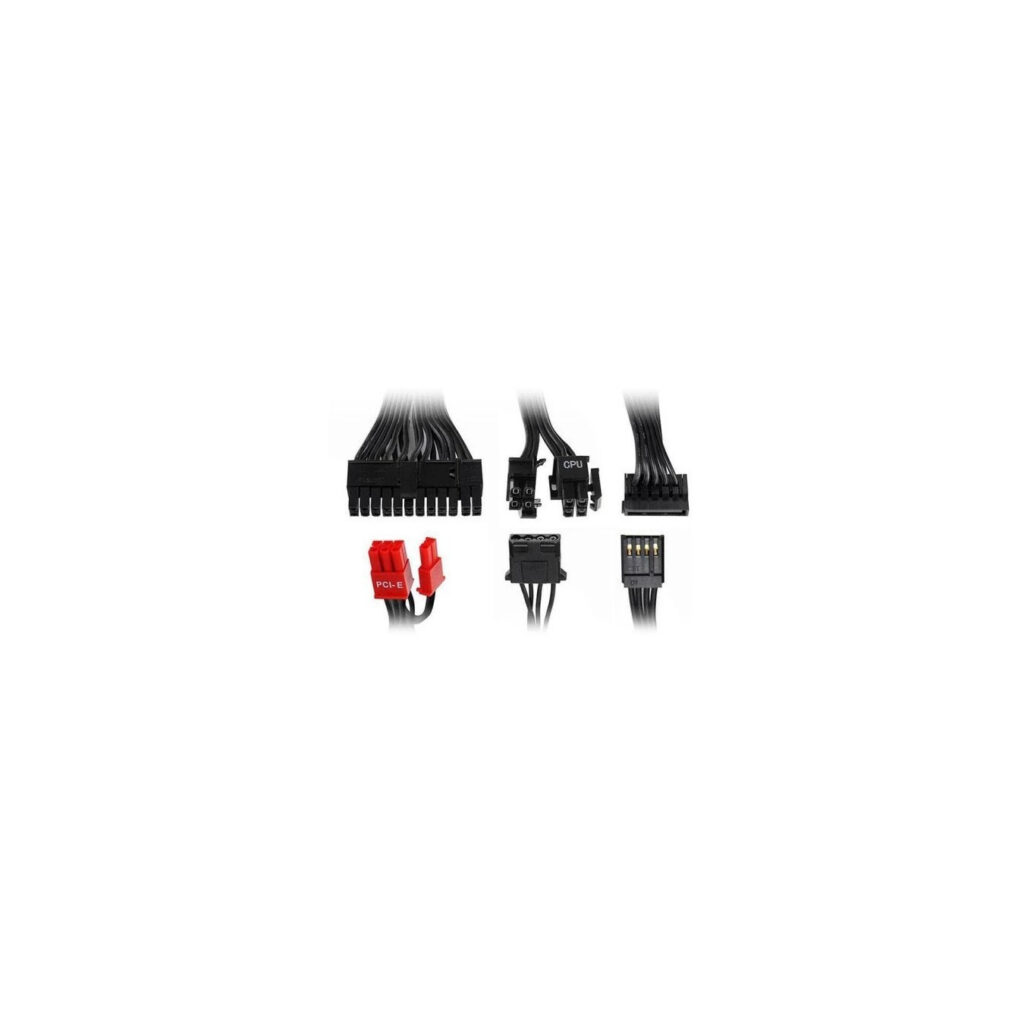

| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| Feature | Power management |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 120000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certification | CE/FCC/UL/TUV/CB/EAC/BSMI |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
