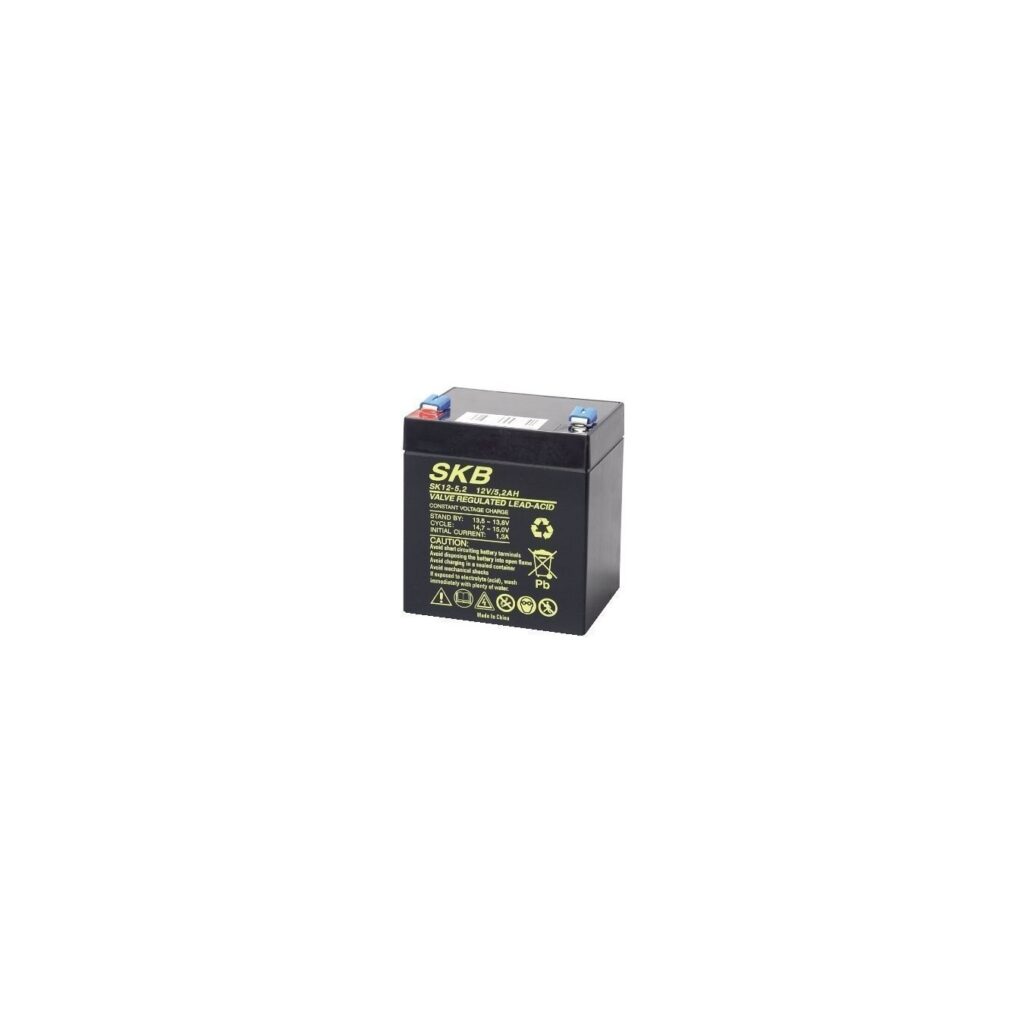

SKB Lead Acid Battery 12V 5.2Ah SK12-52

The SKB Lead Acid Battery 12V 5.2Ah (model SK12-52) is a reliable VRLA (Valve Regulated Lead Acid) battery designed for general and UPS applications. With 6 cells delivering 12V DC and 5.2Ah capacity, it provides 108W power for 15 minutes, making it suitable for backup power in computers, networking equipment, and small UPS systems.

Featuring 4.8mm Faston terminals (layout 2) and compact dimensions of 90x70x101(107)mm, this 1.55kg battery fits standard UPS compartments. It supports buffer charging at 13.5-13.8Vdc and cyclic use at 14.4-15.0Vdc, with a standard charge current of 1.56A. Operating temperatures range from -20°C to +60°C for charging/storage and -10°C to +60°C for discharge.

• Number of cells: 6
• Voltage: 12 Vdc
• Capacity: 5.2 Ah
• Battery power (15min): 108 W
• Power/cell (15min): 18 W
• Terminals faston: 4.8 mm
• Layout of the terminals: 2
• Dimensions: LxPxH(HT) 90x70x101(107) mm
• Weight: 1.55 Kg
• Usage: General, UPS
• Buffer charging voltage: 13.5 — 13.8 Vdc
• Charging voltage for cyclic use: 14.4 — 15.0 Vdc
• Standard charging current: 1.56 A
• Max Discharge Current (5 sec.): 75 A
• Discharge temperature: -10 ~ +60 °C
• Charging temperature: -20 ~ +60 °C
• Storage temperature: -20 ~ +60 °C
• EUROBAT Classification: 3 — 5 years «Standard Commercial»
• Container: ABS — HB
