Seasonic Core GC-750 750W ATX 3.1 80+ Gold
Seasonic CORE GC-750 ATX 3.1 750W 80+ Gold PSU. Full modular, 140mm depth, 120mm HDB fan, PCIe 5.1 ready w/ 2x 6+2pin. OptiSink tech, protections: OCP/OVP/OPP/OTP/SCP/UVP. For modern PCs.
Доступно через 4–6 рабочих дней : 3 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

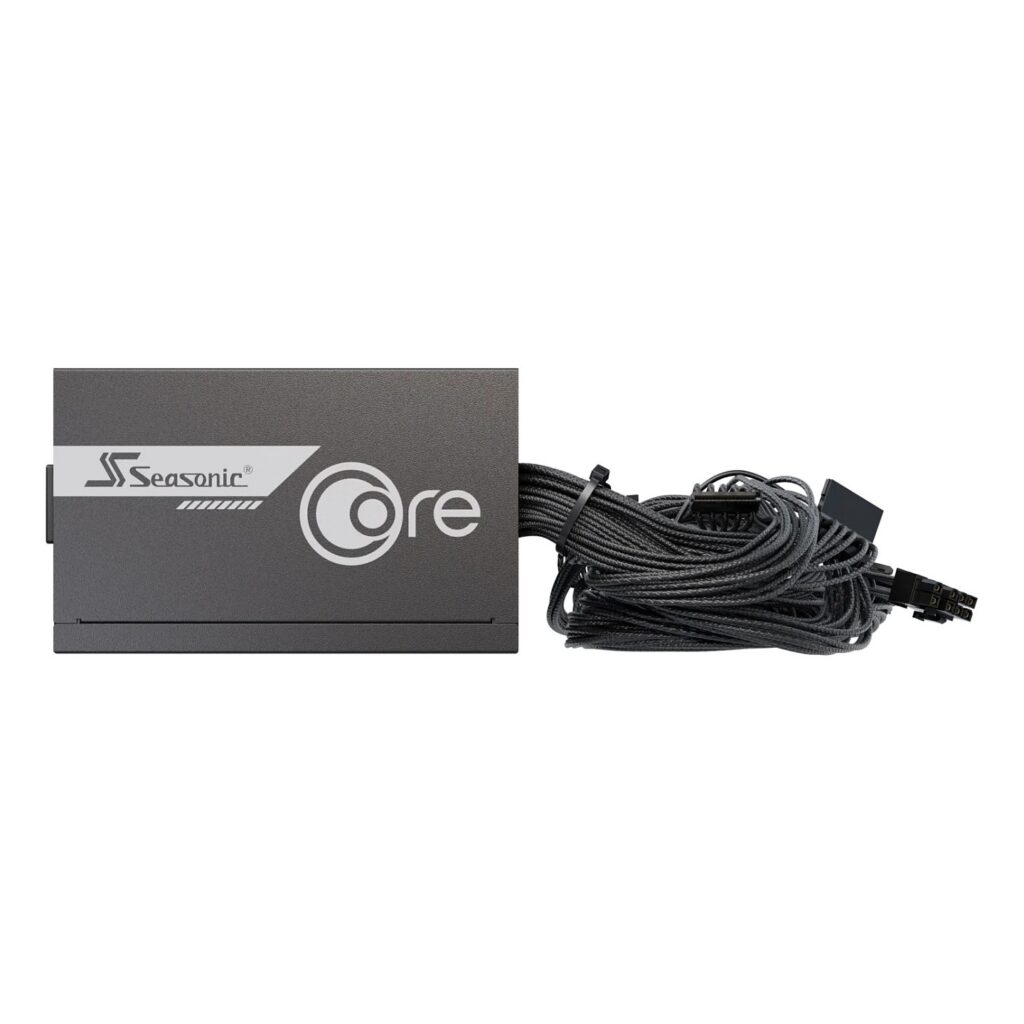

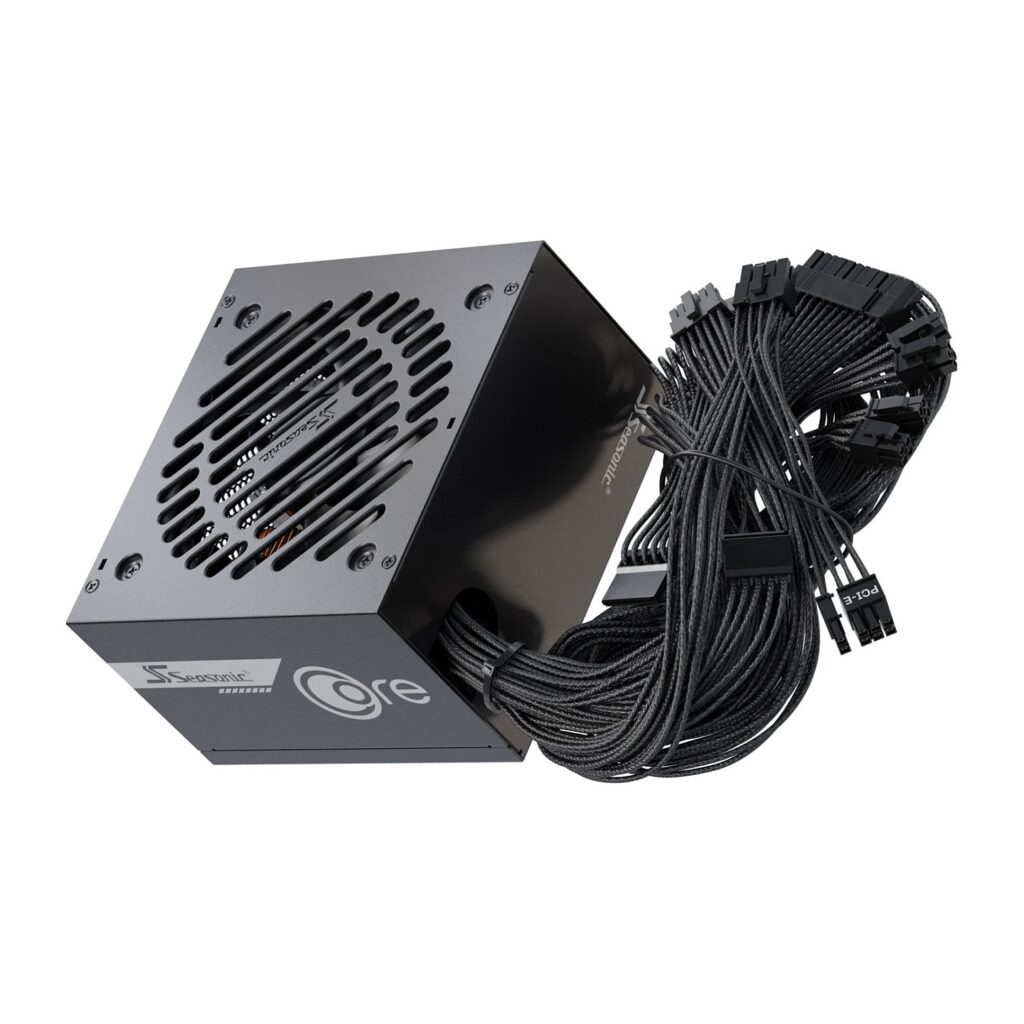

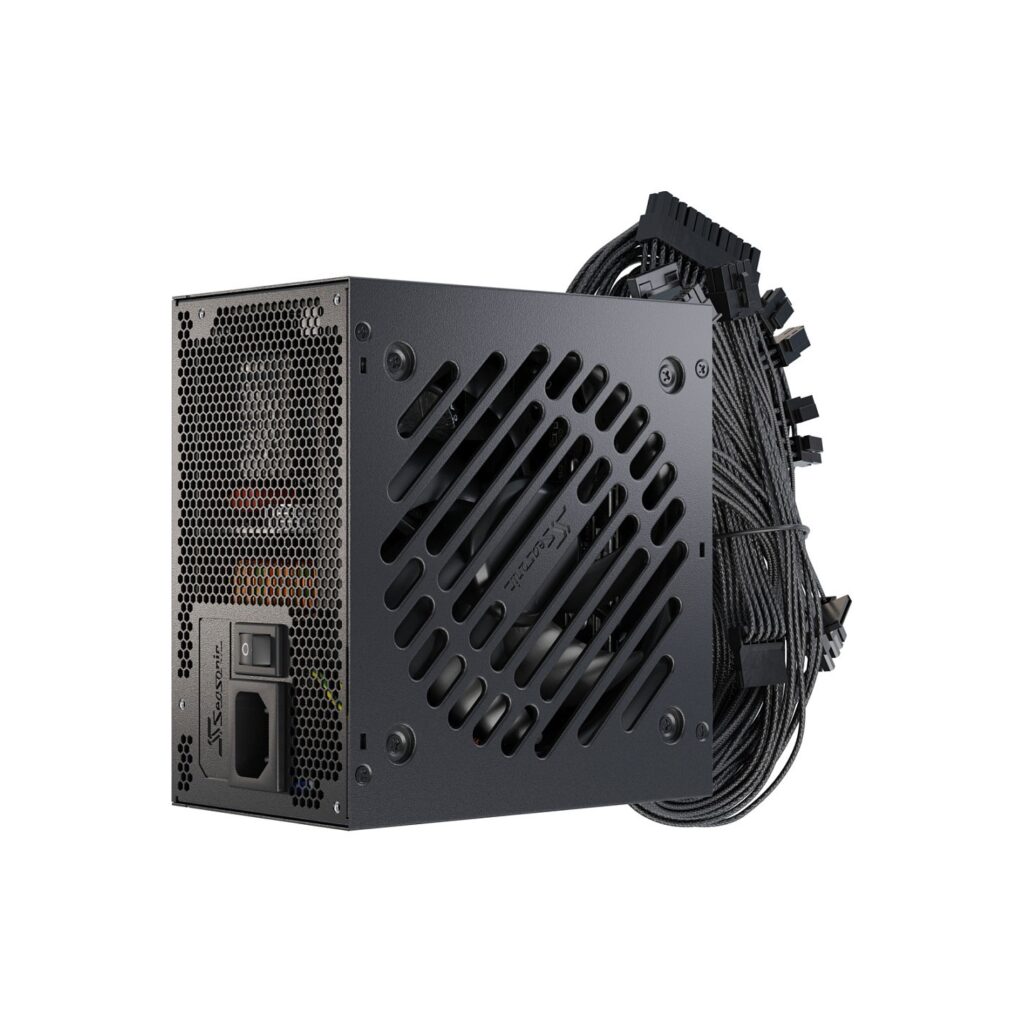

The Seasonic CORE GC-750 is a high-efficiency 750W ATX 3.1 power supply unit certified 80 PLUS Gold, delivering up to 90%+ efficiency at typical loads. Compliant with PCIe 5.1 standards, it features the innovative OptiSink design for superior thermal performance and compact 140mm depth, ideal for space-constrained builds.

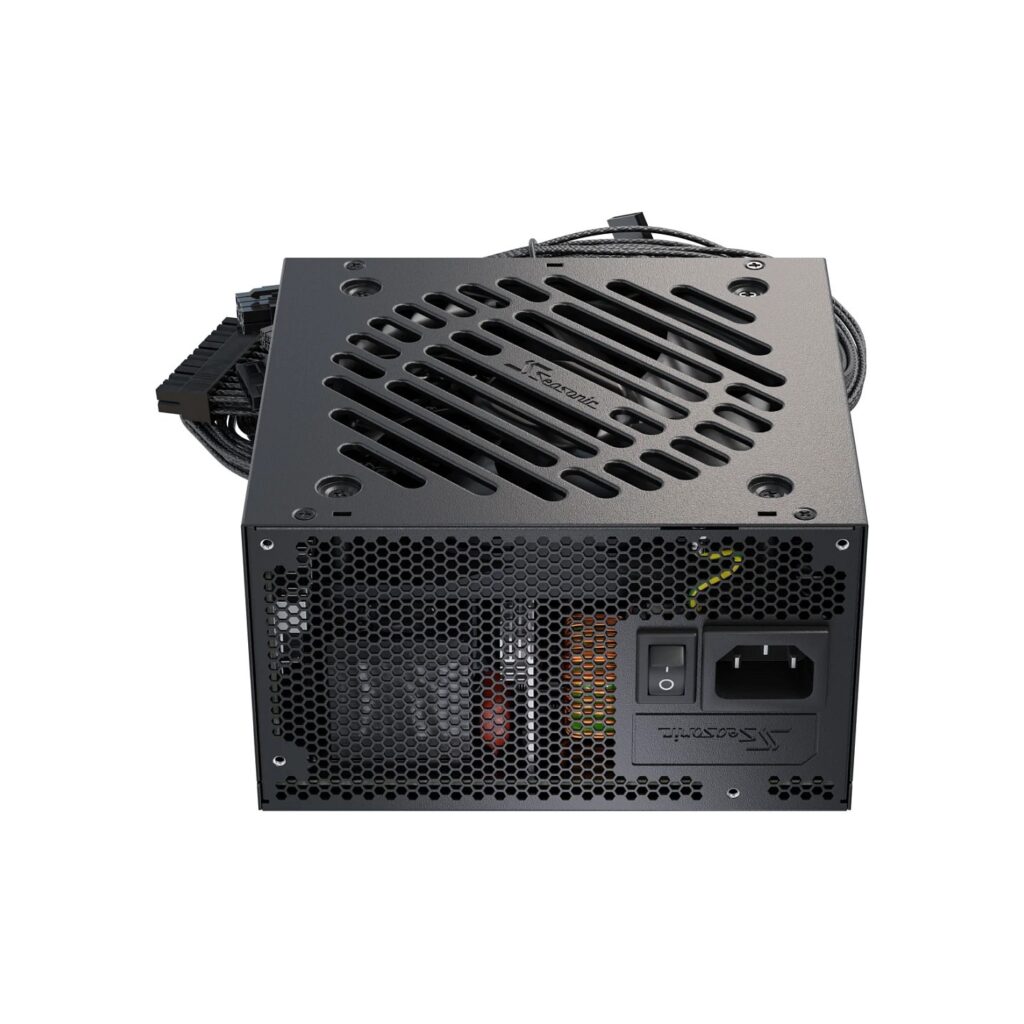

Equipped with a 120mm Hydro Dynamic Bearing (HDB) fan for quiet active cooling, full modular cabling for clean cable management, and comprehensive protections including over-current (OCP), over-power (OPP), over-temperature (OTP), short-circuit (SCP), over-voltage (OVP), and under-voltage (UVP). Supports modern GPUs with 2x PCIe 6+2 pin connectors and 1x EPS 4+4pin for CPUs.
- ATX 3.1 / PCIe 5.1 compliant — Future-proof for next-gen hardware
- 80 PLUS Gold — Energy efficient, low heat output

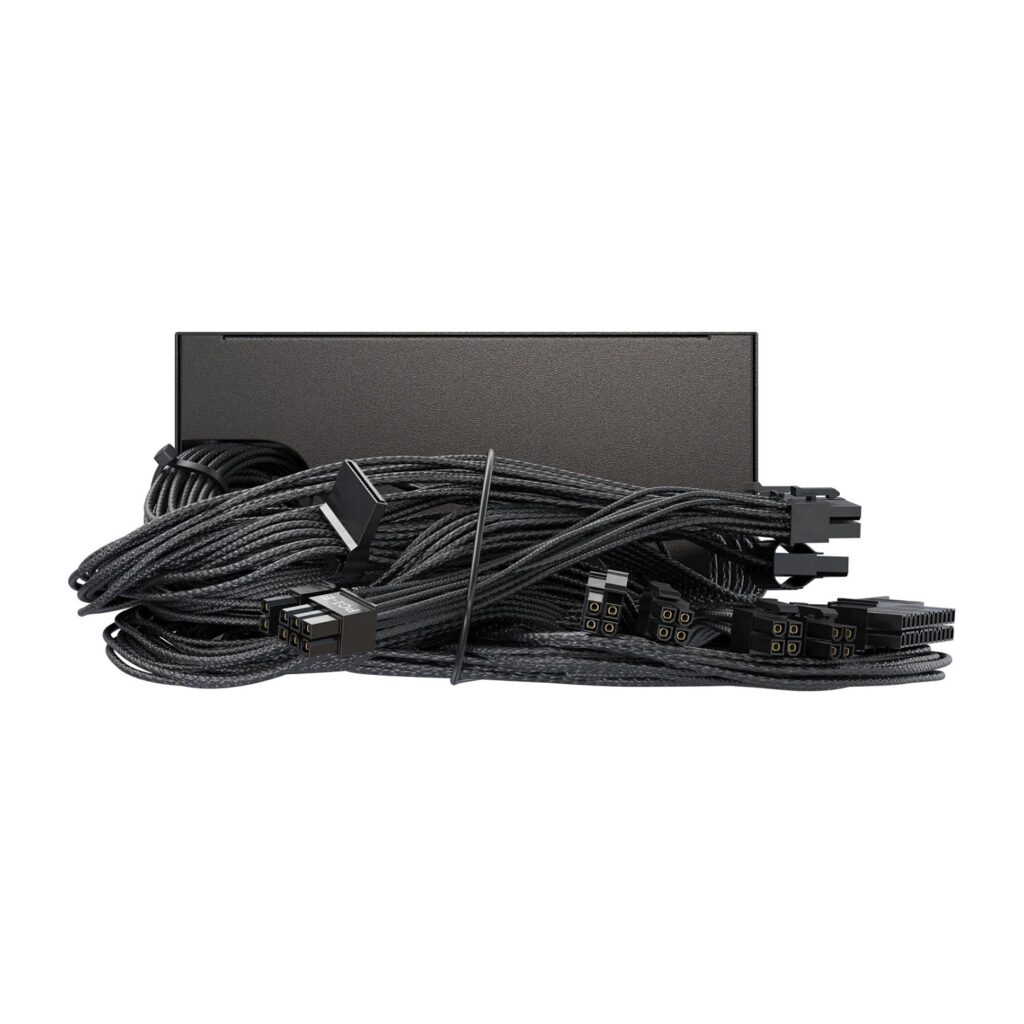

- Full modular black cables — Easy installation
- Compact 150x140x86mm — Fits most cases
- 7-year warranty (typical for series)
| Gesamtleistung | 750 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Eingangsstrom | 10 - 5 A |
| Kombinierter Strom (+3.3V) | 100 W |
| Kombinierter Strom (+12V) | 744 W |
| Kombinierter Strom (+5V) | 100 W |
| Kombinierter Strom (-12V) | 3.6 W |
| Kombinierter Strom (+5Vsb) | 12.5 W |
| Max. Ausgangsstrom (+3.3V) | 20 A |
| Max. Ausgangsstrom (+12V) | 62 A |
| Max Ausgangsstrom (+5V) | 20 A |
| Max. Ausgangsstrom (-12V) | 0.3 A |
| Max. Ausgangsstrom (+5Vsb) | 2.5 A |
| Energieschutzeigenschaften | Überstrom. Überlastung. Unterspannung. Überspannung. Kurzschluß. Überhitzung. OCP. OPP. OTP. SCP. OVP. UVP |
| Manufacturer Part Number | SRP-CGX751-A5A32SF |
| Kabeltyp | Full Modular |
| 80 Plus Zertifizierung | 80 PLUS Gold |
| Zweck | PC |
| Stromversorgungseinheit (PSU) Formfaktor | ATX |
| ATX-Version | 3.1 |
| Lagertyp | Hydro Dynamic Bearing (HDB) |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 100000 h |
| Produktfarbe | Schwarz |
| Kühlung | Aktiv |
| Lüfterdurchmesser | 12 cm |
| Anzahl Lüfter | 1 Lüfter |
| Breite | 150 mm |
| Tiefe | 140 mm |
| Höhe | 86 mm |
| PCI Express Anschlüsse | 2x 6+2 pin |
| EPS CPU Anschlüsse | 1x 4+4 pin |
| OptiSink Design | Yes |
