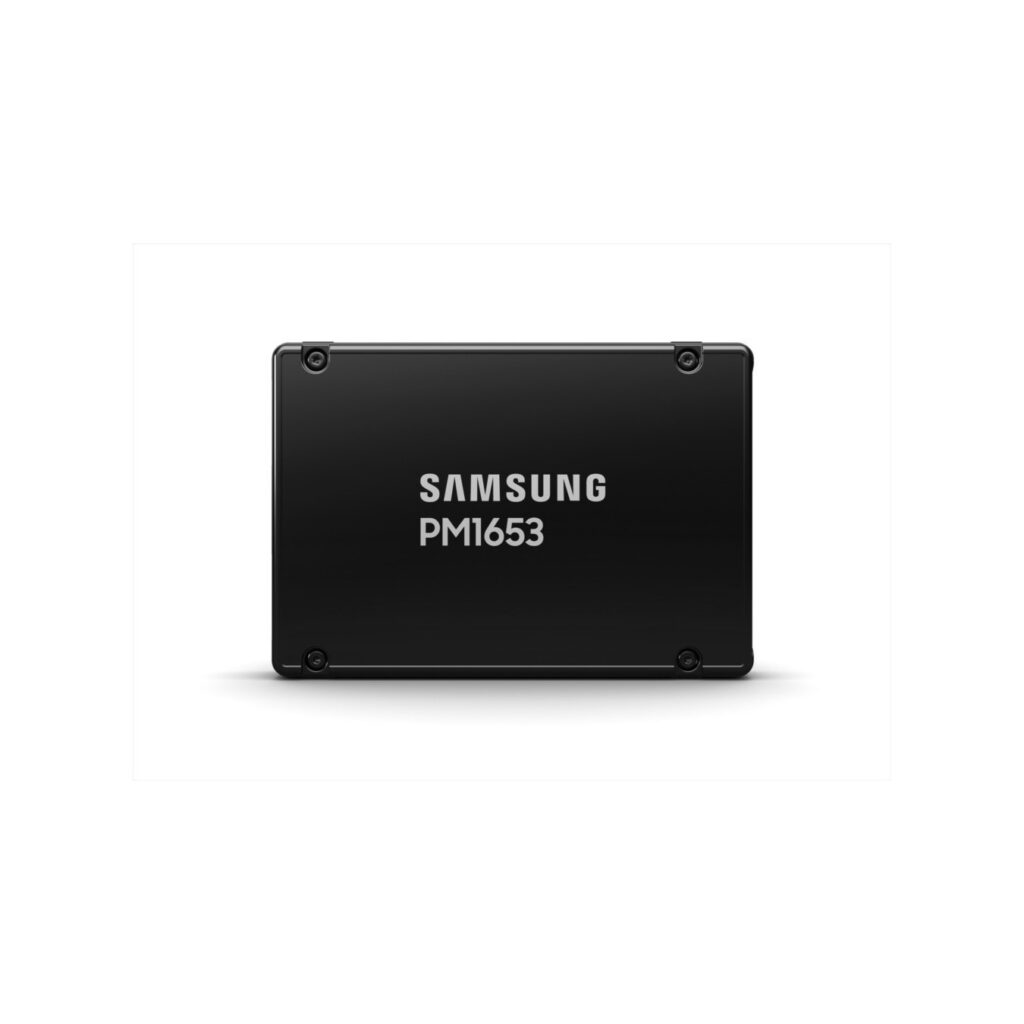

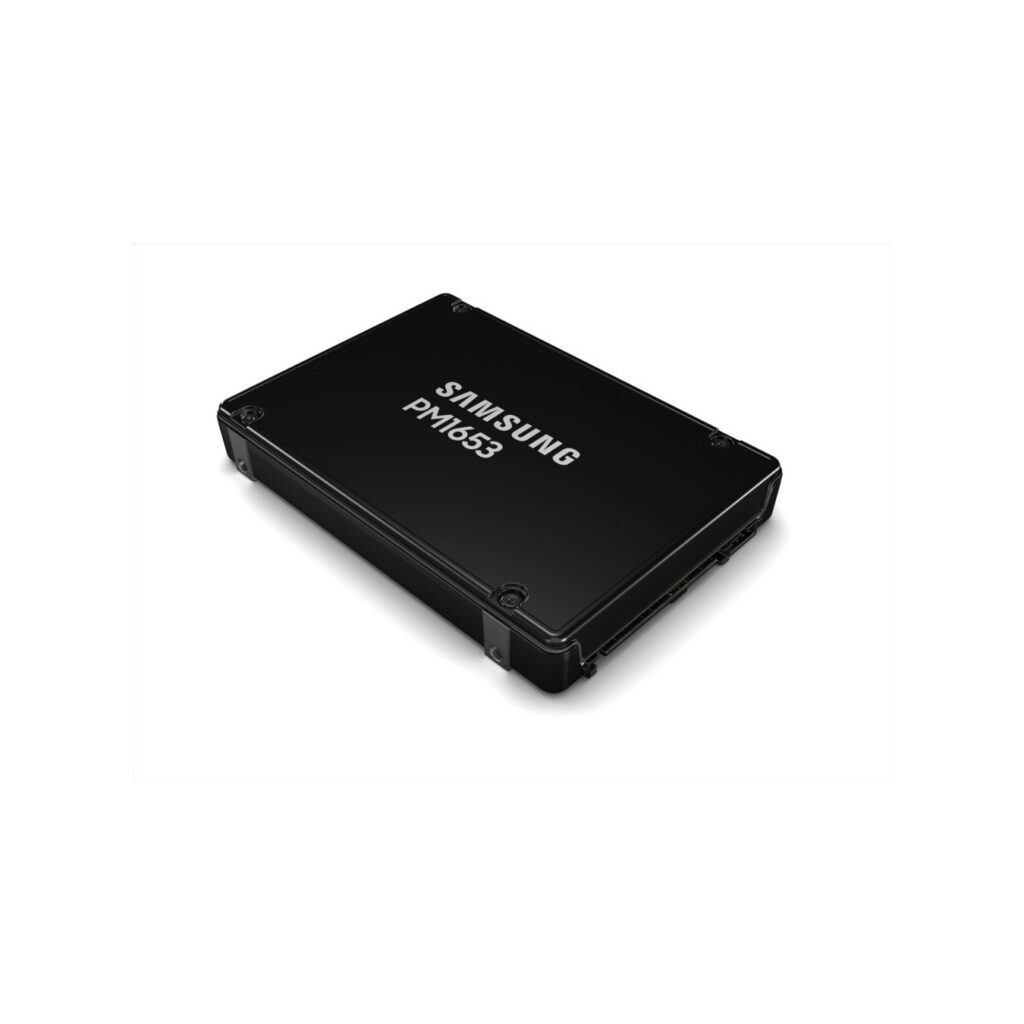

Samsung PM1653 3.84TB 2.5" SAS SSD - 24Gb/s 4200 MB/s Enterprise SSD - MZ-ILG3T80
The Samsung PM1653 3.84TB is a high-performance SAS-4 (24Gb/s) Enterprise SSD designed for read-intensive server workloads. Featuring advanced 6th Gen V-NAND technology, it delivers sequential read speeds of up to 4,200 MB/s and random read IOPS up to 800,000, ensuring maximum throughput for data-heavy enterprise environments.
Доступно через 4–6 рабочих дней : 14 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Samsung PM1653 3.84TB Enterprise SAS SSD represents a significant leap in data center storage, utilizing the advanced 24G SAS (SAS-4) interface. Designed to double the throughput of previous 12G SAS generations, the PM1653 is optimized for high-density server deployments and read-intensive applications. Powered by Samsung’s proprietary controller and 6th generation V-NAND technology, this drive provides the massive bandwidth and ultra-low latency required for modern hyperscale data centers and demanding cloud infrastructures.
Engineered for mission-critical reliability, the PM1653 features a dual-port design that ensures continuous data availability even if one port experiences a failure. This redundancy is essential for high-availability enterprise storage arrays and database servers. With a massive capacity of 3.84TB, it provides an efficient balance of storage density and high-speed performance, delivering up to 4,200 MB/s sequential read speeds and exceptional random read IOPS to eliminate system bottlenecks.
- Enterprise SAS-4 Interface: Delivers up to 24Gb/s transfer rates, offering backward compatibility with 12G SAS systems.
- High-Speed V-NAND: Utilizes Samsung 6th Gen V-NAND TLC for improved power efficiency and sustained high performance.
- Mission-Critical Reliability: Dual-port support for high availability and a Mean Time Between Failures (MTBF) of 2.5 million hours.
- Enterprise Security: Supports hardware-based AES 256-bit encryption to protect critical business data at rest.
- Workload Optimized: Rated at 1 Drive Write Per Day (DWPD) over 5 years, ideal for read-intensive enterprise workloads.
| SSD capacity | 3.84 TB |
| SSD form factor | 2.5 inch |
| Interface | SAS 24Gb/s (SAS-4) |
| Memory type | Samsung V-NAND TLC |
| Component for | Server/Workstation |
| Data transfer rate | 24 Gbit/s |
| Read speed | 4200 MB/s |
| Write speed | 3700 MB/s |
| Random read (4KB) | 800000 IOPS |
| Random write (4KB) | 135000 IOPS |
| Drive writes per day (DWPD) | 1 |
| Mean time between failures (MTBF) | 2500000 h |
| Uncorrectable Bit Error Rate (UBER) | 1 sector per 10^17 bits read |
| Dual port support | Yes |
| Height | 15 mm |
| Width | 70.1 mm |
| Depth | 100.45 mm |
