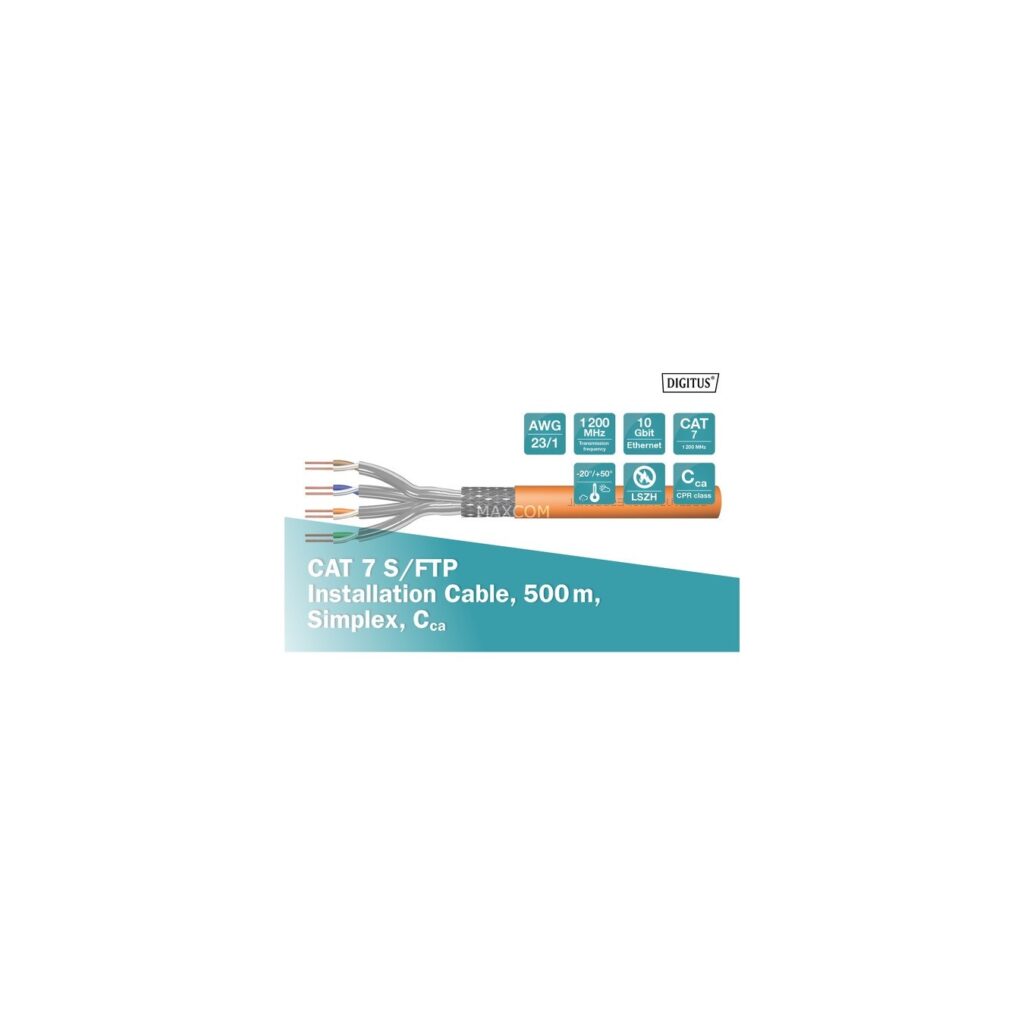

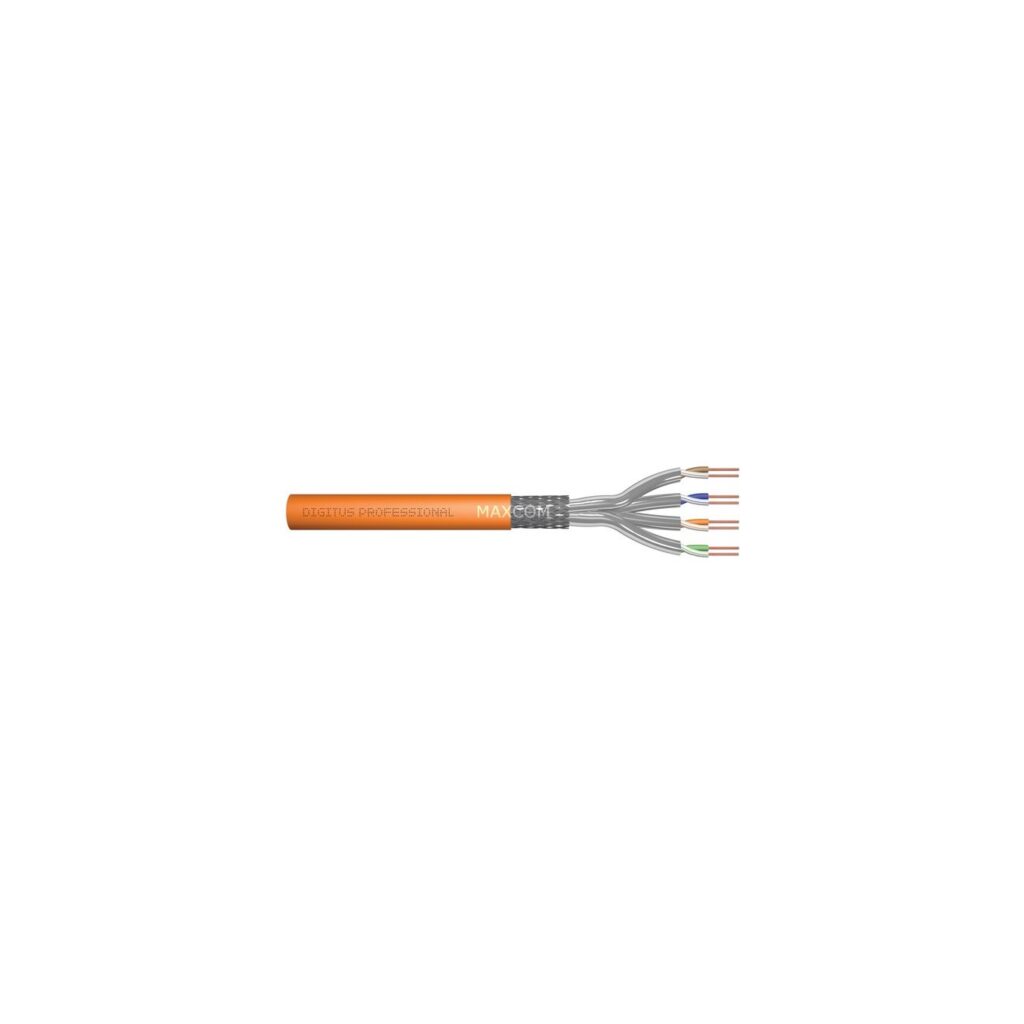

Professional Cat.7 S FTP installation cable - simplex, CCA

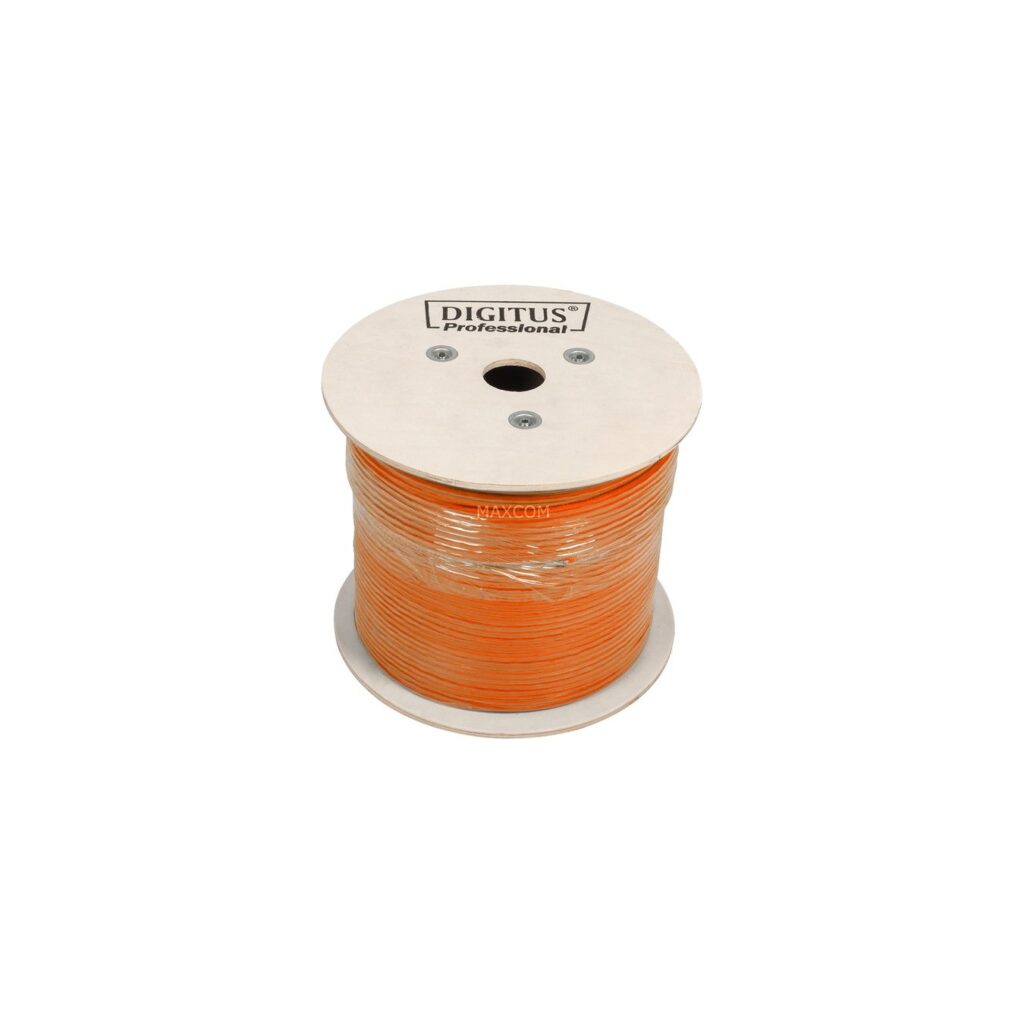

Orange Cat7 S/FTP installation cable with 23 AWG conductors, 500 m spool, rated up to 1,200 MHz.
Доступно через 6–10 рабочих дней : 11 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Digitus Professional Cat.7 S/FTP installation cable DK-1744-VH-5 is characterized by a 4x2x AWG23/1 cable structure and achieves a transmission frequency of up to 1,200 MHz. The cable jacket is halogen-free and conforms to the BauPVO Euroclass Cca. The cable is suitable for use in structured data centers and building cabling. The cable is ideal for transmitting analog and digital data and supports POE and POE+. The shielding structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values. It also has excellent mechanical properties, it offers a tensile load of max. 150N, the dynamic bending radius is at least 8x OD mm, the static bending radius is at least 4x OD mm.
| Typ | Cable |
| Color | orange |
| EAN | 4016032441731 |
| Manufacturer no. | DK-1744-VH-5 |
| Manufactured in | China |

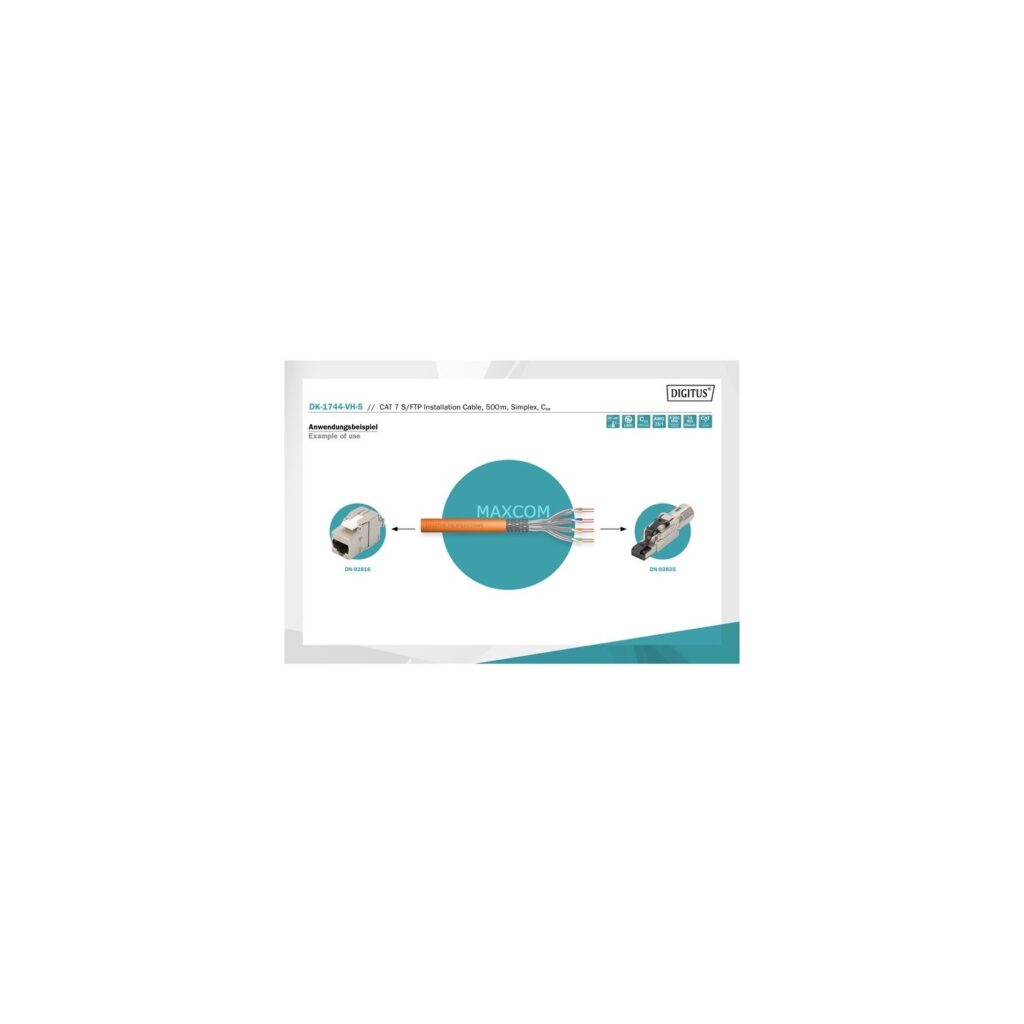

| Application example | Use in structured data centers and for building cabling |
| Area | network |
| Connection - from | 1x cable end without plug |
| Cable cross section | 23 AWG |
| Category - Cable | Cat.7 |
| shielding | S/FTP |
| Characteristics | extern |
| Execution | Premium |
| Feature | Twisted Pair Installationskabel |
| More information | 10GBit Ethernet, 1,200 MHz transmission frequency, Permanent Link certified, PoE Power over Ethernet support, BauPVO class Cca-s1a d1 a1, conductor material: Cu bare, AWG 23/1, sheath LSOH |
| Notice | Conforms to the Normen ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 60332-3-24, EN 50575 |
| Cable length | 500 Meter |
| Weight | 27 kg |
