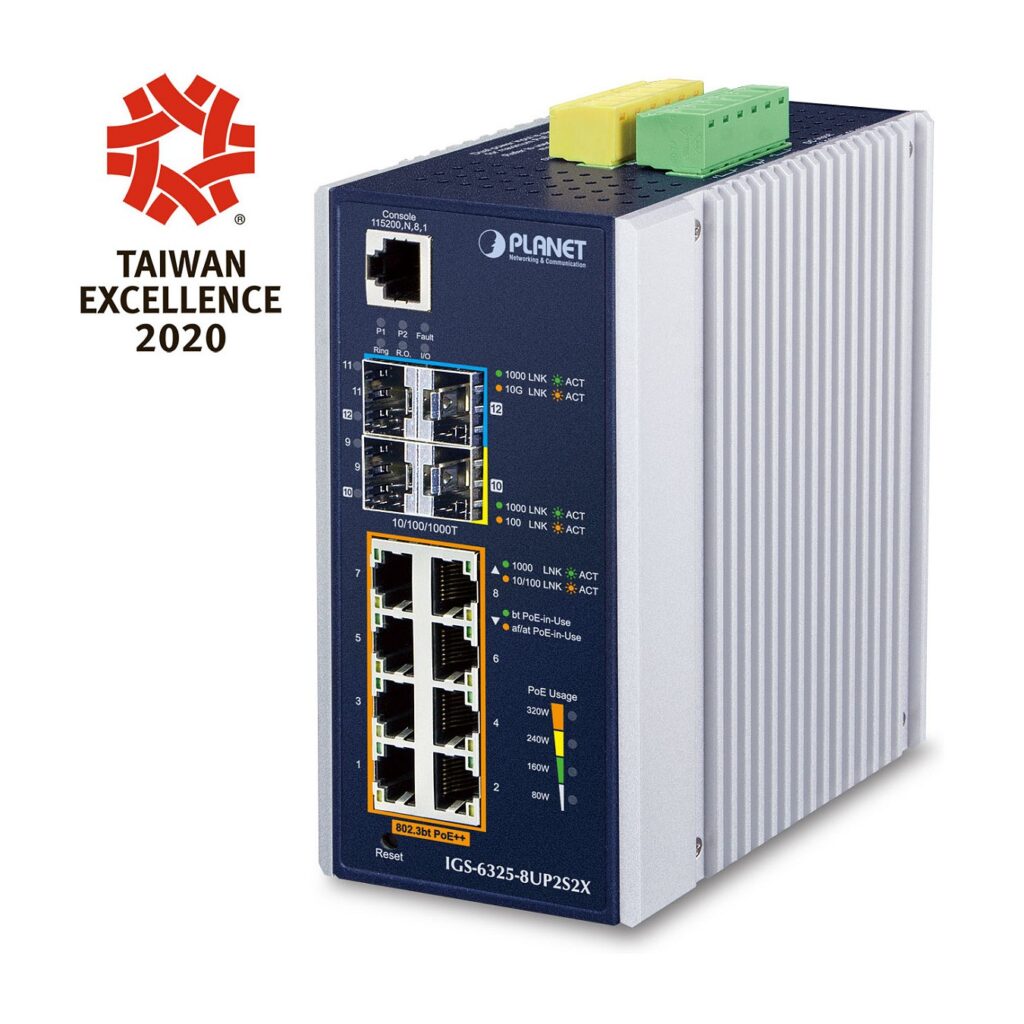

Planet IGS-6325-8UP2S2X Industrie L3 8-Port PoE SFP+ Managed Ethernet Switch
PLANET IP30 DIN-rail Industrial L3 8P. Managed. L3. Gigabit Ethernet (10/100/1000). Vollduplex. Wandmontage
Доступно через 6–10 рабочих дней : 2 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
PLANET IP30 DIN-rail Industrial L3 8P. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Anzahl installierten SFP Module: 2. Anzahl installierte SFP Module: 2. Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 60 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ag. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE…. Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | DIN-Schienen-Montage |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl installierten SFP Module | 2 |
| Anzahl installierte SFP Module | 2 |
| Konsolen-Port | RJ-45 |
| Anzahl der VLANs | 4095 |
| Routing-/Switching-Kapazität | 60 Gbit/s |
| Durchgang | 44.64 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 32 MB |
| DHCP-Funktionen | DHCP Option 82. DHCP relay. DHCP server. DHCP snooping |
| Produktfarbe | Aluminium. Blau |
| Gehäusematerial | Aluminium |
| Internationale Schutzart (IP-Code) | IP30 |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 76.8 mm |
| Tiefe | 107.3 mm |
| Höhe | 152 mm |
| Gewicht | 1.15 kg |
| Zertifizierung | FCC Part 15 Class ACE:EN55032EN55035IEC60068-2-32 (free fall)IEC60068-2-27 (shock)IEC60068-2-6 (vibration) |
| Warentarifnummer (HS) | 85176990 |
