PHC0200 25m BLACK SOLAR INSTALLATION CABLE (H1Z272-K) 6mm CU, LOGILINK

PHC0200 25m SOLAR INSTALLATION CABLE (H1Z272-K) 6mm CU BLACK, LOGILINK
Photovoltaic cable H1Z2Z2-K/PV1-F

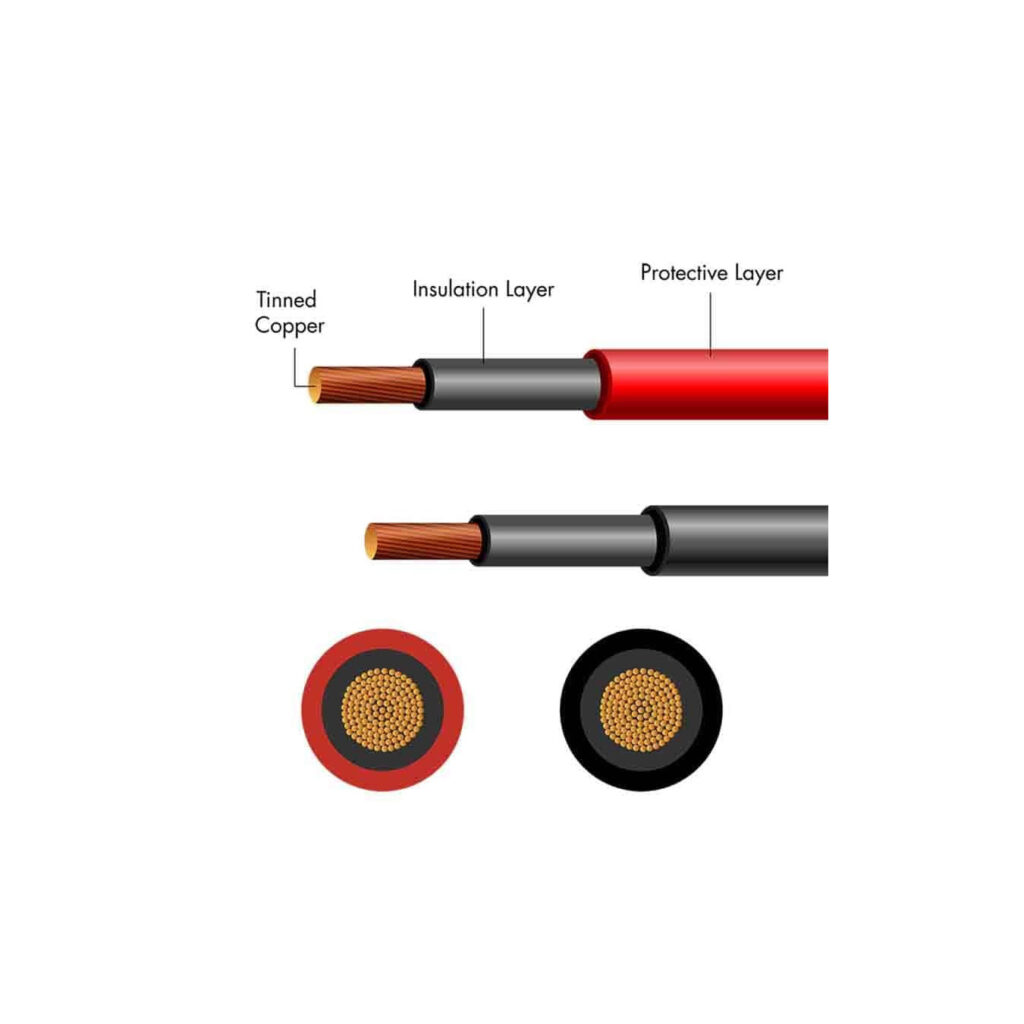

Copper wire 84 x 0.285 (6mm): Outer diameter: 6.6mm
Acid and alkali resistand according to IEC 60811-2-1
Ozone-resistant according to EN 50396: UV-resistant according to EN 50289-4-17
Continuous load test according to EN 60216-2:
Cold bending test according to EN 60811-1-4
Halogen test according to EN 60754-1 & EN 60754-2
Test of vertical flame propagation according to EN 60332-1-2
Max. DC resistance at 20c, 3.39Ohm/KM
Rated current: 60A
Color: Black

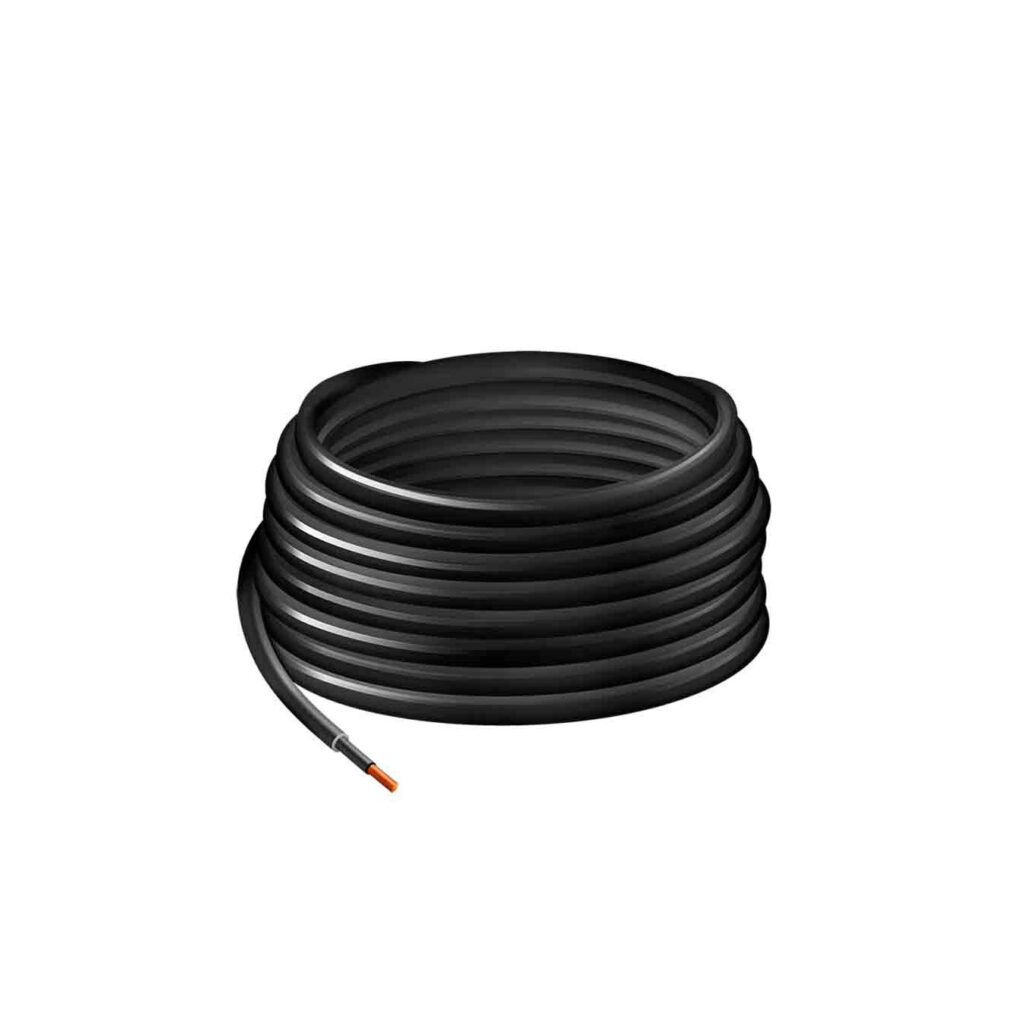

Cable length: 25m (coiled)
Packaging: Brown Box
Weight: 1.95kg
