PCIe x1 card to 4 x serial RS-232 with 5V or 12V, interface card
63.50 €
This PCI Express x1 card from Delock expands the PC with four external RS-232 ports. All you need is a free PCIe x1 slot and a SATA power connection. Thanks to the included low pro…
Доступно через 6–10 рабочих дней : 200 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

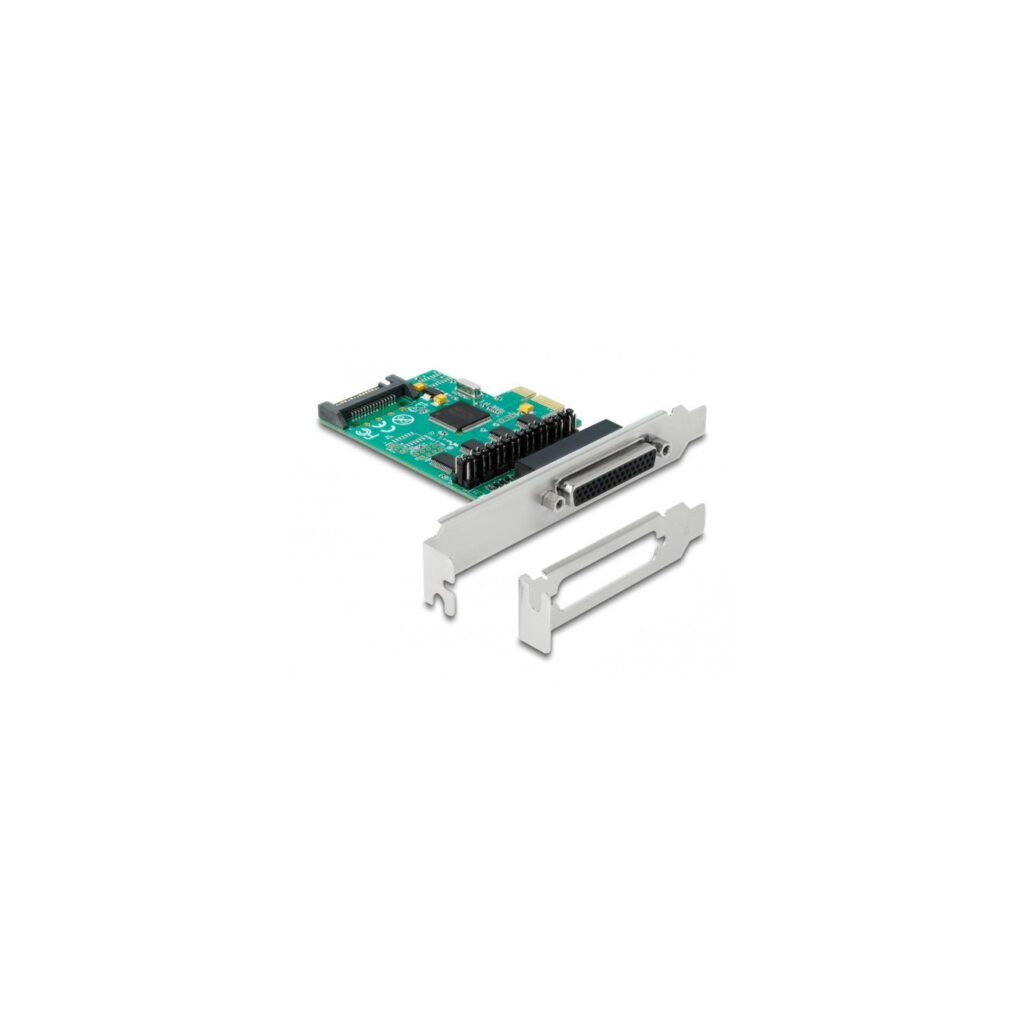

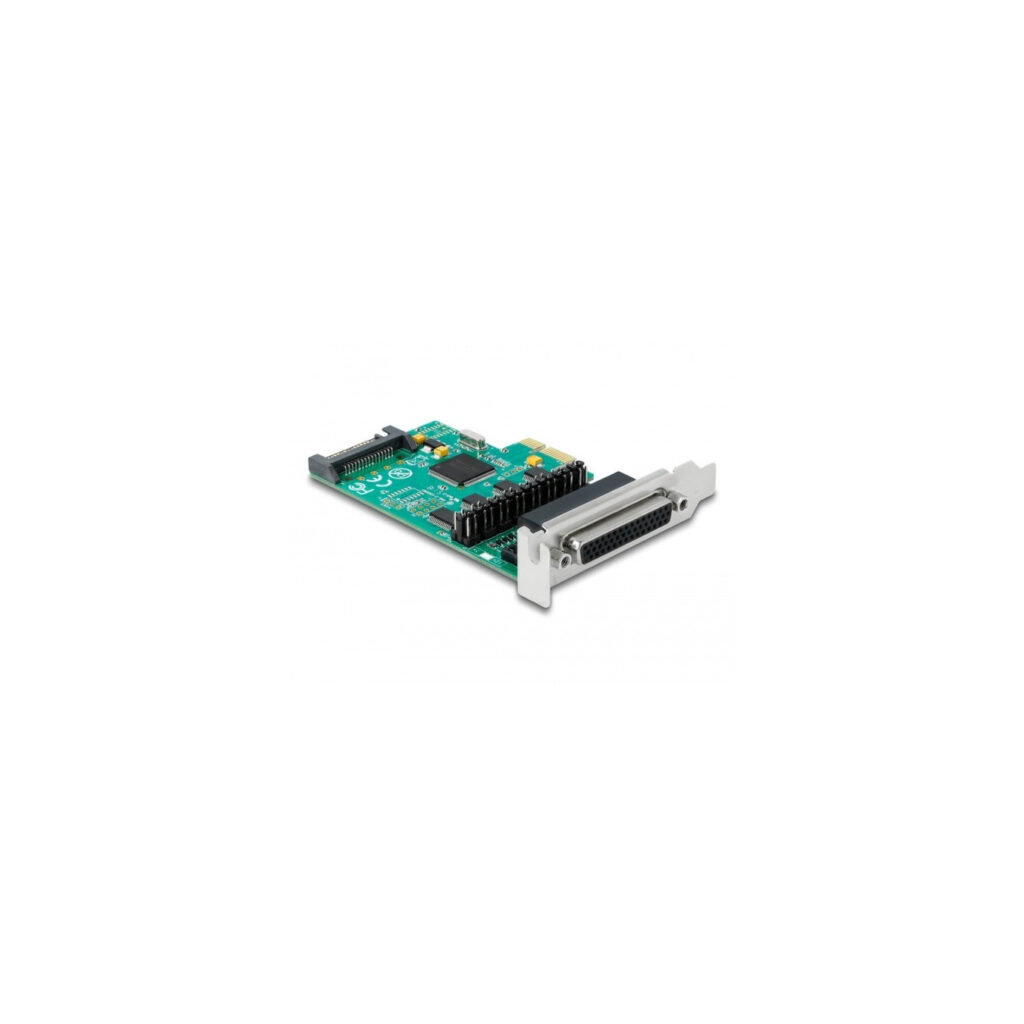

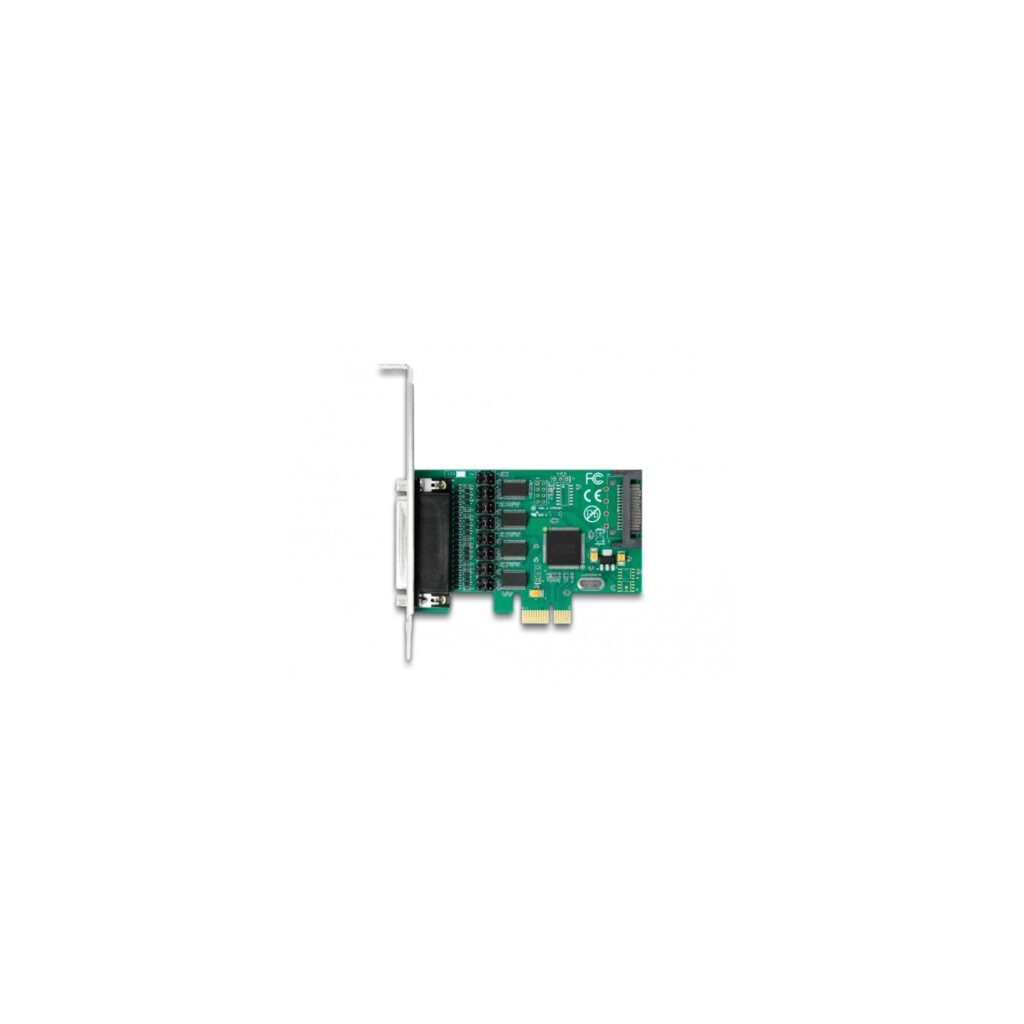

This PCI Express x1 card from Delock expands the PC with four external RS-232 ports. All you need is a free PCIe x1 slot and a SATA power connection. Thanks to the included low profile bezel, the card can also be used in PC systems with a small form factor. Connected devices can be supplied with a voltage of 5 or 12 volts.
| Typ | Interface card |
| EAN | 4043619899388 |
| Manufacturer no. | 89938 |
| Controller Art | Serial |
| slot | PCIe x1 Version 2.0 |
| Chip | WCH384L |
| Operating System - Supported | Windows 7, Windows 8, Windows 10, Windows 11 |
| Low Profile | optional |

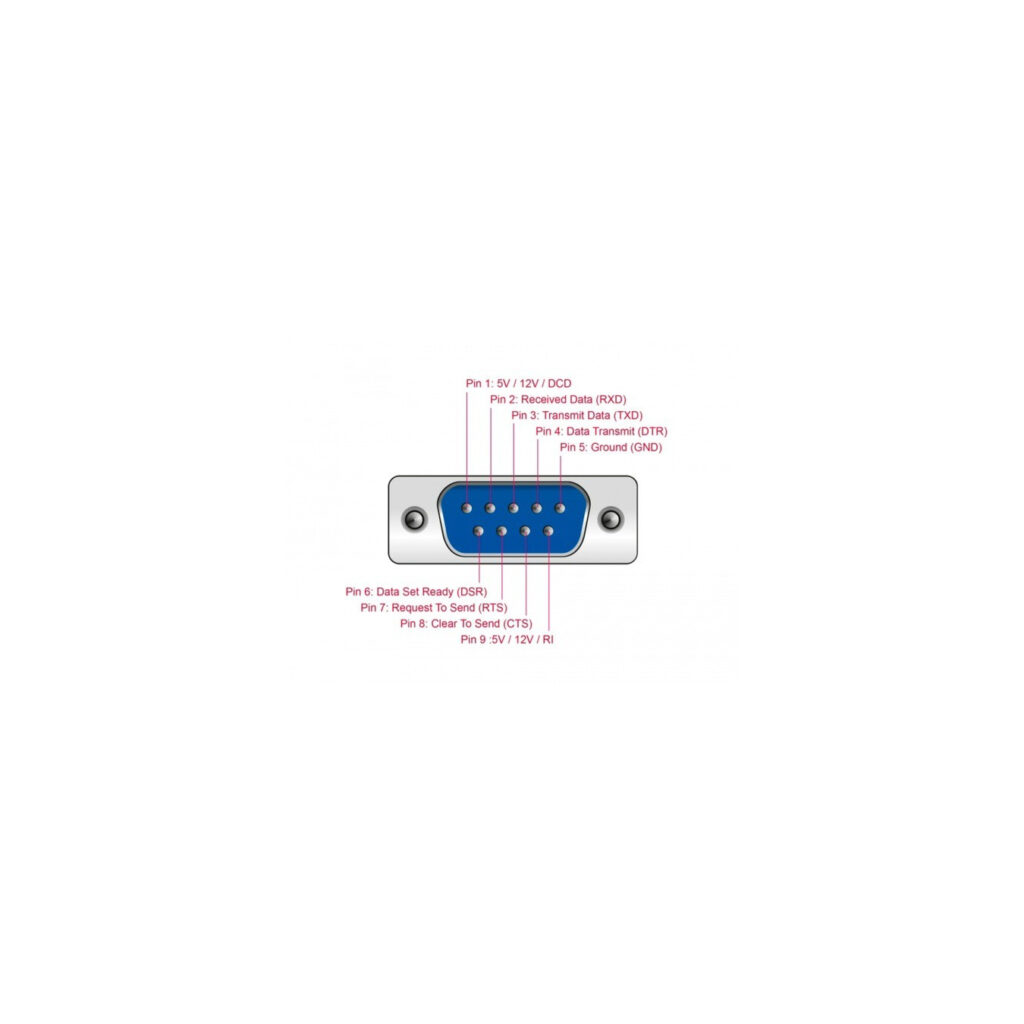

| More information | Internal connections: 1x PCIe x1, 1x SATA power connector | Data transfer rate up to 460.8 Kbps | FIFO: 256 bytes | Parity bit: even, odd, none, marked, empty | Flow control: none, hardware RTS / CTS, software XON / XOFF | Compatible with 16C950 UART | 5V or 12V voltage individually adjustable for each port using jumpers (pin 1 or 9) | Electrical power per port: 10 watts (5V / 2 A) | Electrical power per port: 24 watts (12V / 2 A) | Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V | Cable length including connections: approx. 35 cm |

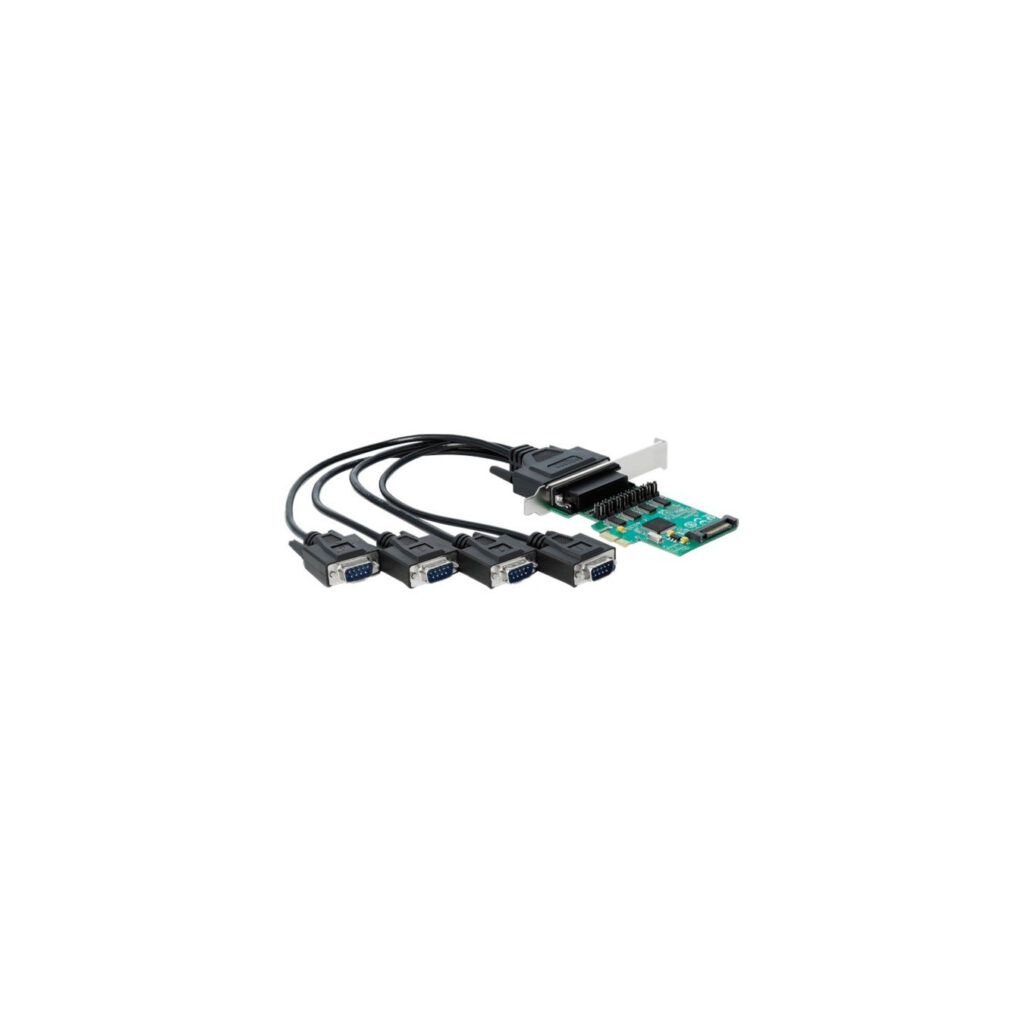

| Accessories - available | Low profile cover, 1x serial connection cable DB44 plug to 4x RS-232 DB9 plug, driver CD, instructions |
