PCI Express x8 Card - 4 x Internal SFF-8643 NVMe LP - Controller
347.50 €
Delock PCIe card with 4x internal SFF-8643 ports for NVMe drives; NVMe bootable from UEFI 2.3.1; low-profile optional.
Доступно через 6–10 рабочих дней : 13 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

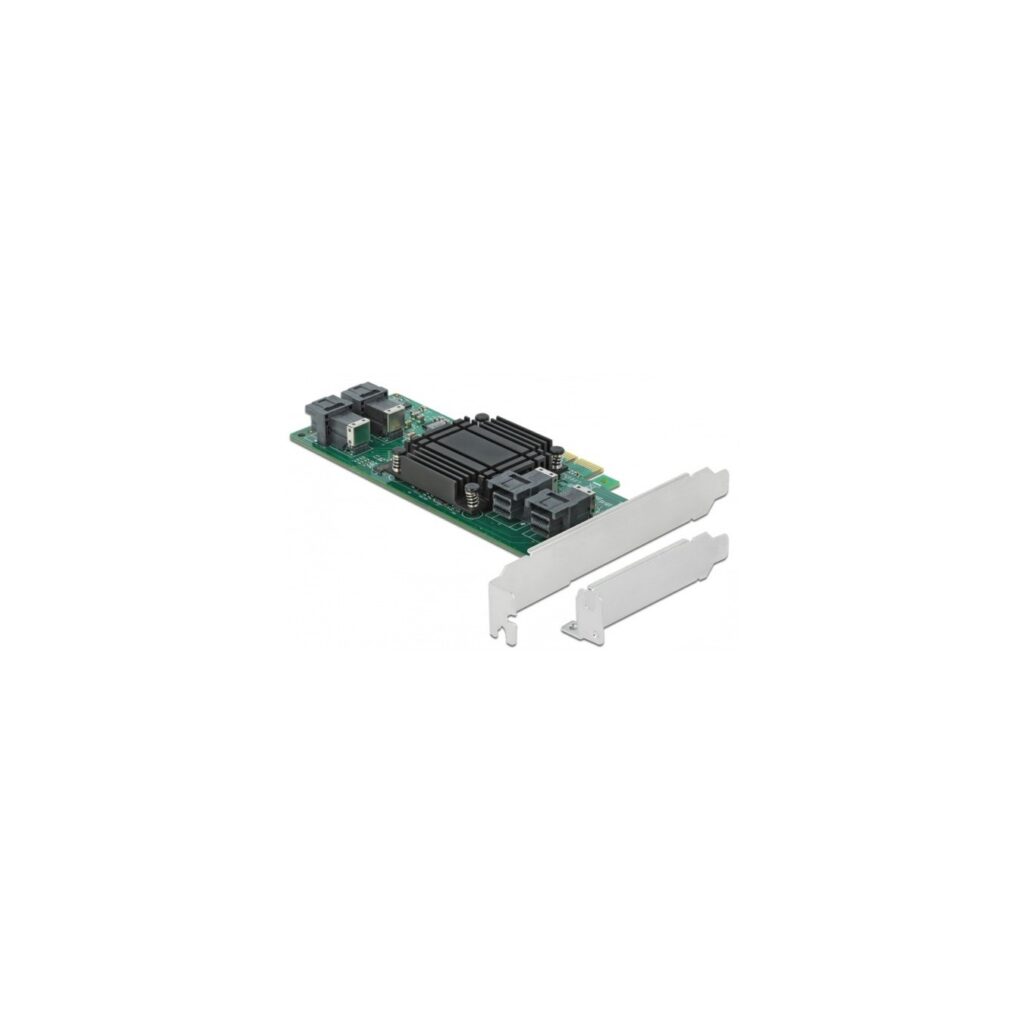

This PCI Express card from Delock expands the PC with four SFF-8643 ports. These ports can be used, for example: B. SSDs with a U.2 connection can be connected using optional cables.
| Typ | Controller |
| EAN | 4043619905850 |
| Manufacturer no. | 90585 |
| Controller Art | M.2 |
| slot | PCIe x8 Version 3.0 |
| Chip | Broadcom PLX8725 |
| Protocol | PCIe x8 |
| Data throughput | 32 GBit/s |
| Connections - internal | 4x SFF-8643 |
| Operating System - Supported | Linux, Windows 8, Windows 10, Windows 11, Windows Server 2019 |
| Low Profile | optional |
| Feature | Supports NVM Express (NVMe) | Bootable, from UEFI version 2.3.1 | 5 x LED display |
| Accessories - available | PCI Express Card | Low profile bezel | Instruction manual |
