PC power supply - GP-UD850GM PG5 V2 - PC power supply

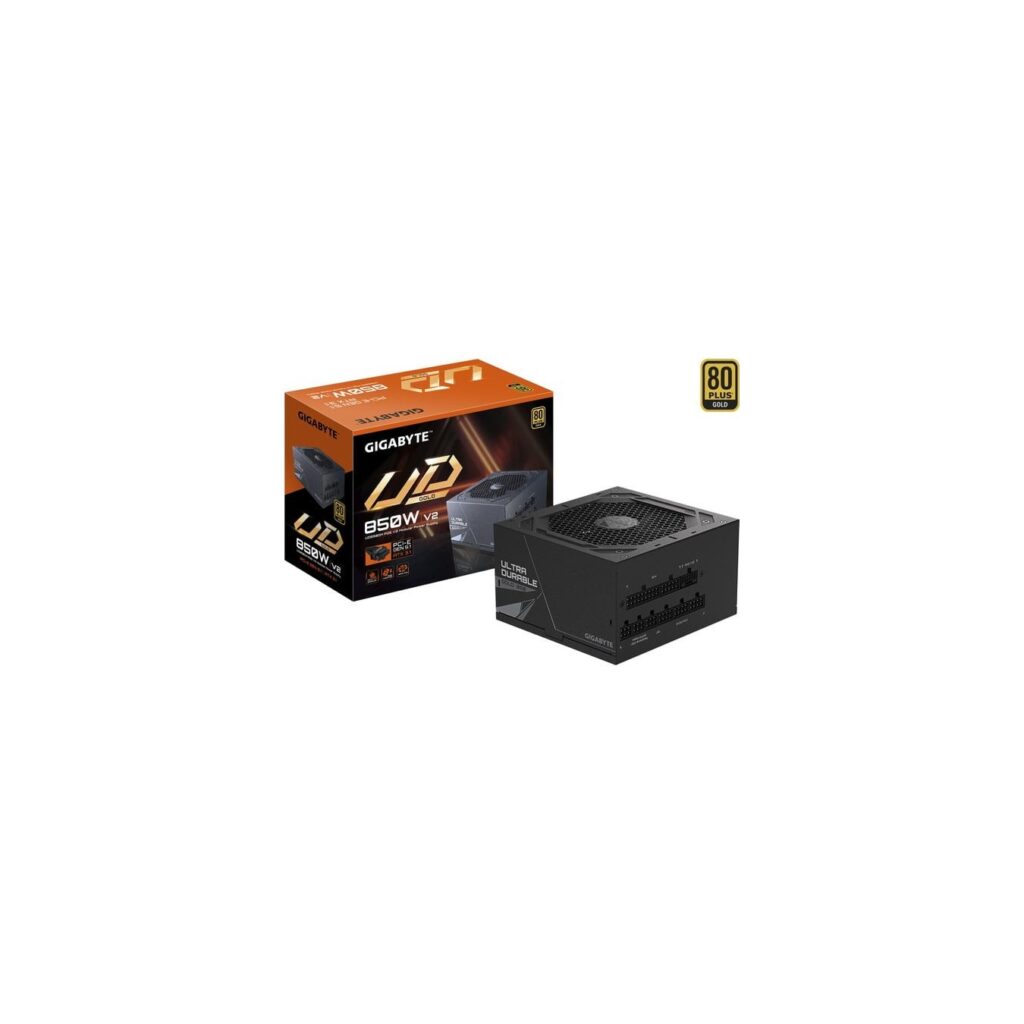

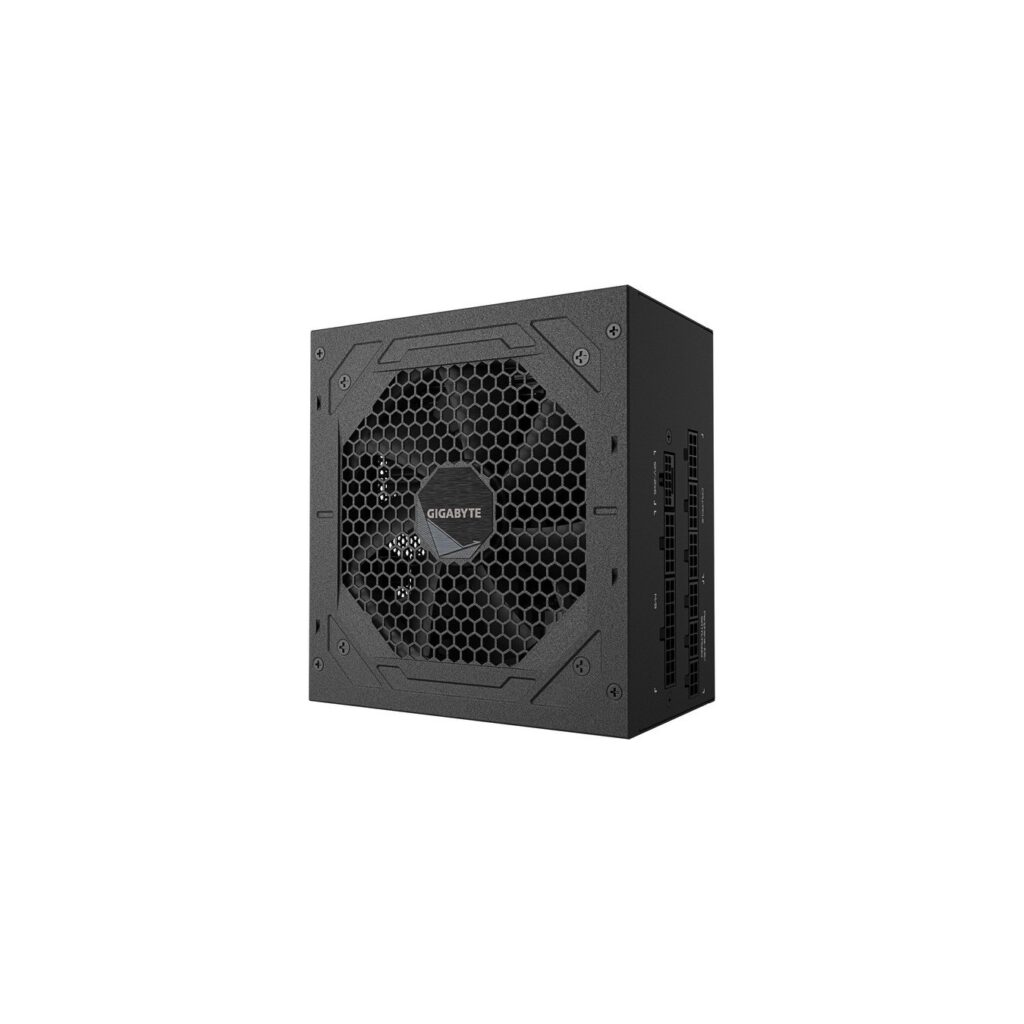

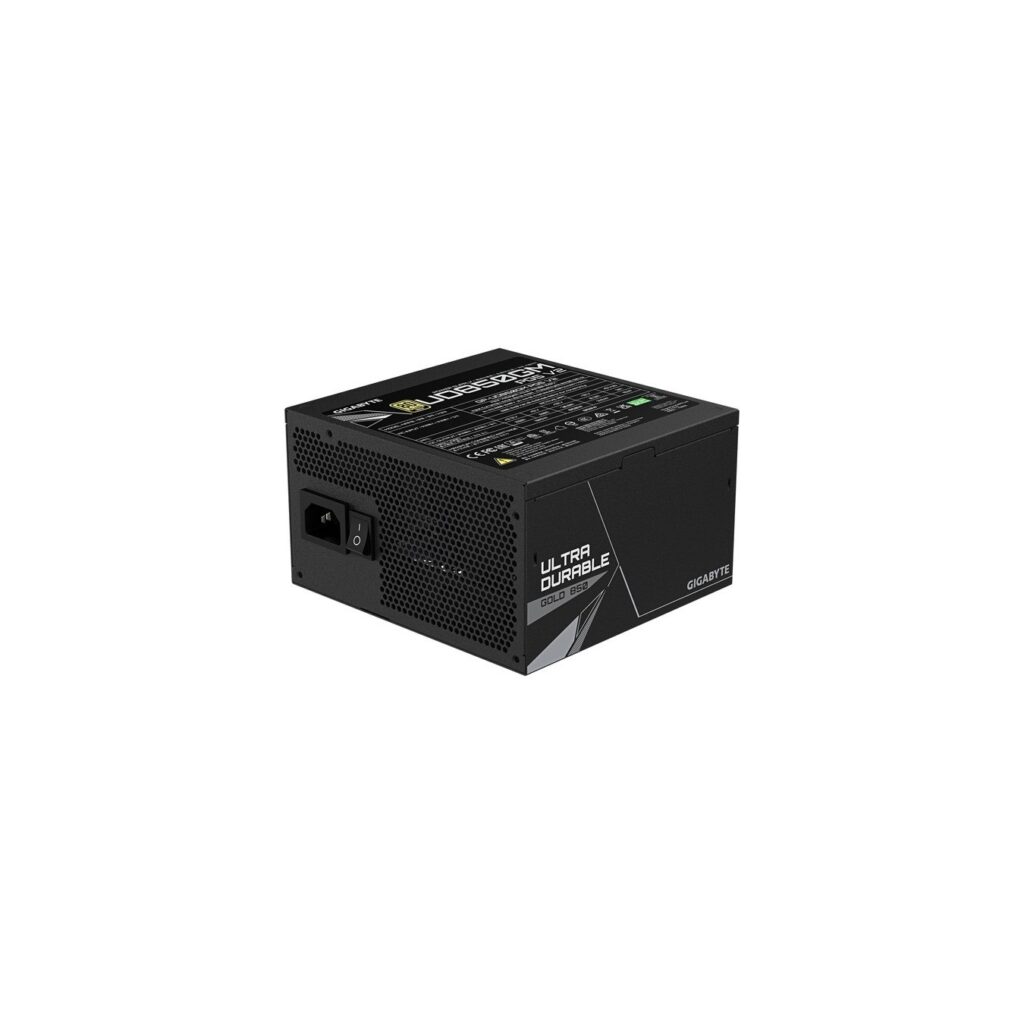

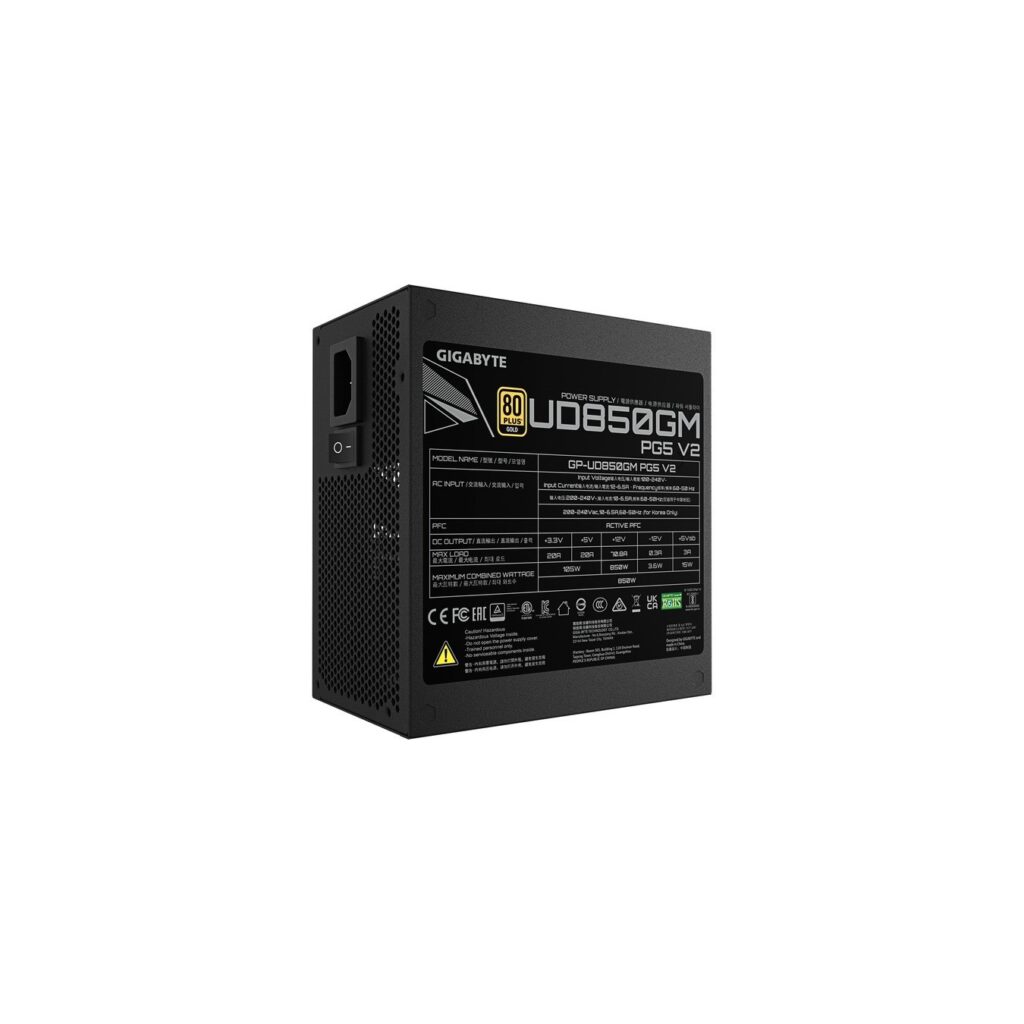

GP-UD850GM PG5 V2 850W PC power supply with fully modular cables, 80 PLUS Gold certified for high efficiency.
Доступно через 8–10 рабочих дней : 5 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The GIGABYTE GP-UD850GM PG5 V2 850W PC power supply with fully modular cables is 80 PLUS Gold certified and ensures better energy efficiency. Lower power consumption reduces heat generation and fan noise. The power supply can reach up to 90% efficiency and offers the best solution for system builds. The modular cables reduce clutter and improve air circulation within the case. The Single + 12V Rail offers the best output power, stability and compatibility for the hardware. The quiet 120mm fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The fan offers a longer and more stable service life thanks to hydraulic bearings.
| Typ | PC power supply |
| Color | schwarz |
| EAN | 4719331555993 |
| Manufacturer no. | GP-UD850GM PG5 V2 |
| Performance - Overall | 850 W |
| Standard | ATX12V 3.0 |
| PCIe | 5.1 |
| Design | ATX |
| Certification | 80 PLUS gold |
| Current strengths - +3.3 V | 20 A |
| Power factor correction | Active PFC |
| Switch | 1x power switch |

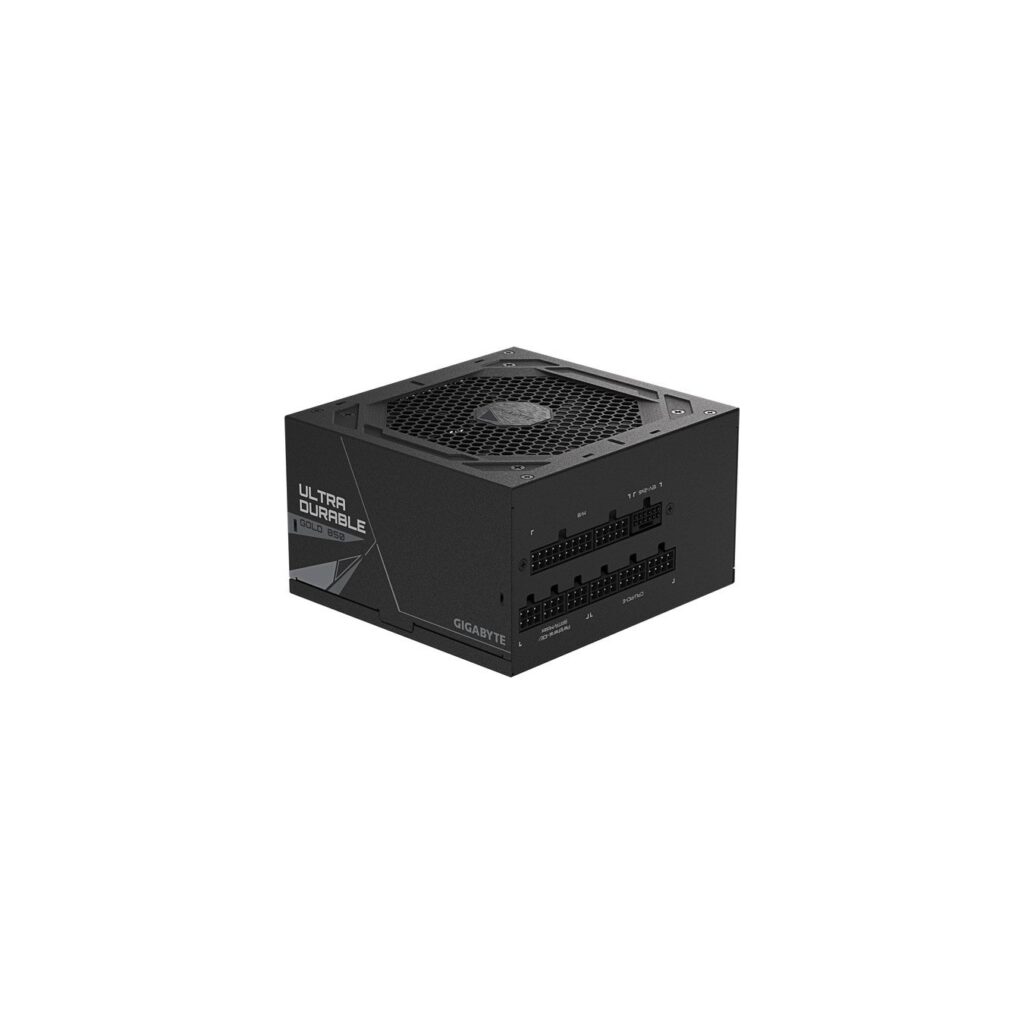

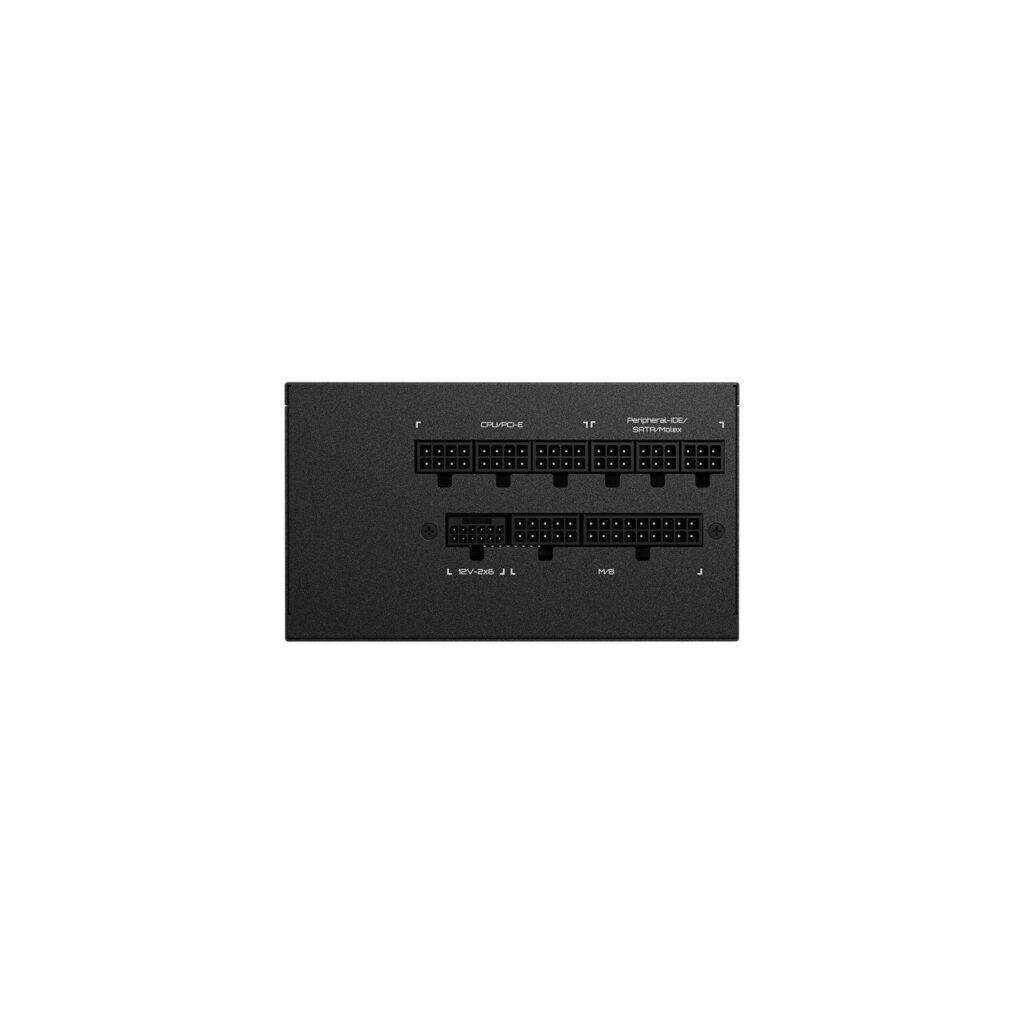

| Connections | 1x 24-Pin-ATX12V-2.x, 2x 4+4-Pin-12V, 4x 6+2-Pin-Grafik, 1x 12+4 Pin (12V-2x6), 8x 15-Pin-SATA |
| Cable - Cable-Management | And |

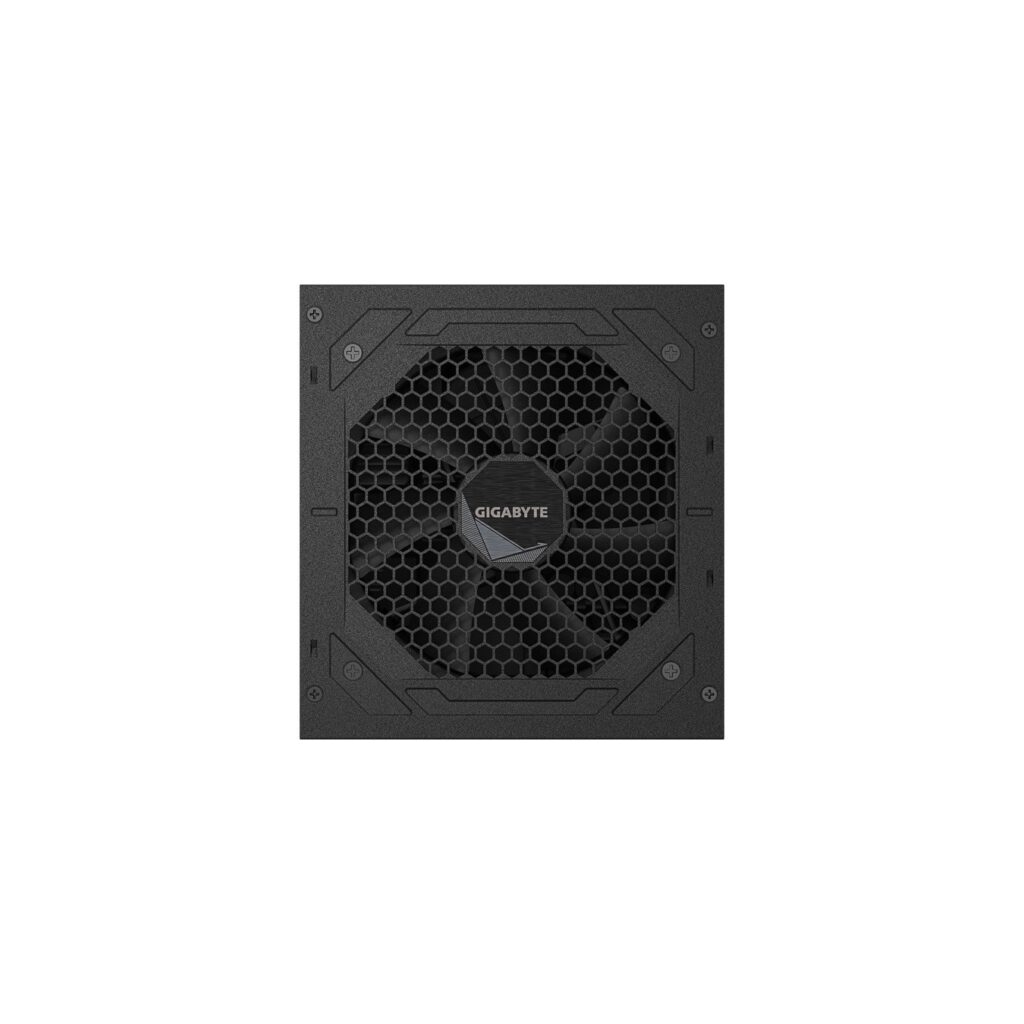

| Cooling - number of fans | 1x 120mm fan |
| Protective functions | Current surge protection (OCP), over voltage protection (OVP), under voltage protection (UVP), overload protection (OLP/OPP), short circuit protection (SCP), overheating protection (OTP) |
| More information | The UD850GM PCIE 5.0 has a 16-pin connector and comes with a high quality native 16-pin cable that allows you to use the power supply with a PCIe Gen 5.0 graphics card. This cable can supply the graphics card with up to 600 watts of power. The UD850GM PG5 can handle up to three times the GPU performance swings and two times the overall performance swings. It is fully compatible with the Intel PSDG (Power Supply Design Guide) ATX 3.0 standard, which supports up to 200% power excursion, achieves 70% efficiency at low load, and meets required power supply timing standards. |
| Dimensions | Width: 150mm x Height: 86mm x Depth/Length: 140mm |
