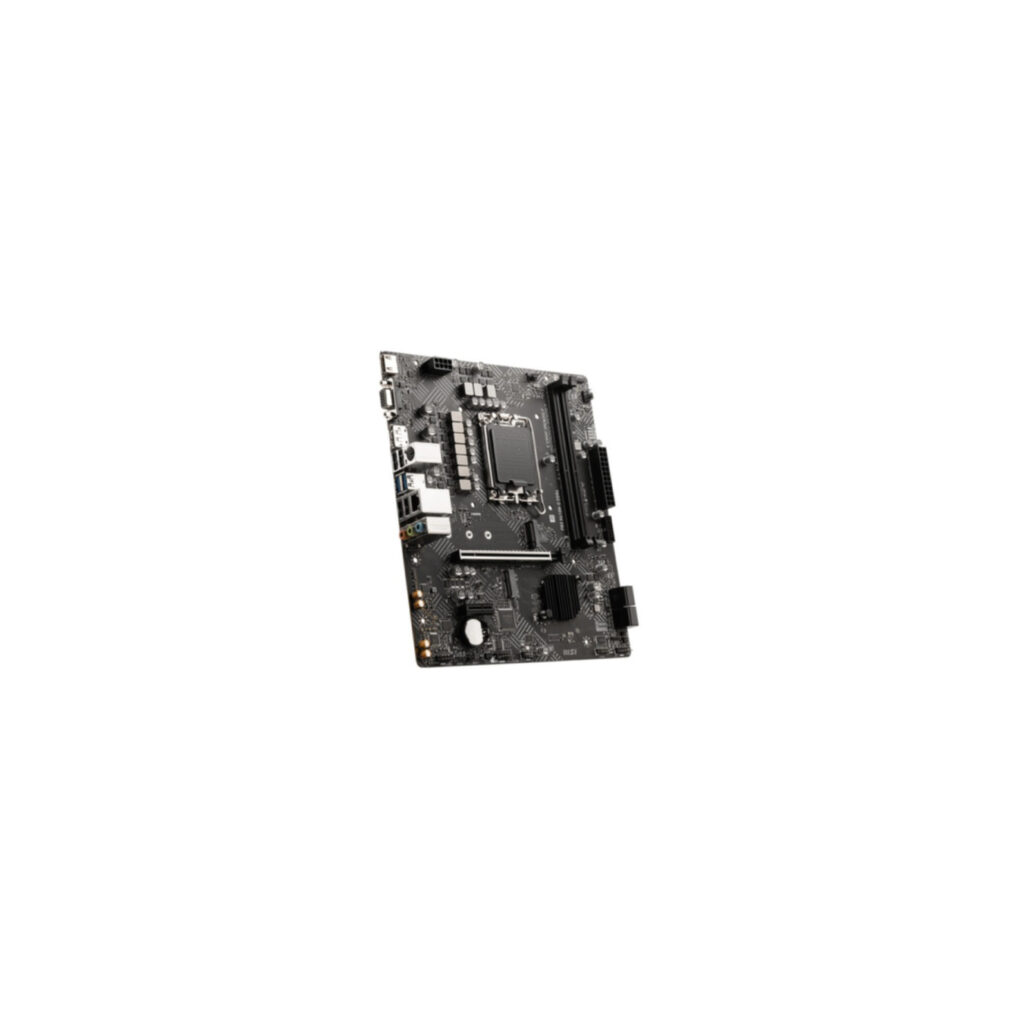

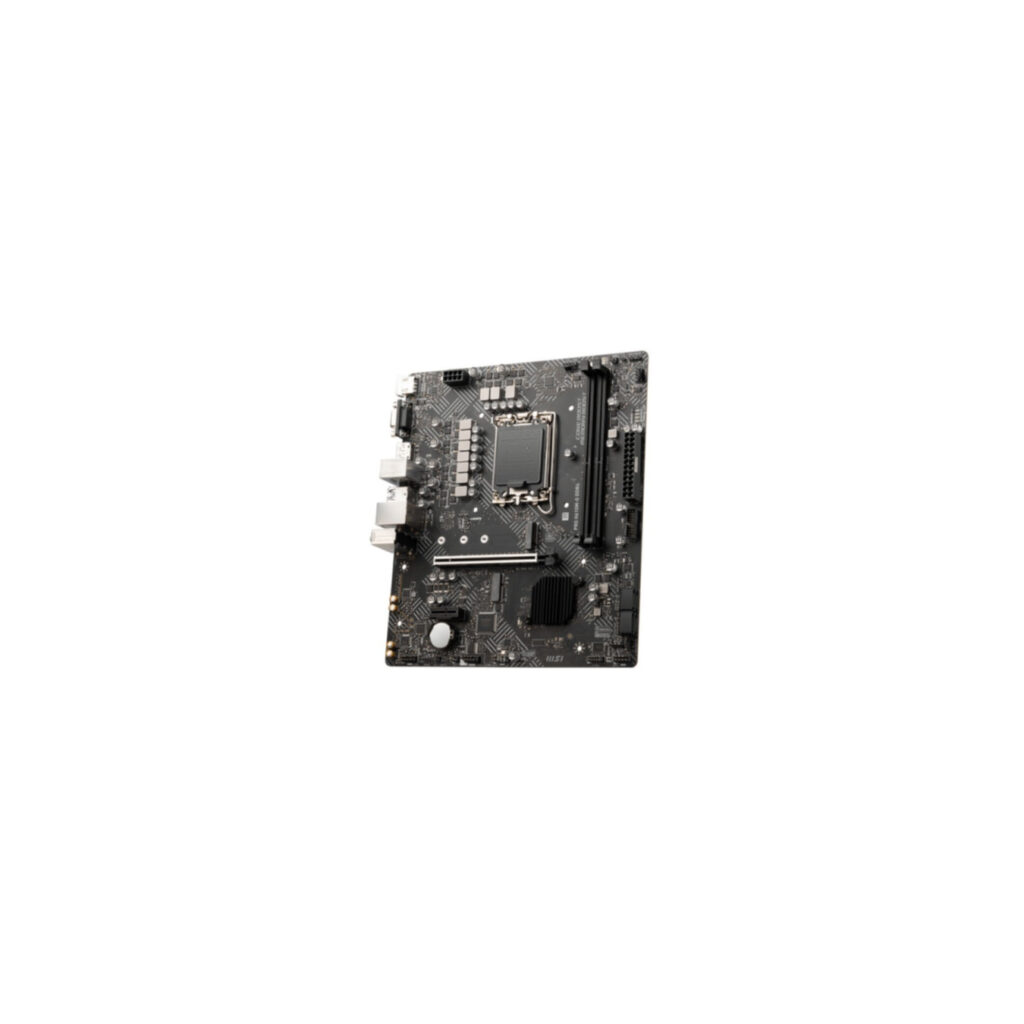

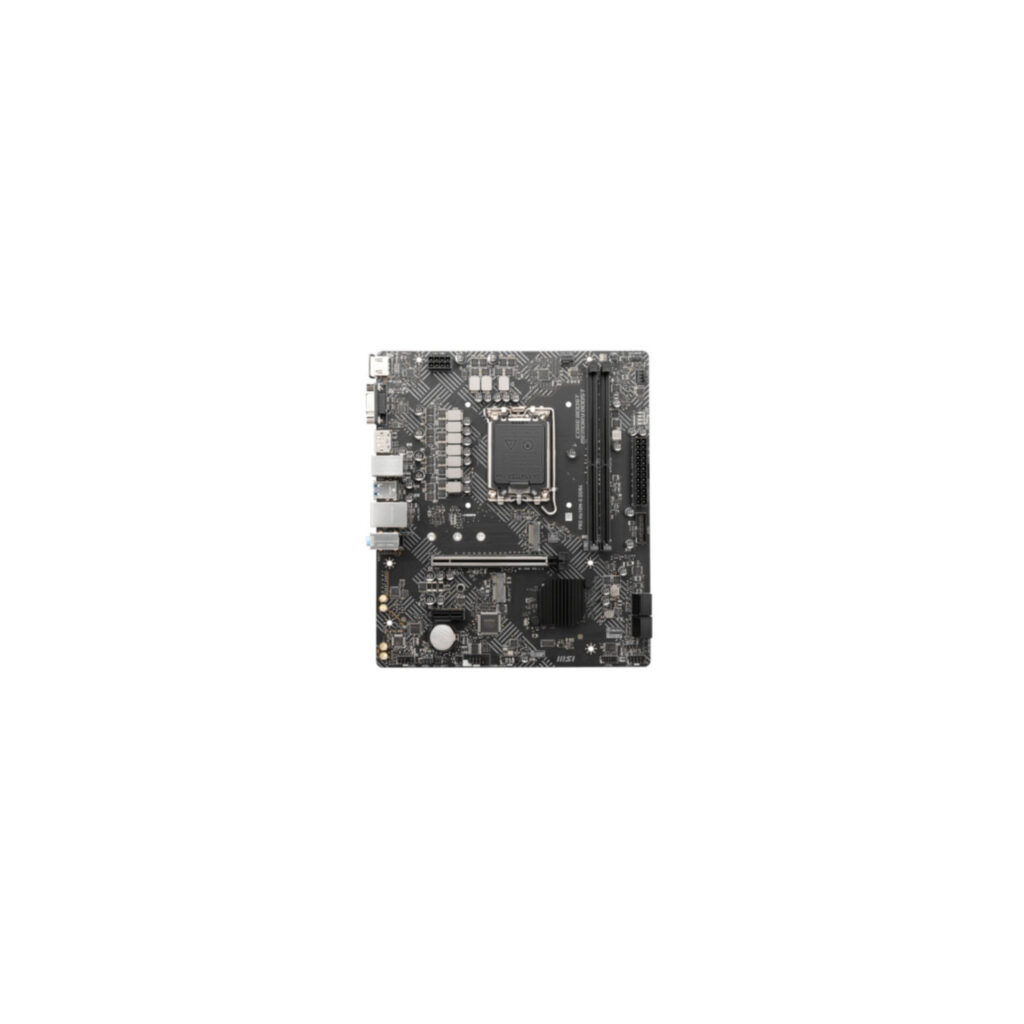

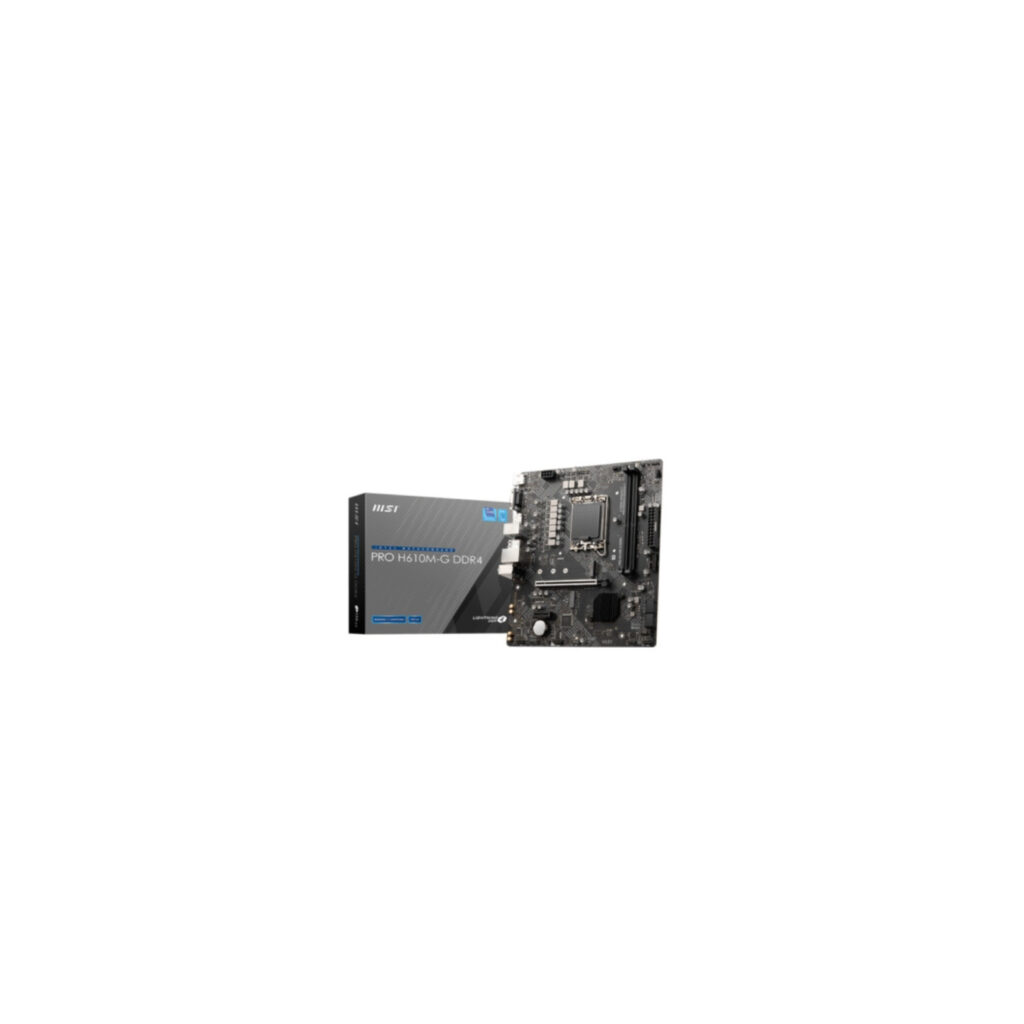

MSI PRO H610M-G LGA1700 Micro-ATX Intel H610 DDR5 96GB HDMI2.1
LGA1700 mATX motherboard with Intel H610, 2x DDR5 up to 96GB/5600MHz, PCIe4 x16, 1x M.2 PCIe3x4, 4x SATA6Gb/s, HDMI2.1+DP1.4+VGA, Realtek 1GbE+ALC897 7.1 audio. Pro series for stable productivity.
Доступно через 6–10 рабочих дней : 100 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The MSI PRO H610M-G is a compact micro-ATX motherboard designed for professional workflows, featuring the Intel H610 chipset and LGA1700 socket for 12th/13th/14th Gen Intel Core, Pentium Gold, and Celeron processors. It supports dual-channel DDR5 memory up to 96GB at 5600MHz with XMP 3.0, ideal for efficient multitasking and longevity with minimal troubleshooting[1].

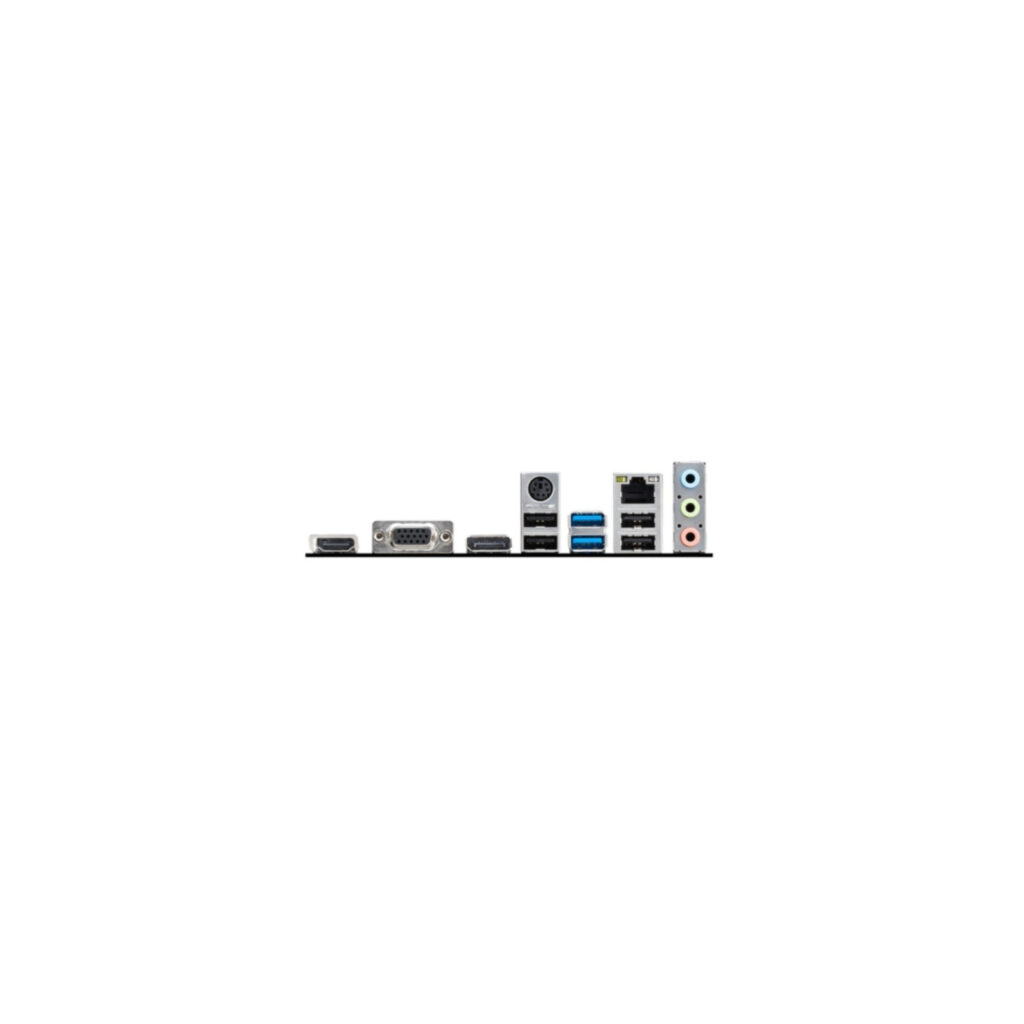

Key connectivity includes PCIe 4.0 x16 (CPU) and PCIe 3.0 x1 slots, Lightning Gen4 with steel armor for heavy GPUs, 1x M.2 (PCIe3 x4/SATA 2280/2260/2242), 4x SATA 6Gb/s, Realtek ALC897 7.1-channel HD audio, Gigabit Ethernet, and rear I/O with 4x USB2.0, 2x USB 5Gbps Type-A, HDMI 2.1, DisplayPort 1.4, VGA. FROZR AI Cooling auto-adjusts fans based on CPU/GPU temps[1][2].
- CPU: Intel 12th-14th Gen LGA1700
- Memory: 2x DDR5-5600, 96GB max, XMP 3.0
- Storage: 1x M.2 PCIe3x4/SATA, 4x SATA6
- Expansion: PCIe4 x16, PCIe3 x1
- Video: HDMI2.1, DP1.4, VGA
- LAN: Realtek 1GbE
- Audio: ALC897 7.1ch
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core 12th/13th/14th Gen, Pentium Gold, Celeron |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Memory channels | Dual-channel |
| Number of M.2 (M) slots | 1 |
| Number of SATA III connectors | 4 |
| PCI Express x16 slots | 1 (PCIe 4.0 from CPU) |
| PCI Express x1 slots | 1 (PCIe 3.0 from chipset) |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 4 (rear) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 (rear) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Width | 211 mm |
| Depth | 243.8 mm |
| BIOS type | UEFI AMI |
| RGB Headers | 2x 3-pin ARGB, 1x 4-pin RGB |
