MSI MAG Z790 TOMAHAWK WIFI LGA1700 ATX Z790 DDR5-192GB PCIe5 WiFi6E BT5.3
ATX LGA1700 Intel Z790 motherboard. DDR5 up to 192GB (4×7200+MHz OC), 2x PCIe 5.0 x16, 4x M.2, 7x SATA, Wi-Fi 6E, BT 5.3, 2.5GbE, USB 3.2 Gen2x2-C, HDMI2.1. Robust VRM for i9.
Доступно через 6–10 рабочих дней : 50 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

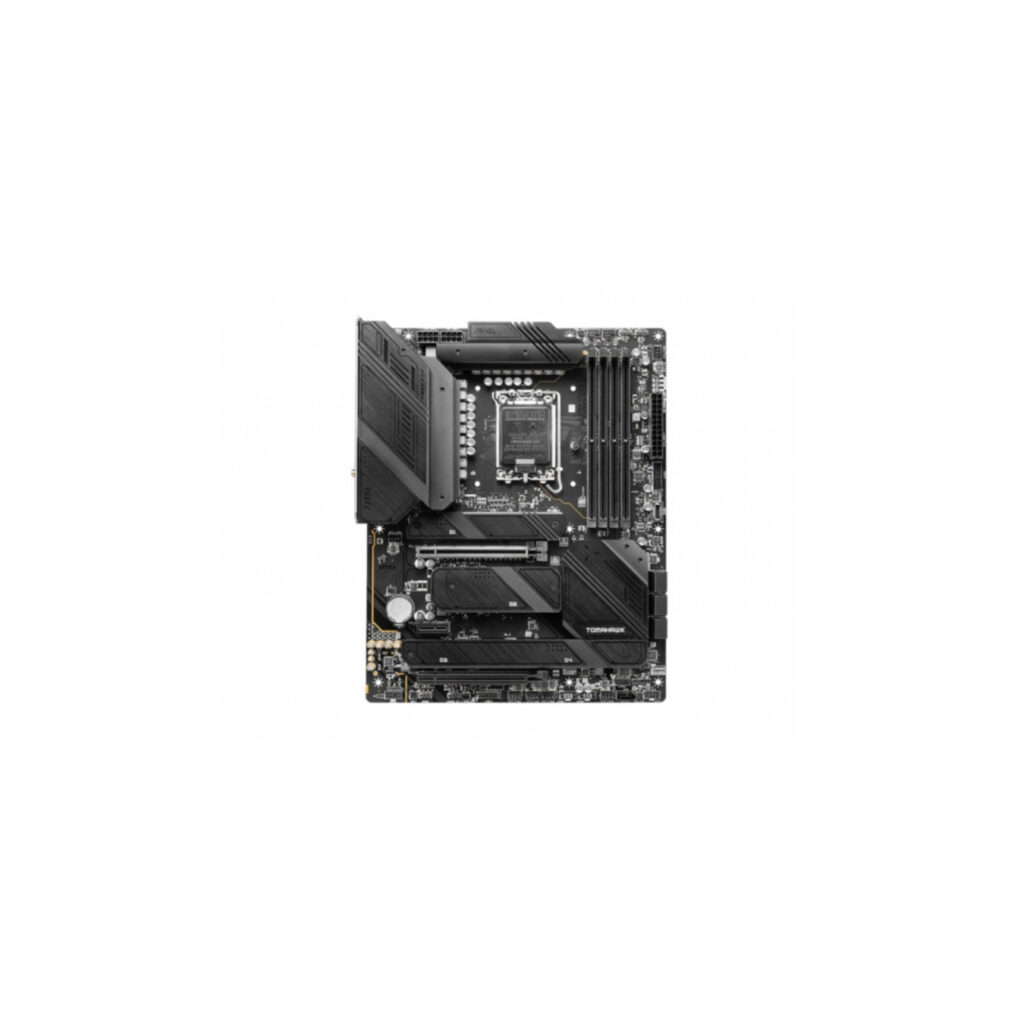

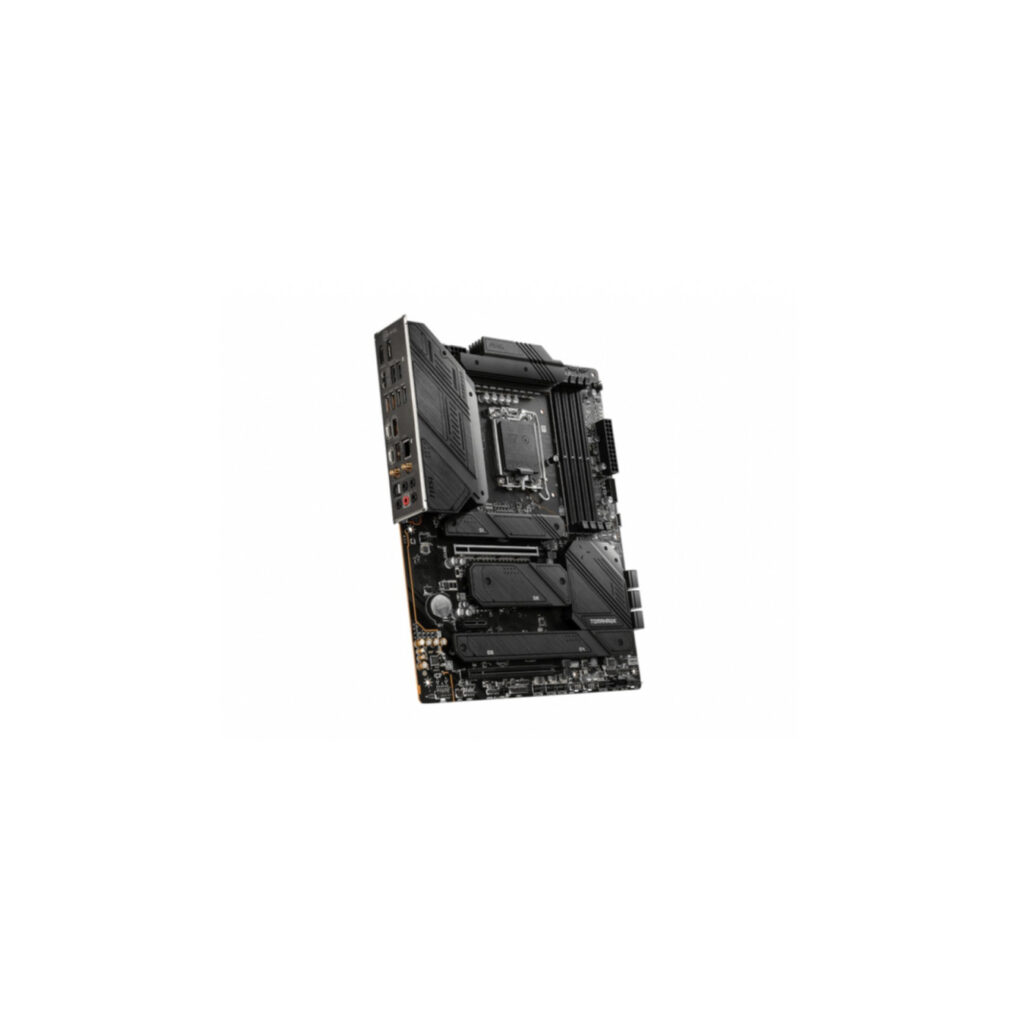

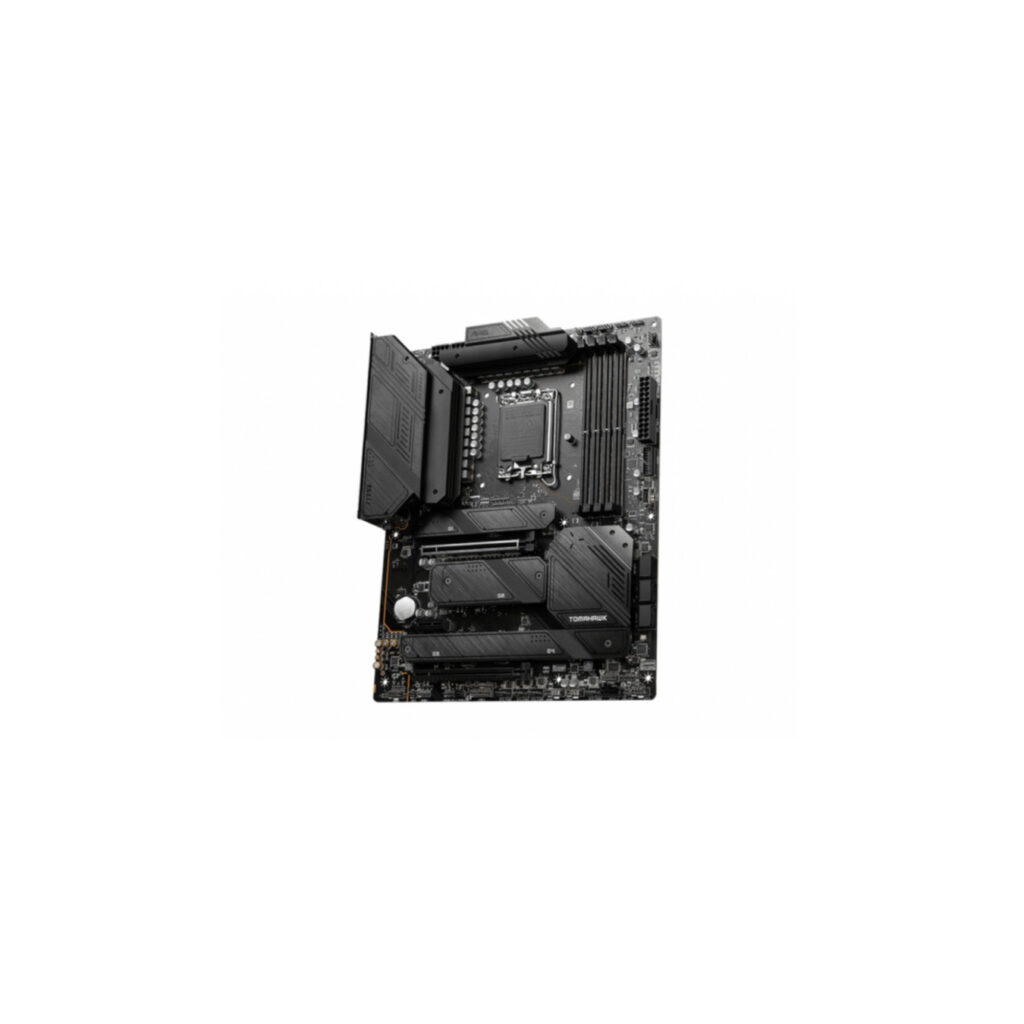

The MSI MAG Z790 TOMAHAWK WIFI is a feature-packed ATX motherboard for Intel 12th/13th/14th Gen Core processors on LGA1700 socket with Z790 chipset. It supports up to 192GB DDR5 RAM across 4 slots (up to 7200MHz+ OC with XMP), dual-channel, Non-ECC.
Storage options include 4x M.2 slots (1x PCIe5-ready), 7x SATA III with RAID 0/5/10, and expansion via 2x PCIe 5.0 x16, 1x PCIe x1 Gen4. Connectivity shines with Wi-Fi 6E, Bluetooth 5.3, 2.5GbE LAN, extensive USB (1x Gen2x2-C, 4x Gen2, etc.), HDMI 2.1, DP 1.4. Premium 7.1 audio via Realtek ALC4080, robust VRM for overclocking.

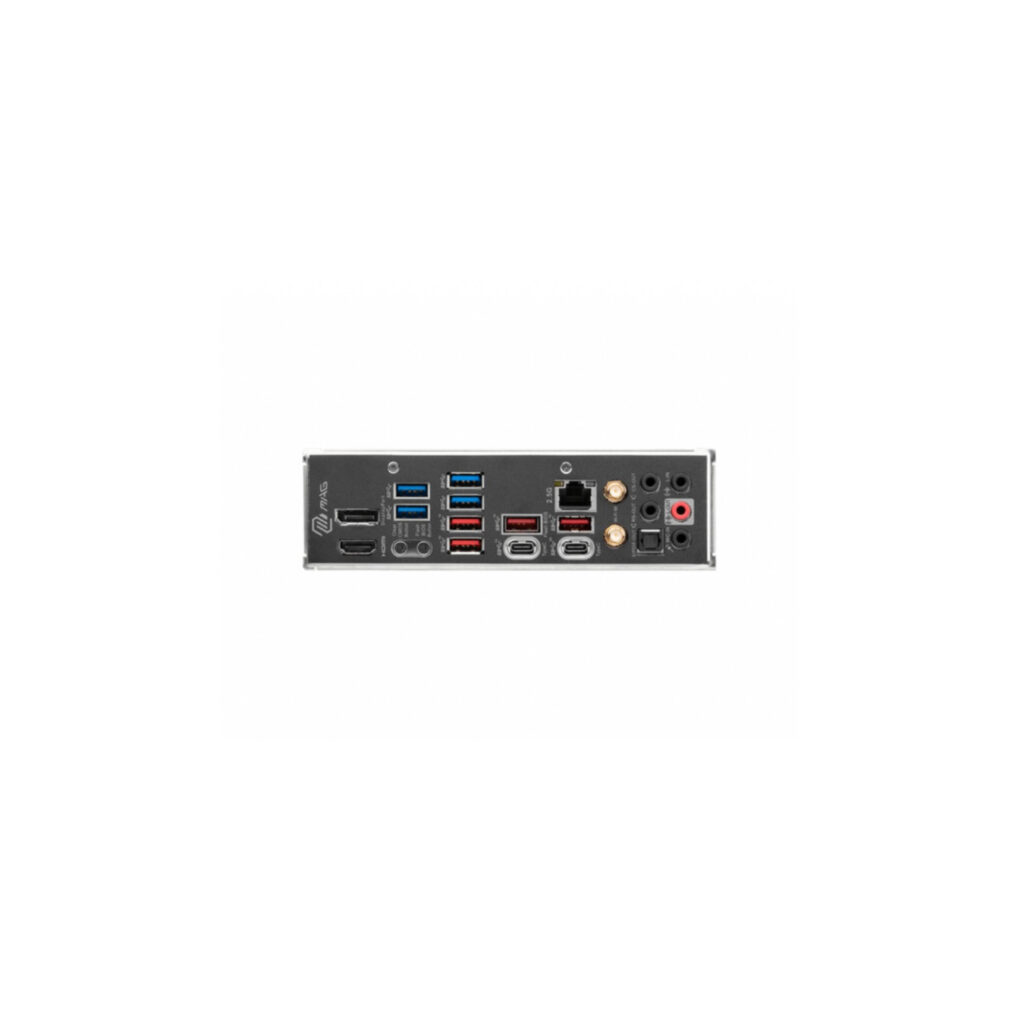

- Key Features: Excellent rear I/O with 10+ USB ports, EZ M.2 clips, BIOS Flashback, multiple fan headers.
- Build Quality: Black PCB, discrete heatsinks, supports Windows 10/11 x64.

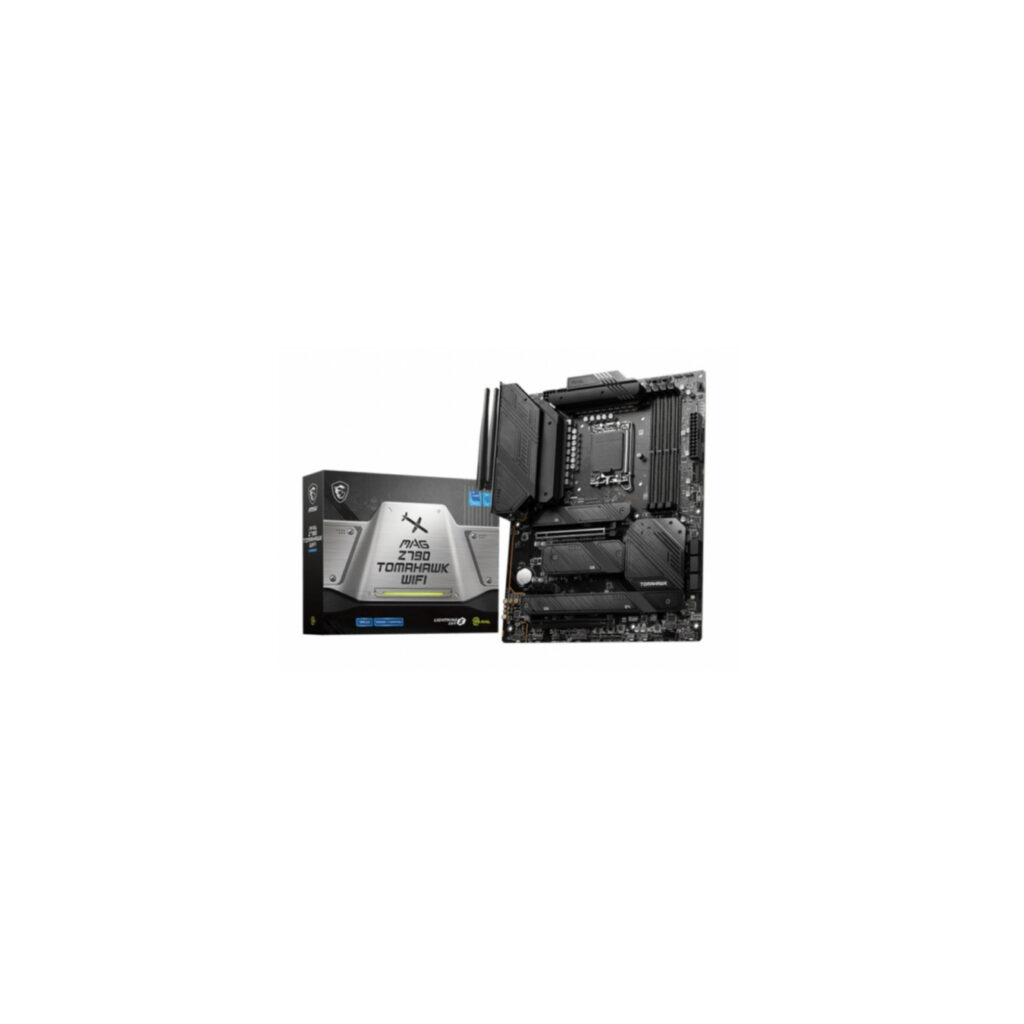

- Included: SATA cables, Wi-Fi antenna, driver USB.
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i9, i7, i5, i3, Pentium® Gold, Celeron® |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800-7200+(OC) MHz |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | ATX |
| Number of SATA III connectors | 7 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| RAID levels | 0, 1, 5, 10 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
