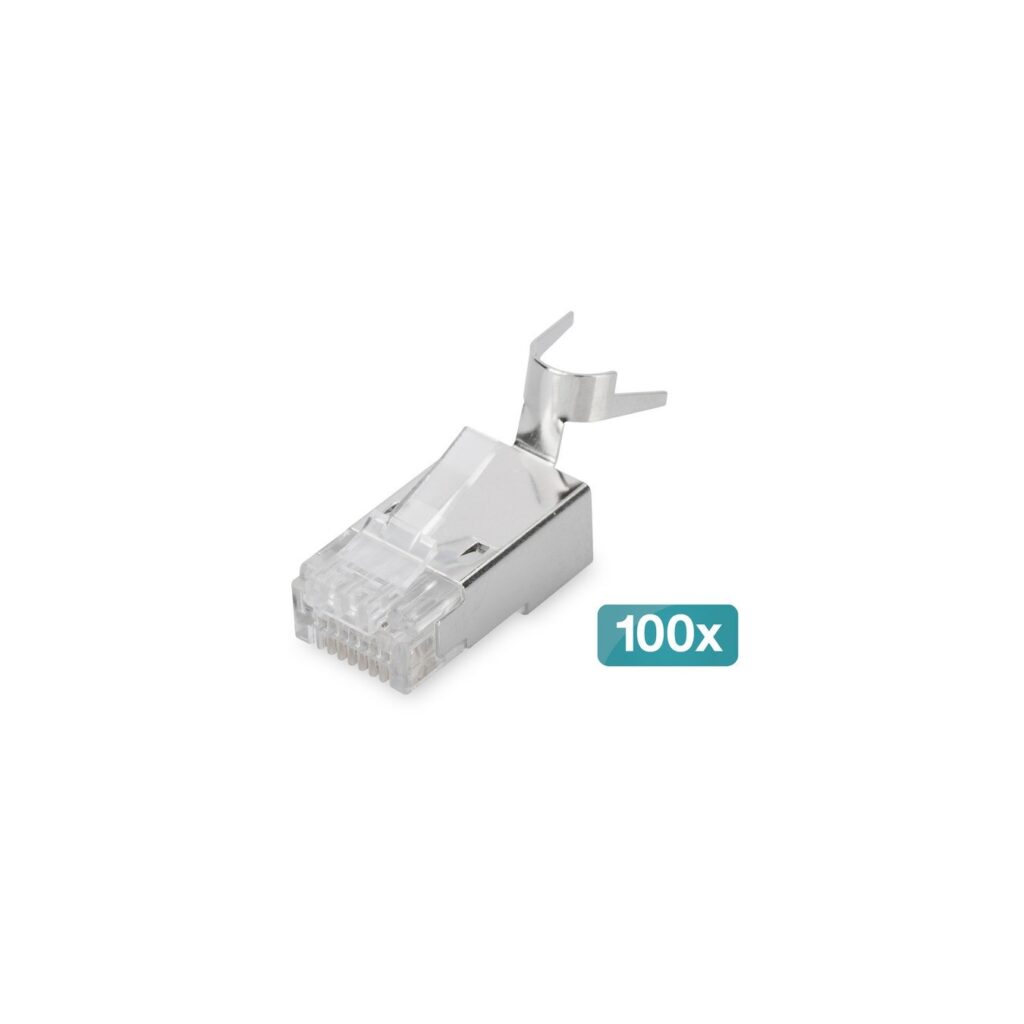

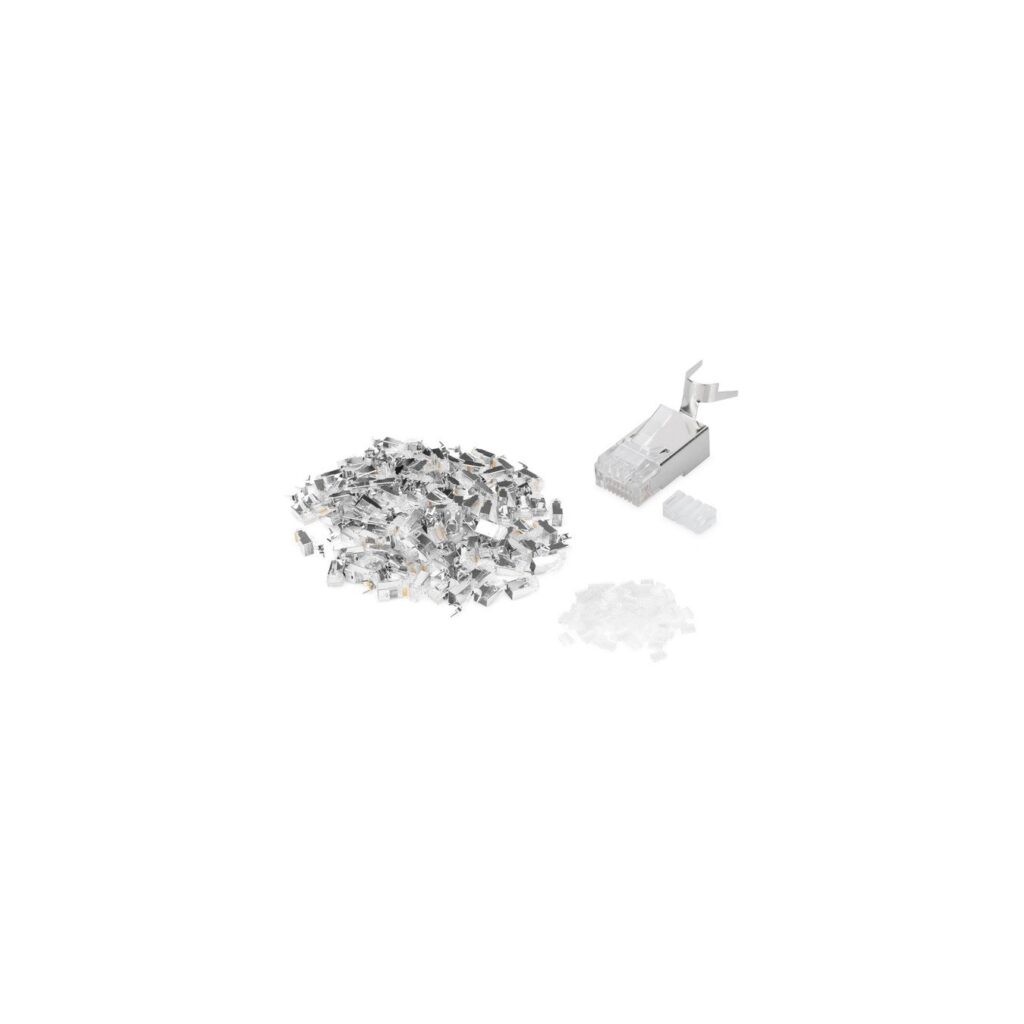

Modular plug for round cable - CAT 6A - Shielded
7.50 €
Modular plug for CAT 6A shielded round cables; quick, easy self-assembly for patch cable assemblies.
Нет в наличии
Товара сейчас нет в наличии. Мы можем предложить аналоги или попробовать найти его для вас. Позвоните нам: 22 270068 или email [email protected].
These modular plugs are suitable for quick and easy self-assembly.
| Typ | Plug |
| Color | silber |
| EAN | 4016032380627 |
| Manufacturer no. | AK-219604 |
| Application example | Patch cable assembly |
| Connection - from | 1x RJ-45 (plug) |
| Feature | Normine: ISO/IEC 11801 3rd Ed., IN 50173-1, EIA/TIA 568-C | UL-value | Steckzyklus Buchse: > 750 gems. ISO/IEC 11801, IEC 60603-5-5 |
| More information | Plug housing material: polycarbonate, natural | Plug contact: phosphor bronze, nickel 0.6 μ gold-plated | Flammability: UL 94V-2 | Insertion force: ≤ 30 N | Diameter Cu conductor: AWG (23/1... 22/1) | Operating temperature: -40 °C to +80 °C | Current carrying capacity: 1A -1.5A at 50°C |
