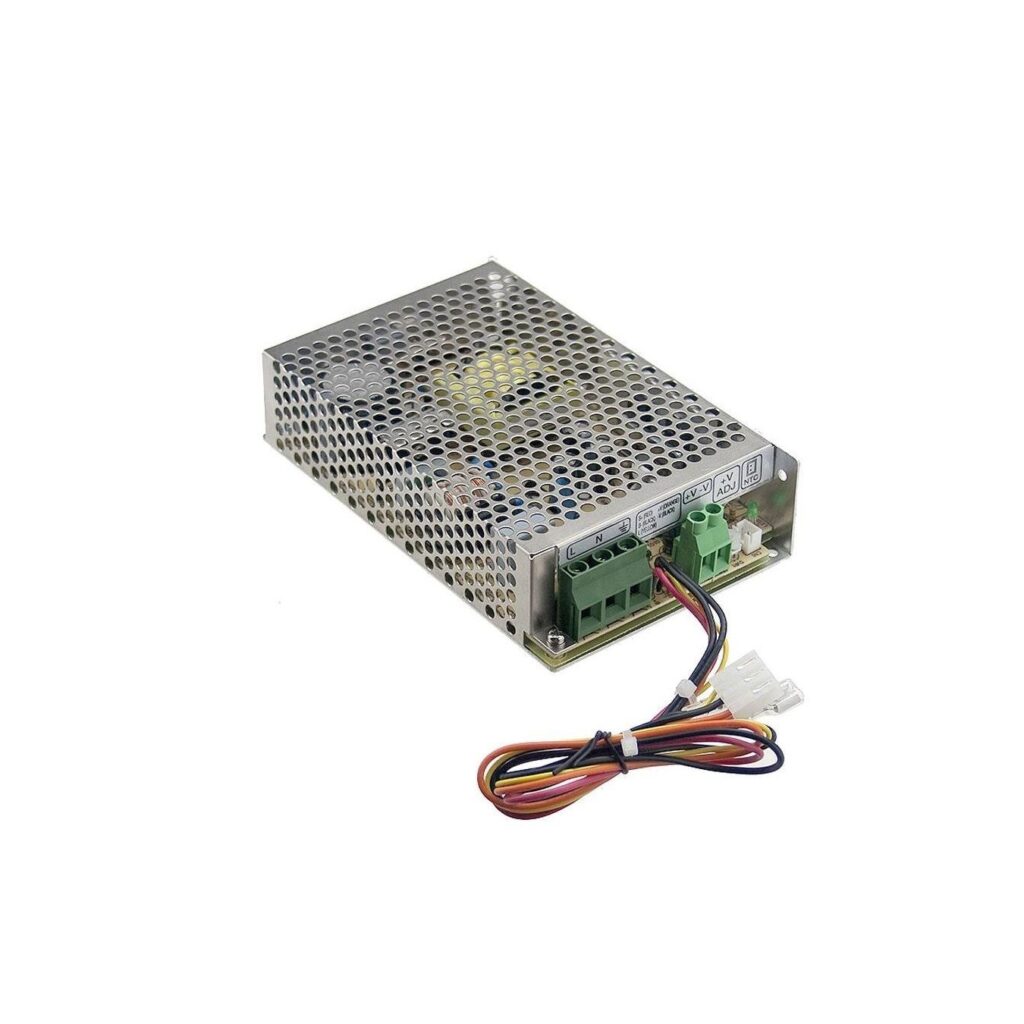

Meanwell Enclosed Power Supply with UPS 12V 75W (6.5A) - SCP-75 - Enclosed Power Supply with UPS 12V 75W

Артикул:
Бренд: MeanWell
Штрихкод:
35.50 €

UPS-enabled 12V 75W enclosed power supply with universal input, protections, free-air cooling, and power-on LED indicator.

Доступно через 2–3 рабочих дней : 5 шт.

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • Universal AC input/Full range
  • Short circuit, over load, over voltage, battery polarity (by fuse) protections
  • Cooling by free air convection
  • LED indicator for power on
  • No load power consumption <0.75W
  • 100% full load burn-in test
  • UL / CUL / CB / CE Approval
  • With UPS function (need external batteries) for AD/ADD series
  • Suitable for security industry or battery backup systems
  • Description : AC-DC Enclosed power supply; Output 13.8Vdc at 5.4A; battery charger output; battery temperature compensation
  • Application : ITE EN/UL/IEC 60950
  • Technology : AC/DC
  • Power Format : Box Type — Enclosed
  • Output Power : 75W
  • Output Voltage : 13.8V
  • Output Current : 5.6A
  • Input Voltage : 85 — 264V / Universal Input 110/230V
  • IP Rating : No IP assigned
  • Width : 97mm
  • Height : 38mm
  • Depth :159mm
  • Dimming Technology : No Dimming
