Lian Li SX1000P Platinum 1000W ATX 3.1 Fully Modular PSU
Lian Li SX 1000W Platinum PSU with 80 PLUS Platinum efficiency, ATX 3.1 compliance, fully modular design, fanless operation up to 40% load, and 10-year warranty. Features Japanese capacitors and compact 140mm form factor.
Доступно через 10–14 рабочих дней : 5 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Experience premium power delivery with the Lian Li SX Platinum 1000W, a fully modular ATX 3.1 compliant power supply engineered for high-performance builds. Certified with 80 PLUS Platinum efficiency, this unit delivers up to 92% efficiency at 50% load, ensuring cooler operation, quieter acoustics, and lower energy costs. The intelligent fanless cooling system operates silently at loads up to 40%, automatically engaging the 120mm FDB fan only when needed for optimal thermal management.
Built with premium Japanese capacitors (Rubycon, Nippon Chemi-Con, or Nichicon 105C-rated), the SX Platinum provides exceptional voltage regulation, minimal ripple, and long-term reliability even under demanding conditions. The compact 140mm form factor fits seamlessly into most PC cases while leaving ample internal space. Fully modular cabling with individually sleeved braided cables and cable combs ensures clean cable management and professional aesthetics. Native support for ATX 3.1 and PCIe 5.1 standards includes dual 12V-2×6 connectors for next-generation GPUs, complemented by six 6+2 pin PCIe connectors for maximum compatibility.
Comprehensive protection circuitry (OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP) safeguards your system against overcurrent, overvoltage, overtemperature, and short-circuit conditions. Backed by a 10-year limited warranty, this power supply combines cutting-edge efficiency with proven reliability for discerning enthusiasts and professionals.
- Wattage: 1000W continuous output
- Efficiency: 80 PLUS Platinum (92% at 50% load)
- Form Factor: ATX 3.1 compliant, 140mm compact length
- Modularity: Fully modular with braided cables and combs

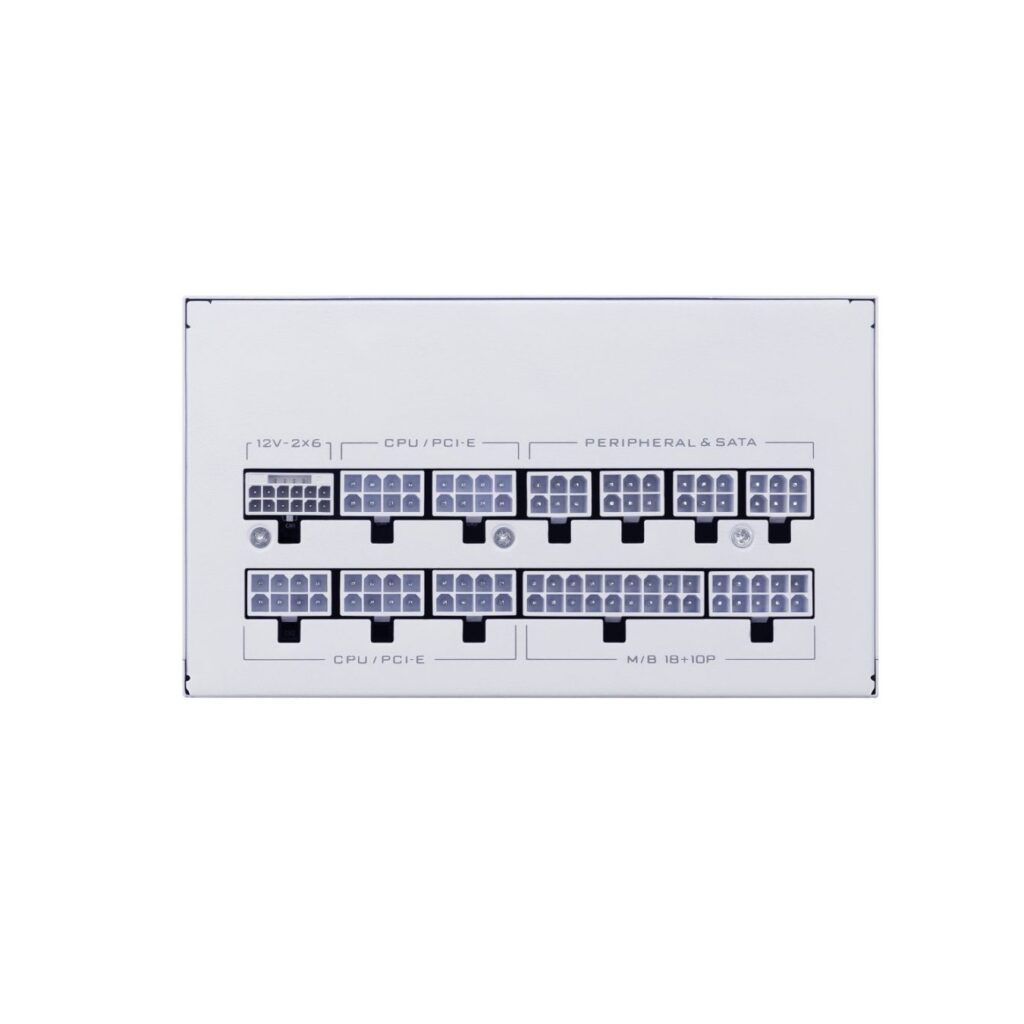

- GPU Power: 2x 12V-2×6 connectors + 6x 6+2 pin PCIe connectors
- CPU Power: 1x 12+4pin EPS/ATX12V connector

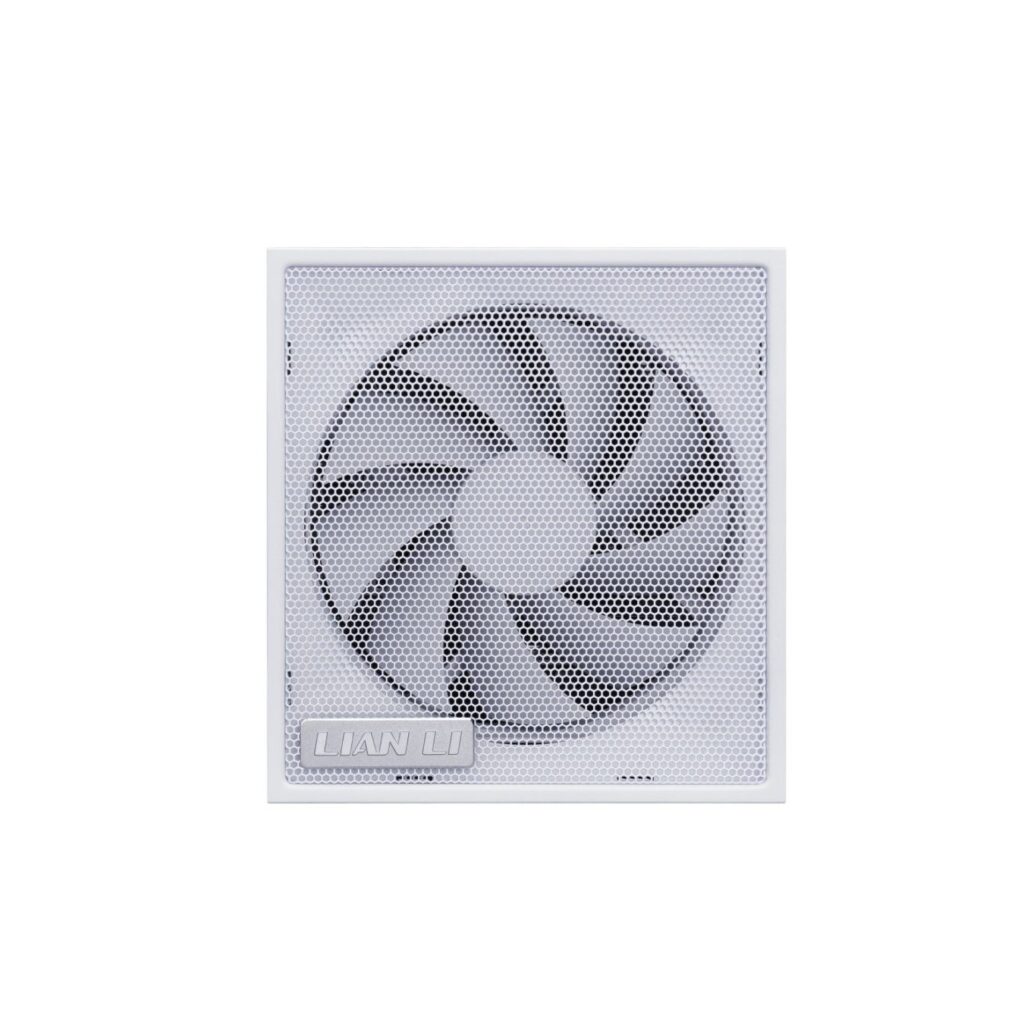

- Cooling: 120mm FDB fan with fanless mode up to 40% load
- Capacitors: 100% Japanese 105C-rated (Rubycon/Nippon Chemi-Con/Nichicon)
- Protection: OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP
- Warranty: 10 years limited
| Model | SX1000P.W |
| Wattage | 1000W |
| Efficiency Certification | 80 PLUS Platinum |
| Maximum Efficiency | 92% at 50% load |
| ATX Version | ATX 3.1 |
| PCIe Standard | PCIe 5.1 compliant |
| Form Factor | ATX |
| Modularity | Fully modular |
| Dimensions (Unit) | 150mm(W) x 86mm(H) x 140mm(D) |
| Weight (Unit) | 2.4 kg (84.64 oz) |
| Color | White |
| Max DC Output | 1000W |
| Combined +3.3V & +5V Output | 100W |
| Combined +12V Output | 999.6W |
| Input Voltage | 100-240Vac |
| Input Current Range | 6-12A, 50-60Hz |
| Power Factor Correction | Active PFC, PF > 0.95 at full load @ 115Vac, 60Hz |
| Fan Type | 120mm FDB (Fluid Dynamic Bearing) |
| Max Fan Speed | 2000 RPM |
| Fanless Operation | Up to 40% load |
| Average Fanless Operating Time | Minimum 100,000 hours @ 25°C / 75% load |
| GPU Power Connectors | 2x 12V-2x6 (ATX 3.1 native) + 6x 6+2 pin PCIe (3x 8-pin + 2x 6+2 pin graphics) |
| CPU Power Connectors | 1x 12+4pin EPS/ATX12V |
| SATA Connectors | 8x SATA |
| Molex Connectors | 4x Molex |
| Capacitors | 100% Japanese 105°C rated (Rubycon, Nippon Chemi-Con, or Nichicon) |
| Protection Features | OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP |
| Cabling | Fully modular with individually sleeved braided cables and cable combs included |
| Warranty | 10 years limited (parts and labor) |
| Compliance | ATX 3.1, PCIe 5.1, Intel standards |
