Lian Li Edge EG1000G 1000W White 80+ Gold Fully Modular ATX PSU
Lian Li Edge EG1000G 1000W 80+ Gold ATX 3.1 PSU in white. L-shaped design for dual-chamber cases, fully modular, detachable USB/fan hub, 12VHPWR connector, 120mm FDB fan, 10-year warranty.
Доступно сразу после подтверждения : 1 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

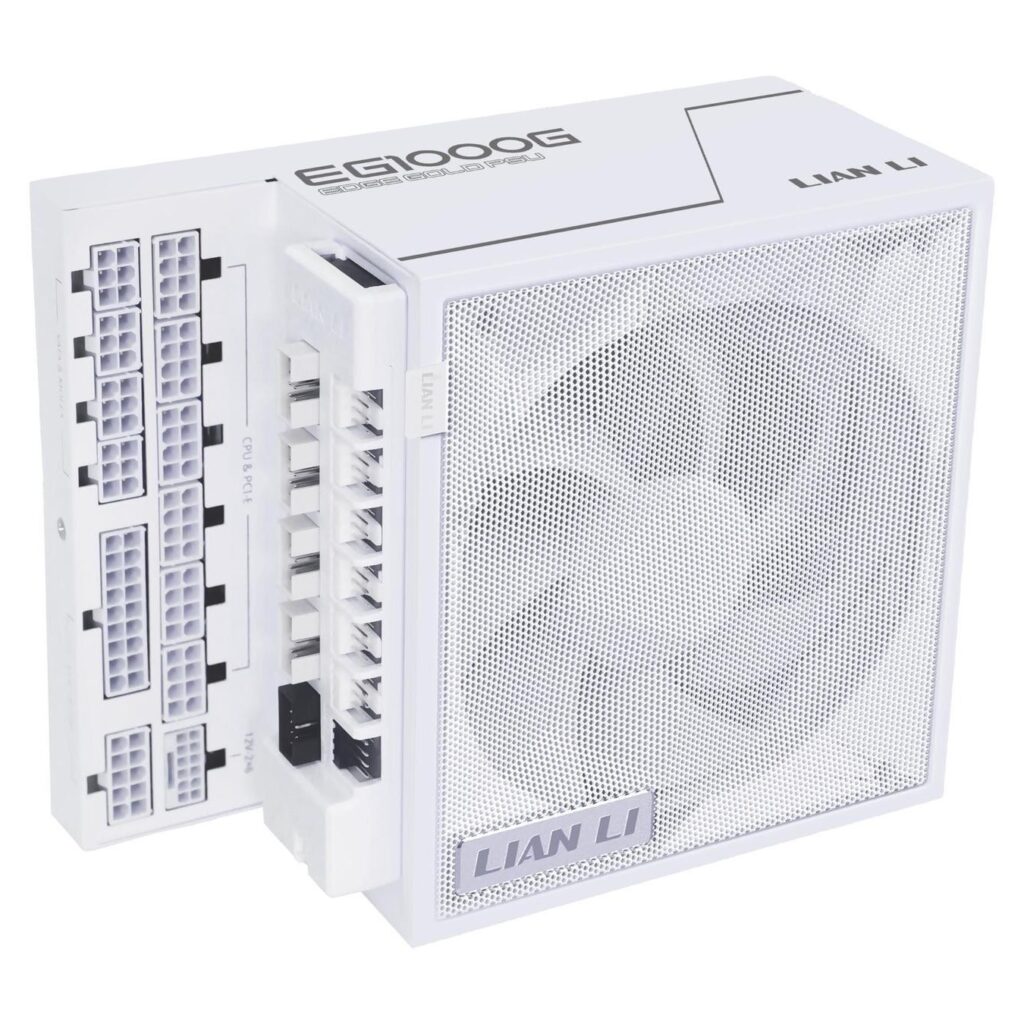

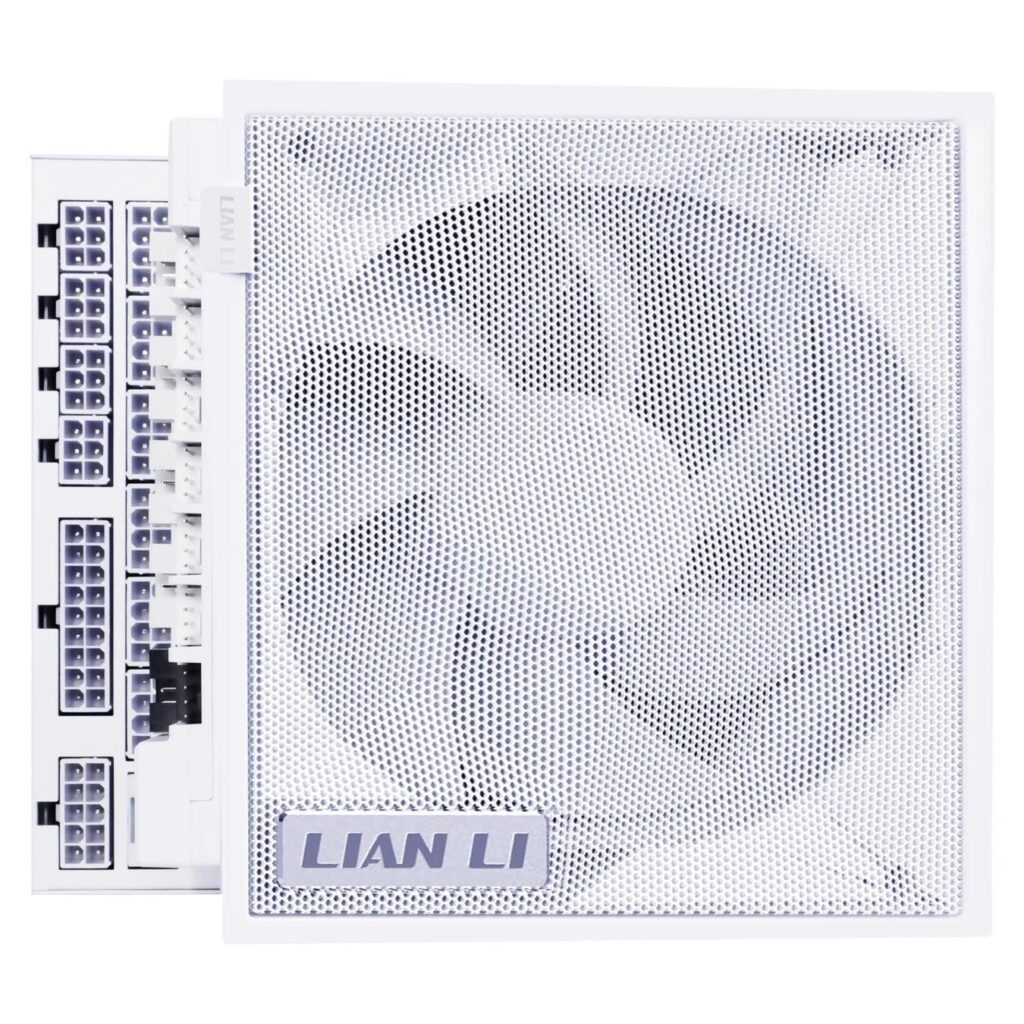

The Lian Li Edge EG1000G is a premium 1000W 80+ Gold certified fully modular ATX 3.1 power supply unit designed specifically for modern dual-chamber PC cases with vertical PSU mounting. Its innovative L-shaped design allows flush integration, optimizing space and airflow while featuring a minimalist mesh cover for superior ventilation (66.9% rate).

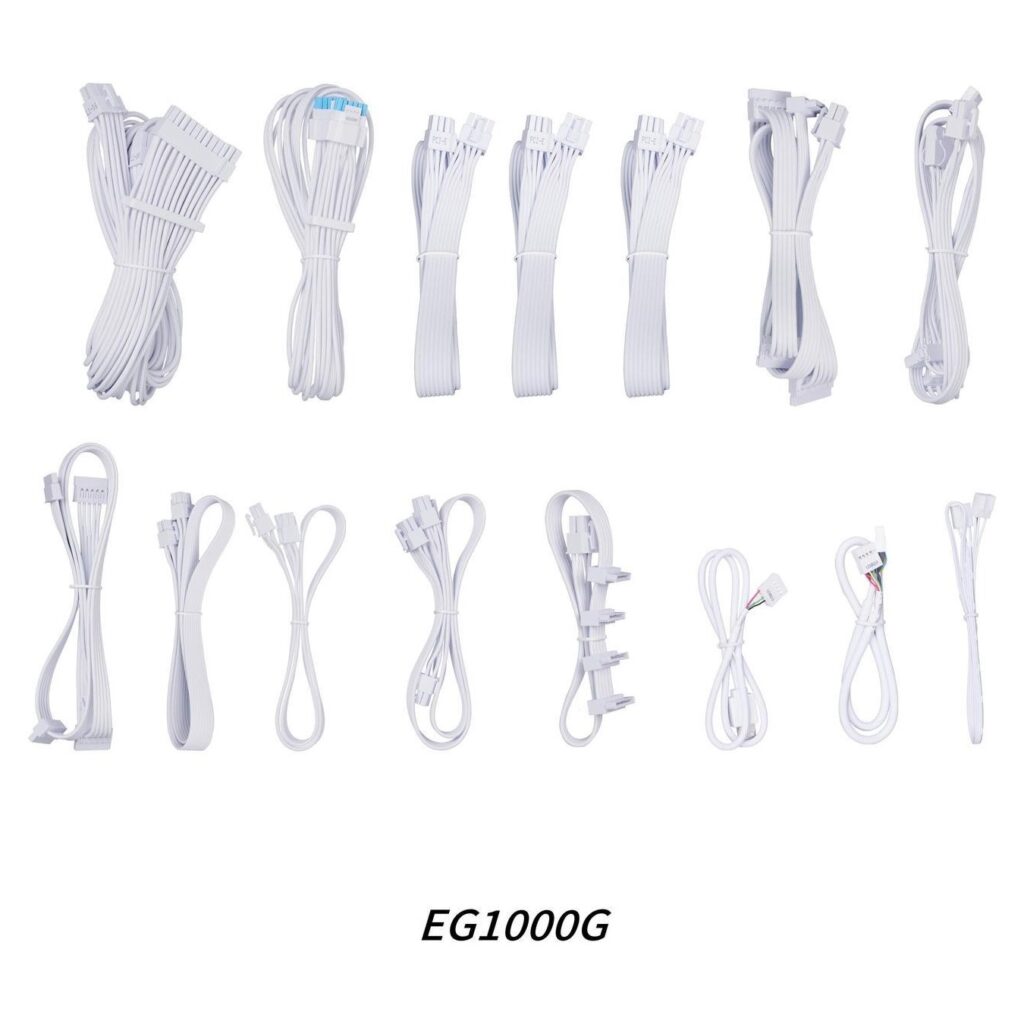

Key highlights include a detachable USB and fan hub for simplified cable management, longer modular cables, removable dust filter for easy maintenance, and a quiet 120mm fluid dynamic bearing (FDB) PWM fan. Compliant with PCIe 5.1, it includes a 12V-2×6 (12VHPWR) connector for next-gen GPUs alongside traditional PCIe cables. Single powerful +12V rail delivers up to 996W.
- 80+ Gold efficiency (up to 91.64% at 50% load)
- ATX 3.1 & PCIe 5.1 compliant with power excursion support
- Protections: OCP/OVP/OTP/OPP/SCP/UVP
- 10-year warranty (2 years on USB hub)
- Dimensions: 182 x 150 x 86 mm; available in white
| Model | EG1000G |
| Form Factor | ATX (L-shaped) |
| Total Power | 1000 W |
| +12V Rail | 83A / 996W (single rail) |
| +3.3V & +5V Combined | 120 W |
| ATX Version | ATX 3.1 / PCIe 5.1 |
| Efficiency | 80+ Gold (91.64% max) |
| Fan | 120mm FDB PWM |
| Modularity | Fully Modular |
| PCIe Connectors | 1x 12V-2x6 (12VHPWR), 4x 6+2-pin |
| EPS Connectors | 2x 4+4-pin |
| Dimensions (WxHxD) | 86 x 150 x 182 mm |
| Weight (Unit) | 1.796 kg |
| Warranty | 10 years (2 years USB hub) |
| Protections | OCP/OVP/OTP/OPP/SCP/UVP |
