Lian Li Edge EG1000G 1000W - 80+ Gold Fully Modular ATX 3.1 L-Shape USB Hub
Lian Li Edge 1000W Gold PSU with L-shaped design for dual-chamber cases, removable USB/PWM hub, 120mm fan, magnetic dust filter, longer braided cables, ATX 3.1 compliant, 80+ Gold certified.
Доступно сразу после подтверждения : 1 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

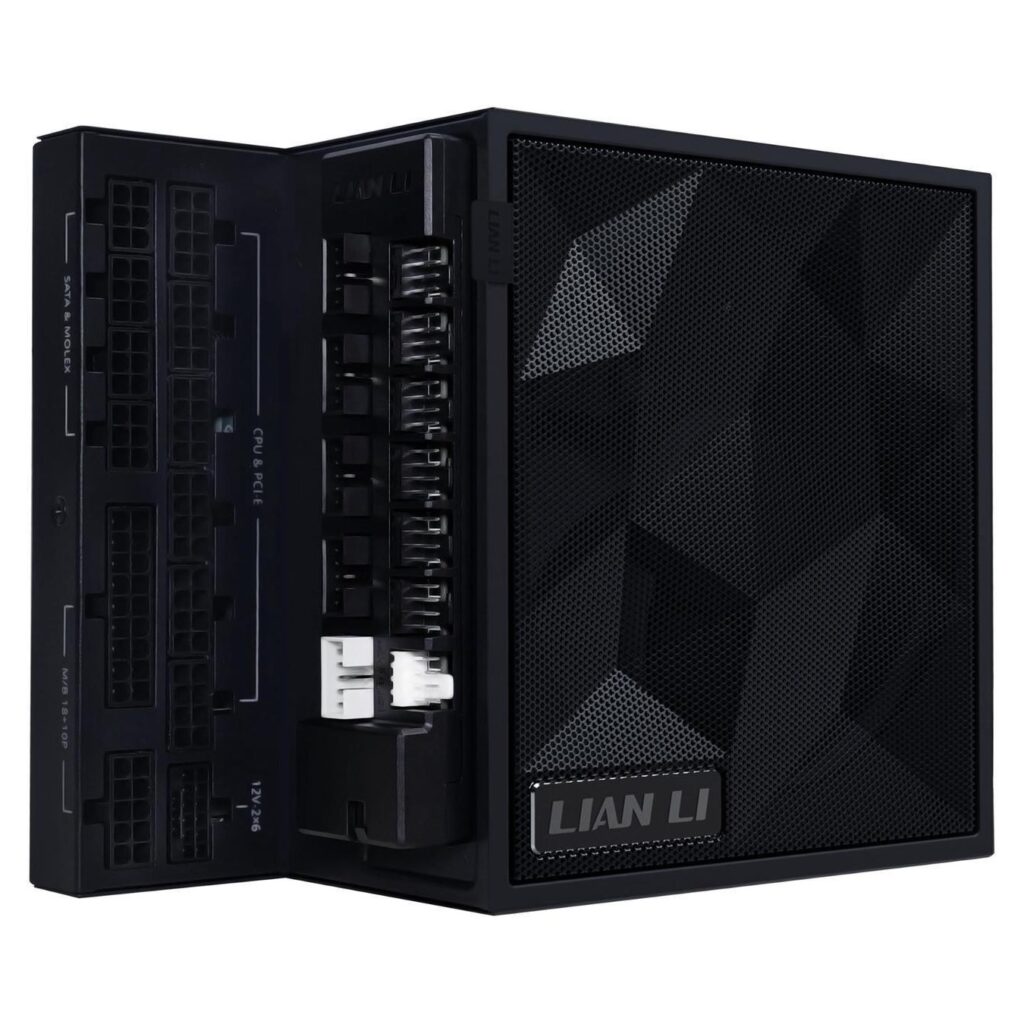

The Lian Li Edge EG1000G 1000W PSU features a unique L-shaped design optimized for dual-chamber cases like the O11 series, allowing vertical mounting with outward-facing ports for easy cable management. It includes a detachable modular USB & PWM fan hub, longer braided cables with combs, and a magnetic dust filter for simple cleaning.
Certified 80 PLUS Gold, Cybenetics Platinum, and PPLP Gold, it delivers efficient power with a single 12V rail (996W), supporting ATX 3.1 and PCIe 5.1 standards. Equipped with a quiet 120mm PWM FDB fan, industrial-grade capacitors (EPCOS/Japanese), and full protections (OCP/OVP/OTP/OPP/SCP/UVP). The 12V-2×6 connector ensures stable power for modern GPUs.
- L-shaped design for dual-chamber cases

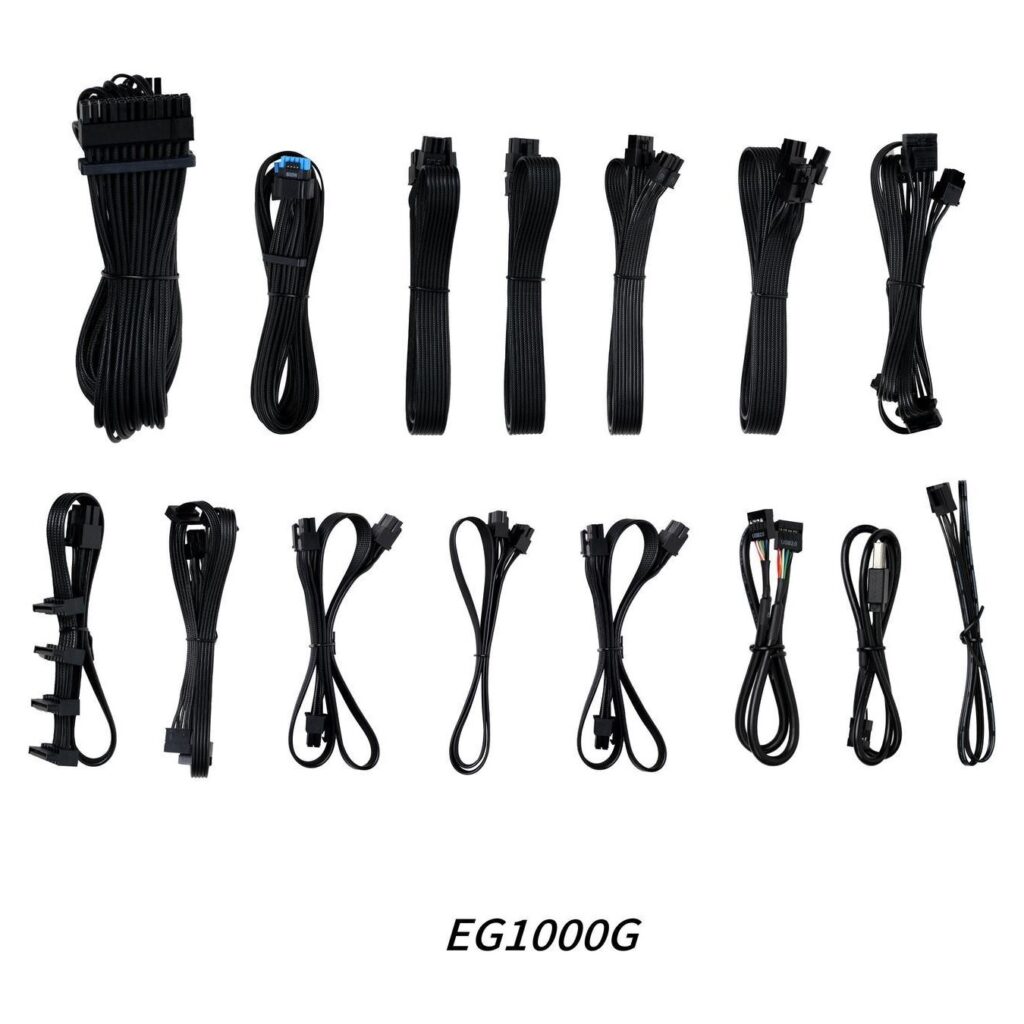

- Fully modular with braided cables

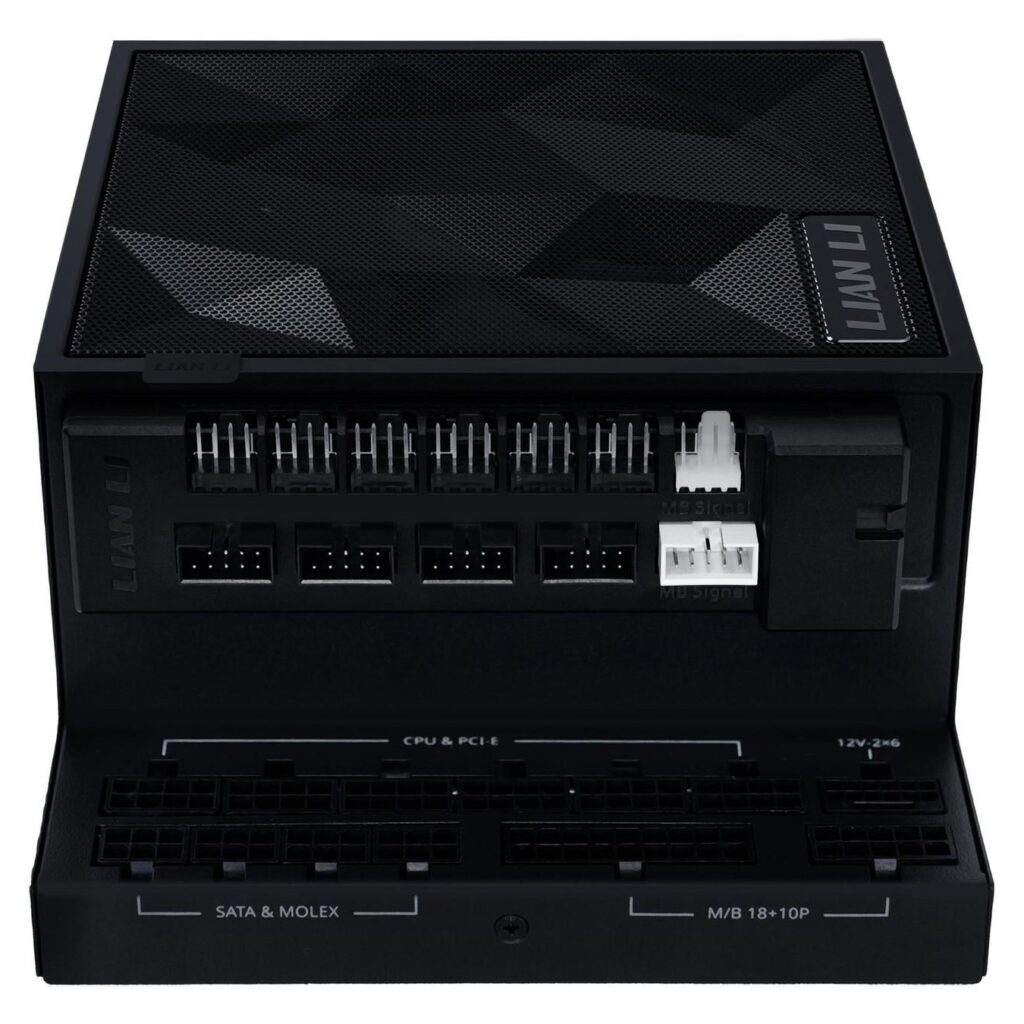

- Removable USB/PWM hub
- Magnetic dust filter (66.9% porosity)
- 80+ Gold efficiency, 10-year warranty
- ATX 3.1 / PCIe 5.1 compliant
| Model | EG1000G |
| Wattage | 1000W |
| Form Factor | ATX (L-shaped) |
| Dimensions (WxHxD) | 150 x 86 x 182 mm |
| Fan | 120mm PWM FDB |
| Efficiency | 80 PLUS Gold / Cybenetics Platinum |
| ATX Version | ATX 3.1 / PCIe 5.1 |
| Main Power | +12V Single Rail 83A (996W) |
| PCIe Connectors | 12V-2x6 (PCIe 5.1) + 4x 6+2-pin PCIe |
| EPS Connectors | 2x 4+4pin |
| Modularity | Fully Modular |
| Capacitors | EPCOS 820uF 420V (Japanese equivalent) |
| Protections | OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLO |
| Warranty | 10 Years (2 years on USB Hub) |
| Color | Black |
