Kingston ValueRAM 16GB DDR4-3200 SO-DIMM CL22 1Rx8 1.2V

Артикул:
Бренд: Kingston
Штрихкод:
192.00 €

Kingston ValueRAM 16GB DDR4-3200 SO-DIMM laptop memory module. CL22 latency, 260-pin, 1.2V, non-ECC unbuffered, single-rank configuration with gold-plated contacts and RoHS compliance.

Доступно через 8–10 рабочих дней : 10 шт.

For any questions about this item, availability, or delivery times, please contact us at 22 270068

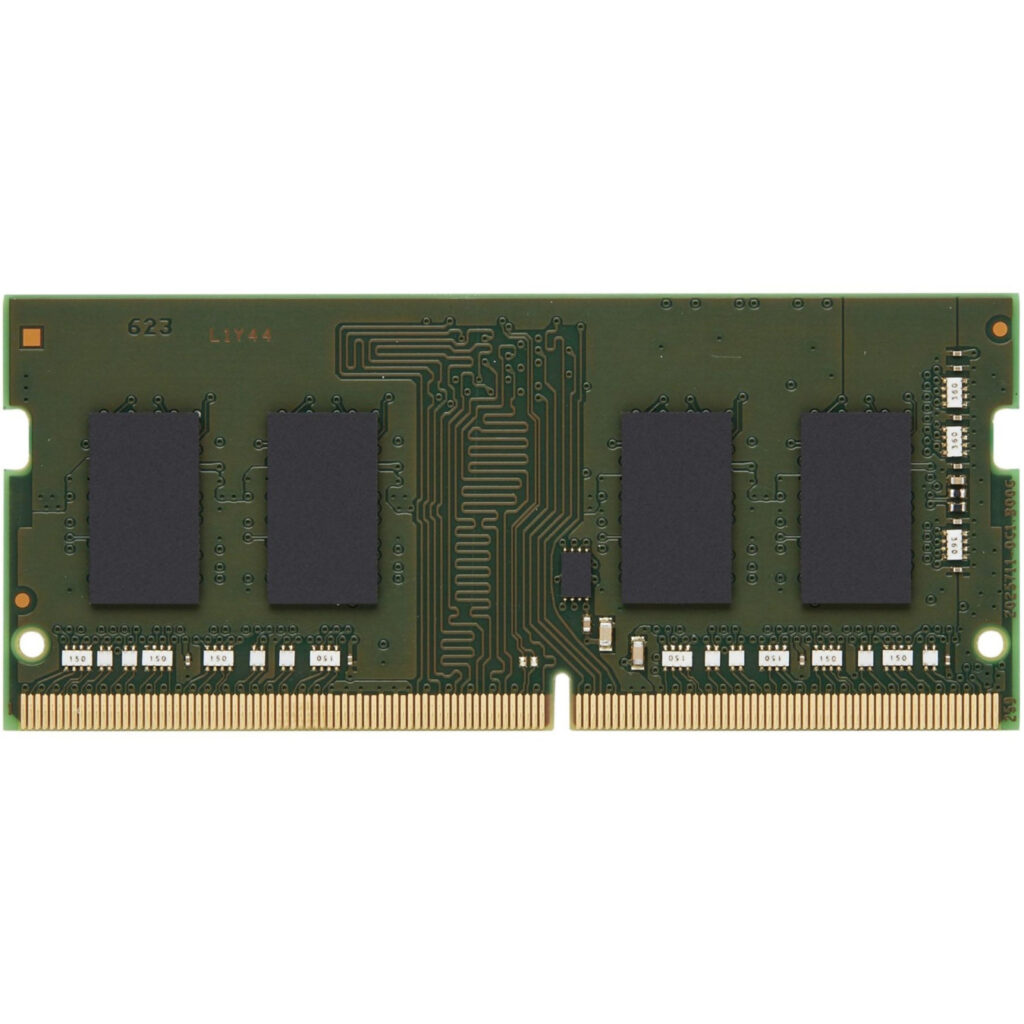

The Kingston ValueRAM KVR32S22S8/16 is a 16GB DDR4-3200 SO-DIMM memory module designed for laptop and small form factor systems. This single-rank (1Rx8) module operates at 3200 MT/s with a CAS latency of 22 cycles, requiring only 1.2V for stable operation. The 260-pin SO-DIMM form factor makes it compatible with most modern laptops and compact computers.

Built on sixteen 1G x 8-bit FBGA components, this non-ECC unbuffered module features gold-plated contact fingers for reliable connectivity and includes on-board SPD (Serial Presence Detect) EEPROM for automatic configuration. The module supports 16 internal banks organized in 4 groups of 4 banks each, with selectable burst chop (BC4) or burst length (BL8) on-the-fly operation. It is fully RoHS compliant and halogen-free, meeting modern environmental standards.

Key specifications include a row cycle time of 45.75ns minimum, refresh row cycle time of 350ns minimum, and row active time of 32ns minimum. The module operates reliably across a wide temperature range and includes dynamic on-die termination for optimal signal integrity.

  • Capacity: 16GB (2G x 64-bit)
  • Speed: DDR4-3200 MT/s
  • CAS Latency: CL22
  • Form Factor: 260-pin SO-DIMM
  • Configuration: Single-rank (1Rx8)
  • Voltage: 1.2V nominal
  • Non-ECC, unbuffered operation
  • Gold-plated contacts
  • RoHS compliant and halogen-free
