IPC 5U-5512, server housing
371.00 €
The IPC 5U-5512 is the perfect case for a cost-effective mini server system. The use of high-quality materials and excellent workmanship has resulted in a variable and reliable ind…
Доступно через 6–10 рабочих дней : 34 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

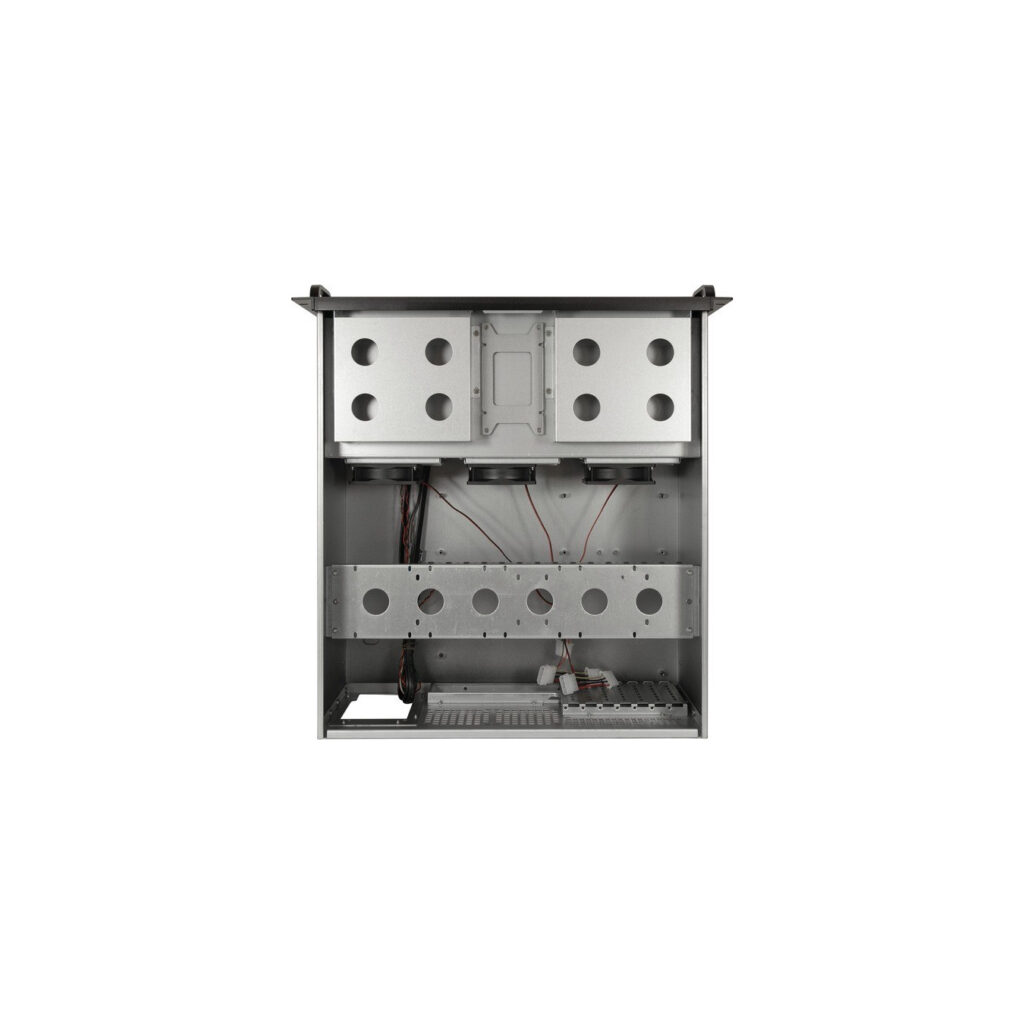

The IPC 5U-5512 is the perfect case for a cost-effective mini server system. The use of high-quality materials and excellent workmanship has resulted in a variable and reliable industrial housing. The 5U-5512 supports redundant ATX or PS/2 power supplies, up to twelve 2.5″/3.5″ hot-plug hard drives, five internal 2.5″ devices, two external 5.25″ devices and motherboards up to E-ATX size. In addition, the case has two 80mm fans and two USB 3.2 Gen1 front ports.
| Typ | Server enclosure |
| Color | schwarz |
| EAN | 4260455646444 |
| Manufacturer no. | 88887337 |
| Design | Rack |
| Mainboard Formfaktor | E-ATX, SSI-EEB |
| Material | 1.0/1.2mm steel |
| Internal dimensions - plug-in card length | maximal 250 mm |
| Drive bays - 5.25 inches | external 2 pieces |
| Slots - Full-Size | 7 pieces |
| Front connections | 2x USB-A 3.2 Gen 1 (5 Gbit/s) |
| front | Internal: 3 x 80mm fans pre-installed |
| back | 2 x 80 mm fans can be installed |
| Notes | Lockable HDD frame, three serial 80mm fans, perforated slot brackets, backplane: 4x SATA/backplane, 2x backplane, 6 Gbit/s, 12 hard drives, 3 backplanes |
| Rear connection of the mainboard | No |
| More information | Bays: 2.5" or 3.5" external supports up to 12 (hot-swap hard drive frame) |
| Accessories - available | Case, power supply bracket for ATX (pre-installed), screws |
| Volume | 55 l |
| Dimensions | Width: 48.1 cm x Height: 22.5 cm x Depth/Length: 50.5 cm |
| Weight | 13,6 kg |
