Gigabyte GP-UD1300GM PG5 - 1300W ATX PSU, 80 PLUS Gold, Fully-Modular, Black

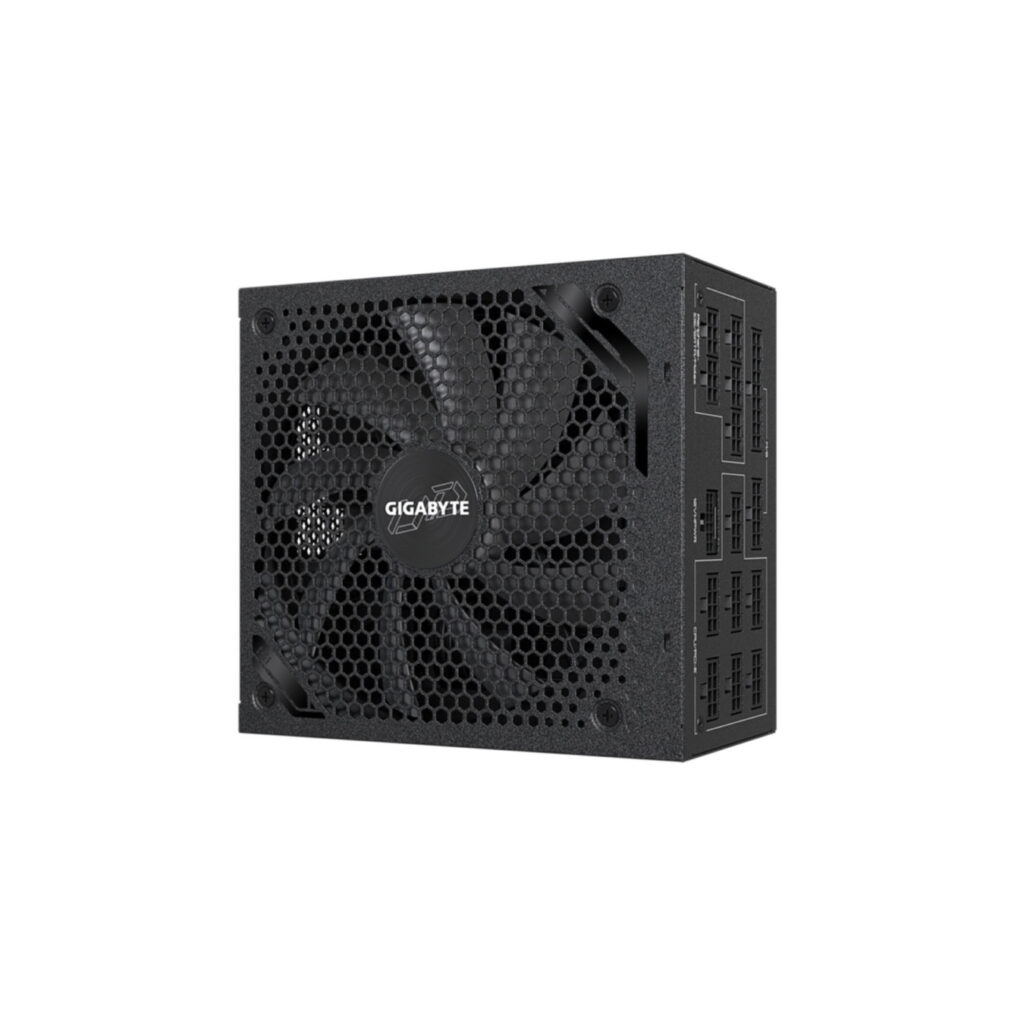

1300W ATX power supply, 80 PLUS Gold efficiency, fully-modular cables, 120mm fan, 1x 16-pin 12VHPWR + 4x 6+2 PCIe, 4+4 CPU connector, 8x SATA, 5-year warranty.
Доступно через 6–10 рабочих дней : 24 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
GIGABYTE UD1300GM PG5. Total power: 1300 W. AC input voltage: 100 — 240 V. AC input frequency: 50 — 60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 150.600 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Cables included: CPU. PATA. Peripheral (Molex). SATA
| Total power | 1300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6 A |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 12 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1300 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 108.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3.5 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 150.600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 200.600 mm |

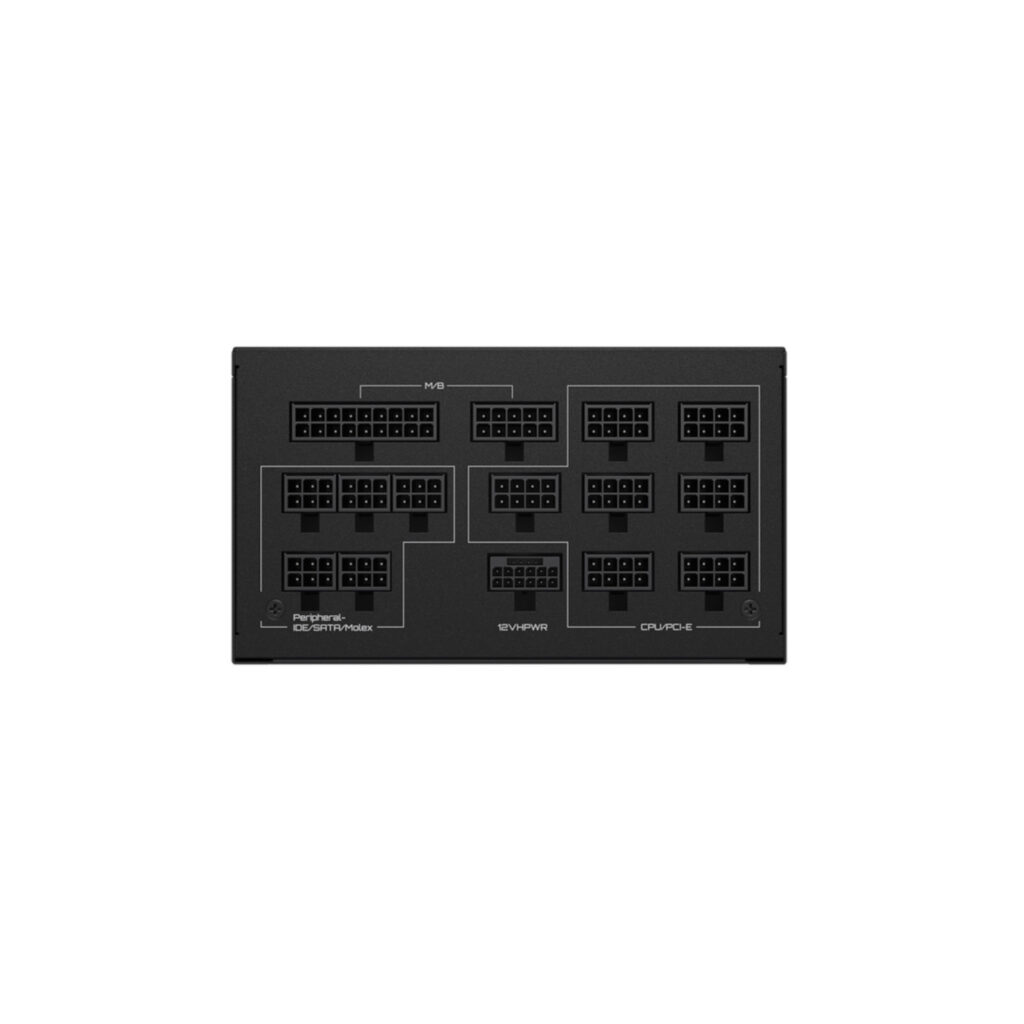

| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 70 cm |
| Feature | Cable tie(s) included |

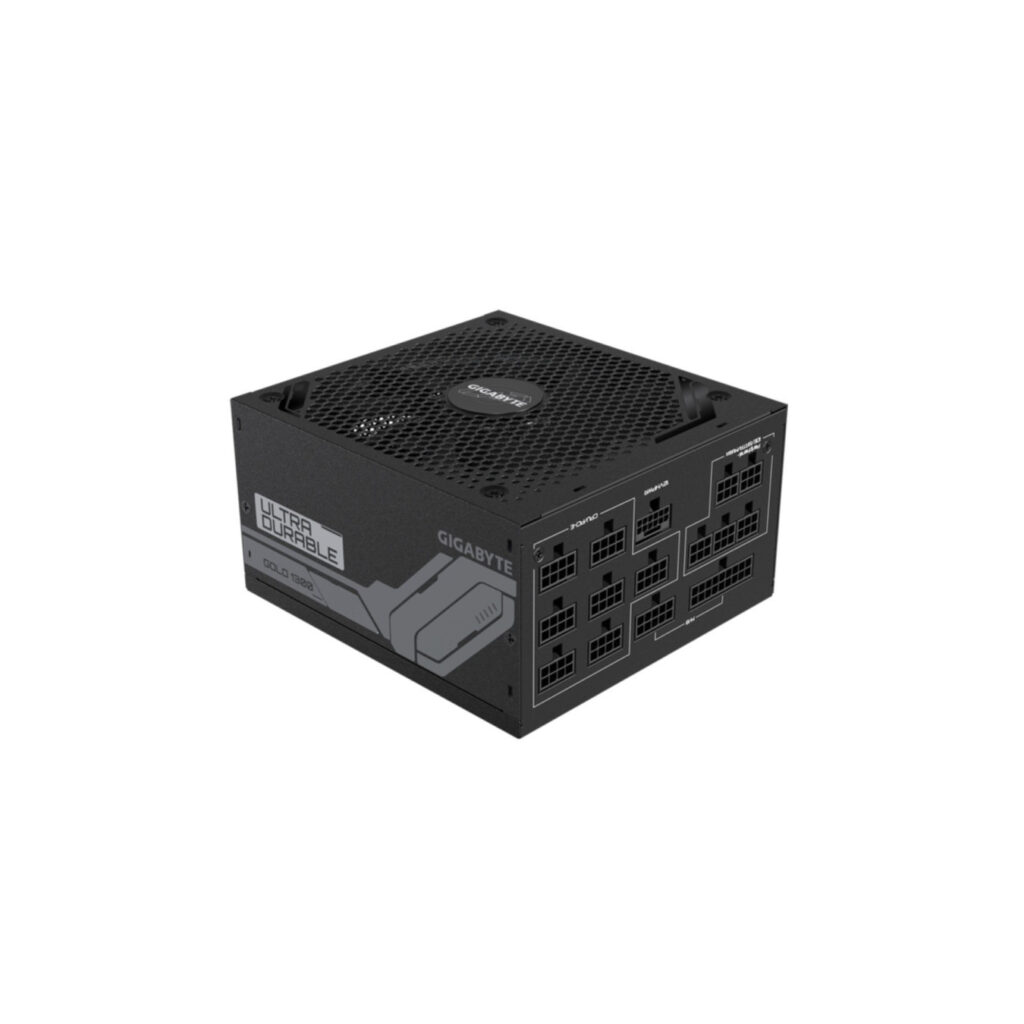

| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 40 dB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |

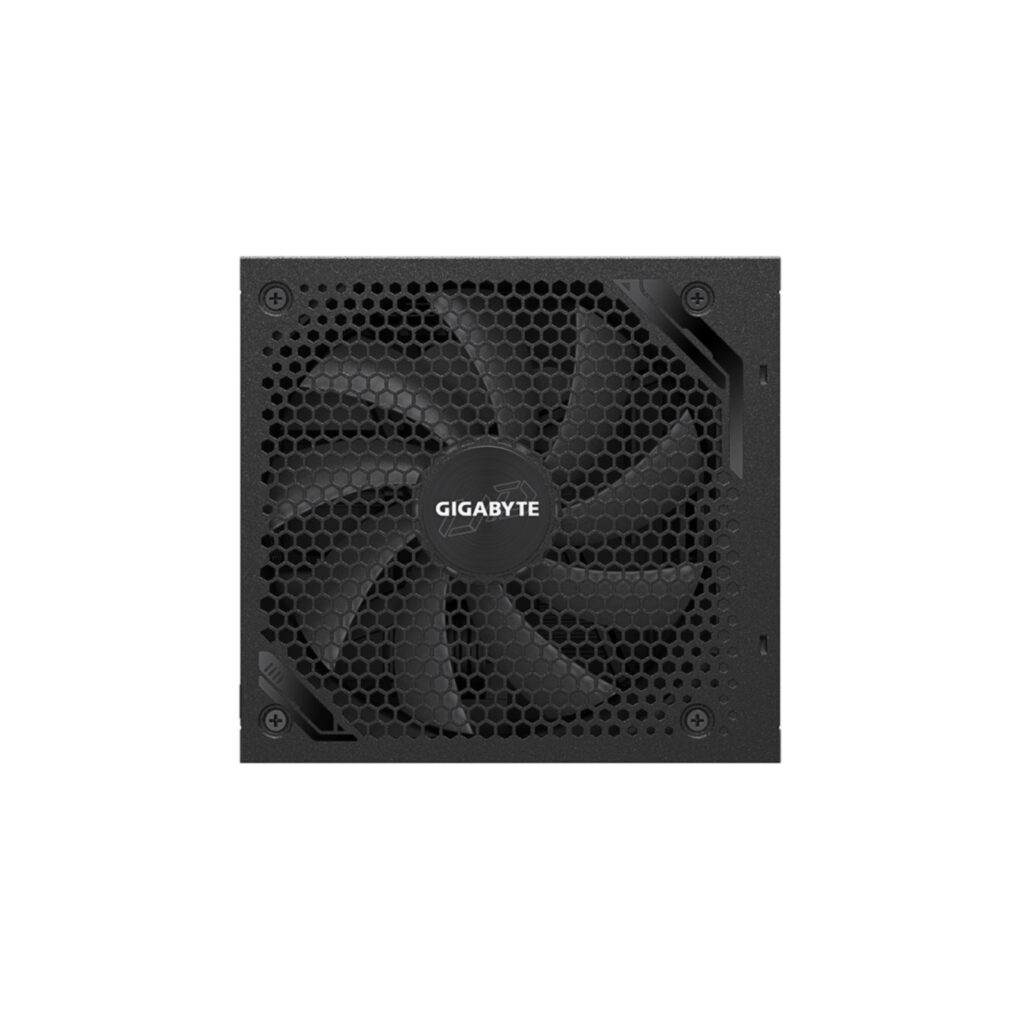

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cables included | CPU. PATA. Peripheral (Molex). SATA |
| Compliance certificates | CCC. CE. Federal Communications Commission (FCC). RoHS |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Package type | Box |
| Warranty period | 5 year(s) |
