Gigabyte GA-X870E AORUS PRO AM5 ATX MB AMD X870E DDR5 256GB PCIe 5.0 WiFi7
AM5 ATX motherboard for Ryzen 7000/8000/9000 series. Supports DDR5 up to 256GB (4xDIMM, 8200MHz OC), PCIe 5.0 x16 GPU + 3x M.2 PCIe5, 4x SATA, Wi-Fi 7, 2.5GbE LAN, USB4, 16+2+2 VRM.
Доступно через 4–6 рабочих дней : 3 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

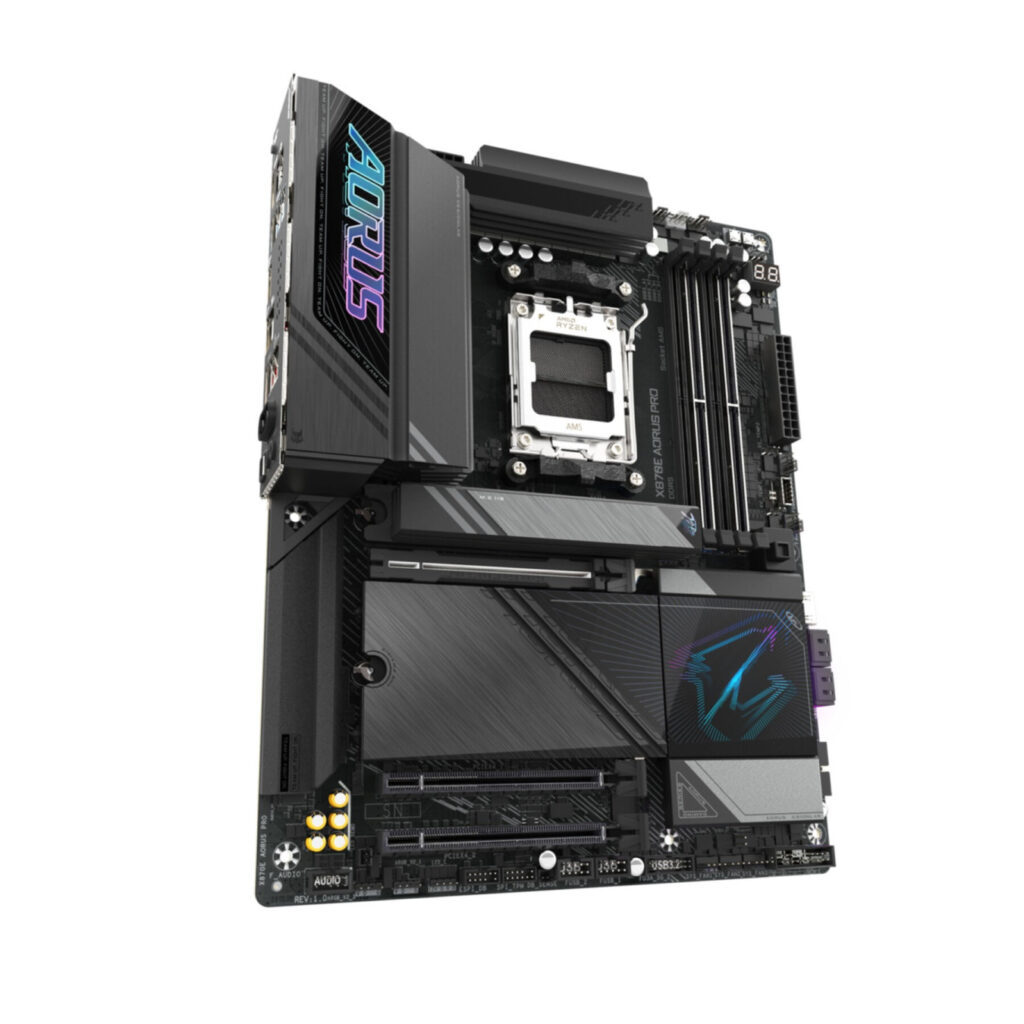

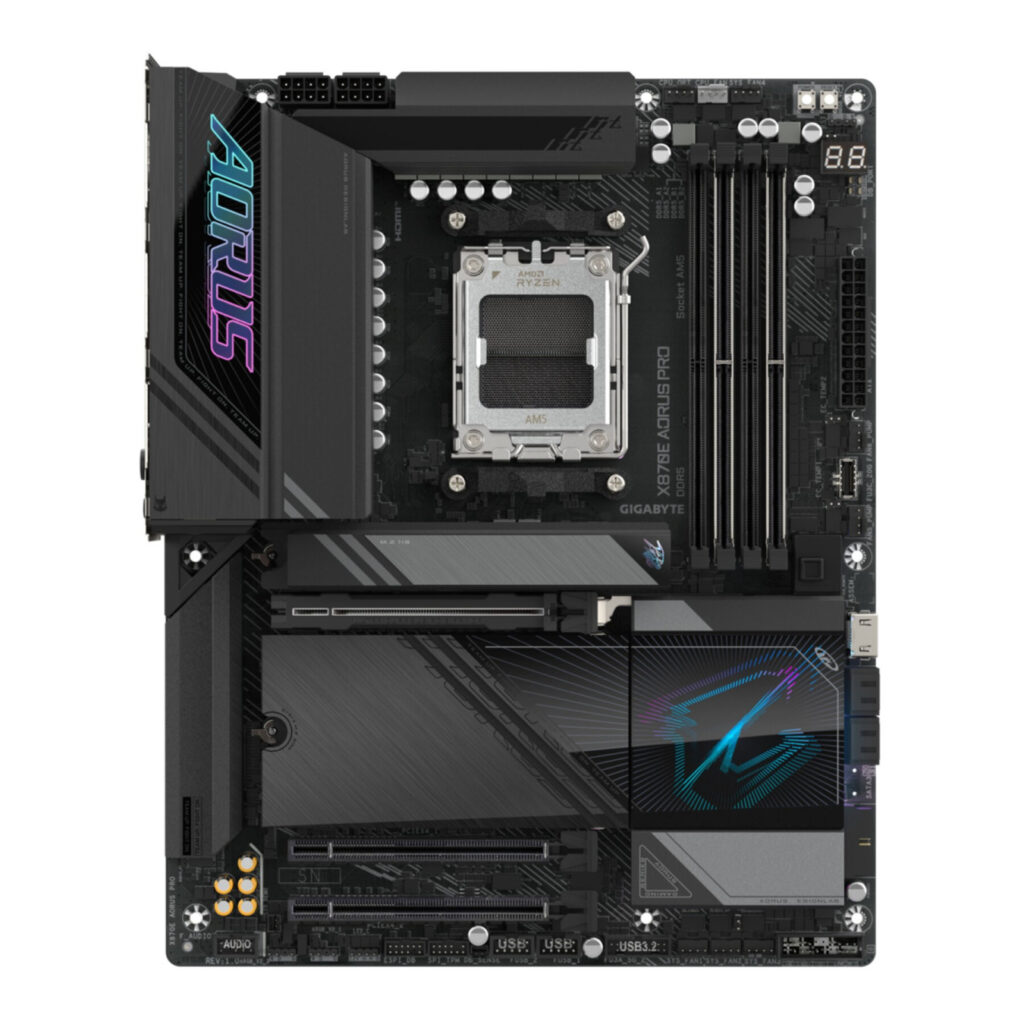

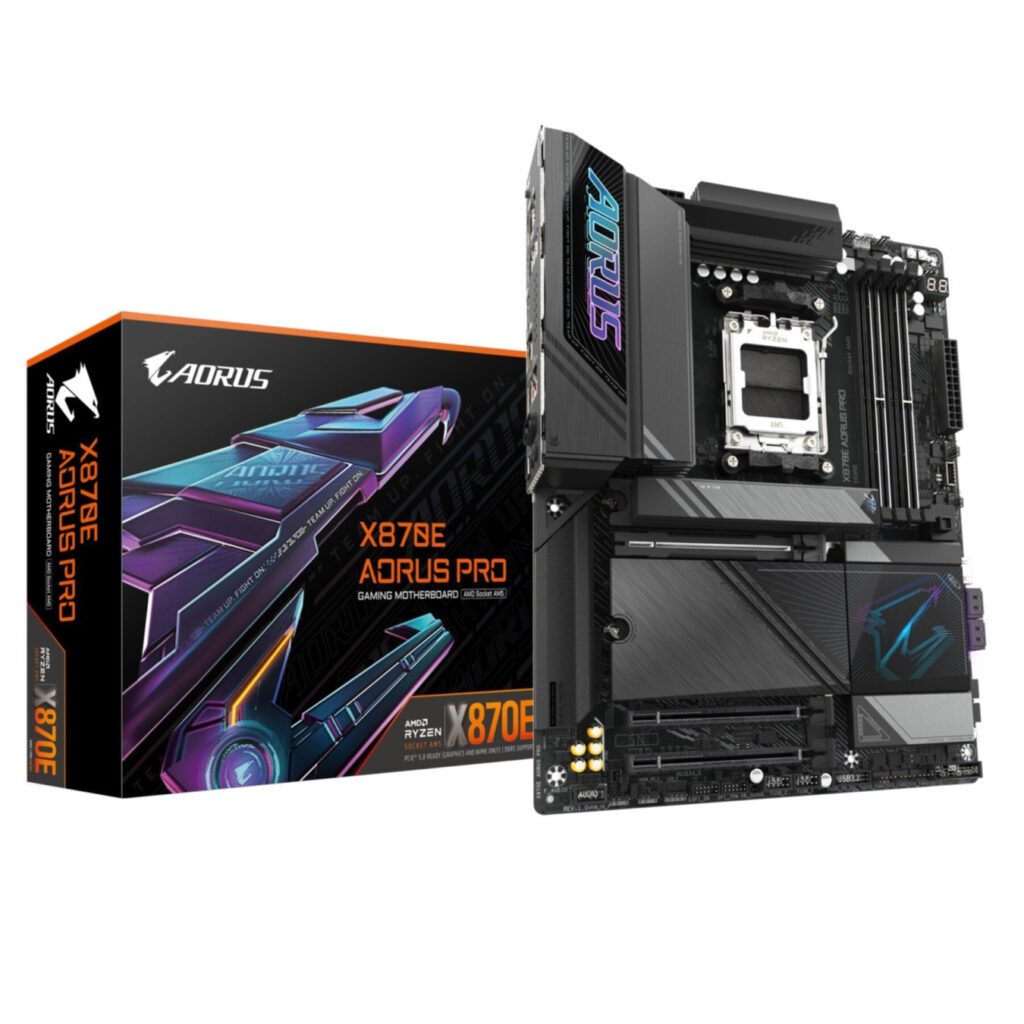

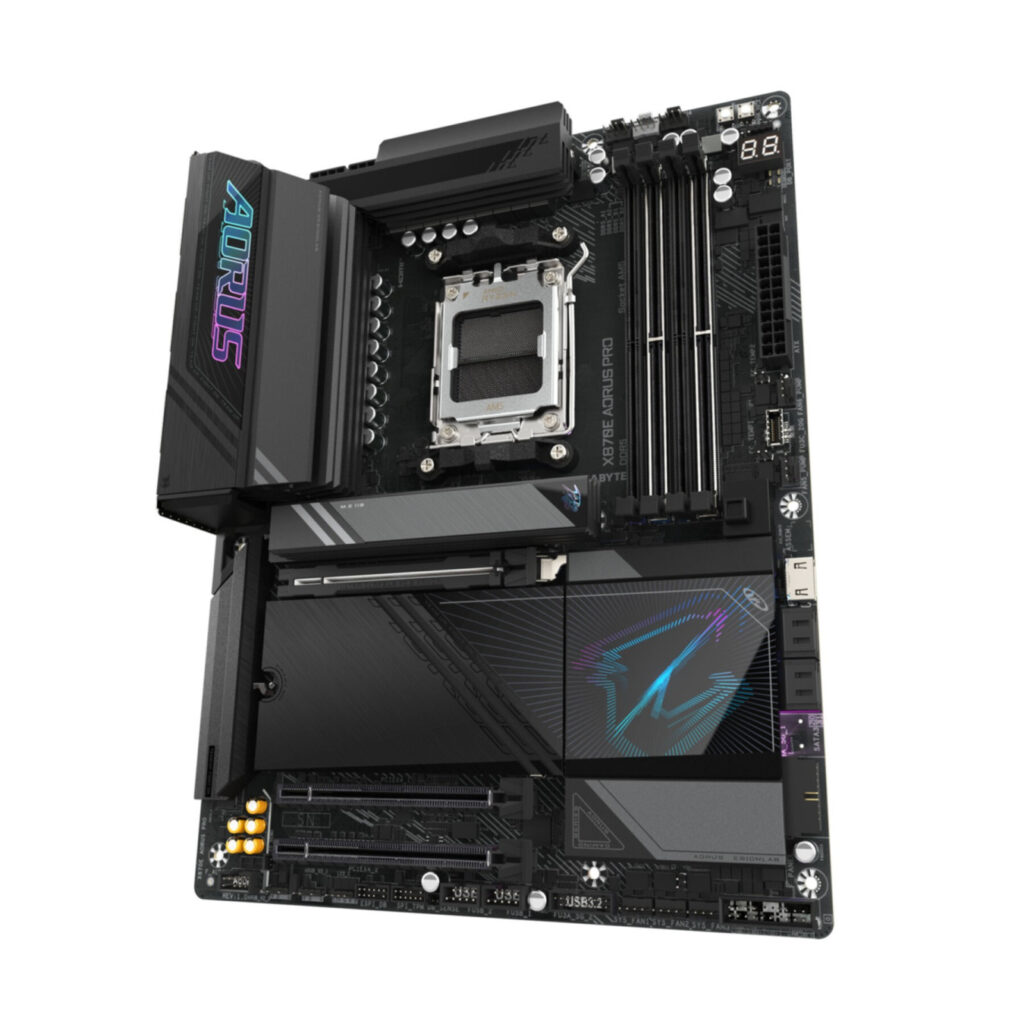

The Gigabyte GA-X870E AORUS PRO is a premium ATX motherboard based on the AMD X870E chipset, designed for high-performance AMD Ryzen 7000, 8000, and 9000 series processors using the AM5 socket. It features a robust 16+2+2 phase digital VRM solution for stable power delivery even under heavy overclocking. Memory support includes up to 256GB DDR5 across 4 DIMM slots with speeds up to 8200MHz (OC) and compatibility with AMD EXPO and Intel XMP profiles for easy overclocking.

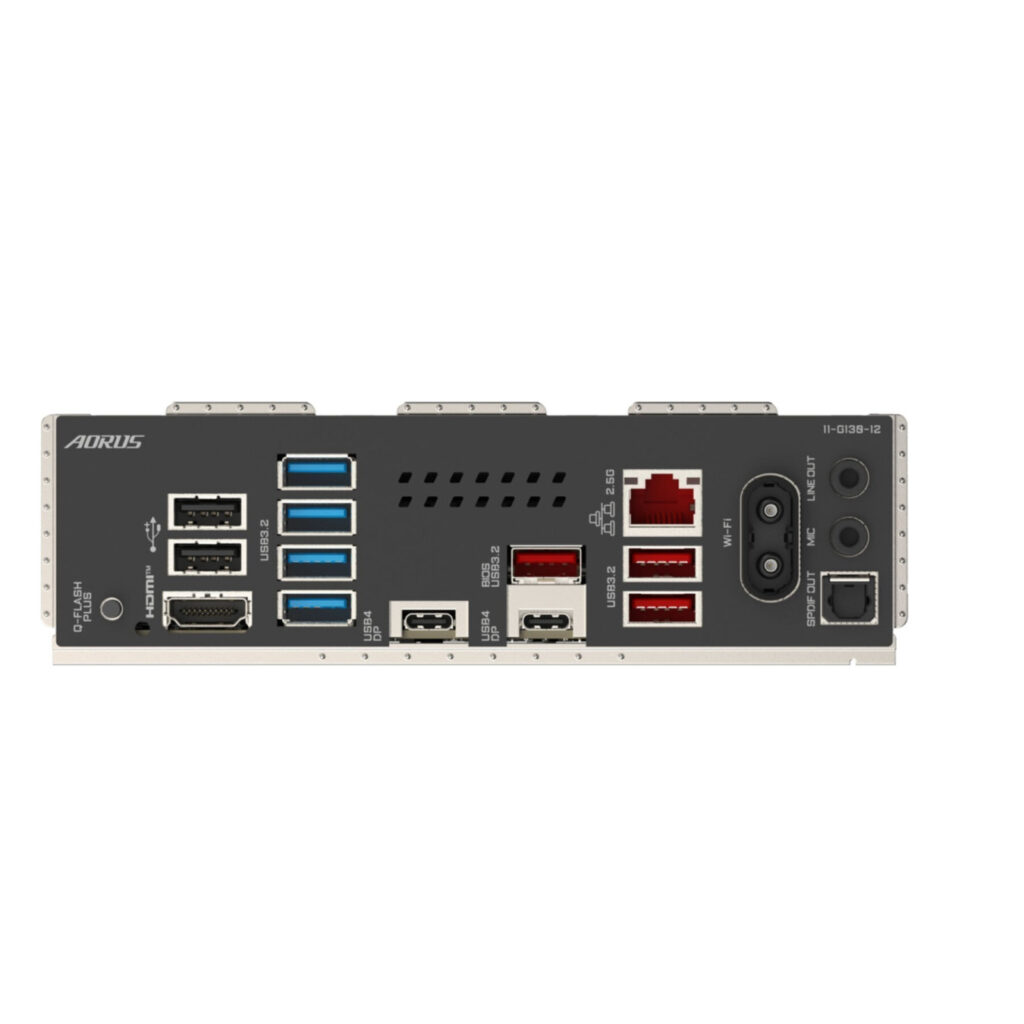

Storage options are extensive with 4x M.2 slots (3x PCIe 5.0 x4, 1x PCIe 4.0 x4) supporting NVMe SSDs up to 25110/22110 sizes, plus 4x SATA III ports with RAID 0/1/10 support. Expansion includes 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, and 2x PCIe 4.0 x4 slots. Networking is top-tier with Wi-Fi 7 (Qualcomm QCNCM865), Bluetooth 5.3, and Realtek 2.5GbE LAN. Rear I/O offers 2x USB4 Type-C (40Gbps), multiple USB 3.2 ports, HDMI 2.1, and integrated Realtek ALC1220 7.1 audio.
- ✅ 16+2+2 Phases Digital VRM with 80A SPS
- ✅ PCIe 5.0 for GPU and M.2 storage
- ✅ Wi-Fi 7 + 2.5GbE LAN + BT 5.3
- ✅ USB4 (2x Type-C 40Gbps)
- ✅ DDR5 up to 256GB / 8200MHz OC
- ✅ 4x M.2 (3x Gen5) + 4x SATA III
- ✅ Q-Flash Plus, EZ-Latch, Debug LED
- ✅ 3-year warranty
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Product colour | Black |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 8200 MHz |
| Memory channels | Dual-channel |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 10 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x4 slots | 2 |
| USB4 Gen 2x2 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.3 |
| WLAN controller model | Qualcomm QCNCM865 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| VRM Phases | 16+2+2 |
| BIOS type | UEFI AMI |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.74 kg |
| Warranty period | 3 year(s) |
