Gigabyte GA-H610M S2H DDR4 V3 LGA1700 mATX Motherboard
Gigabyte H610M S2H V3 DDR4 is LGA1700 mATX motherboard for Intel 12th-14th Gen Core CPUs. Features 2x DDR4 up to 64GB, PCIe 4.0 x16, 1x M.2 PCIe 3.0, 4x SATA, HDMI 2.1, GbE LAN. Ideal for budget builds with solid VRM.
Доступно через 8–10 рабочих дней : 2 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Elevate your PC build with the Gigabyte H610M S2H V3 DDR4 motherboard, designed for Intel LGA1700 socket supporting 12th, 13th, and 14th Gen Core processors. This micro-ATX board delivers reliable performance for everyday computing, light gaming, and productivity tasks with its 4+1+1 hybrid digital VRM design ensuring stable power delivery.
Key features include dual-channel DDR4 support up to 64GB (32GB per slot), a PCIe 4.0 x16 slot for GPUs, NVMe PCIe 3.0 x4 M.2 slot, and 4x SATA III ports for storage flexibility. Connectivity options feature HDMI 2.1, 2x DisplayPort 1.2, VGA, Gigabit Ethernet LAN, and multiple USB ports including USB 3.2 Gen1. Smart Fan 6 provides advanced cooling control with multiple sensors.
- Supports Intel Core i3/i5/i7 12th-14th Gen
- 2x DDR4 DIMM slots, max 64GB, up to 3200MHz
- 1x PCIe 4.0 x16 + 1x PCIe 3.0 x1
- 1x M.2 2280 PCIe 3.0 x4, 4x SATA 6Gb/s
- HDMI 2.1, 2x DP 1.2, VGA; Realtek 7.1 audio
- GbE LAN, no WiFi; Black PCB
| Processor Socket | LGA 1700 |
| Chipset | Intel H610 |
| Form Factor | Micro ATX |
| Memory Type | DDR4-SDRAM |
| Memory Slots | 2 |
| Max Memory | 64 GB |
| Supported Memory Speeds | Up to 3200 MHz |
| PCIe x16 Slots | 1 x PCIe 4.0 |
| PCIe x1 Slots | 1 x PCIe 3.0 |
| M.2 Slots | 1 (2280 PCIe 3.0 x4) |
| SATA III Ports | 4 |
| USB 3.2 Gen1 Ports | 2 rear + 2 header |
| USB 2.0 Ports | 4 |

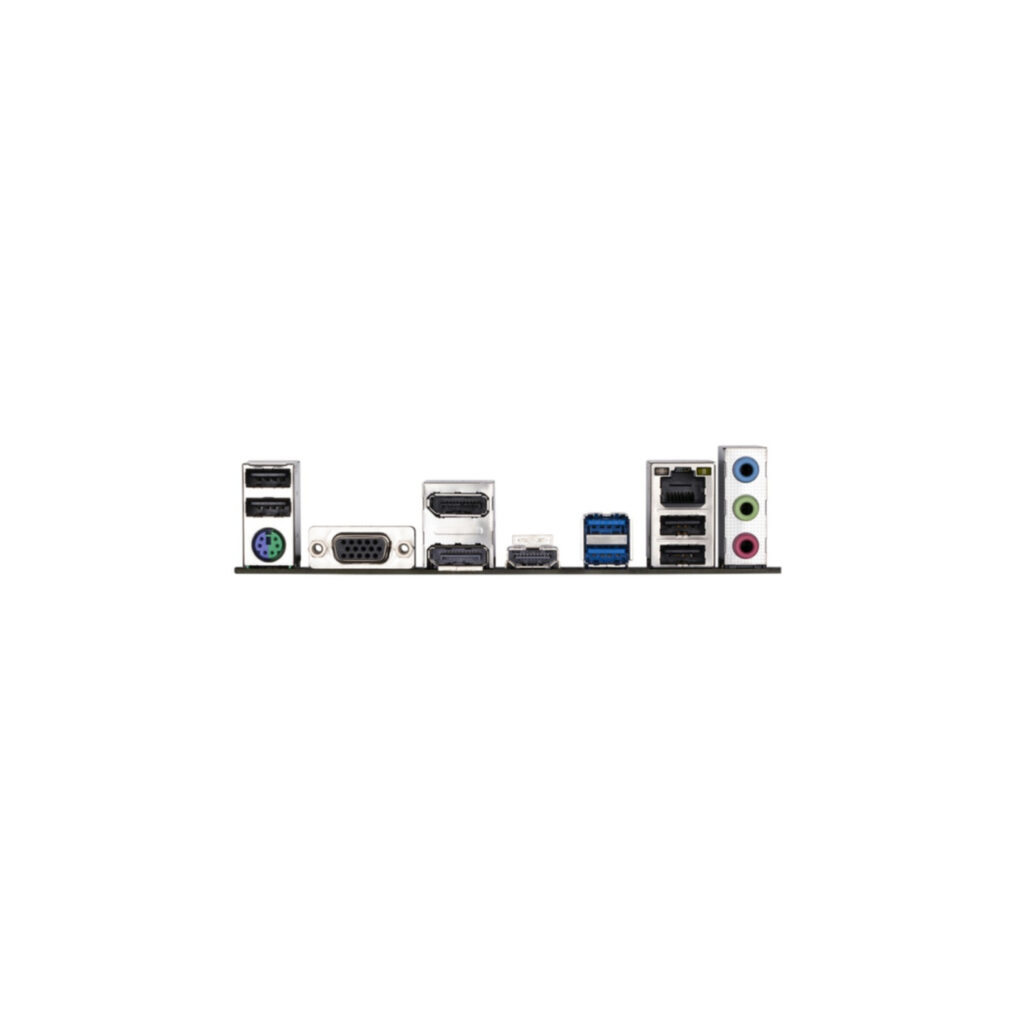

| Video Outputs | HDMI 2.1, 2x DisplayPort 1.2, VGA |
| LAN | Gigabit Ethernet |
| Audio | 7.1 channel |
| VRM Design | 4+1+1 Hybrid Digital |
| Dimensions (PCB) | 223 x 193 mm |
| Windows Support | Windows 10/11 x64 |
