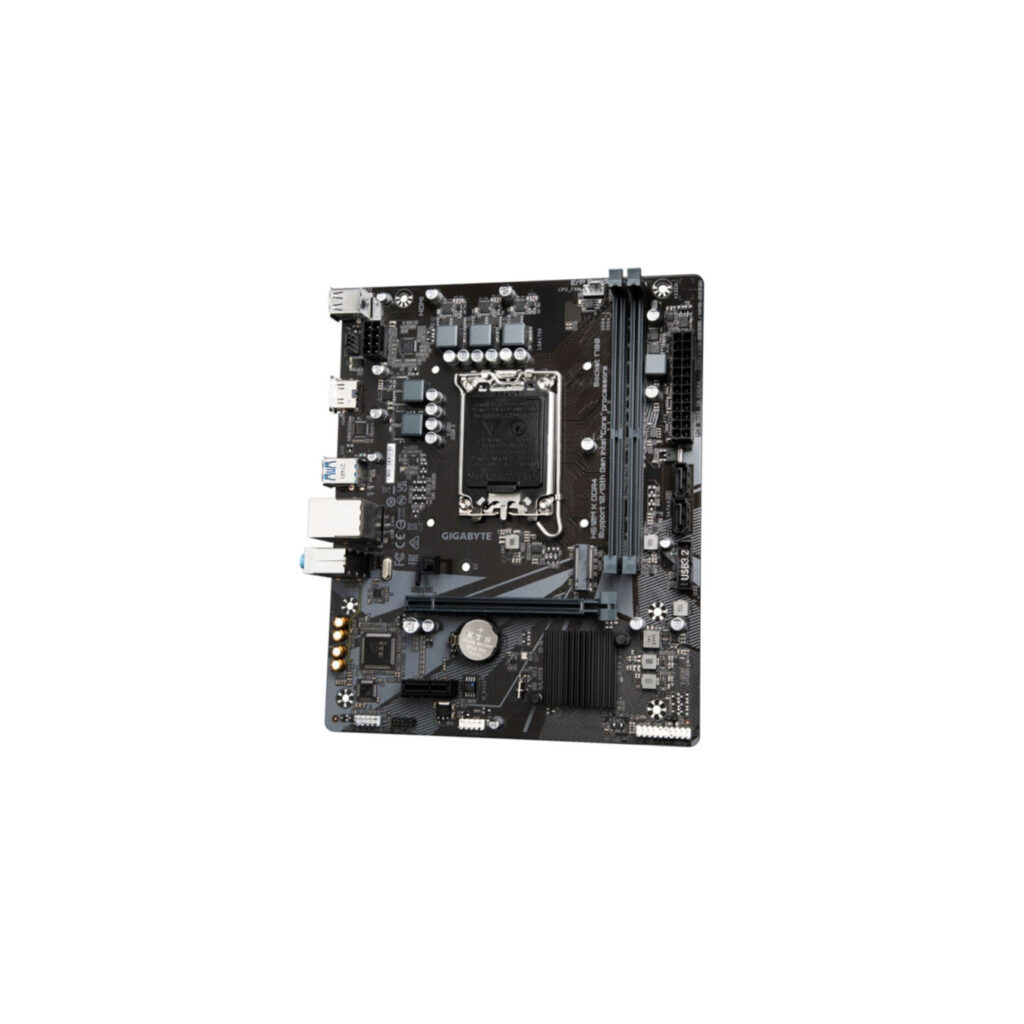

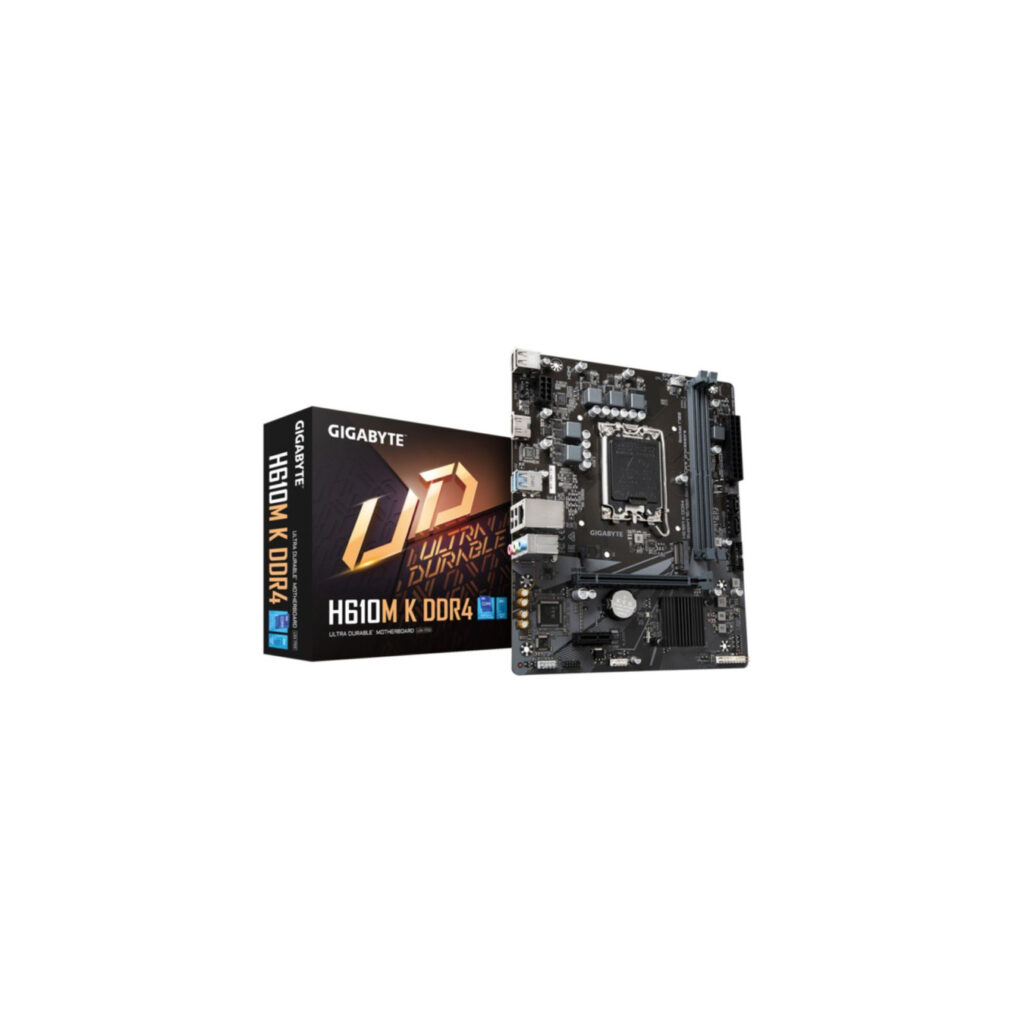

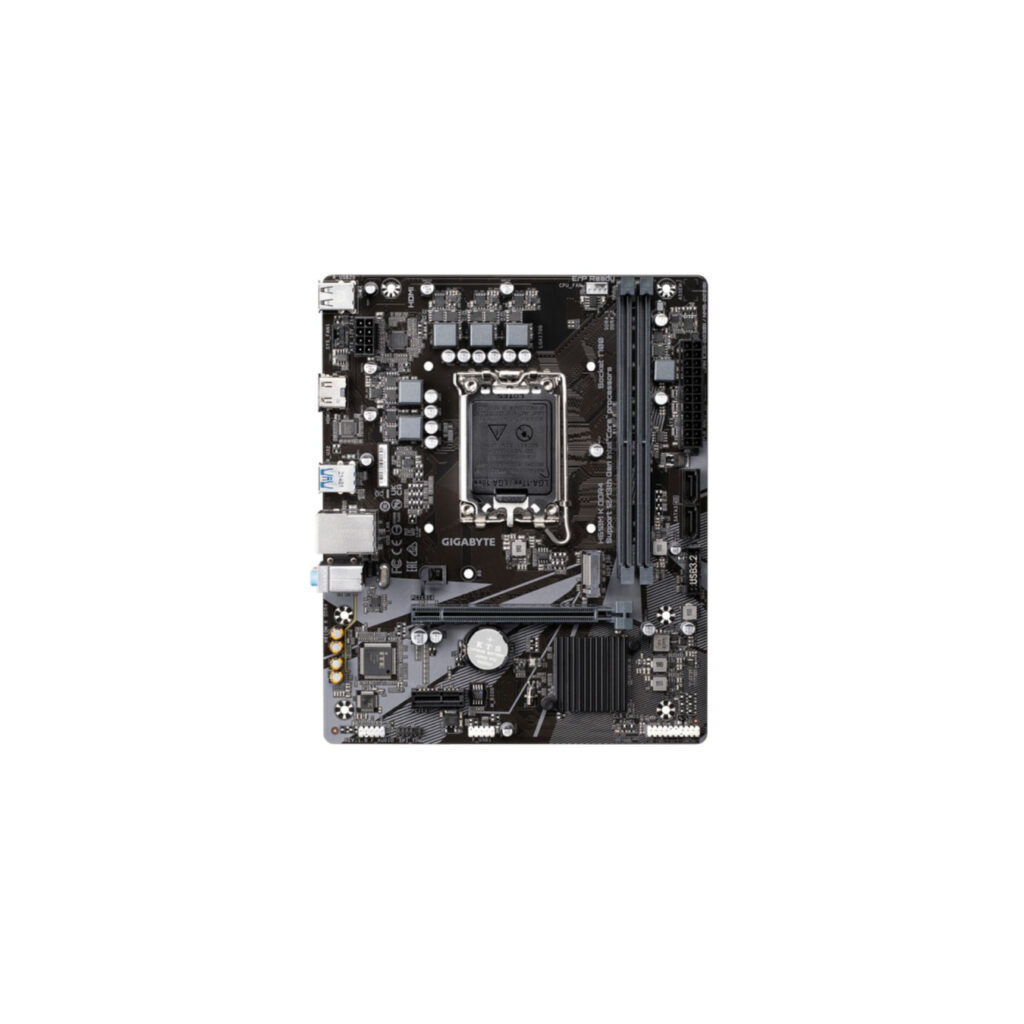

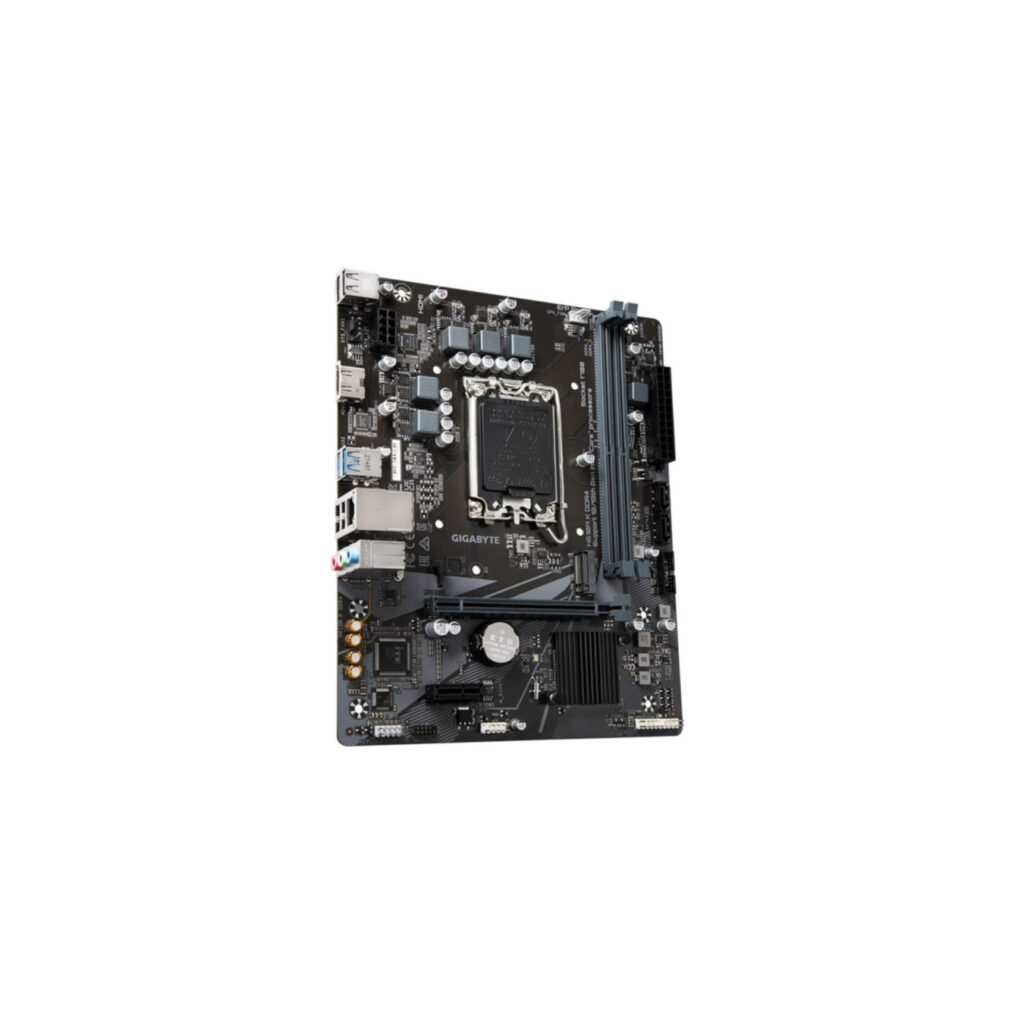

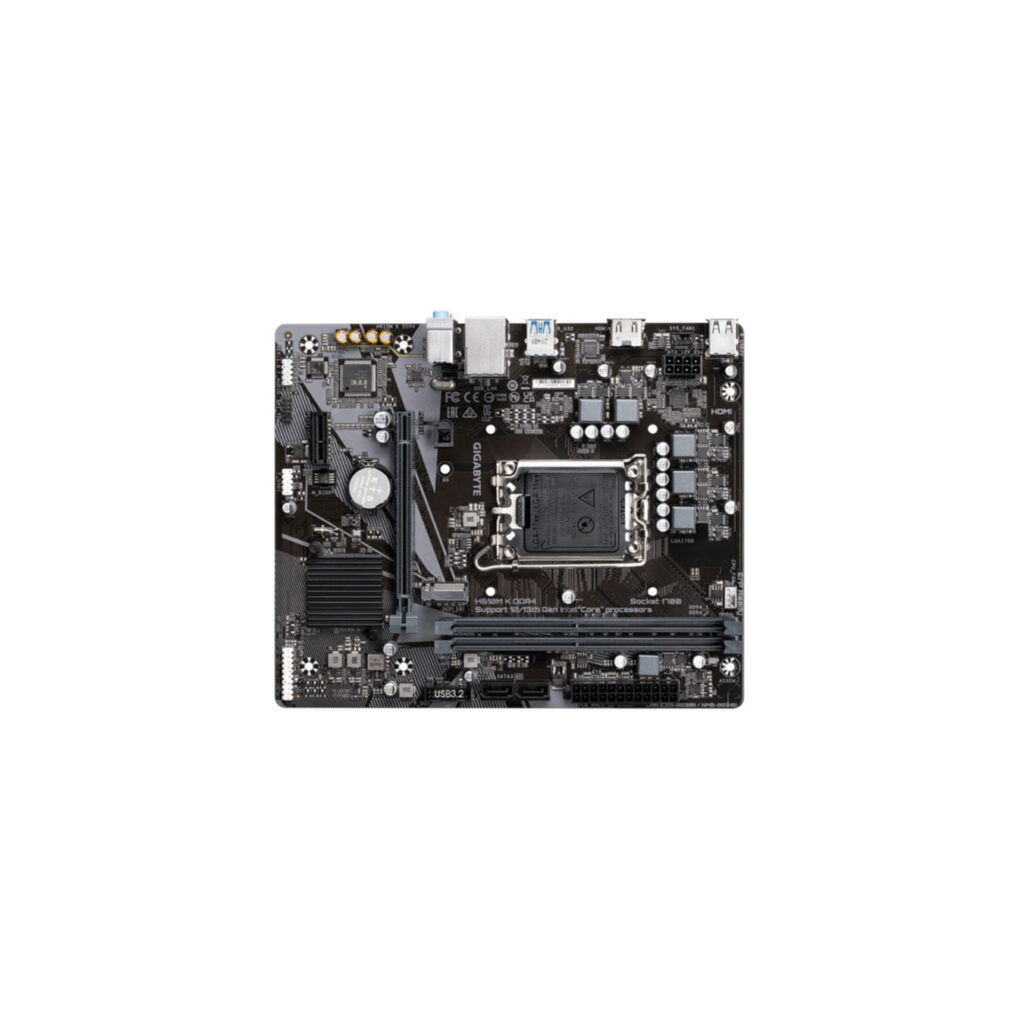

Gigabyte GA-H610M K DDR4 - LGA1700 Micro-ATX Motherboard, Intel H610, DDR4 up to 64GB, HDMI 2.1
LGA1700 micro-ATX motherboard with Intel H610 chipset, supports 14th/13th/12th Gen Intel CPUs. Dual-channel DDR4 up to 64GB (2x32GB), PCIe 4.0 x16, PCIe 3.0 M.2, 2x SATA III, HDMI 2.1 4K@60Hz, GbE LAN, 7.1 audio.
Доступно через 4–6 рабочих дней : 40 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Gigabyte H610M K DDR4 is a reliable micro-ATX motherboard designed for 12th, 13th, and 14th Gen Intel Core processors using the LGA1700 socket. Featuring the Intel H610 chipset, it delivers essential performance for everyday computing, light gaming, and productivity tasks with support for DDR4 memory up to 64GB across 2 DIMM slots.
Key connectivity includes a PCIe 4.0 x16 slot for modern GPUs, a PCIe 3.0 x4 M.2 slot for NVMe SSDs, 2x SATA 6Gb/s ports, HDMI 2.1 supporting 4K@60Hz, Realtek Gigabit Ethernet with bandwidth management, and Realtek ALC897 7.1-channel HD audio. Smart Fan 6 provides precise cooling control with multiple sensors and hybrid fan headers supporting up to 24W.
- CPU Support: Intel Core 14th/13th/12th Gen, Celeron, Pentium Gold
- Memory: 2x DDR4 DIMM, Dual-channel, up to 64GB (32GB single), XMP ready
- Expansion: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2 PCIe 3.0 x4
- Storage: 1x M.2 + 2x SATA III

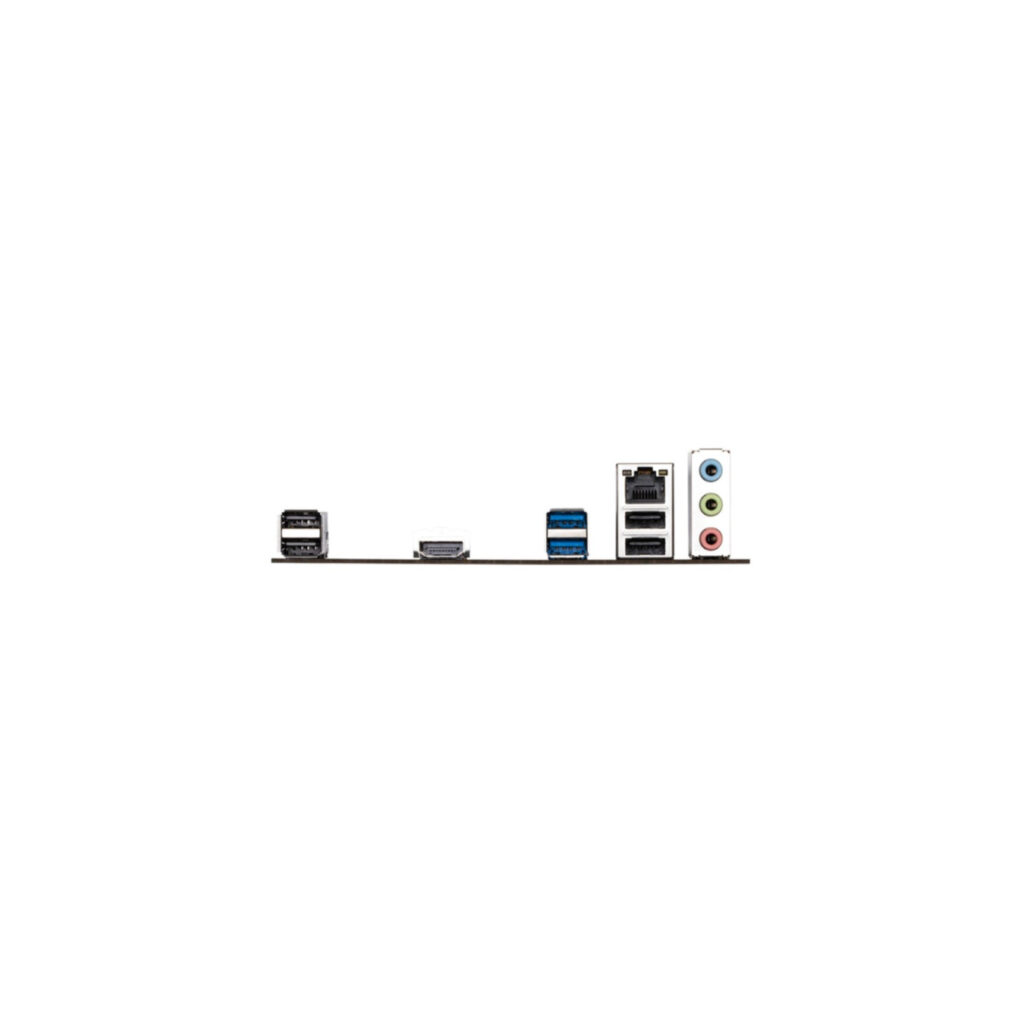

- I/O: 4x USB 2.0, 2x USB 3.2 Gen1, 1x HDMI 2.1, GbE LAN, 7.1 audio
- Other: UEFI BIOS, Q-Flash, Anti-Sulfur resistors
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core 14th/13th/12th Gen, Celeron, Pentium Gold |
| Motherboard chipset | Intel H610 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3000, 3200 MHz |
| ECC compatibility | ECC & Non-ECC (operate in non-ECC mode) |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 (PCIe 3.0 x4) |
| Number of SATA III connectors | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum resolution | 4096 x 2160 @60Hz |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN | Yes (Gigabit) |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| BIOS type | UEFI AMI |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton Internet Security (OEM), LAN bandwidth management |
| Warranty period | 3 year(s) |
| Width | 226 mm |
| Depth | 185 mm |
