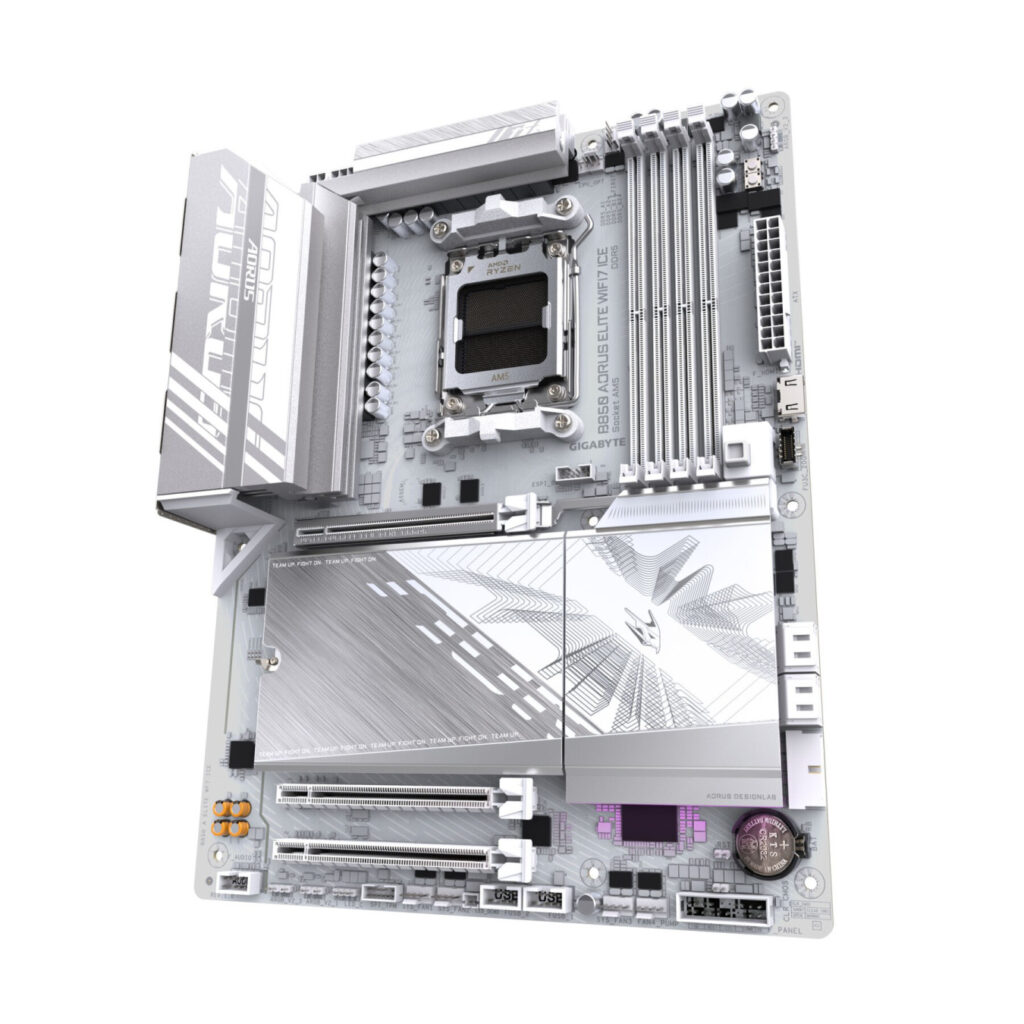

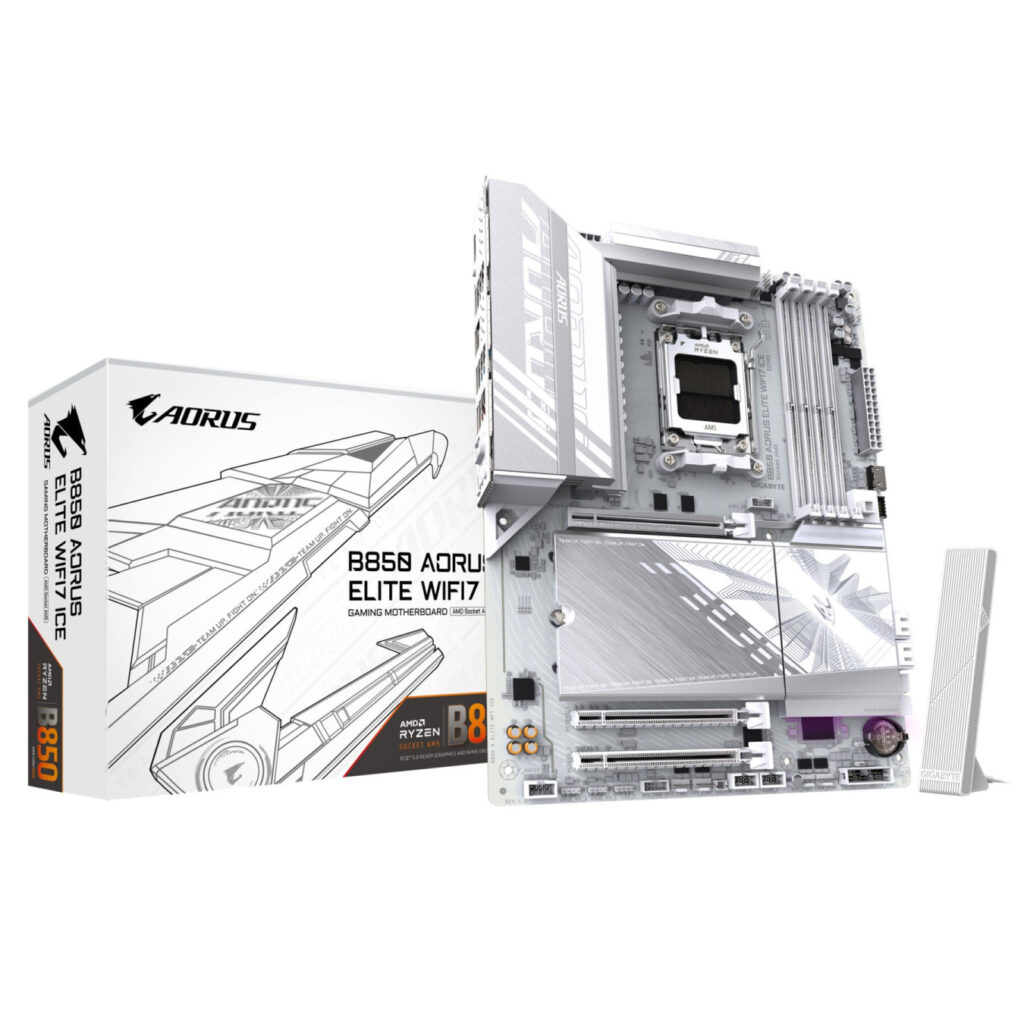

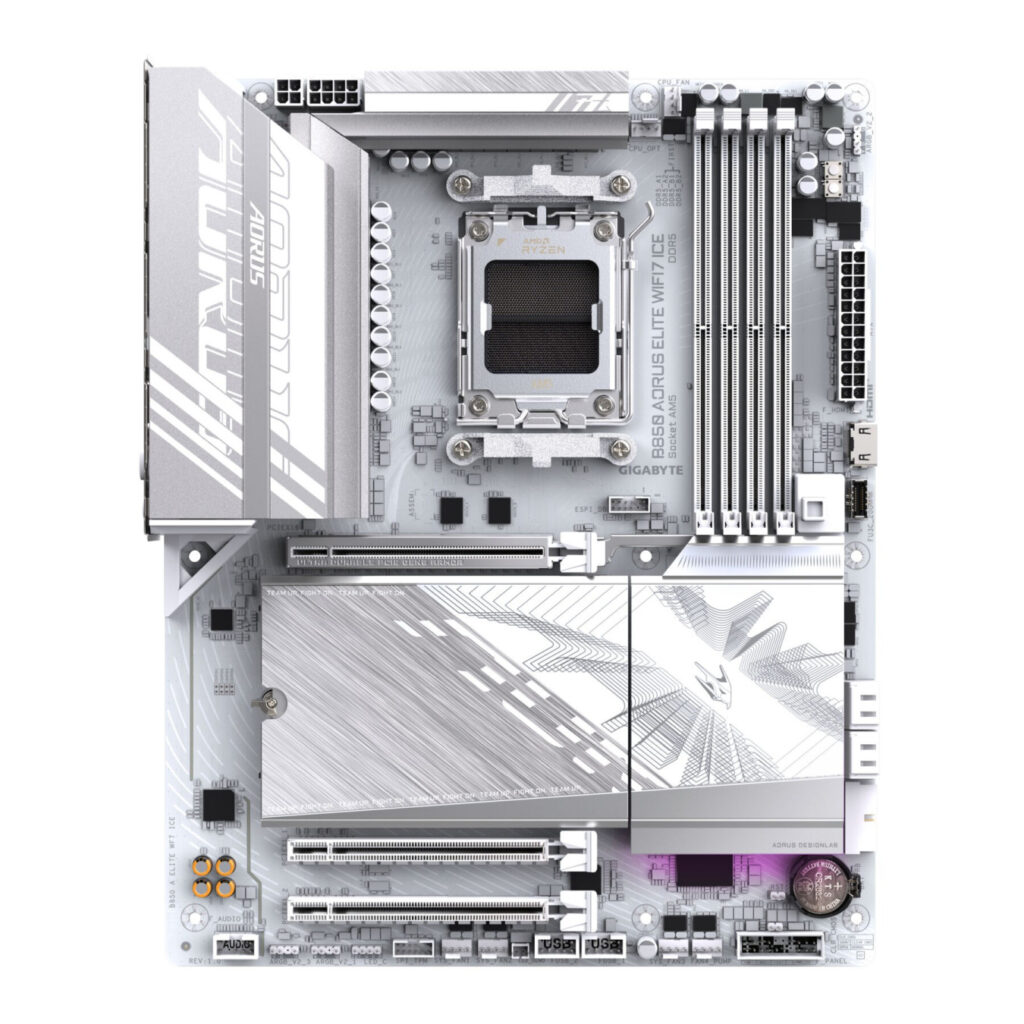

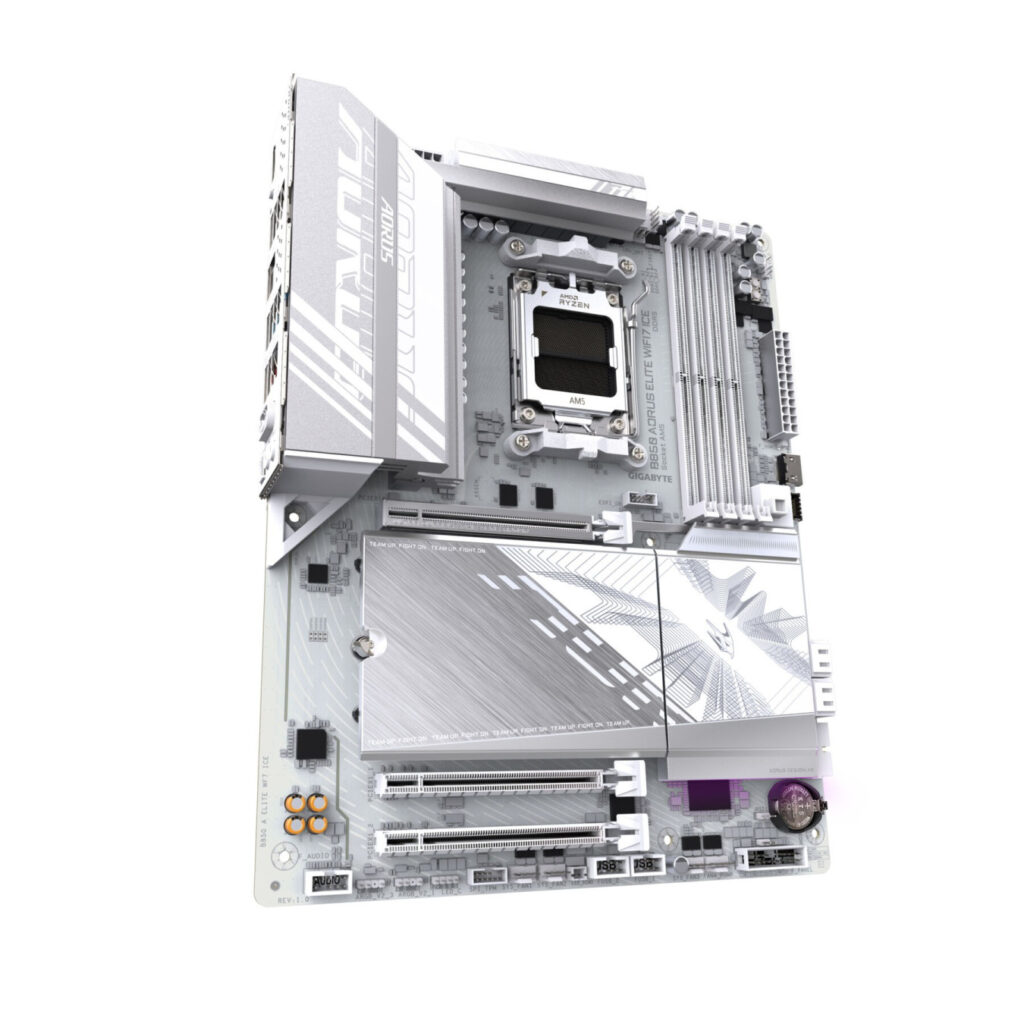

Gigabyte B850 AORUS ELITE WIFI7 ICE AMD AM5 ATX Motherboard - DDR5, PCIe 5.0, Wi-Fi 7

The Gigabyte B850 AORUS ELITE WIFI7 ICE is a high-performance ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors. Built on the AMD B850 chipset with Socket AM5, this motherboard delivers exceptional gaming and productivity performance with advanced power delivery and thermal management. The board features a robust 14+2+2 phase digital VRM with DrMOS 60A power stages, ensuring stable power delivery for demanding workloads and overclocking.

Memory support includes 4 DIMM slots for DDR5 with speeds up to 8200MT/s (OC), supporting up to 256GB total capacity. Storage connectivity is comprehensive with 3 M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) and 4 SATA III ports. The motherboard includes Wi-Fi 7 (802.11be) with directional ultra-high gain antenna, 2.5GbE Ethernet, and extensive USB connectivity including USB 3.2 Gen 2×2 Type-C. Advanced cooling features include premium VRM Thermal Armor with 4x larger heatsink surface area and M.2 thermal guards. The board supports X3D Turbo Mode for enhanced gaming performance on non-X3D processors.

Key features include:

• PCIe Configuration: 1x PCIe 5.0 x16 (UD Slot), 2x PCIe 3.0 x1
• Memory: 4x DDR5 DIMM, dual-channel, up to 256GB at 8200MT/s
• Storage: 3x M.2 slots (PCIe 5.0 + 2x PCIe 4.0), 4x SATA III
• Connectivity: Wi-Fi 7, Bluetooth 5.4, 2.5GbE LAN, HDMI 1.4, DisplayPort 1.4

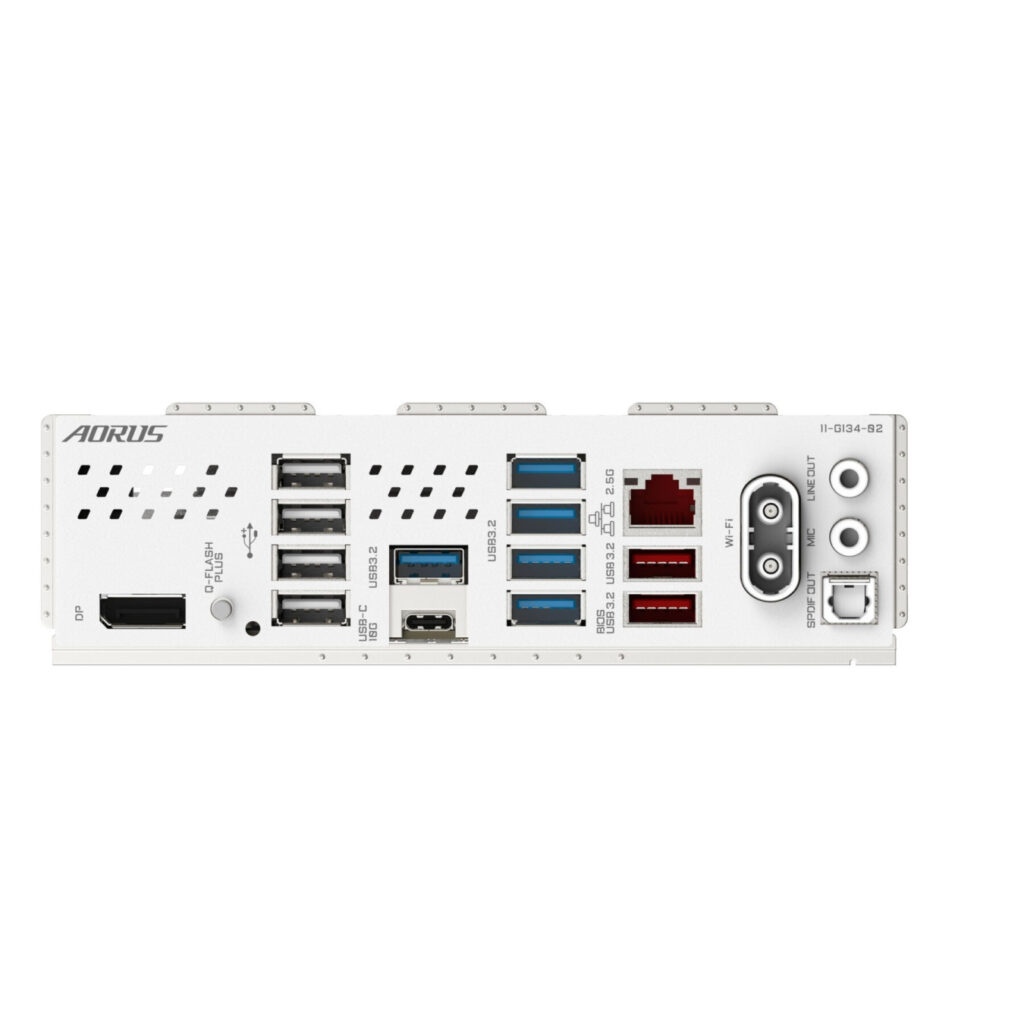

• USB Ports: 5x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2×2 Type-C
• Power Delivery: 24-pin ATX + 4+8 pin CPU with UD Solid Pin connectors
• BIOS: UEFI AMI with Q-Flash Auto Scan and multi-theme UI
• Warranty: 5-year manufacturer warranty
