GIGABYTE B550M-DS3H R2.0 B550 Micro-ATX AM4 DDR4 Motherboard
B550 Micro-ATX AM4 motherboard for AMD Ryzen 3000/4000/5000. Dual-channel DDR4, 4 DIMMs up to 128GB. PCIe 4.0 GPU slot, 2x M.2 (4.0/3.0), 4x SATA, GbE LAN. 3x RGB + 2x ARGB headers.
Доступно через 4–6 рабочих дней : 1 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

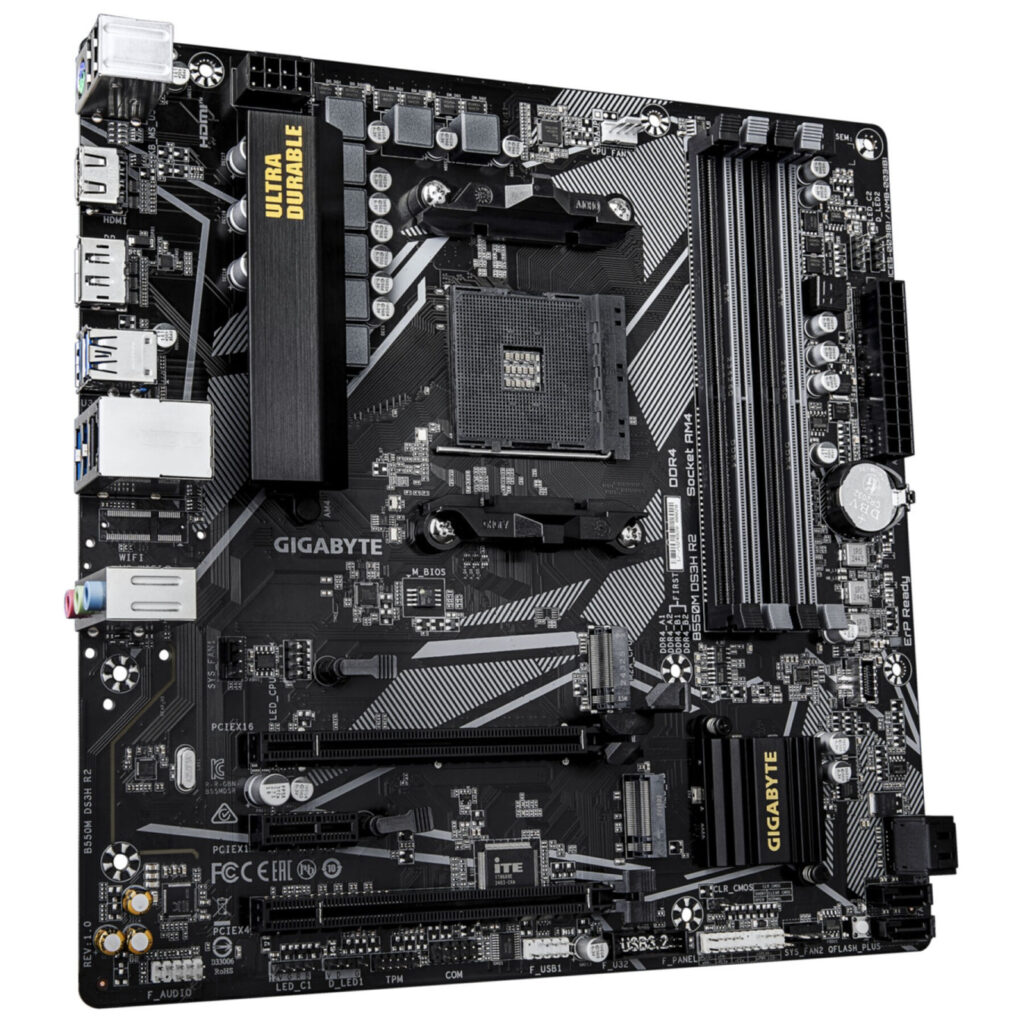

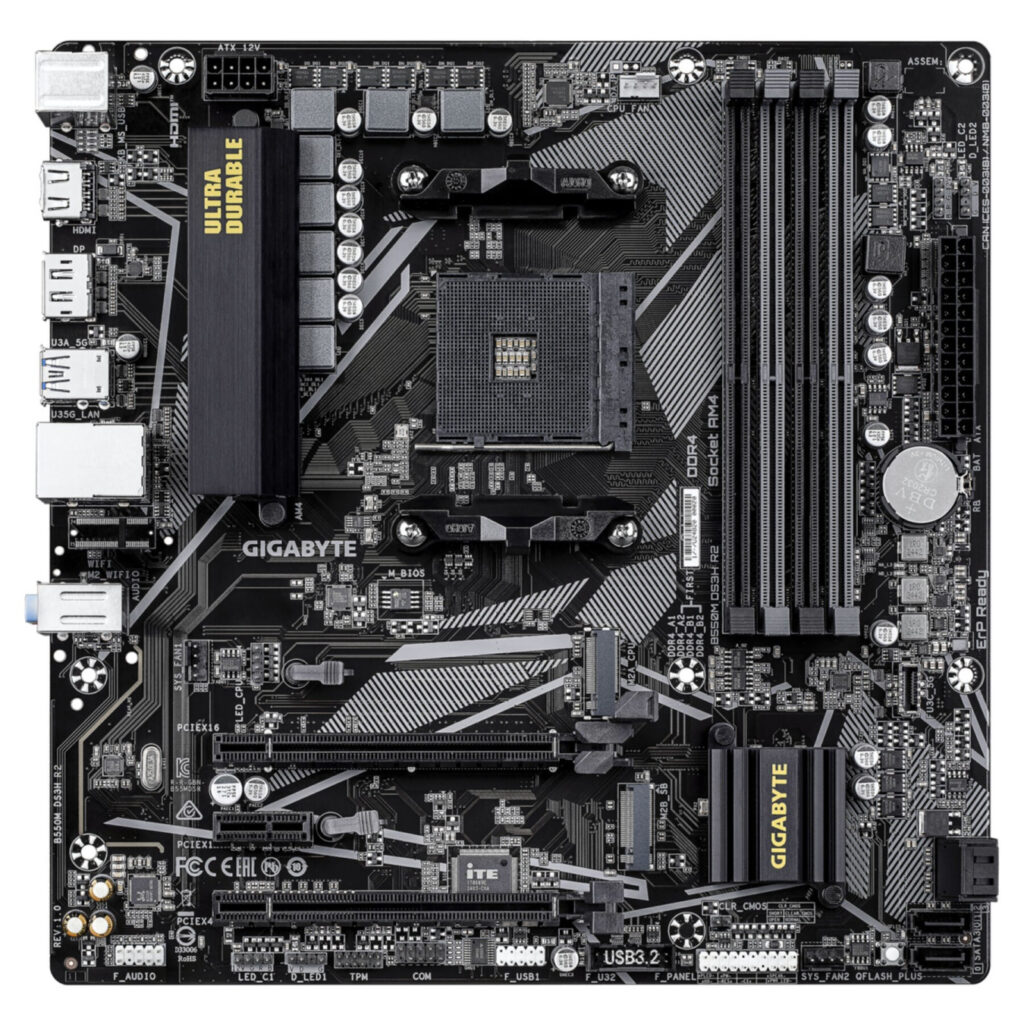

The GIGABYTE B550M-DS3H R2.0 is a reliable Micro-ATX motherboard designed for AMD Ryzen 3000, 4000, and 5000 series processors on Socket AM4. It features a robust 5+3 phases digital VRM for stable power delivery, supporting overclocking on budget builds. Dual-channel DDR4 memory with 4 DIMM slots supports up to 128GB at speeds up to 4733MHz (OC).

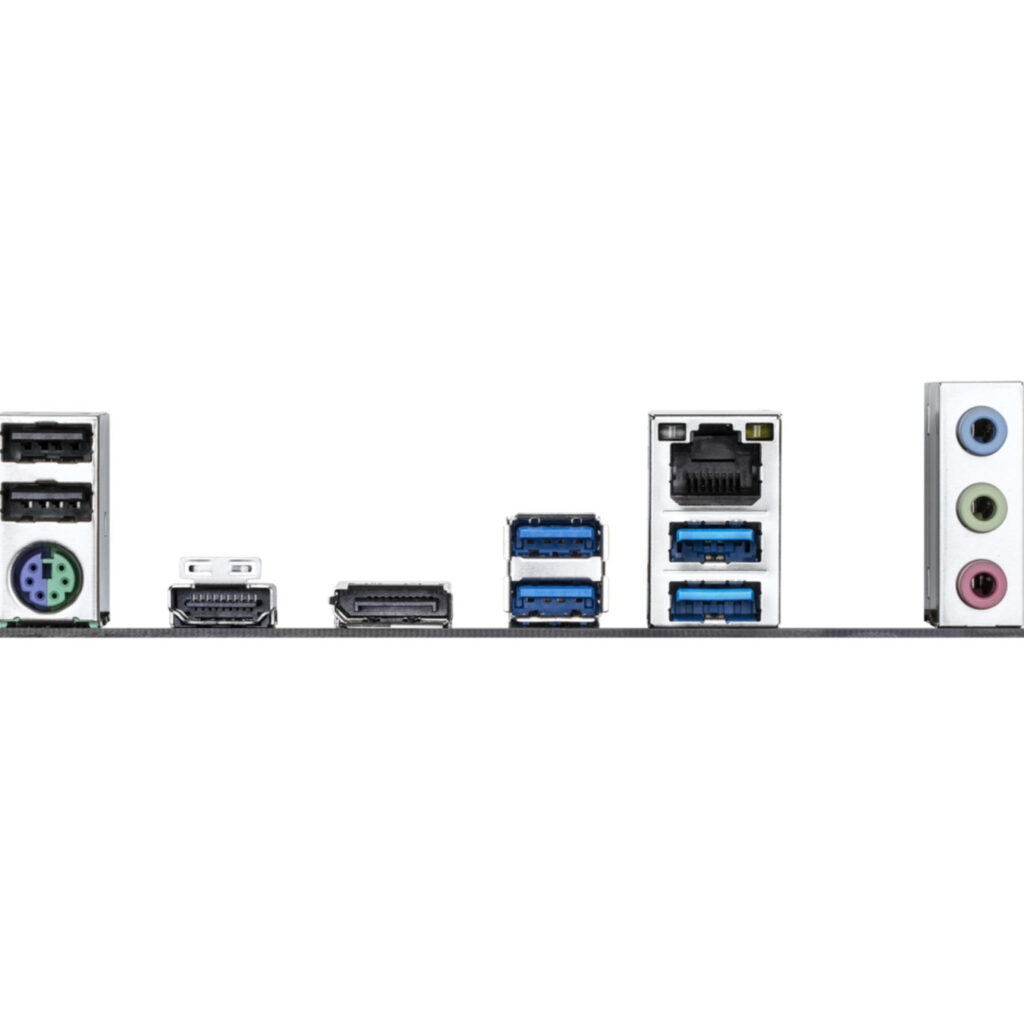

Storage options include 2x M.2 slots (one PCIe 4.0 x4, one PCIe 3.0 x2) and 4x SATA III ports with RAID 0/1/10 support. Connectivity comprises PCIe 4.0 x16 for GPUs, Gigabit Ethernet (Realtek RTL8111H), HDMI 2.1, DisplayPort 1.4, 4x USB 3.2 Gen1, and 2x USB 2.0 rear ports. Audio is handled by Realtek ALC897 with 7.1 channels.
Customization is enhanced with RGB Fusion: 3x 4-pin RGB and 2x 3-pin ARGB headers, plus 3 fan headers for cooling. Ideal for gamers and builders seeking value without WiFi or premium extras.
- ✅ AMD B550 chipset, AM4 socket
- ✅ PCIe 4.0 support for GPU & M.2
- ✅ Up to 128GB DDR4, 4 slots
- ✅ No WiFi, GbE LAN only
- ✅ 3 fan headers, RGB/ARGB ready
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Motherboard chipset | AMD B550 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| RGB LED pin header | Yes (3x RGB, 2x ARGB) |
| Number of chassis fan connectors | 2 (total 3 fan headers) |
| Product colour | Black / Dark brown |
| VRM Design | 5+3 Phases Digital VRM |
| LAN controller | Realtek RTL8111H |
| HDMI version | 2.1 |
| Package weight | 947 g |
| Warranty period | 3 year(s) |
