FSP Vita GM PPA8504214 850W 80+ Gold ATX 3.1 White Fully Modular
850W Fully Modular ATX 3.1 PSU, 80 PLUS Gold certified. Single +12V rail, 12V-2×6 + 4x 6+2 PCIe, white cables. LLC topology, 105°C Jap caps, 120mm HYB fan, compact 140mm depth for high-end PCs.
Доступно через 6–10 рабочих дней : 10 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ATX 3.1 Compliant Powerhouse: The FSP Vita GM PPA8504214 delivers 850W with full support for Intel ATX 3.1 and PCIe 5.1 specs, handling extreme power excursions for next-gen GPUs and CPUs. 80 PLUS Gold efficiency reaches up to 90-93% for minimal heat and noise.
Premium Build & Cooling: Features LLC resonant converter with DC-DC design, 105°C Japanese capacitors, and a quiet 120mm hydraulic bearing fan. Single +12V rail (70.83A) powers demanding workloads; fully modular white cables enhance airflow and aesthetics in white-themed builds. Compact 140 x 150 x 86mm size fits tight cases.

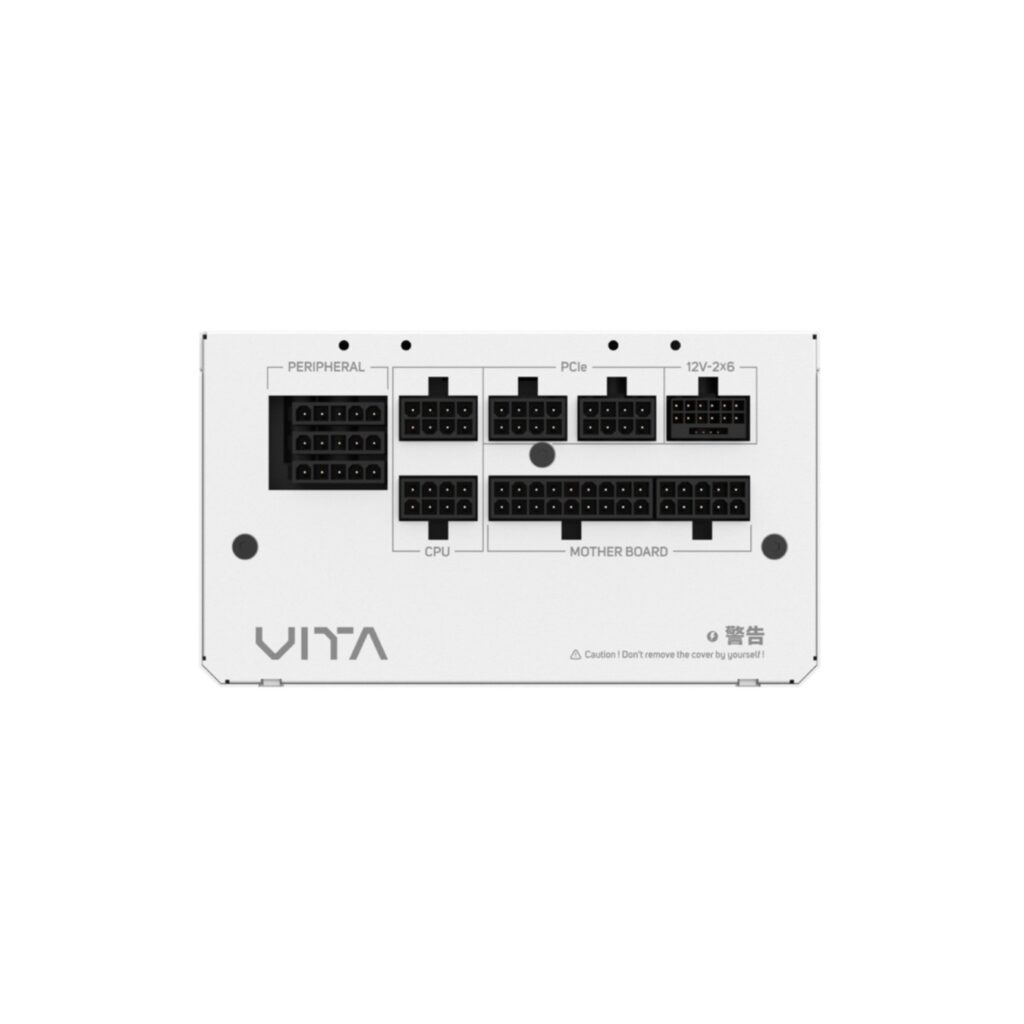

Versatile Connectivity: Includes 20+4pin ATX, dual CPU 4+4pin, 4x PCIe 6+2pin, 12V-2×6 for modern GPUs, 8x SATA, 4x Molex. Fortress protections: OCP/OPP/OVP/SCP/OTP/UVP.
- ✅ 80 PLUS Gold efficiency
- ✅ Fully modular white cables
- ✅ Native 12V-2×6 PCIe 5.1 support
- ✅ Active HYB fan cooling
- ✅ Japanese 105°C capacitors
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 11-5.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| 12V-2x6 connector | 1 |
| CPU power connector (4+4 pin) | Yes (2x) |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | HYB |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cables included | CPU, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
