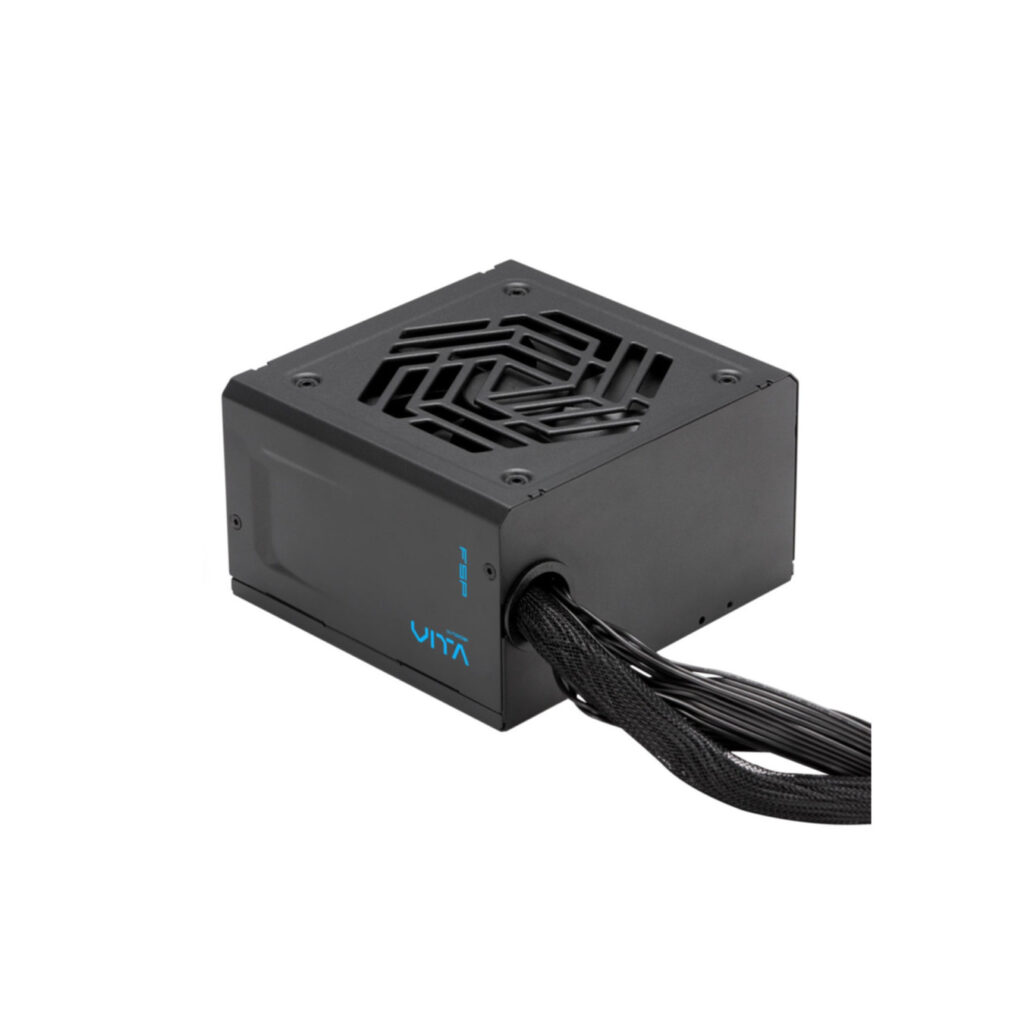

Fortron FSP VITA PPA7508205 750W 80+ Gold ATX 3.1 Non-Modular PSU
750W FSP VITA PPA7508205: 80 PLUS Gold, ATX 3.1 ready, non-modular w/ single +12V rail (62.5A), 4x PCIe 6+2-pin, black flat cables, 105°C Jap caps, compact 140mm, HYB 120mm fan.
Доступно через 6–10 рабочих дней : 100 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ATX 3.1 Ready for Future-Proofing
The Fortron FSP VITA PPA7508205 complies with ATX 3.1 standards, supporting up to 200% power excursions for peak stability with next-gen GPUs and CPUs.
High-Efficiency Design
80 PLUS Gold certified with DC-to-DC +5V/3.3V circuitry and a powerful single +12V rail delivering 750W. Features 105°C Japanese bulk capacitors for reliability under high temps and voltage spikes. Compact 140 x 150 x 86mm size fits tight builds.
Non-modular with premium black flat cables: 20+4pin ATX (60cm), 4+4pin EPS (70cm), 4x 6+2pin PCIe, 8x SATA (500mm), 4x Molex. 120mm HYB fan ensures quiet active cooling.
- ✅ 80 PLUS Gold efficiency (90% typical)
- ✅ Full protections: OCP/OVP/OPP/OTP/SCP/UVP
- ✅ Active PFC, 100-240V universal input
- ✅ Single +12V rail: 62.5A max
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10-5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | HYB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cables included | CPU, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
