DisplayPort Switch - 2 to 1 Bidirectional - 8K
Delock Bidirectional DisplayPort Switch, manual two-mode switch for DisplayPort devices; HDR support, up to 8K resolution; USB-C power socket optional; plastic housing.
Доступно через 6–10 рабочих дней : 200 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

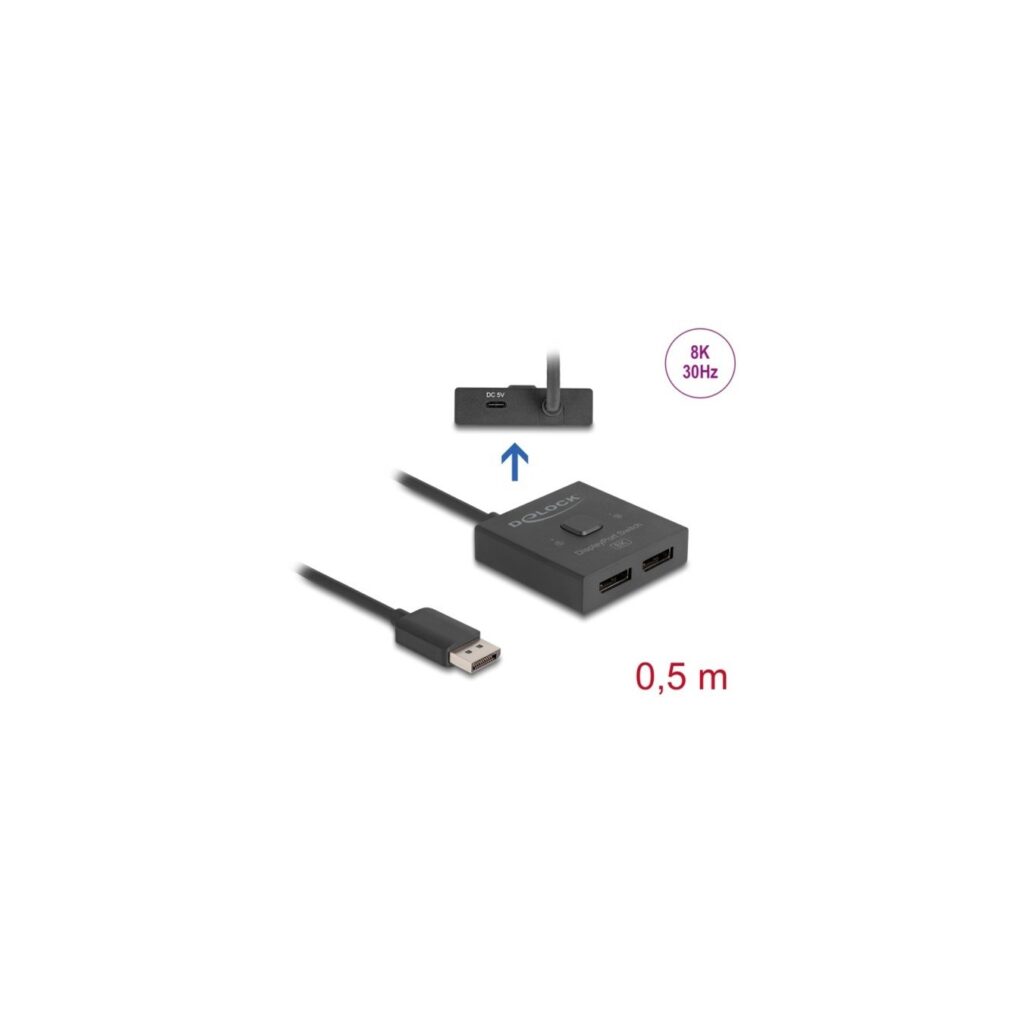

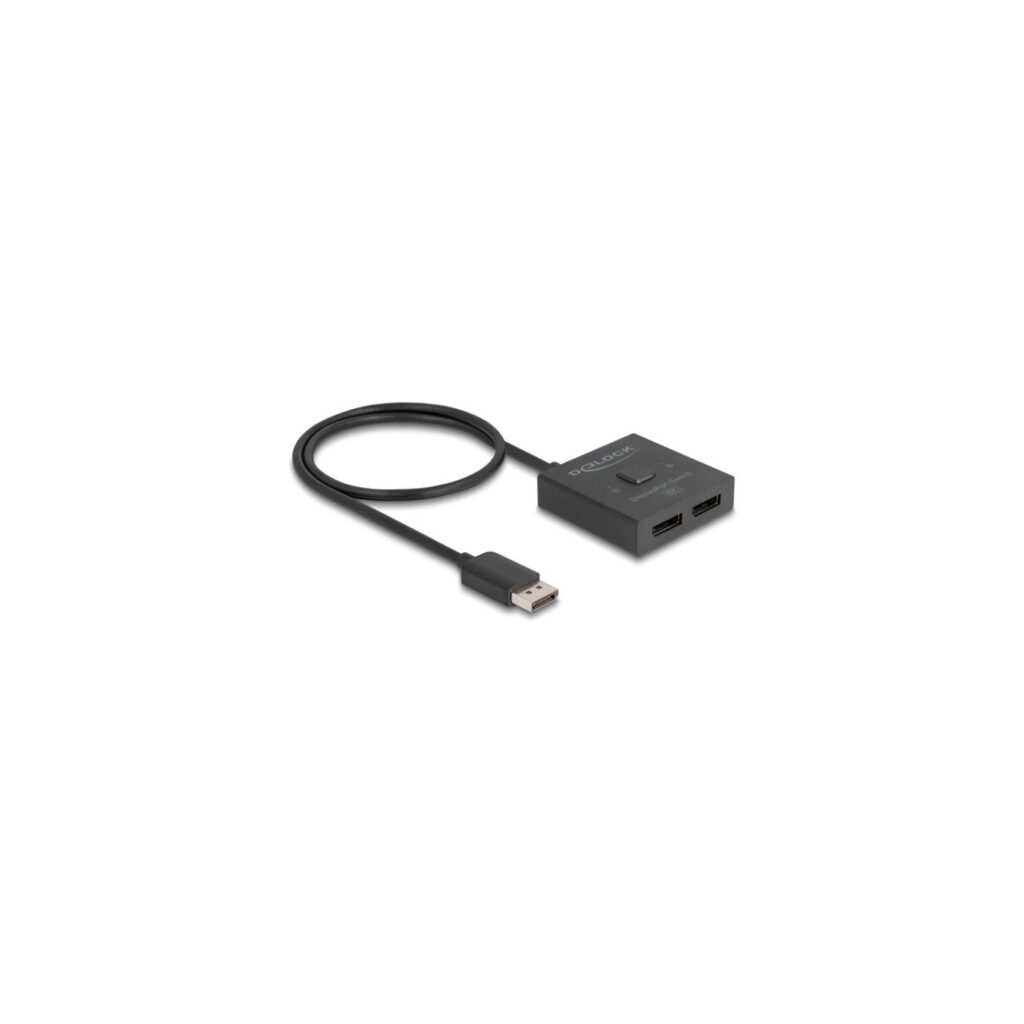

The bidirectional DisplayPort switch 18906 from Delock is a manual switch for connecting various devices with a DisplayPort connection. It offers two different possible uses. On the one hand, up to two devices can be connected to a monitor, TV or projector; at the push of a button you can select the device that is displayed on the screen. On the other hand, a DisplayPort device can be connected to up to two screens; at the push of a button you can select the screen on which the signal is displayed. Simultaneous output on multiple screens is not possible. The switch can be powered via the DisplayPort connector. If a device does not support power supply via DisplayPort, the switch can be powered via the USB-C socket.
| Typ | DisplayPort Switch |
| Color | schwarz |
| EAN | 4043619189069 |
| Manufacturer no. | 18906 |
| Manufactured in | China |
| Area | Audio / Video |
| Connection - from | 1x USB-C (socket), 1x DisplayPort (plug) |
| Video classification | DisplayPort 1.4 |
| taps | 3 |
| Characteristics | extern |
| Feature | Function 1: Input 2x DisplayPort socket, output 1x DisplayPort plug, Function 2: Input 1x DisplayPort plug, output 2x DisplayPort socket |
| More information | USB-C socket (optional for power supply), 1x switch button with LED displays for 1 or 2, supports HDR, resolution up to 7,680 x 4,320 @ 30Hz, 3,840 x 2,160 @ 144Hz (depending on the system and the connected hardware), plastic housing |
| Notice | Simultaneous output on multiple screens is not possible |
| Accessories - available | Instruction manual |
| Dimensions | Width: 55mm x Height: 15mm x Depth/Length: 55mm |
| Cable length | 50 cm |
