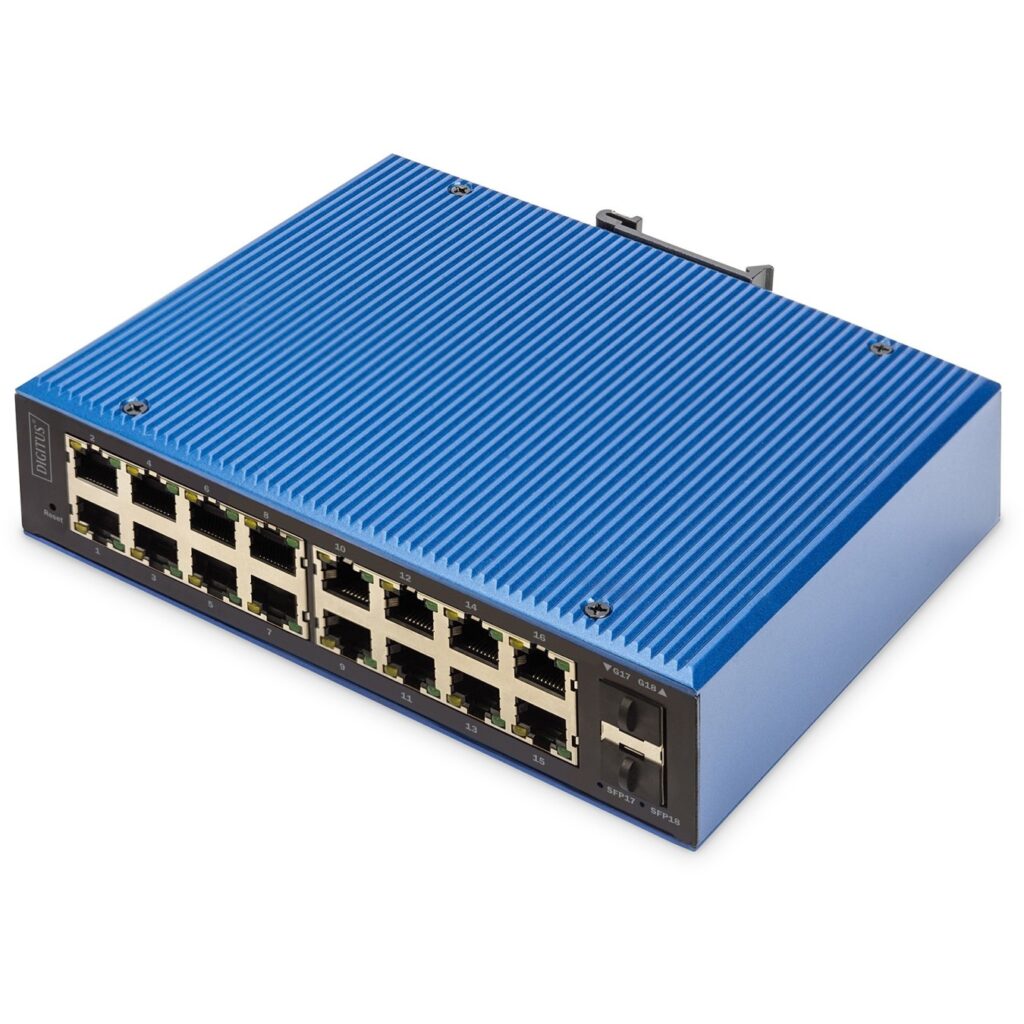

Digitus 16+2P Industrial Gigabit Ethernet Switch L2 Managed - Black/Blue, 16x Gigabit RJ-45 + 2 SFP
485.00 €
Industrial L2 managed switch with 16 Gigabit RJ-45 ports and 2 SFP slots; rugged metal housing, DC 12-48V, wide operating temp (-40 to 80°C), IP40, 15W.
Доступно через 6–10 рабочих дней : 31 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Digitus Industrial 16+2 -Port L2 managed Gigabit Ethernet Switch. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 16. Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries. Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3x. DC input voltage: 12 — 48 V
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Quick start guide |

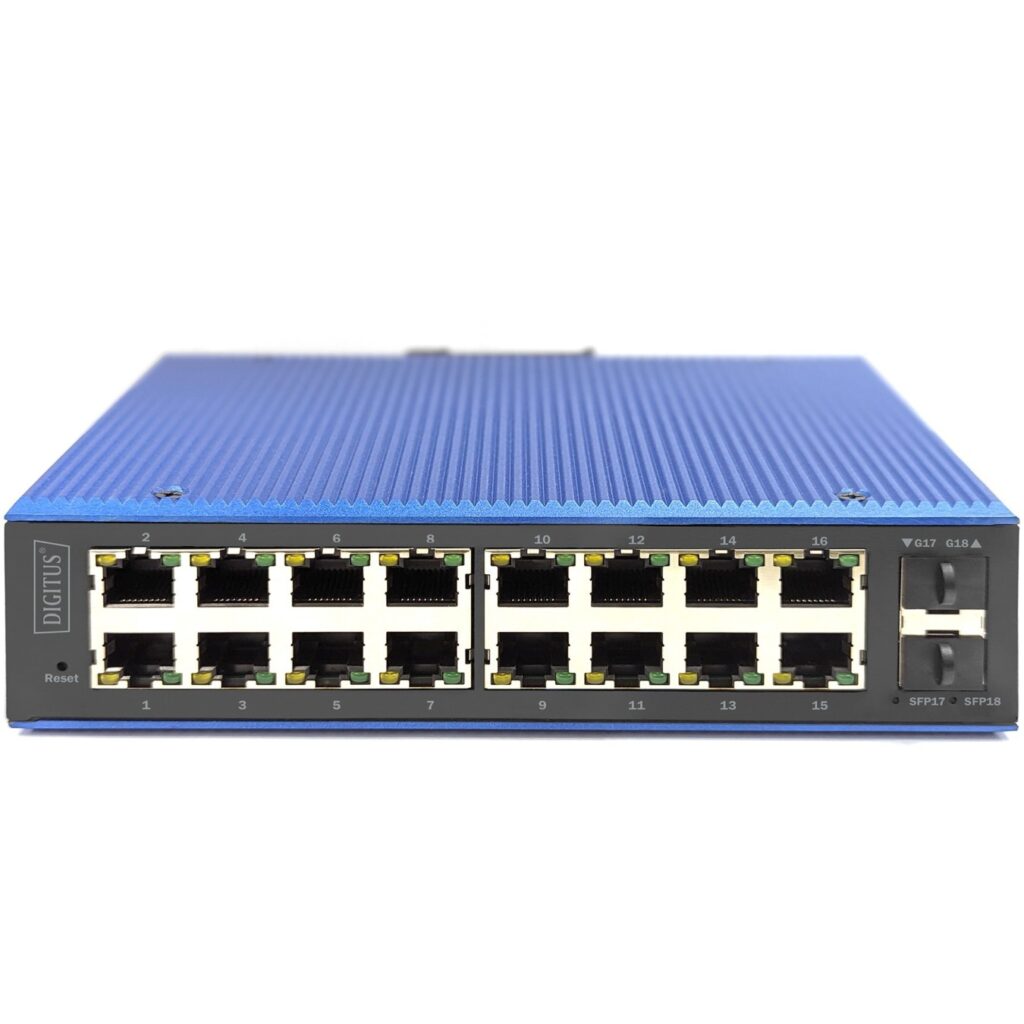

| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP modules quantity | 2 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | IP subnet–based VLAN. MAC address-based VLAN. Port-based VLAN. Protocol-based VLAN. Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 42 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 10240 |
| Packet buffer memory | 4.1 MB |
| Product colour | Black. Blue |
| Housing material | Metal |
| International Protection (IP) code | IP40 |
| Mean time between failures (MTBF) | 300000 h |
| Power source | DC |

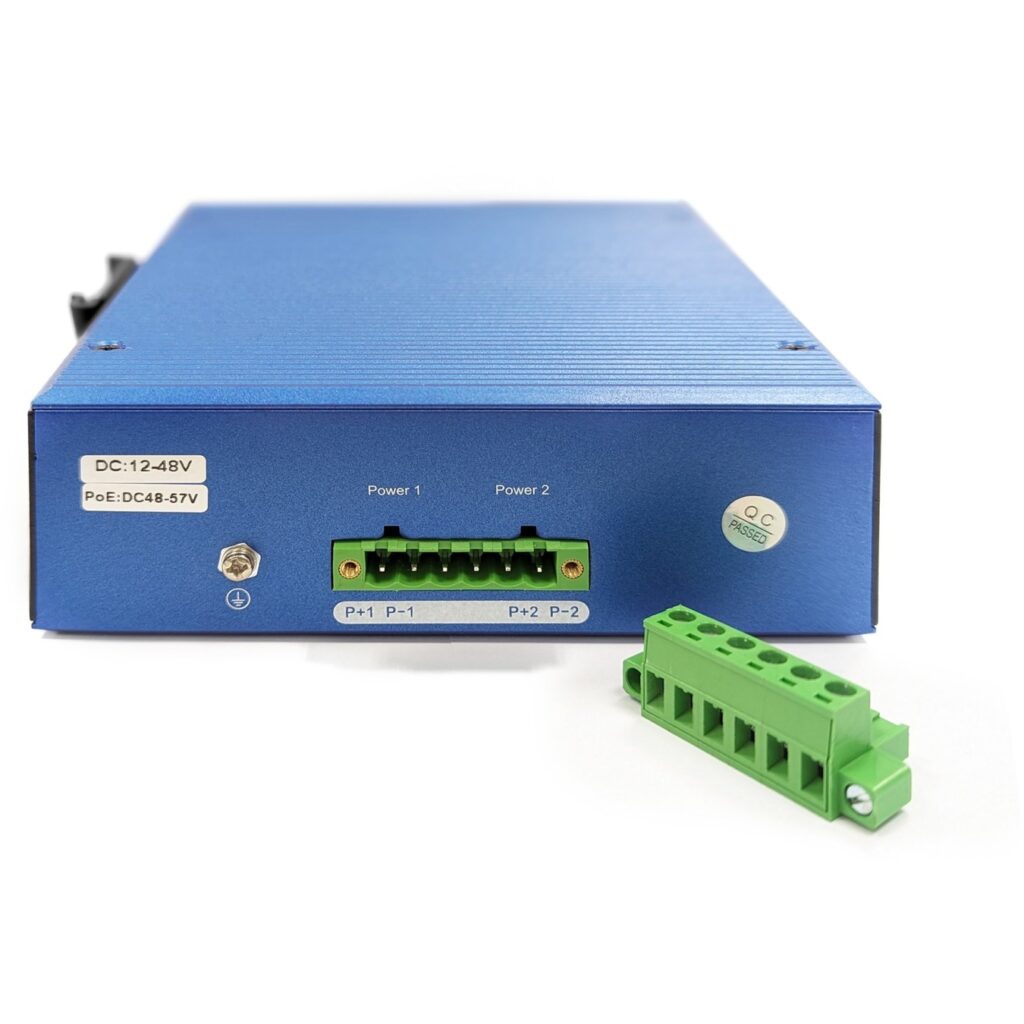

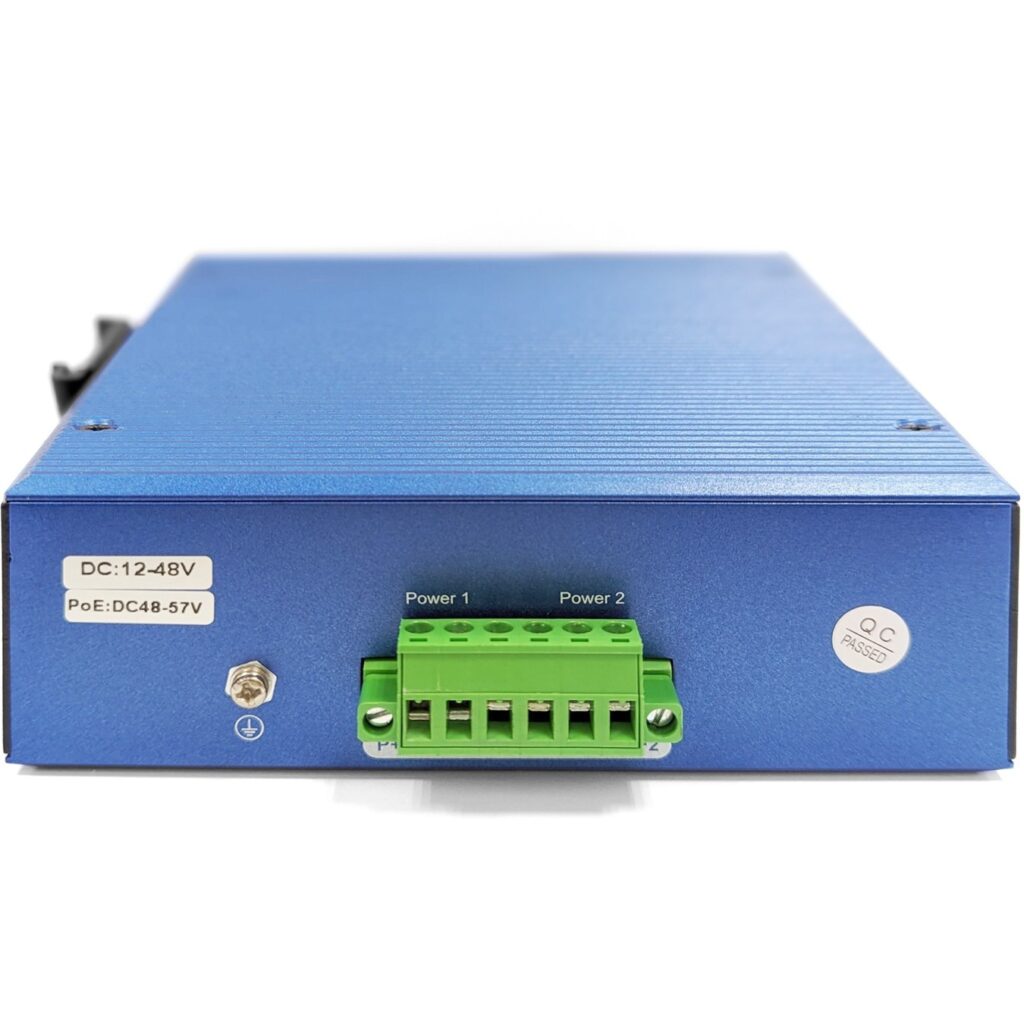

| DC input voltage | 12 - 48 V |
| Power consumption (typical) | 15 W |
| Surge protection voltage | 4 kV |
| Bandwidth | 56 Gbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 175.6 mm |
| Depth | 135 mm |
| Height | 45.5 mm |
| Weight | 1.1 kg |
| Package width | 186 mm |
| Package depth | 72.5 mm |
| Package height | 298 mm |
| Package volume | 4018.53 cm³ |
| Package weight | 685 g |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
