DeepCool CH690 DIGITAL Mid Tower PC Case - Black Tempered Glass ATX - R-CH690-BKDA00
DeepCool CH690 DIGITAL Black Mid Tower PC case. Supports ATX/mATX/Mini-ITX, up to 420mm radiators, 450mm GPUs, 182mm CPU coolers. LCD display for real-time CPU/GPU/PSU monitoring. Tempered glass front/side/rear, no fans included, magnetic dust filters.
Доступно через 6–10 рабочих дней : 20 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068

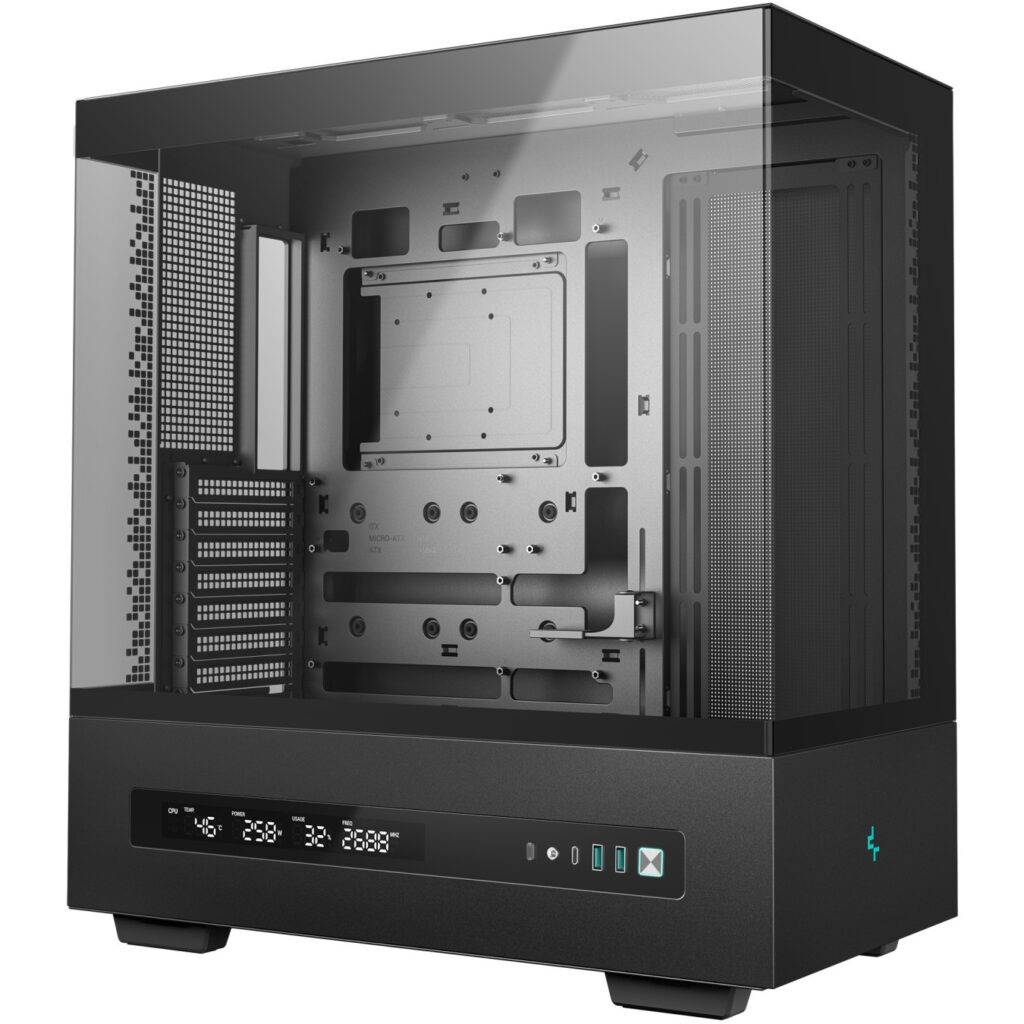

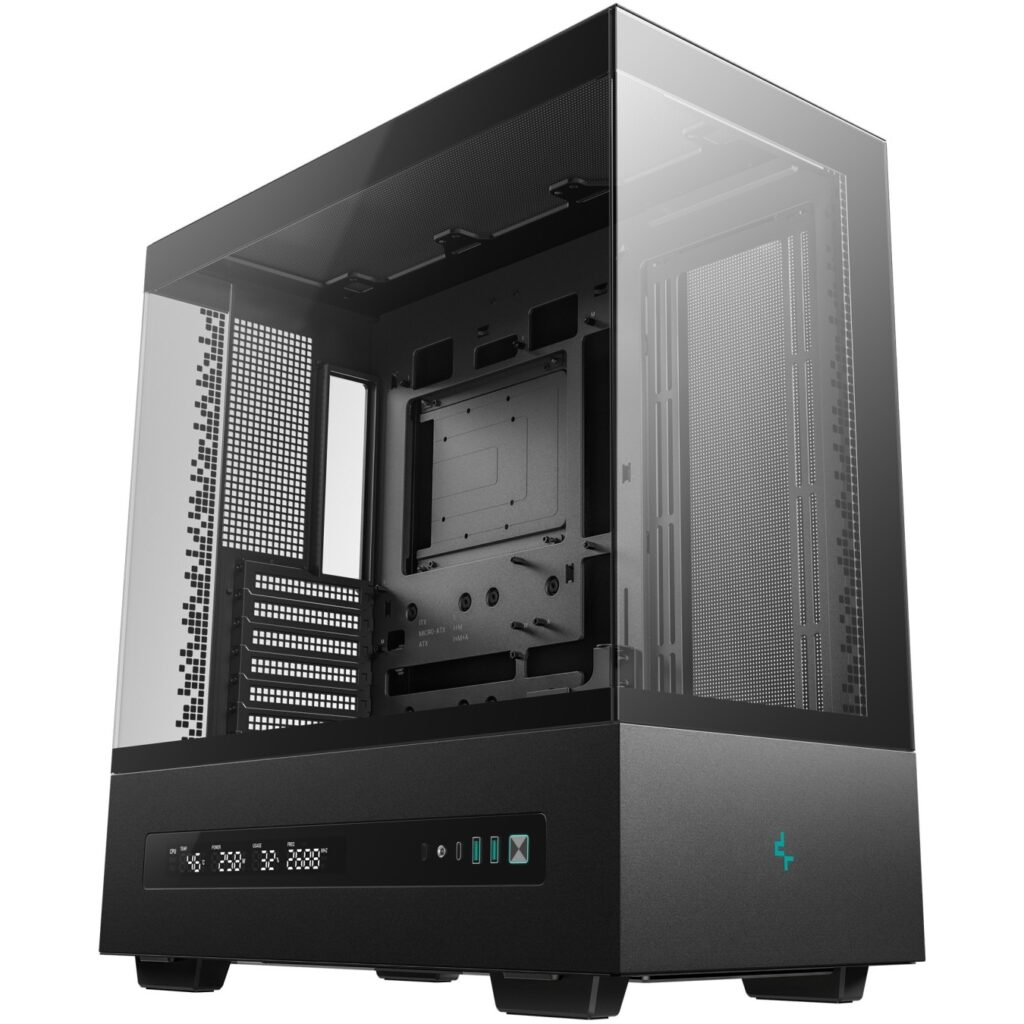

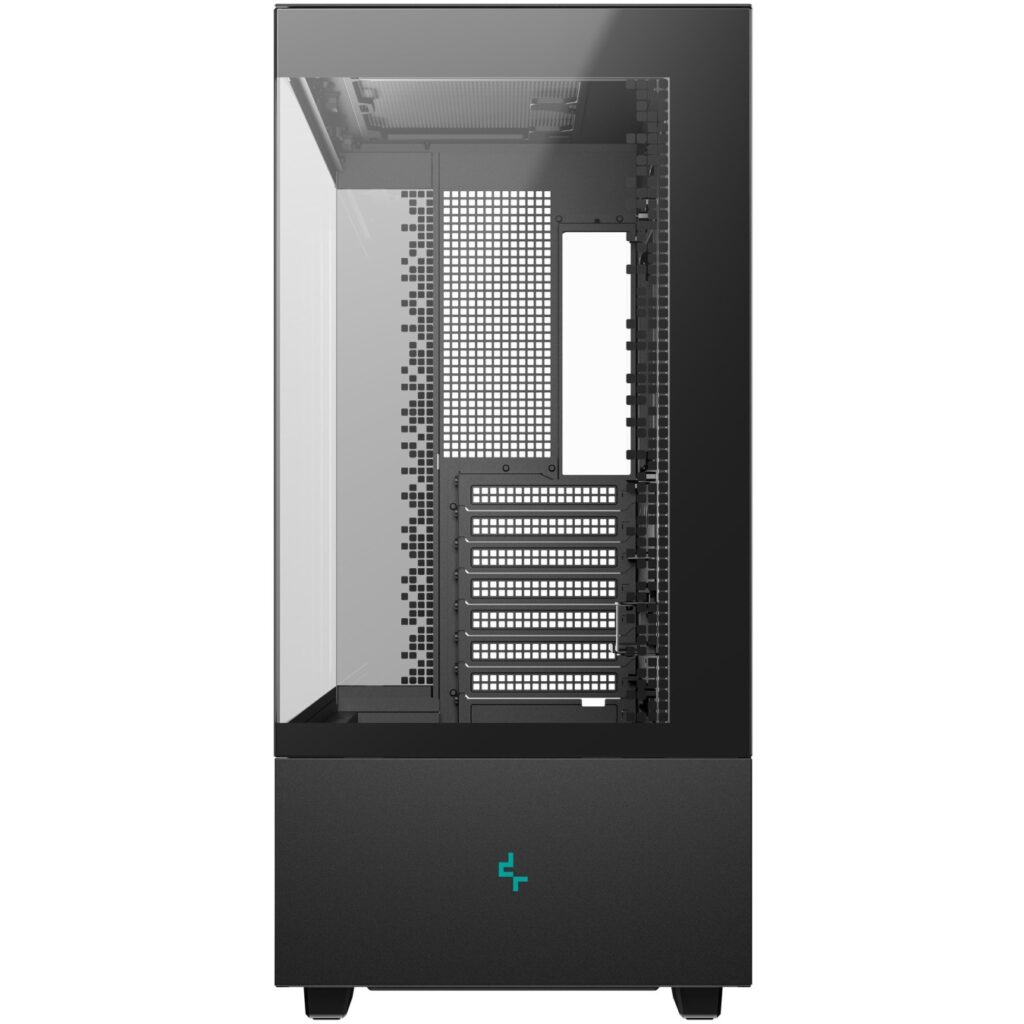

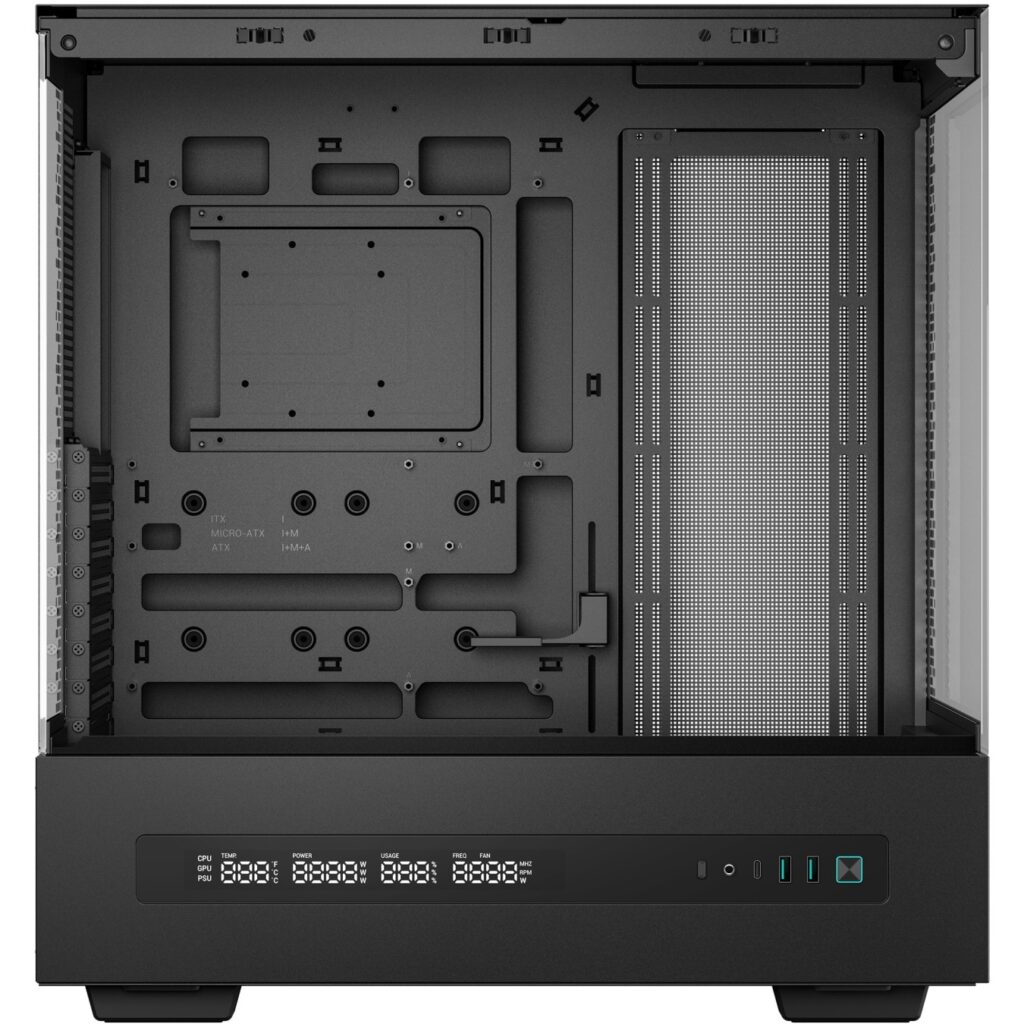

The DeepCool CH690 DIGITAL is a stylish mid-tower PC case designed for gamers and builders seeking a showcase for high-end components. Featuring panoramic tempered glass on the front, side, and rear panels, it provides a stunning 2.5-sided view of your RGB-lit build. A built-in LCD digital display on the front offers real-time monitoring of CPU, GPU, and PSU data with switchable modes for at-a-glance performance insights.

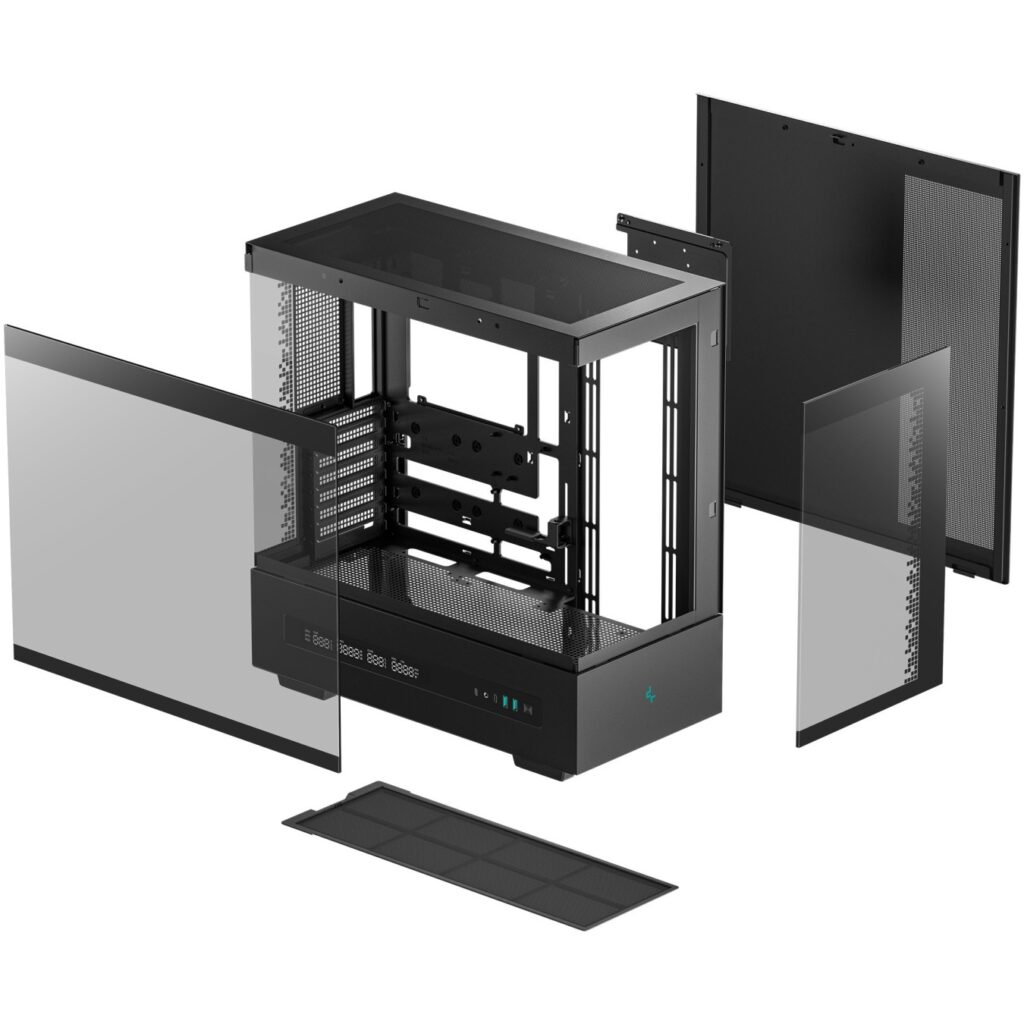

Built for flexibility, it supports ATX, micro ATX, and Mini-ITX motherboards, with generous clearances: 450mm GPU length, 182mm CPU cooler height, and 180mm PSU. Cooling options are extensive, including up to 420mm top radiators, 360mm bottom, 280mm side, plus fan mounts for 3x top/side/bottom, 1x rear. Quality features include magnetic dust filters, adjustable GPU holder, 36.5mm cable management space, and tool-less panels. Front I/O: 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C, audio combo jack.
- Motherboard: ATX / mATX / Mini-ITX
- Cooling: 420mm radiator support, multiple fan positions
- Dimensions: 240 x 481 x 516 mm (9.8 kg net)
- Included: No fans, modular rear airflow panel
- Display: LCD real-time monitoring
| Material | Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| Form factor | Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5 | 1 |
| Number of 2.5 | 3 |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 18.2 cm |
| Maximum graphics card length | 45 cm |
| Maximum PSU length | 18 cm |
| Power supply location | Bottom |
| Supported power supply form factors | ATX, PS2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Display type | LCD |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 140 mm |
| Side radiator sizes supported | 120,140,240,280 mm |
| Bottom radiator sizes supported | 120,240,360 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Supported HDD sizes | 2.5,3.5 |
| SSD form factor | 2.5 |
| Width | 240 mm |
| Depth | 481 mm |
| Height | 516 mm |
| Weight | 9.8 kg |
| Included Fans | 0 |
| Cable management space | 36.5 mm |
| Front panel material | Tempered glass |
| Side panel material | Tempered glass |
| Rear panel | Tempered glass (modular mesh option) |
