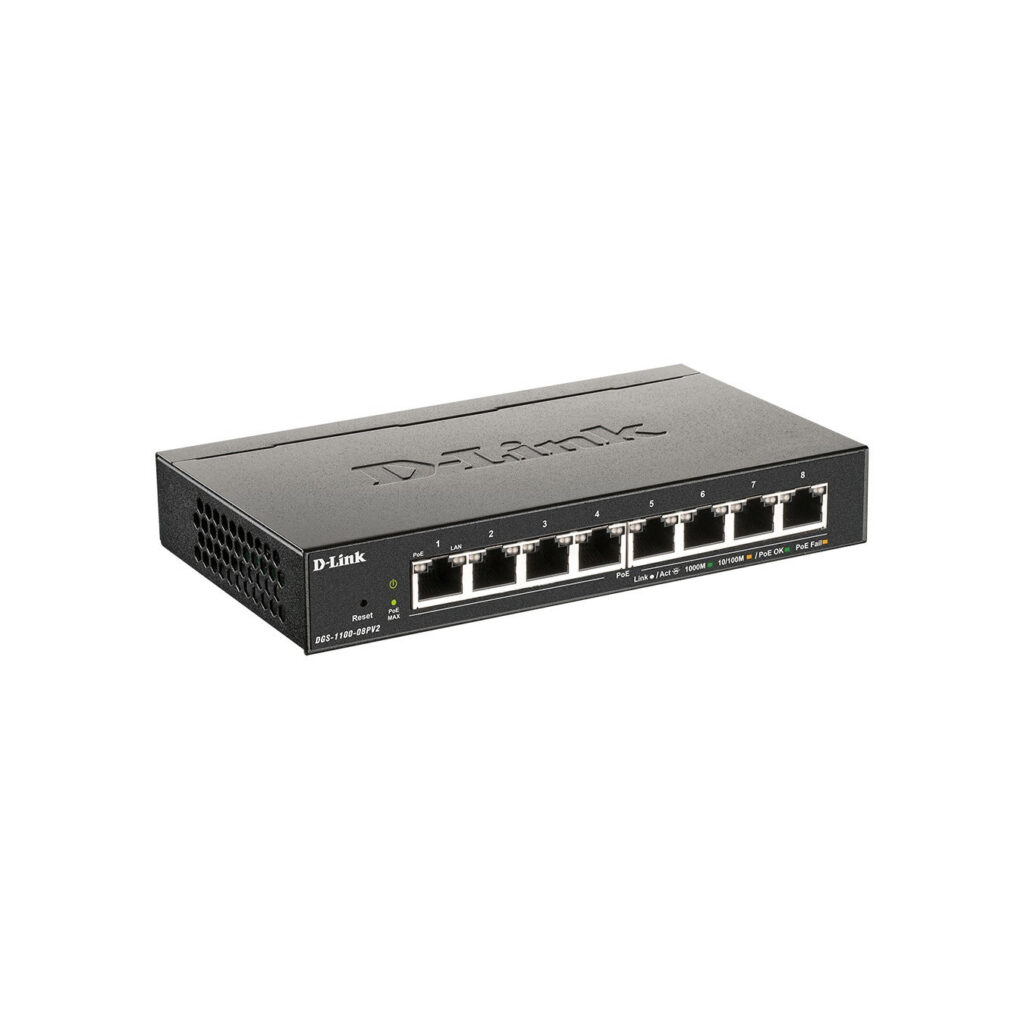

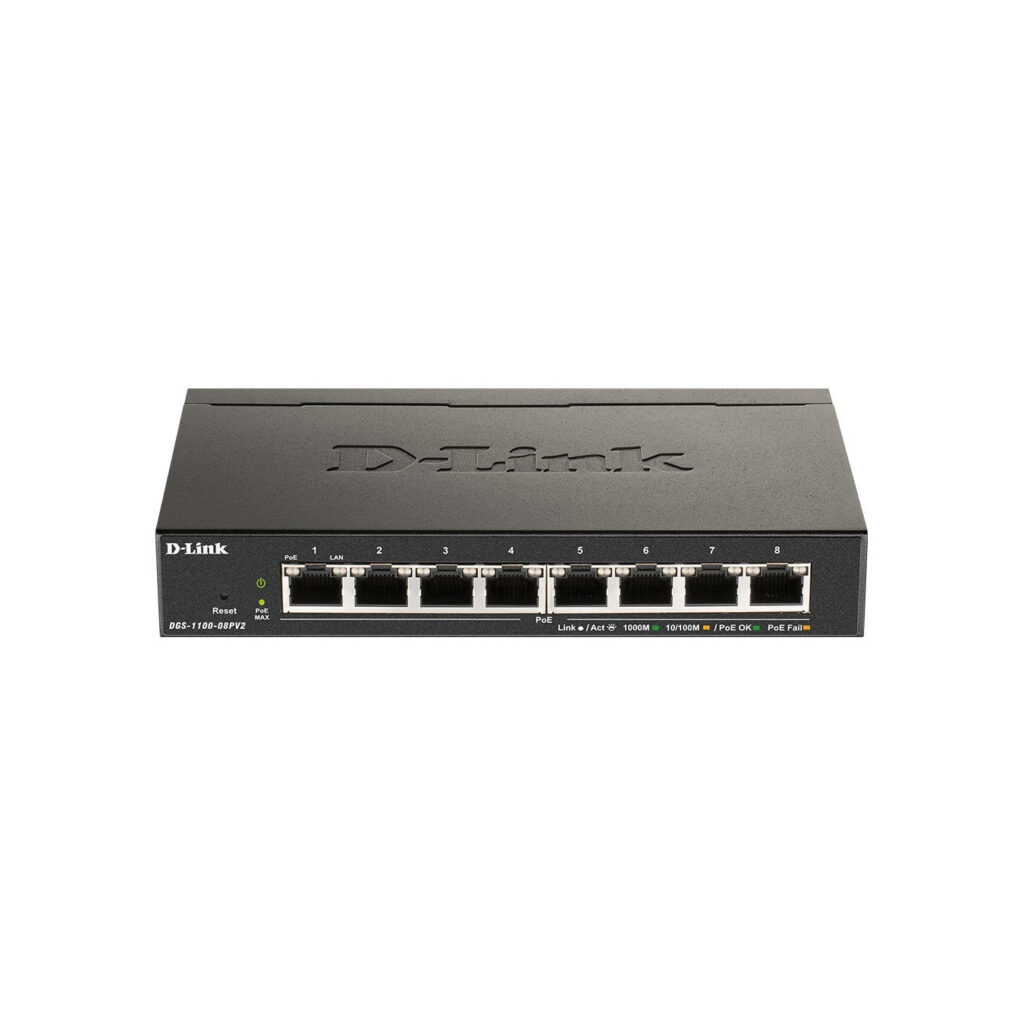

D-Link DGS-1100-08PV2 - 8-Port Gigabit Managed L2/L3 PoE+ Switch
D-Link DGS-1100-08PV2 — 8× Gigabit RJ45 managed L2/L3 PoE+ switch. 30W per port, 64W total PoE budget, 16 Gbps switching, VLAN/QoS, compact black design.
Доступно через 6–10 рабочих дней : 69 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
D-Link DGS-1100-08PV2. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4096 entries. Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE…. Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | Port-based VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4096 entries |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Queue scheduling algorithms | SP. Weighted Round Robin (WRR) |
| Product colour | Black |
| Flash memory | 2 MB |
| Mean time between failures (MTBF) | 786841 h |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 77.9 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 64 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 265.85 BTU/h |
| Width | 171 mm |
| Depth | 97.8 mm |
| Height | 28.6 mm |
| Weight | 430 g |
| Compliance certificates | CE. RoHS |
| Certification | FCC Class B. CE Class B. VCCI Class B. BSMIcUL. CE LVD. CB. BSMI |
