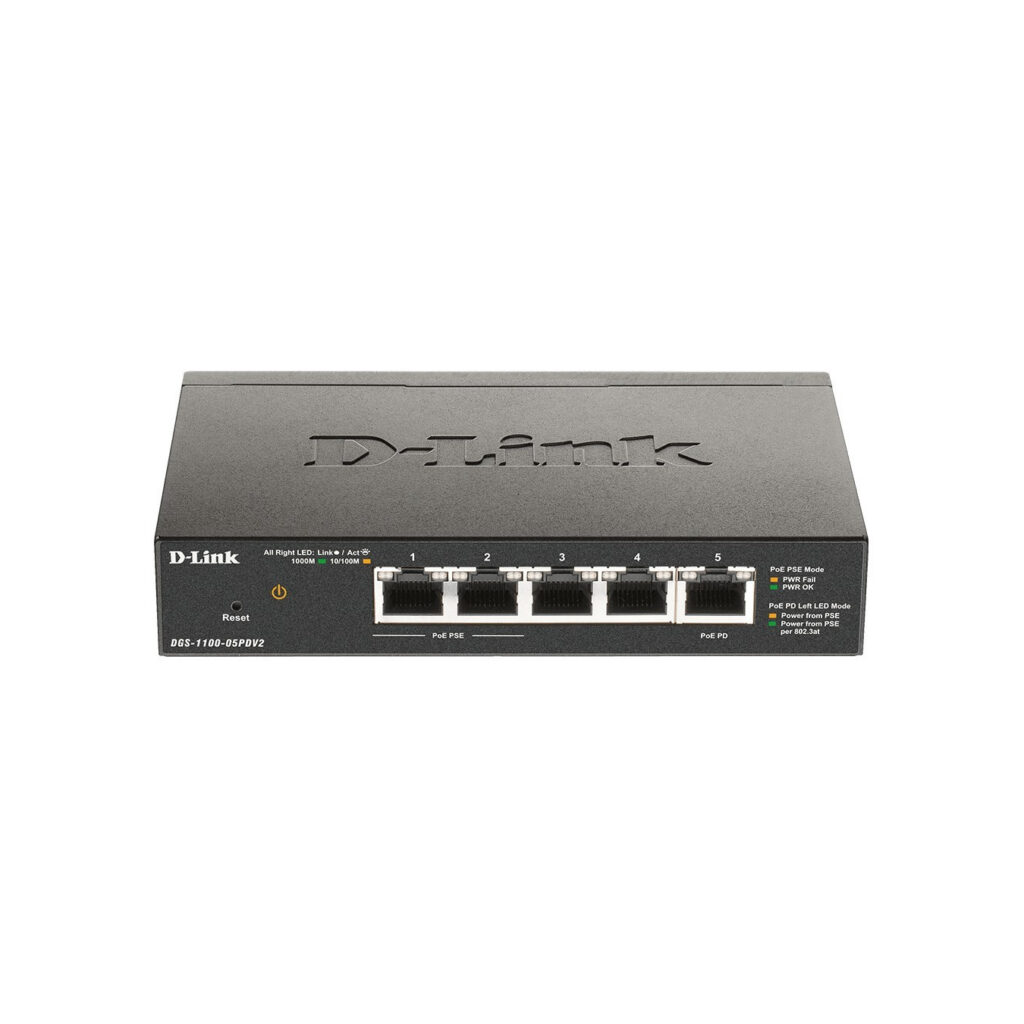

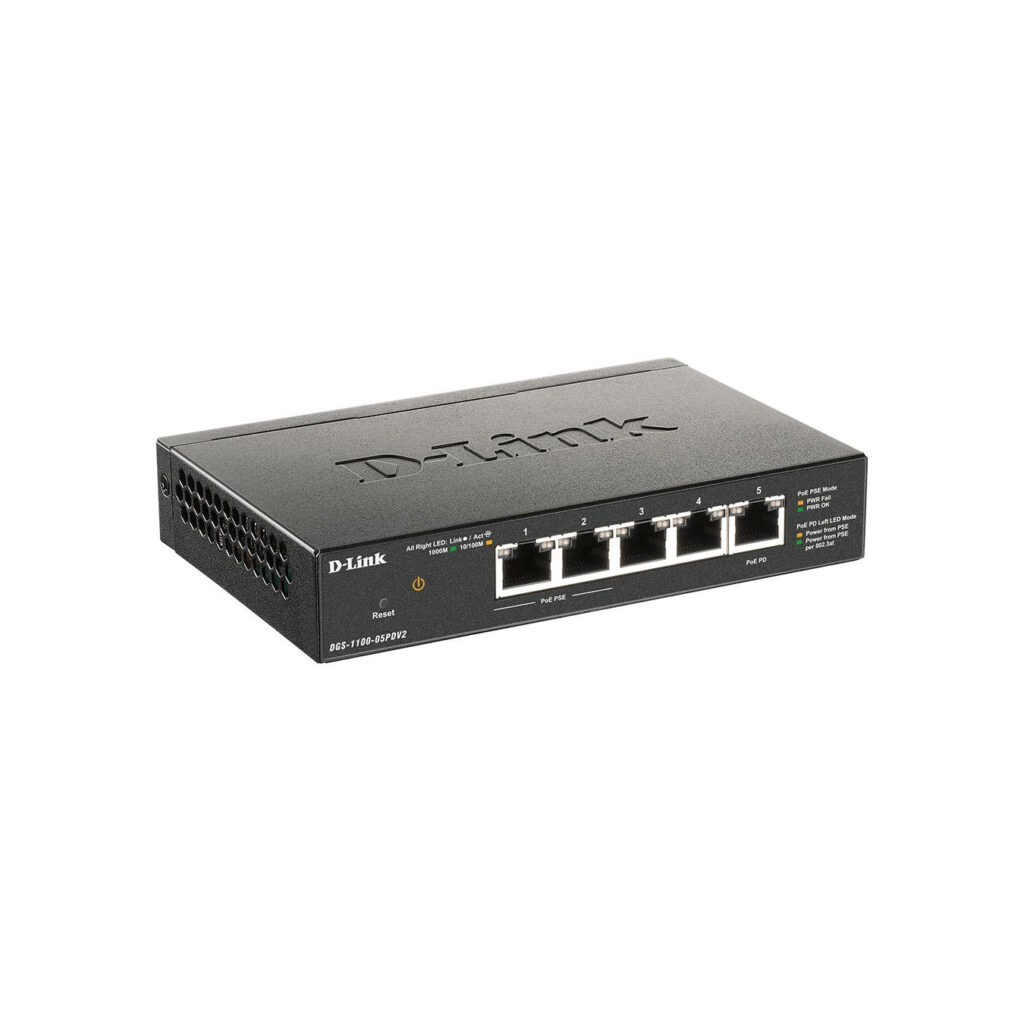

D-Link DGS-1100-05PDV2 - 5-Port Gigabit Smart PoE Switch (2 PoE ports, 18W/port) - Black
Compact 5-port Gigabit Smart (web-managed) PoE switch with 2 PoE ports (18W/port), 1 PD port, L2 features (VLAN, QoS), fanless desktop design.
Доступно через 6–10 рабочих дней : 31 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. Power over Ethernet (PoE)
| Switch type | Managed |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x |
| Ethernet LAN data rates | 10000 Mbit/s |
| Virtual LAN features | Management VLAN. Port-based VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Number of trunks | 1 |
| Number of queues | 4 |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
| DHCP features | DHCP client |
| IGMP entries | 128 |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address entries | Static MAC address entries |
| Product colour | Black |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 2357475 h |
| Power source | PoE |
| Power consumption (typical) | 3.24 W |
| Power consumption (max) | 24.08 W |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power over Ethernet (PoE) power per port | 18 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 150 mm |
| Depth | 97 mm |
| Height | 28 mm |
| Weight | 380 g |
| Compliance certificates | BSMI. CB. Federal Communications Commission (FCC). Low Voltage Directive (LVD). VCCI |
| Harmonized System (HS) code | 85176990 |
