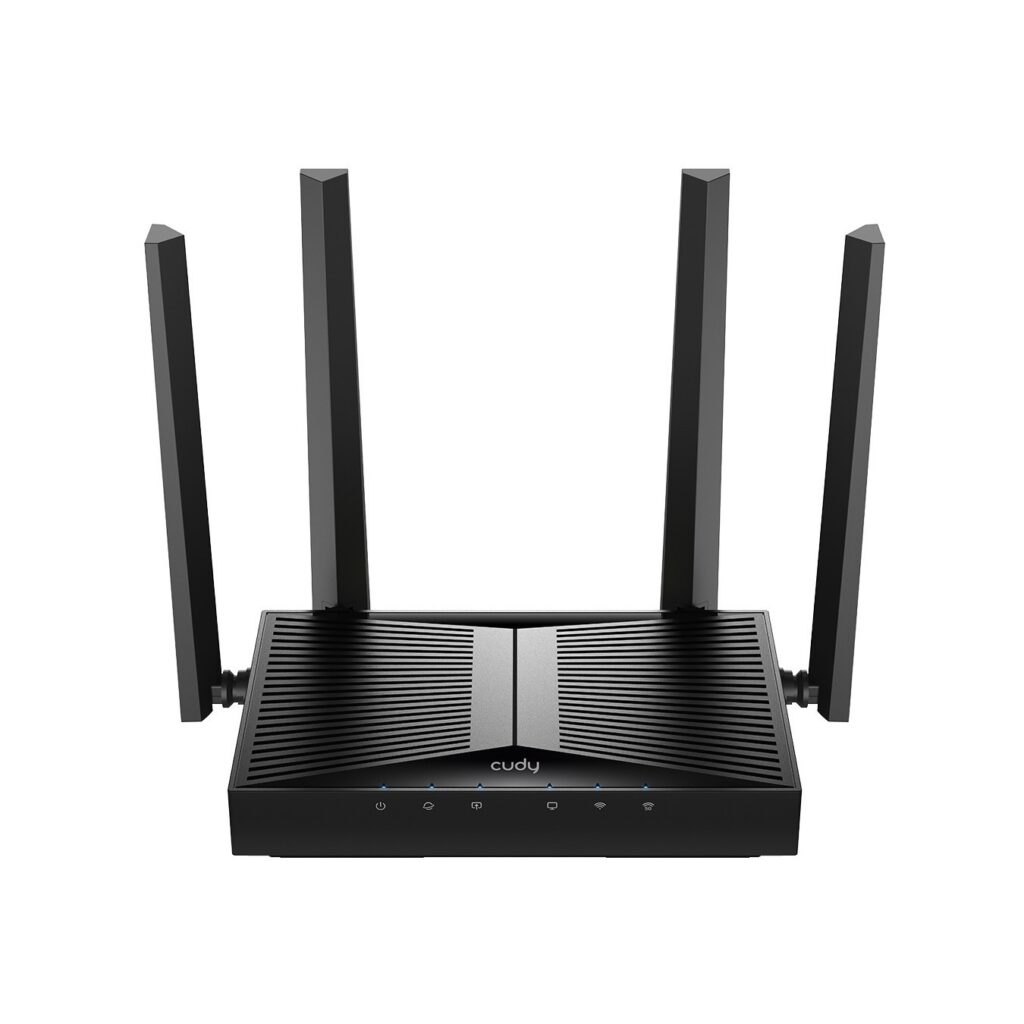

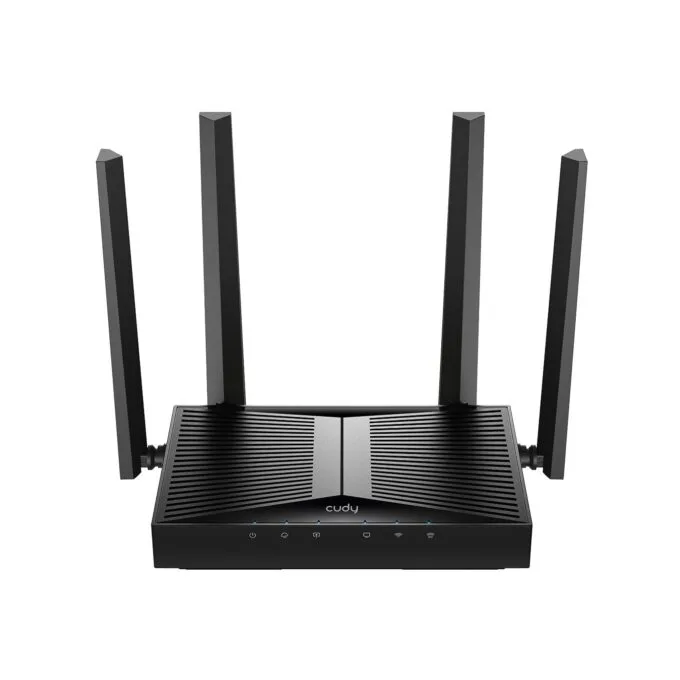

Cudy WR3600 BE3600 Wi-Fi 7 Dual-Band Gigabit Router
Cudy WR3600 BE3600 Wi-Fi 7 dual-band mesh router with 3.6 Gbps aggregate speed, 5 Gigabit ports, beamforming, OFDMA, and WPA3 security for gaming and large homes.
Доступно через 2–3 рабочих дней : 5 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Cudy WR3600 BE3600 is a dual-band Wi-Fi 7 router delivering 3.6 Gbps aggregate wireless speed (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz). Featuring a Broadcom quad-core 2 GHz processor and 512 MB DDR3L RAM, this router supports up to 200 recommended connected devices with a maximum capacity of 512 devices. The device includes 5 Gigabit Ethernet ports (1 WAN + 4 LAN) and supports Cudy Mesh for seamless network expansion.
Advanced Wi-Fi 7 technologies include OFDMA with Multi-RU for intelligent frequency allocation, Preamble Puncturing for interference resilience, and beamforming for optimized signal delivery. The router operates across 160 MHz channel width with 4K-QAM modulation and provides maximum range of 220 meters in open-space environments. Security is ensured through WPA/WPA2/WPA3 protocols, with additional features including dual guest networks (2.4 GHz and 5 GHz), WPS, and per-user QoS rate limiting.
Key specifications:
- Wi-Fi Standard: Wi-Fi 7 (802.11be)
- Bands: Dual-band (2.4 GHz / 5 GHz)
- Processor: Broadcom Quad-Core 2 GHz ARM Cortex A7
- Memory: 512 MB DDR3L RAM, 128 MB Flash
- Antennas: 4× Fixed external antennas (2T2R MIMO per band)
- Power: 12V/1A DC input (100-240V AC)
- Operating Temperature: 0-40°C
- Dimensions (Device): 183.3 × 109 × 38 mm
- Weight (Device): 332g
| WAN Connection Type | RJ-45 Gigabit Ethernet |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Bands | Dual-band (2.4 GHz / 5 GHz) |
| 5 GHz Speed | 2882 Mbps |
| 2.4 GHz Speed | 688 Mbps |
| Aggregate Speed | 3.6 Gbps |
| 5 GHz Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Streams | 2T2R (2×2 MIMO) |
| Max Wi-Fi Channel Width | 160 MHz |
| Max Wi-Fi Modulation | 4K-QAM |
| Antennas Quantity | 4 |
| Antenna Design | Fixed External |
| Antenna Gain Level (Max) | 5.5 dBi |
| Beamforming | Yes |
| OFDMA | Yes (Multi-RU) |
| Preamble Puncturing | Yes |
| Range Performance | Max 220 m (722 ft) in open-space environments |

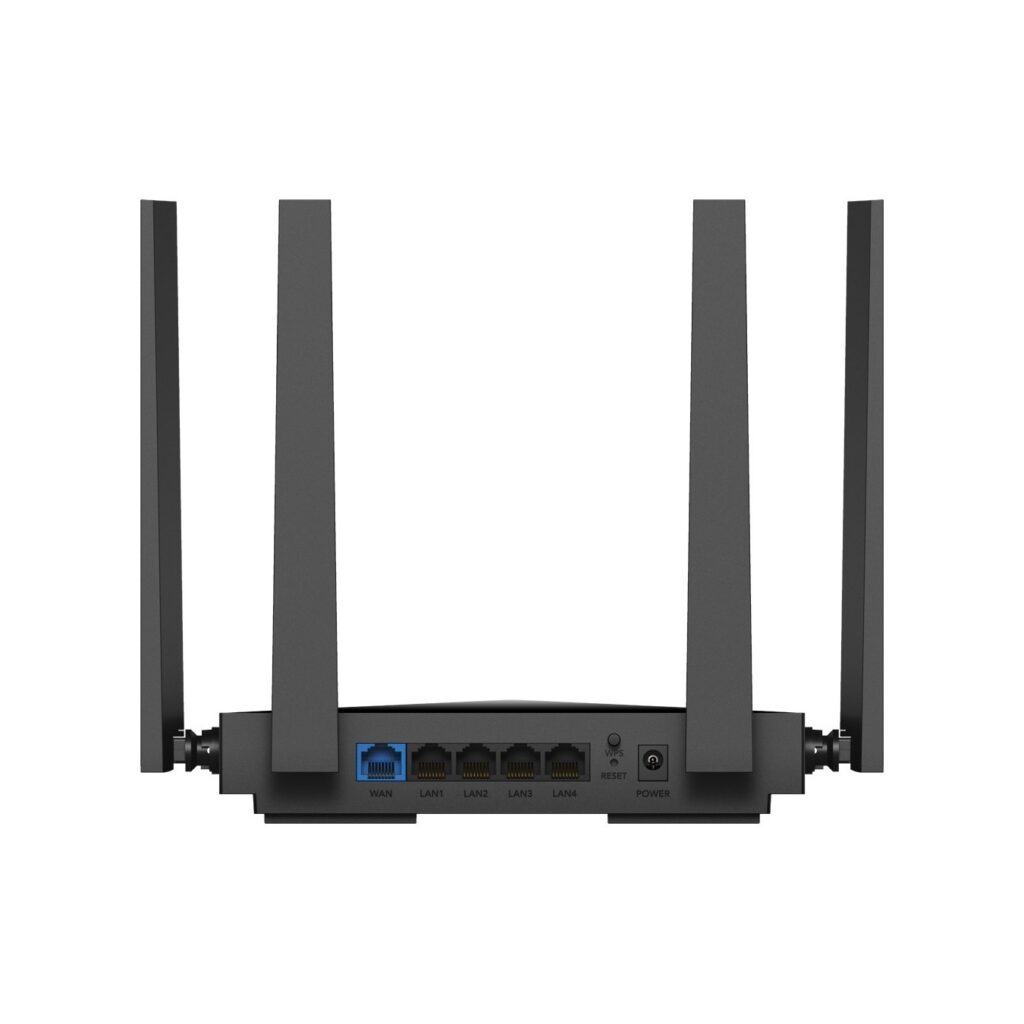

| LAN Ports | 5 Gigabit Ethernet (1 WAN + 4 LAN) |
| Ethernet LAN Data Rates | 10, 100, 1000, 2500 Mbps |
| Max Capacity | 512 devices |
| Recommended Client Upper Limit | 200 devices |
| Security Algorithms | WPA, WPA2, WPA3 |
| Guest Network | Yes (2.4 GHz and 5 GHz) |
| WPS | Yes |
| QoS | Per-User Rate Limiting |
| Mesh Support | Cudy Mesh |
| Multi-Band Backhaul | Yes |
| Processor | Broadcom Quad-Core 2 GHz ARM Cortex A7 |
| RAM | 512 MB DDR3L |
| Flash Memory | 128 MB |
| Power Input | 12V/1A DC (100-240V AC, 50/60 Hz) |
| Operating Temperature | 0-40°C |
| Storage Temperature | -40-70°C |
| Operating Humidity | 10-90% |
| Storage Humidity | 5-90% |
| Device Width | 183.3 mm |
| Device Depth | 109 mm |
| Device Height | 38 mm |
| Device Weight | 332 g |
| Product Type | Tabletop Router |
| Product Color | Black |
| LED Indicators | LAN, Power, WAN, WLAN |
| Compliance Certificates | CE, FCC |

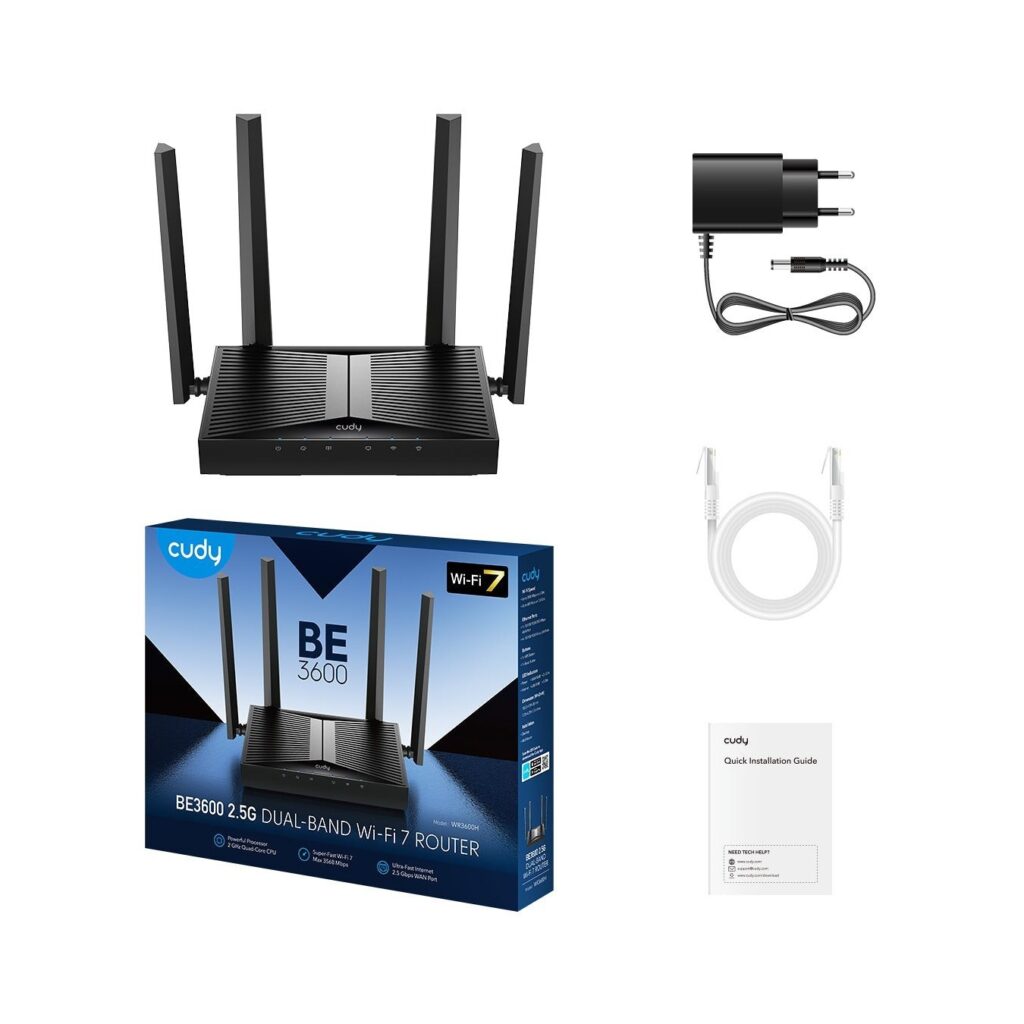

| Cables Included | LAN (RJ-45) |
