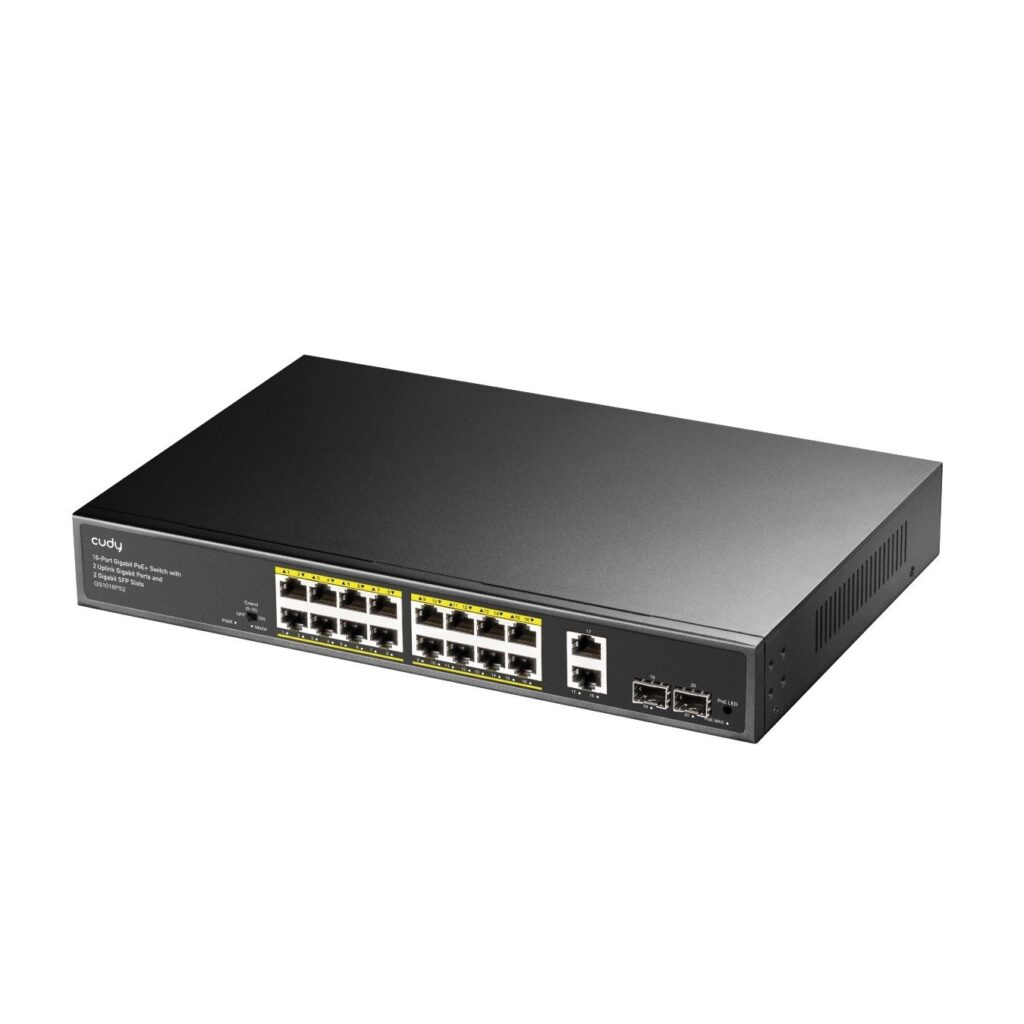

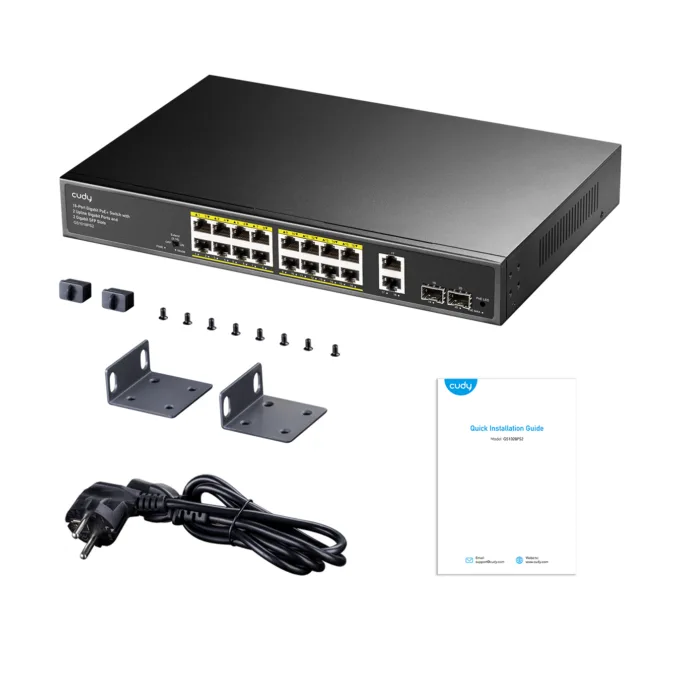

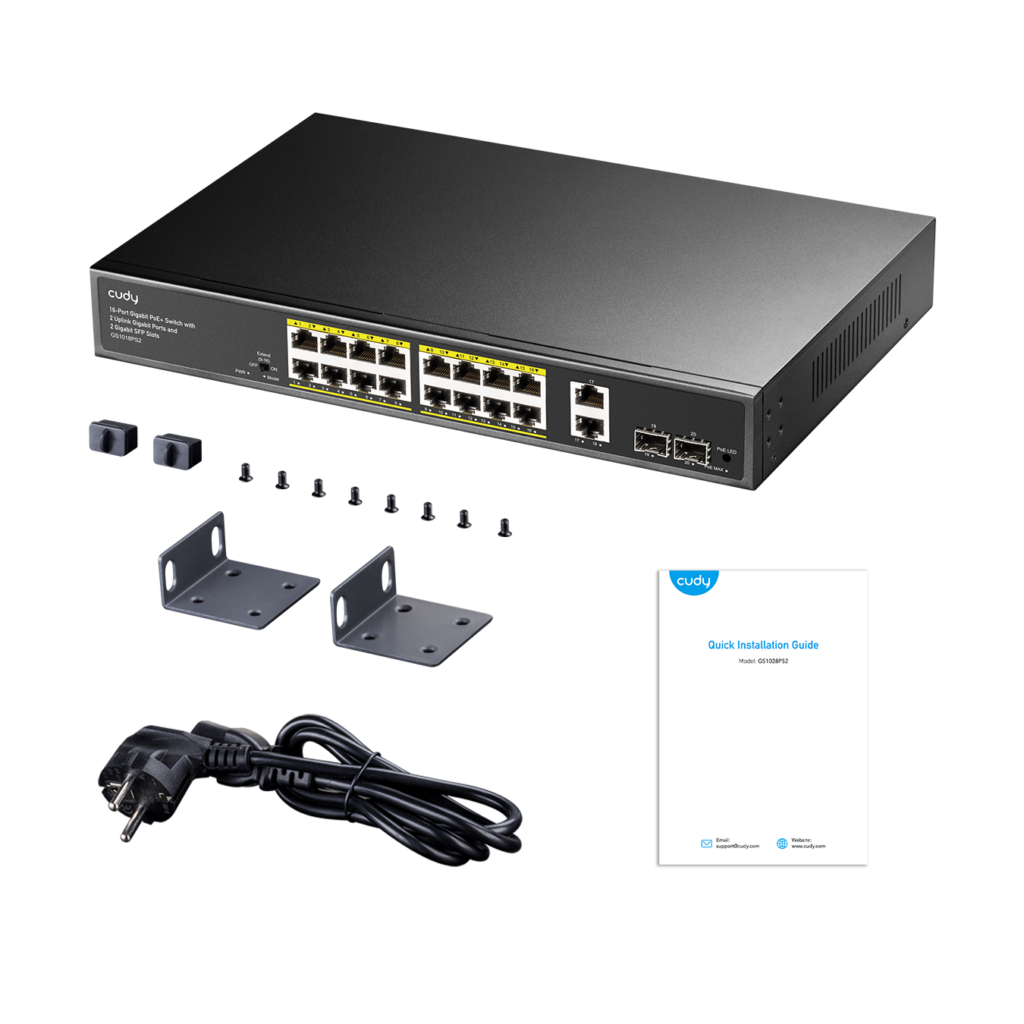

Cudy Switch PoE Gigabit 16PoE + 2GbE + 2SFP Uplink 200W - GS1018PS2 - 16PoE + 2GbE + 2SFP Uplink 200W

Артикул:
Бренд: Cudy
Штрихкод:
173.50 €

Cudy PoE Gigabit switch with 16 PoE ports, 2 uplink GbE, 2 SFP uplinks, and 200W PoE budget.

Доступно через 2–3 рабочих дней : 5 шт.

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
  • 16× GbE PoE Ports, 802.3at / 802.3af (30W per port)
  • 2× Uplink GbE, 2× Uplink SFP
  • Port 9-16 Supports Extend (CCTV) Mode for max 250 meters transmission
  • 200-watt total power supply
  • Watchdog detects unresponsive PoE clients and restores them under Extend mode
  • PoE Port Priority streamlines device power management

Connector Type:

  • 16× 10/100/1000 Mbps PoE Ports + 2× Uplink Gigabit Ports+ 2× Uplink SFP Slots
Network Protocol
  • IEEE 802.3 (Ethernet)
  • IEEE 802.3u (Fast Ethernet)
  • IEEE 802.3ab (Gigabit Ethernet)
  • IEEE 802.3x (Flow Control)
  • IEEE 802.3z (Gigabit Ethernet Fiber Standard)
PoE Parameters
  • PoE Standard: IEEE802.3af /IEEE802.3at
  • Max each port: 15.4W ( IEEE 802.3af )
  • Max each port：30W ( IEEE 802.3at )
  • PoE compatibility: IEEE 802.3af/at adaptive
  • PoE port output: DC48-55V
  • Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media
  • 10BASE-T: Cat 5E UTP(≤250 meter)
  • 100BASE-TX: Cat5 or more UTP (≤100 meter)
  • 1000BASE-TX: Cat5 or more UTP (≤100 meter)
Optical
  • Multimode optical fiber: 50/125, 62.5/125, 100/140um
  • Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Performance Specification
  • Bandwidth: 40Gbps
  • MAC: 8K
  • Packet Buffer Memory: 3 Mbit
  • Packet Forwarding Rate: 29.76 Mpps
Power Supply

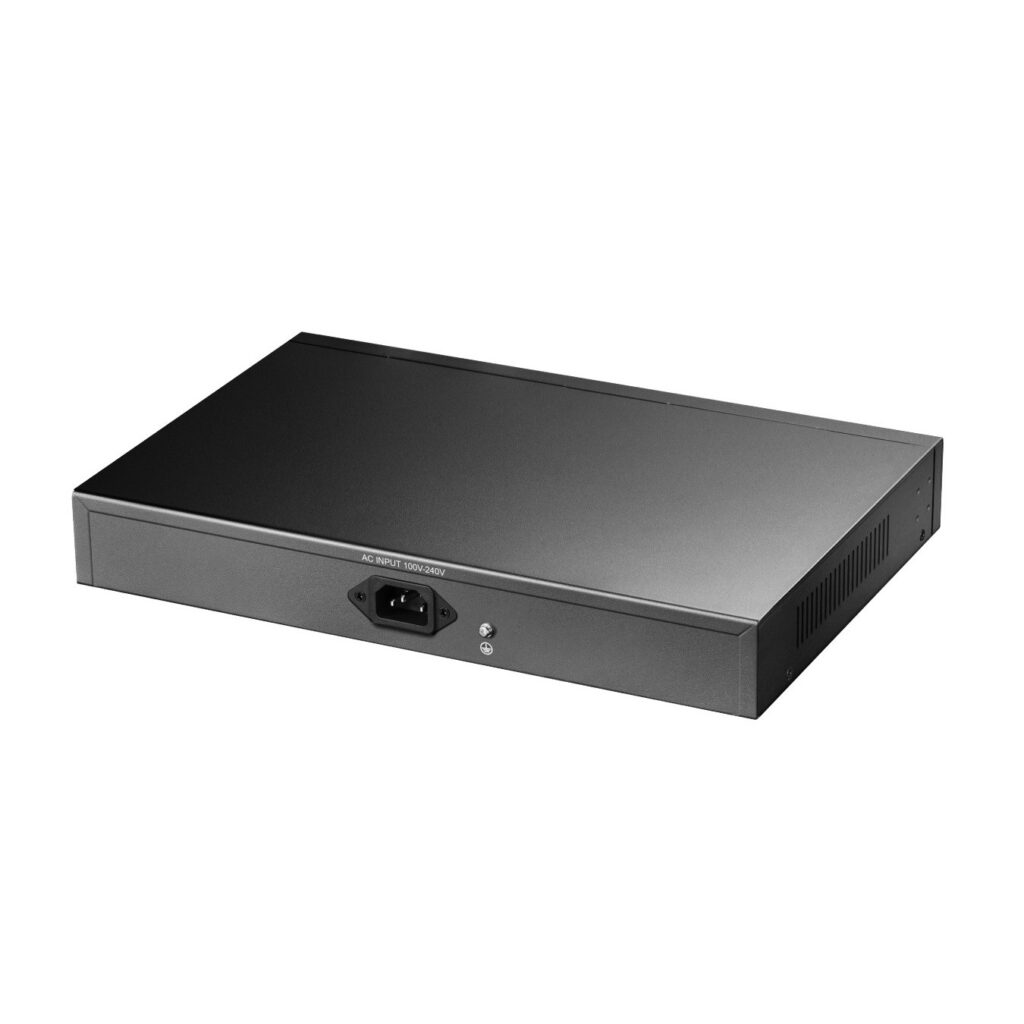

  • Power input: AC100-240V 50/60Hz,  Power Budget: 200 W
Working Environment
  • Operating Temperature: -20℃ ~ 50℃;
  • Storage Temperature: -40℃ ~ 80℃;
  • Operating Humidity: Max 90%, non-condensing
  • Storage Humidity: Max 95%, non-condensing
  • Working Height: Max to 10,000 feet (3,000 meters)
  • Storage Height: Max to 10,000 feet (3,000 meters)
