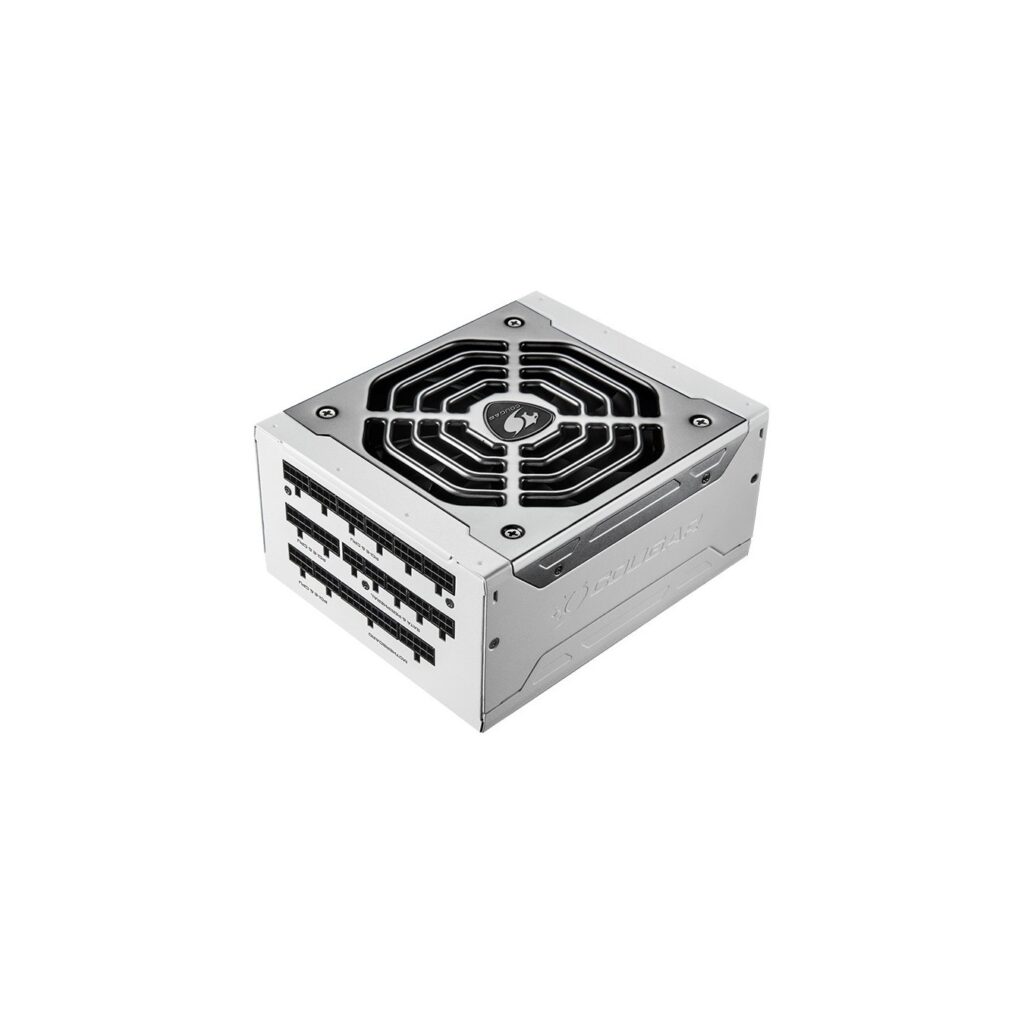

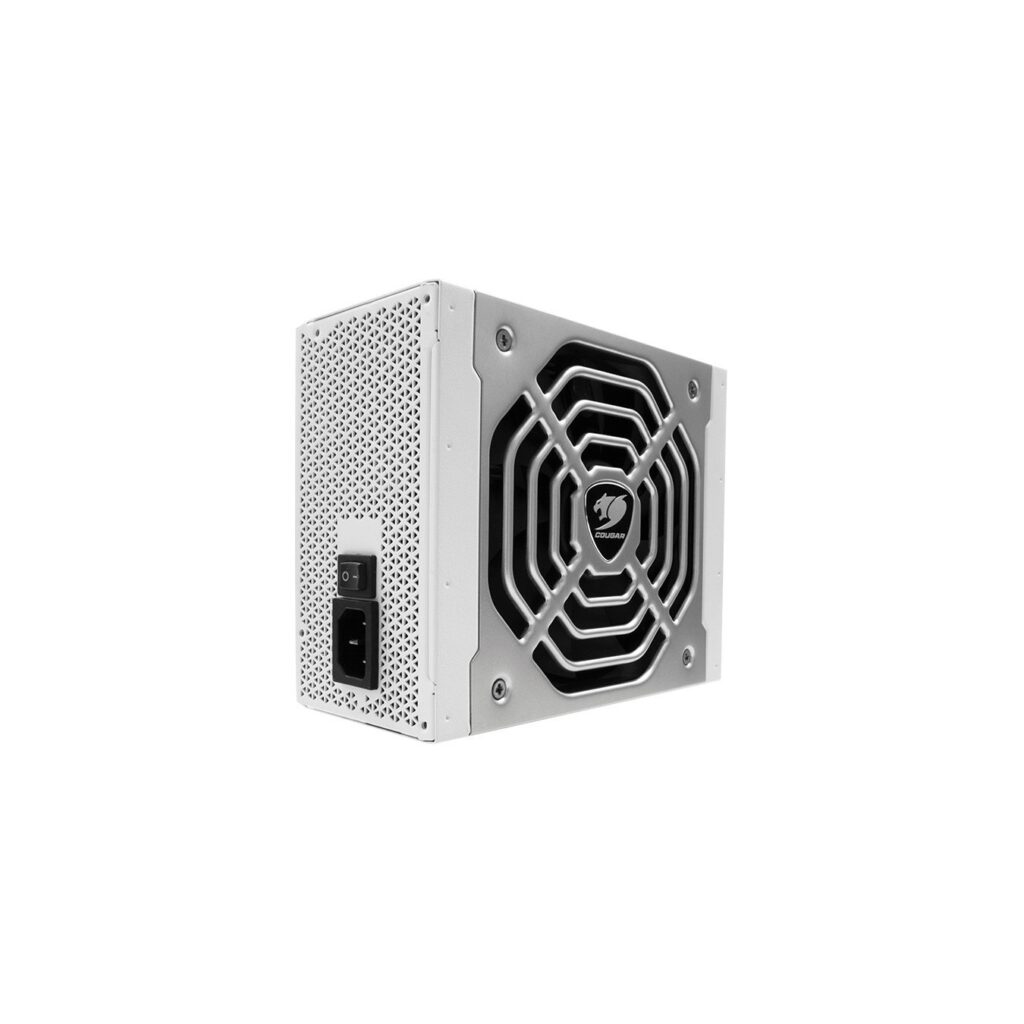

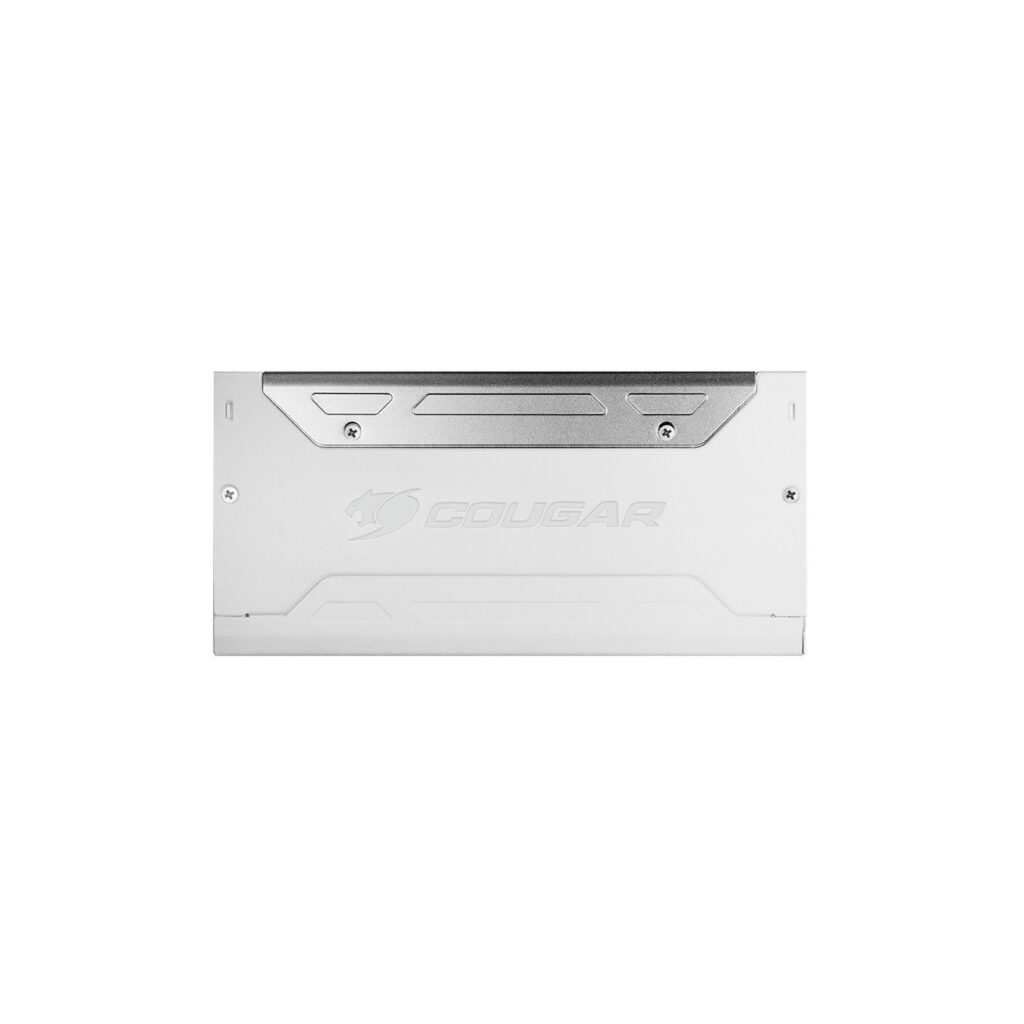

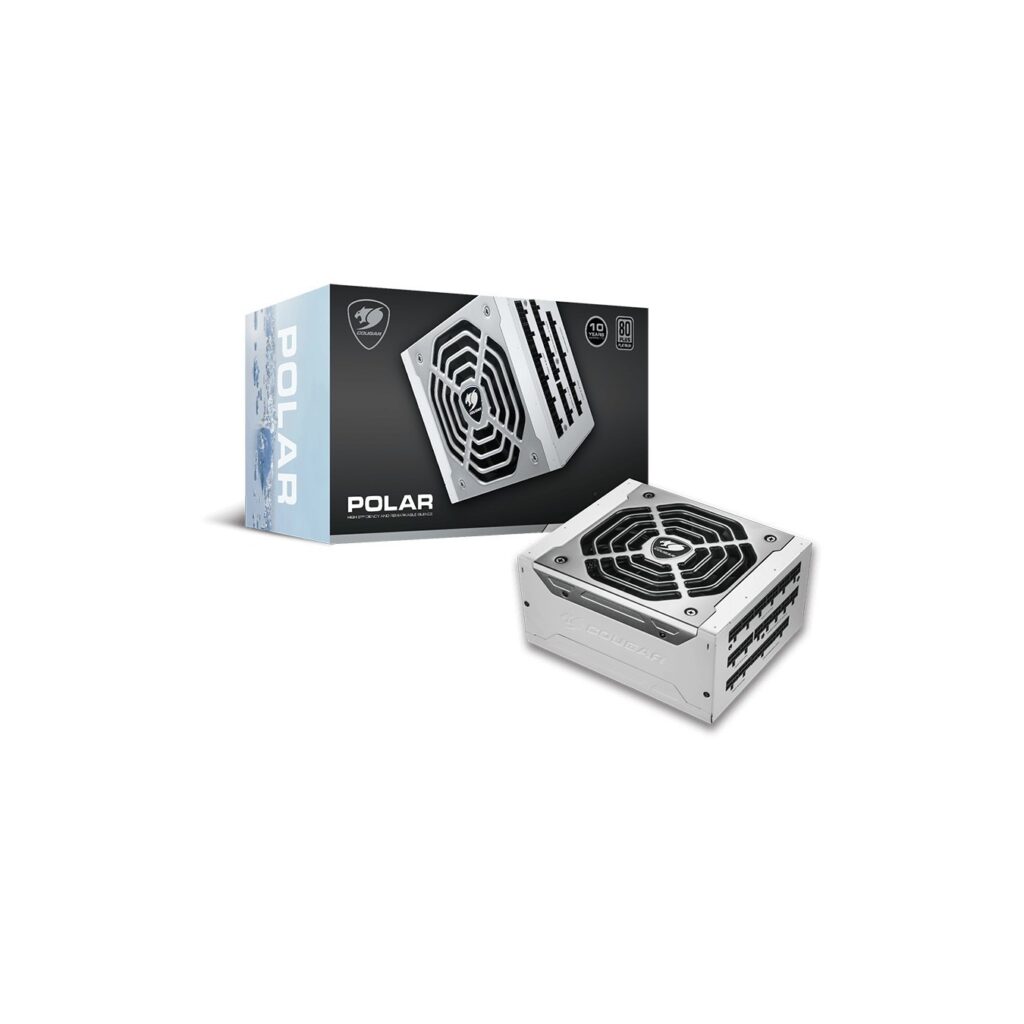

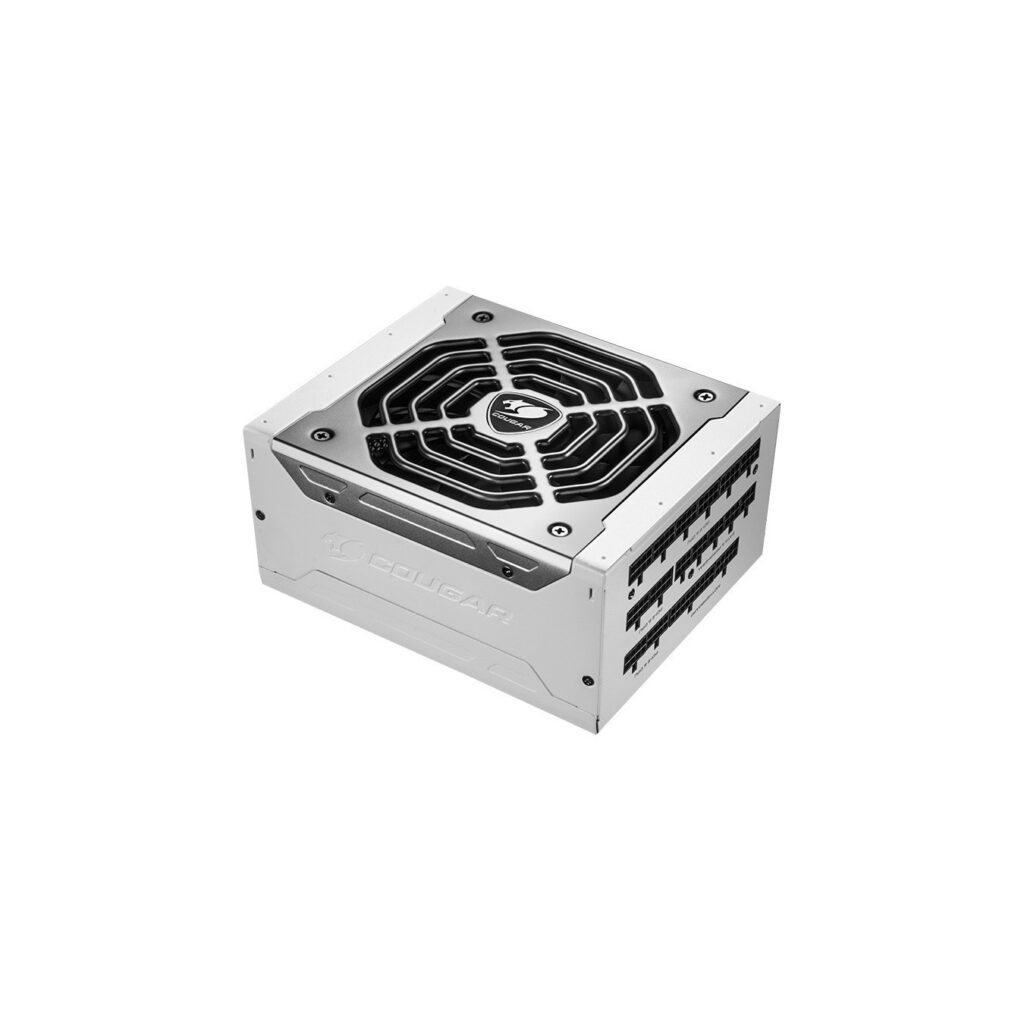

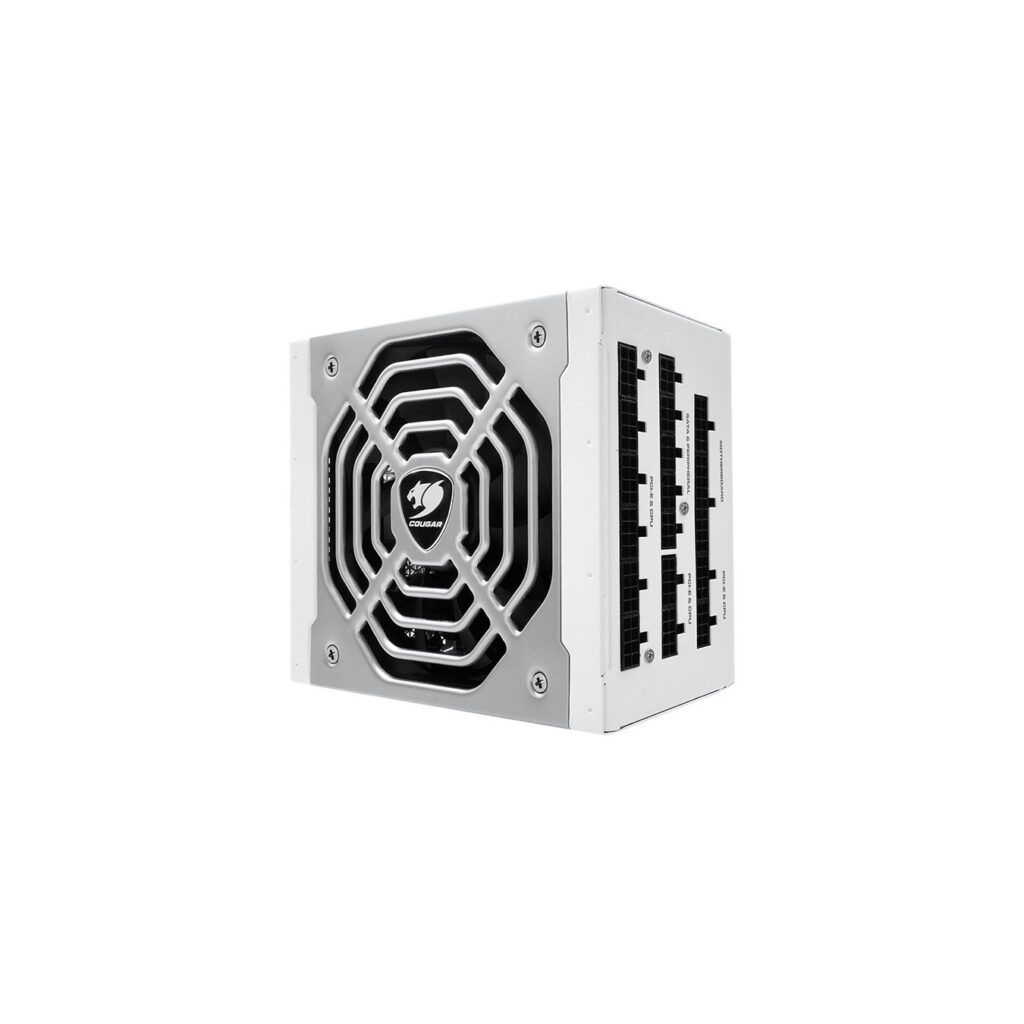

COUGAR Polar Power Supply - 1050W ATX3.1 80 Plus Platinum Modular
COUGAR Polar 1050W modular power supply with ATX3.1 and 80 Plus Platinum efficiency.
Доступно через 6–10 рабочих дней : 17 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
COUGAR Gaming POLAR. Total power: 1050 W. AC input voltage: 100 — 240 V. AC input frequency: 47 — 63 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 65 cm. SATA power cable length: 120.500 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Platinum. Product colour: Silver. Cooling type: Active. Fan diameter: 13.5 cm. Compliance certificates: CCC. CE. EAC. Federal Communications Commission (FCC). RoHS. TÜV mark
| Total power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 15 - 7 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 12 |
| Number of PATA power connectors | 4 |
| SATA power cable length | 120.500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 120.500 mm |

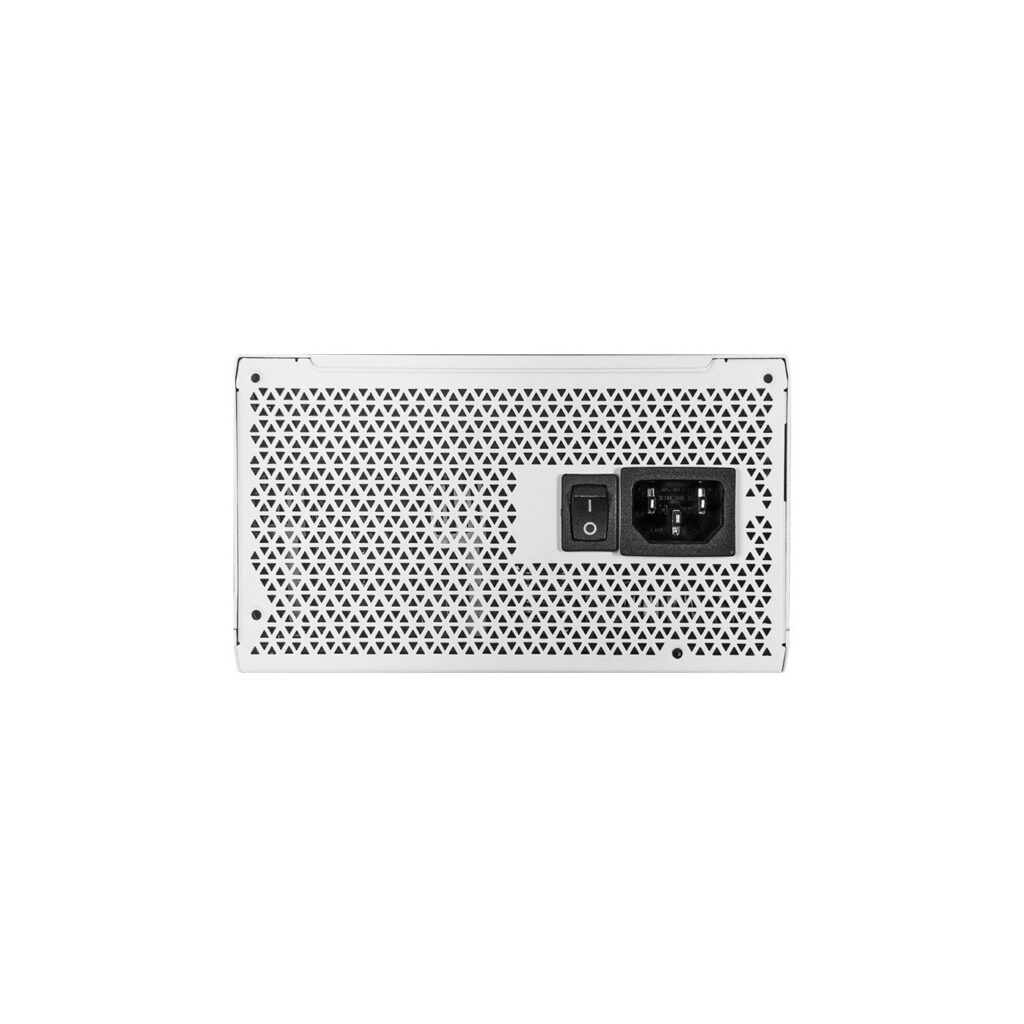

| Feature | On/off switch |
| PCI Express power connectors (6+2 pin) | 7 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 65 cm |
| CPU power cable length | 65 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Silver |
| Cooling type | Active |

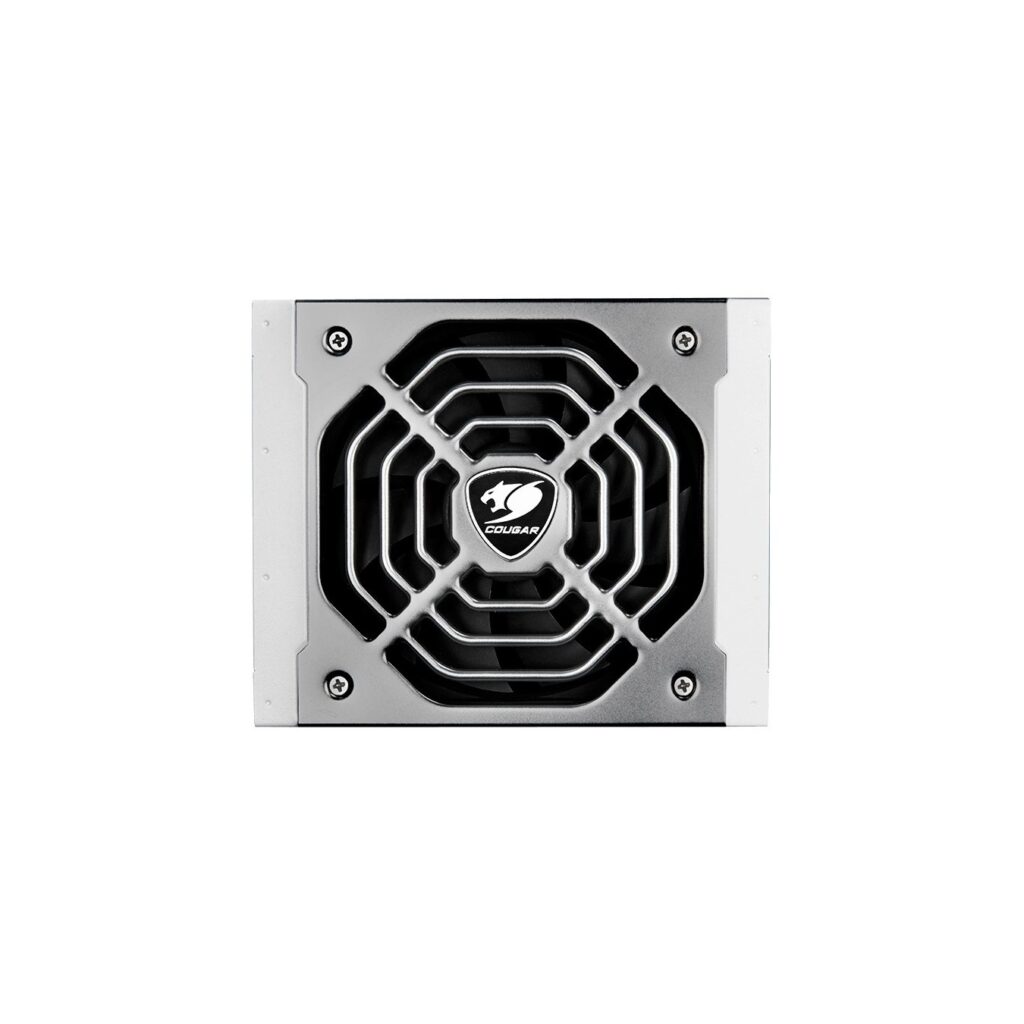

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CCC. CE. EAC. Federal Communications Commission (FCC). RoHS. TÜV mark |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
| Weight | 2.1 kg |
| Package width | 229 mm |
| Package depth | 331 mm |
| Package height | 107 mm |
| Package weight | 3.59 kg |
| Package type | Box |
