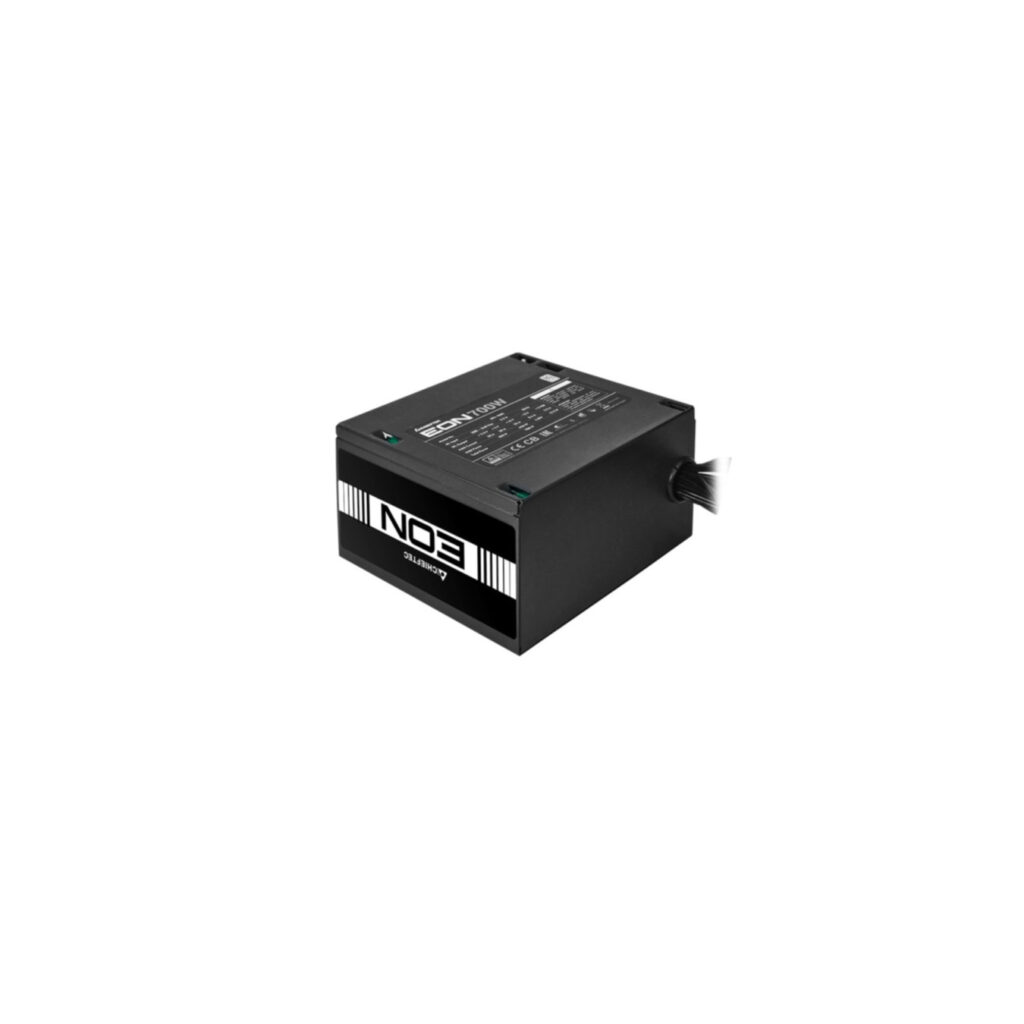

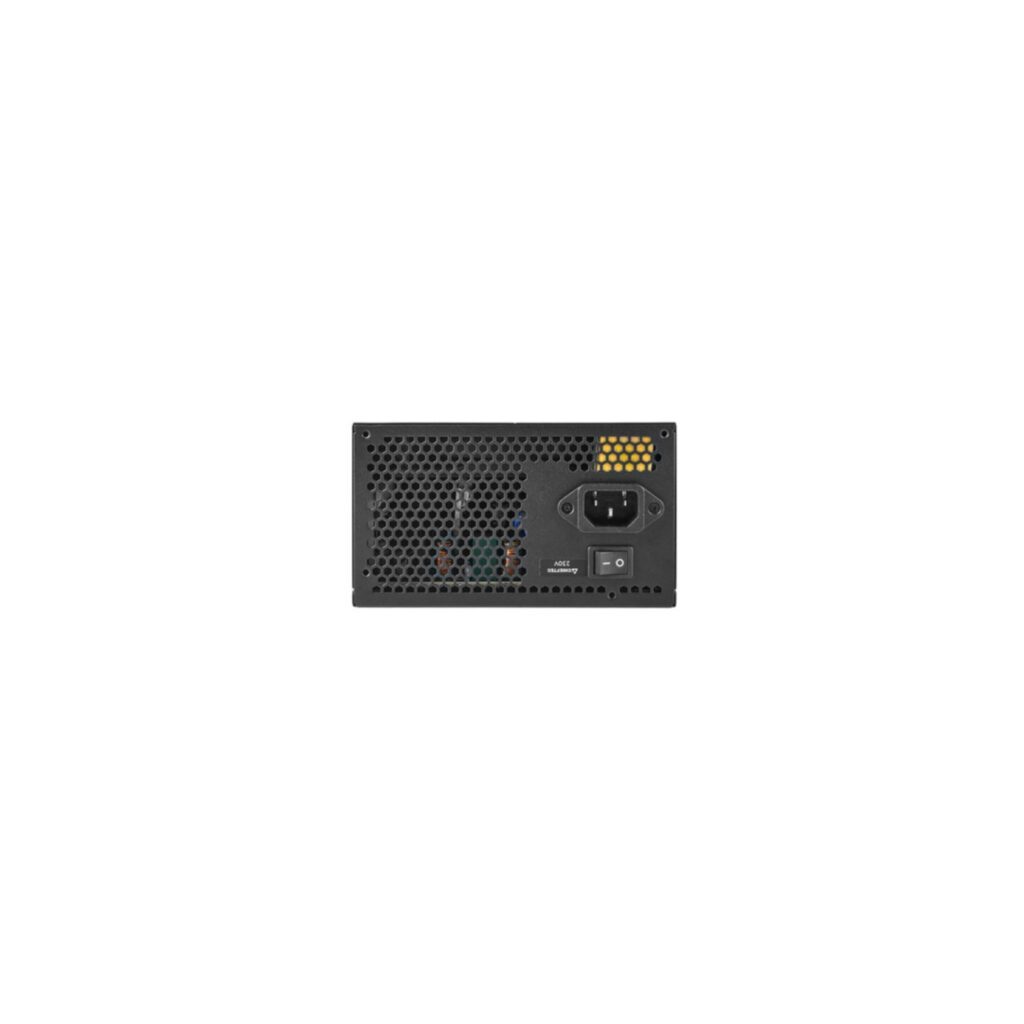

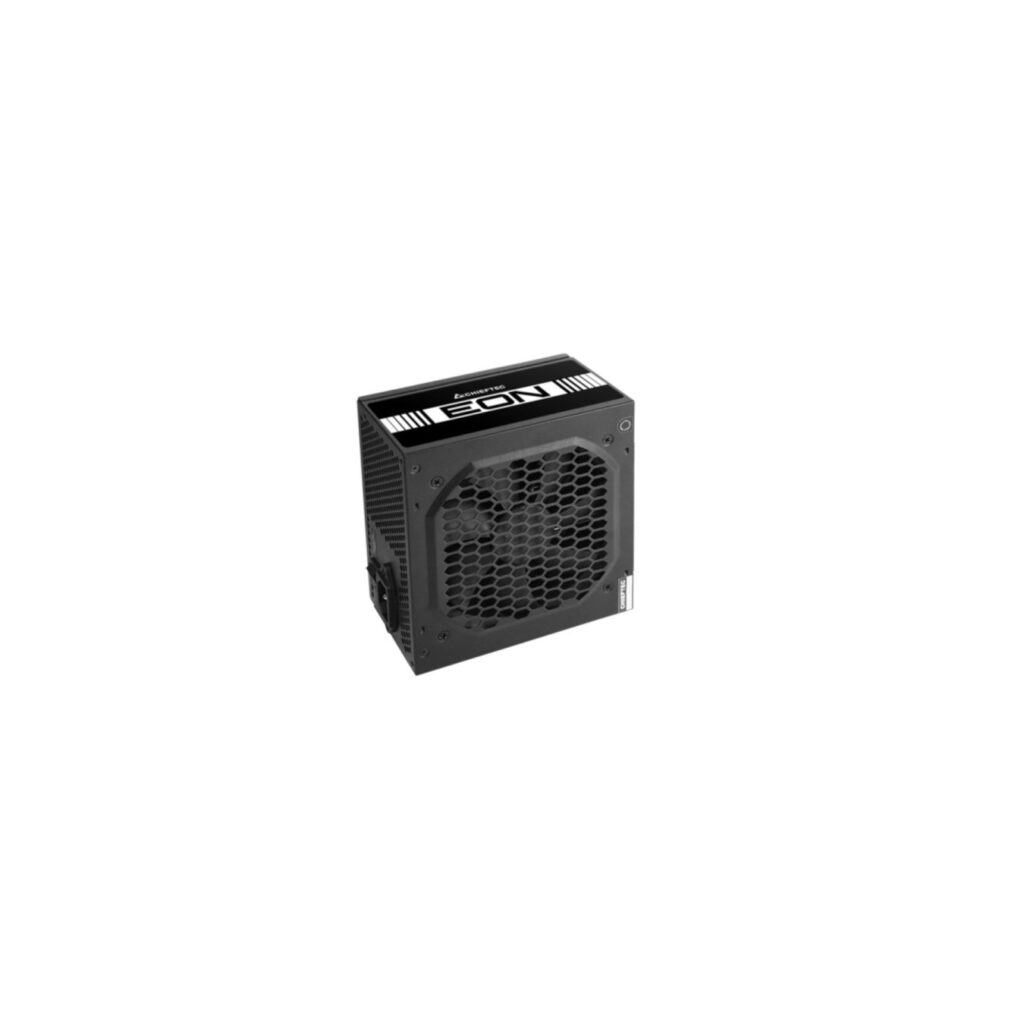

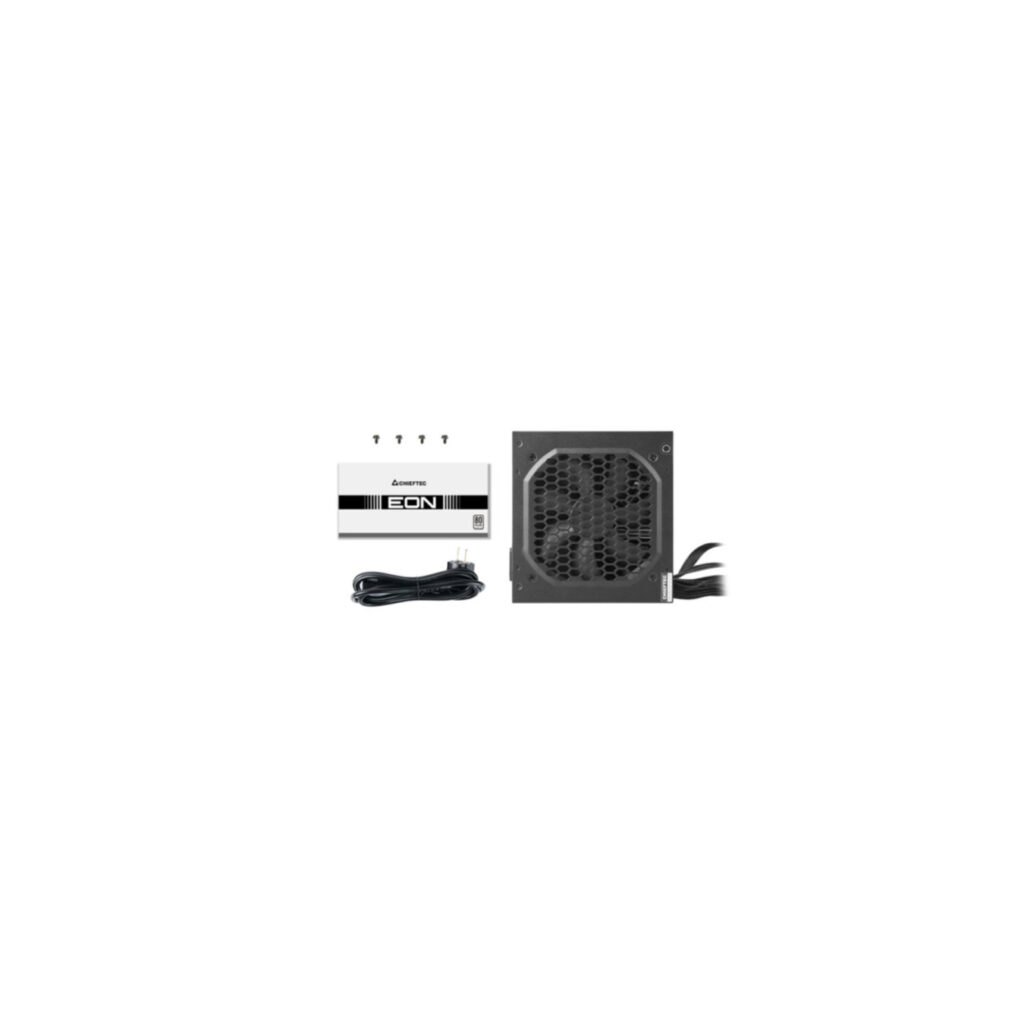

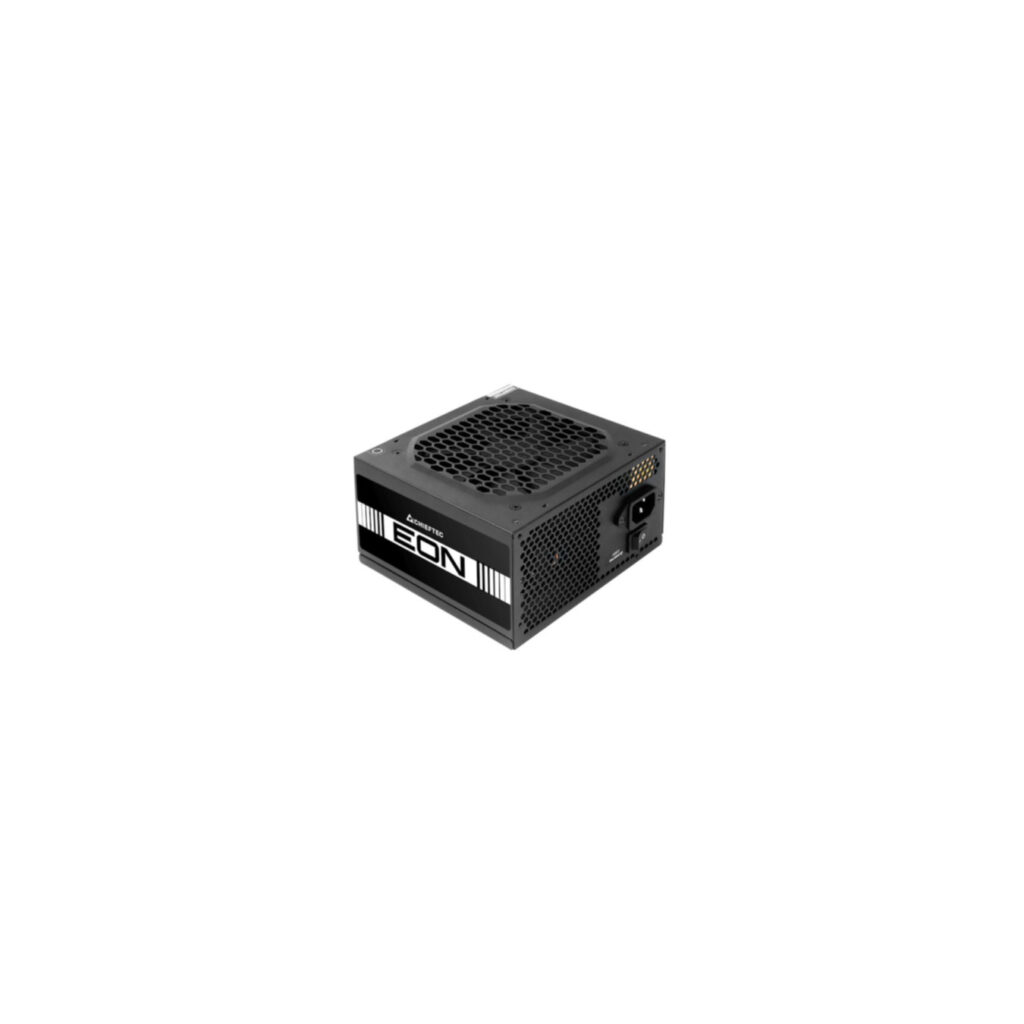

Chieftec EON ZPU-400S - 400W ATX Power Supply, Black, 80 PLUS, 120mm Fan
Chieftec EON ZPU-400S: 400W non-modular ATX PSU with 80 PLUS 230V EU efficiency, active PFC, silent 120mm fan, full protections, and extended cables for reliable PC power.
Доступно через 4–6 рабочих дней : 2 шт.
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Chieftec EON ZPU-400S delivers 400W of reliable power in a non-modular ATX form factor, certified 80 PLUS Standard for 230V EU with active PFC (0.9 PF) for efficient operation.

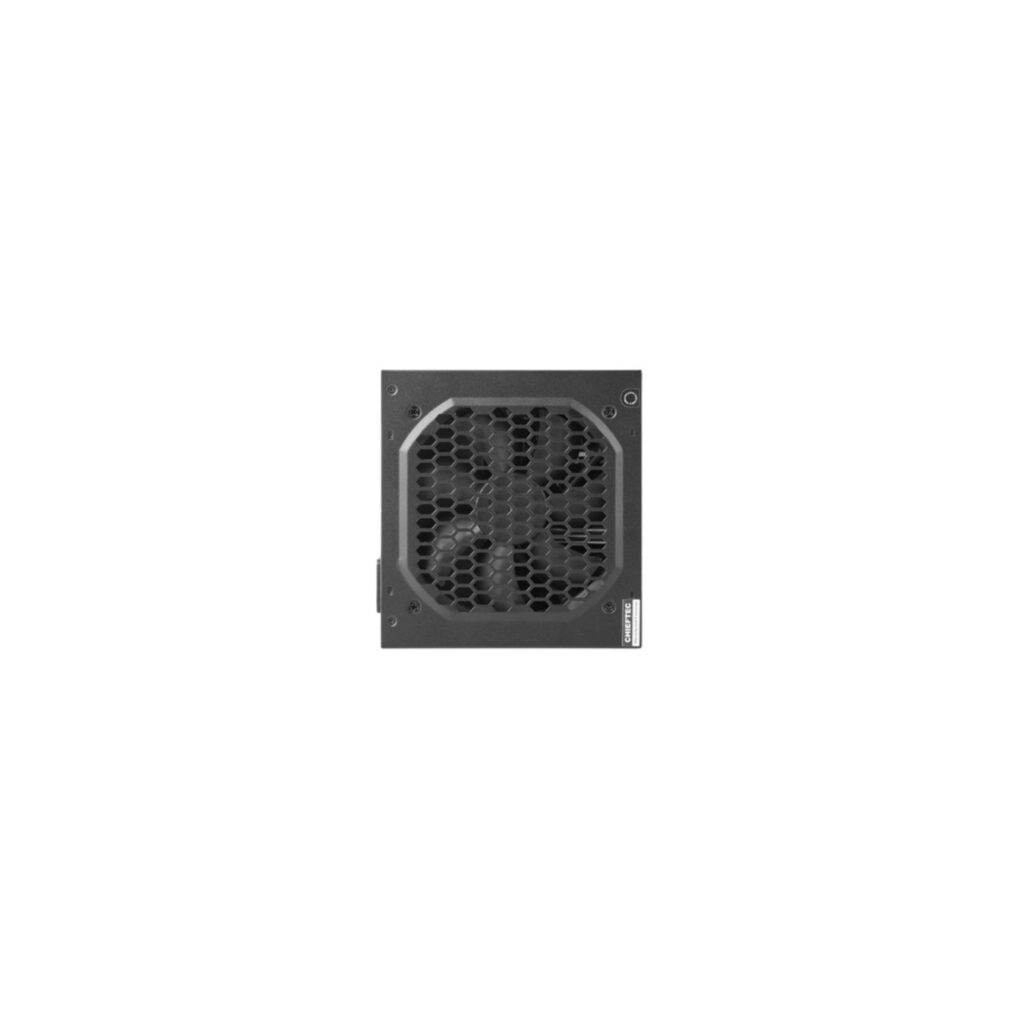

Equipped with a silent 120mm fan, steel black chassis, and extra-long native cables including 55cm ATX 20+4pin, EPS 4+4pin CPU, 1x PCIe 6+2pin, 4x SATA, and 2x Molex connectors. Multi-protection safeguards against short circuit, over/under voltage, over power, and inrush.
- Total Power: 400W continuous
- Efficiency: 80 PLUS Standard 230V EU
- Connectors: 20+4pin ATX, 4+4pin EPS, 1x 6+2pin PCIe, 4x SATA, 2x 4pin Molex
- Dimensions: 150x86x140mm; Warranty: 2 years
| Total power | 400 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 3 A |
| Maximum input current (@220V) | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 30 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Short circuit, Over Voltage, Under Voltage, Over Power, Surge and Inrush |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 550, 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150, 450 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Standard 230V EU |
| Supported motherboard form factors | ATX |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Compliance certificates | CB, CE, EAC, RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.15 kg |
| Package weight | 1.4 kg |
| Package type | Box |
| Sustainability certificates | ErP |
| Warranty period | 2 year(s) |
